ATEX IP66 Cable Gland Explosion Proof Ex Proof Cable Gland IECEx

Buy Now M20*1.5 Explosion Proof Cable Glands Exproof Unarmoured for Hazardous Areas Ex d Metal Non-armoured Zone 1 2 21

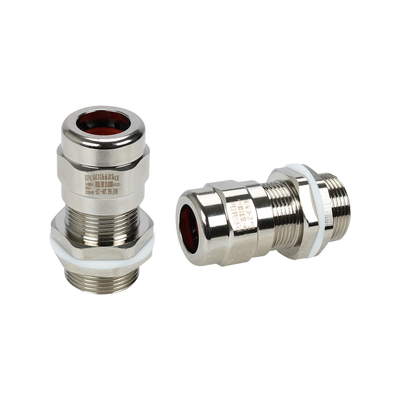

• EX-QM01-A1

• FEATURES

ATEX and IECEx certified for safe use in potentially explosive atmospheres

Single seal, suitable for unarmored cable.

Ex e, structure.

Degree of protection: IP66/IP68.

• APPLICATION

• TECHNICAL DATA

Marking ATEX

Ⅱ2 GD Ex eb ⅡC Gb

Ex tb ⅢC Db IP66/IP68

Marking ATEX

Ex eb ⅡC Gb

Ex tb ⅢC Db IP66/IP68

Standards

EN60079-0, EN60079-1, EN60079-7, EN60079-31, IEC 60079-0, IEC60079-1, IEC60079-7, IEC60079-31

Ambient Temperature:-50℃ ≦ Tamb ≦ +80℃

Connection Thread:Metric Thread, NPT Thread

• SELECTION TABLE OF CABLE GLAND

Gland Size	Available Entry Thread AG(mm)		Overall Cable Diameter ΦB(mm)		Minimum Thread Length GL(mm)	Nominal Protrusion Length L(mm)	Across Flats/Corner S(ΦE) (mm)
	Metric	NPT	Min	Max
16	M16*1.5	NPT3/8	9.5	12	16	30	27(29)
20	M20*1.5	NPT1/2	9.5	16.5	16	30	27(29)
25	M25*1.5	NPT3/4	14	20	16	38	34(37)
32	M32*1.5	NPT1	18	26	18	44	40(44)
40	M40*1.5	NPT1 1/4	24	32.5	18	46	50(55)
50	M50*1.5	NPT1 1/2	30	41	20	50	60(67)
63	M63*1.5	NPT2	40	52	21	64	68(73)
75	M75*1.5	NPT2 1/2	50	65	22	70	86(89)
90	M90*1.5	NPT3	62	77	22	80	102(105)

• SCHEMATIC DIAGRAM

• ORDERING GUIDE

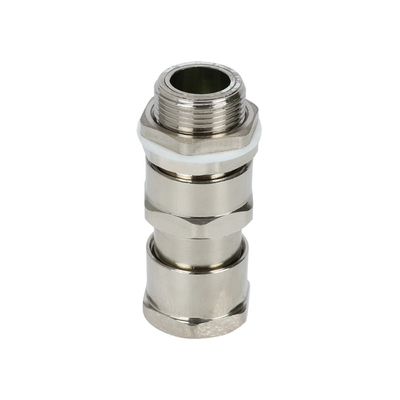

• EX-QM03-C1K

• FEATURES

ATEX and IECEx certified for safe use in potentially explosive atmospheres

Single seal, suitable for armored cable.

Valid over the entire temperature range from -50°C to 80°C (-58 ºF to 176ºF)

Degree of protection: IP66/IP68

• APPLICATION

• TECHNICAL DATA

Marking ATEX

Ⅱ2 GD Ex eb ⅡC Gb

Ex db ⅡC Gb Ex tb ⅢC Db IP66/IP68

Marking IECEx

Ex eb ⅡC Gb

Ex db ⅡC Gb Ex tb ⅢC Db IP66/IP68

Standards

EN60079-0, EN60079-1, EN60079-7, EN60079-31, IEC 60079-0, IEC60079-1, IEC60079-7, IEC60079-31

Ambient Temperarture:-50℃ ≦ Tamb ≦ +80℃

Connection Thread:Metric Thread, NPT Thread

• SELECTION TABLE OF CABLE GLAND

Gland Size	Available Entry Thread AG(mm)		Overall Cable Diameter			Minimum Thread Length GL(mm)	Nominal Protrusion Length L(mm)	Across Flats/Corner S(ΦE) (mm)
			ΦB(mm)		ΦC(mm)
	Metric	NPT	Min	Max	Max
16	M16*1.5	NPT3/8	9.5	12	/	16	65	24(29)
20	M20*1.5	NPT1/2	9.5	16.5	/	16	67	30(34)
25	M25*1.5	NPT3/4	14	20	/	16	71	36(40)
32	M32*1.5	NPT1	18	26	/	18	76	45(51)
40	M40*1.5	NPT1 1/4	24	32.5	/	18	76	55(61)
50	M50*1.5	NPT1 1/2	30	41	/	20	91	68(74)
63	M63*1.5	NPT2	40	52	/	21	98	86(95)
75	M75*1.5	NPT2 1/2	50	65	/	22	102	95(109)

• SCHEMATIC DIAGRAM

• ORDERING GUIDE



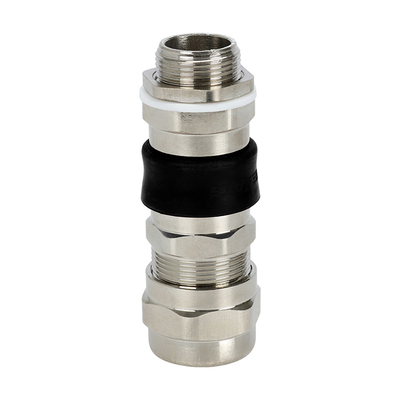

• EX-QM04-B1K

• FEATURES

ATEX and IECEx certified for safe use in potentially explosive atmospheres

Dual seal, suitable for armored cable.

Valid over the entire temperature range from -50°C to 80°C (-58 ºF to 176ºF)

Degree of protection: IP66/IP68.

• APPLICATION

• TECHNICAL DATA

Marking ATEX

Ⅱ2 GD Ex eb ⅡC Gb/ Ex db ⅡC Gb

Ex tb ⅢC Db IP66/IP68

Marking IECEx

Ex eb ⅡC Gb/ Ex db ⅡC Gb

Ex tb ⅢC Db IP66/IP68

Standards

EN60079-0, EN60079-1, EN60079-7, EN60079-31, IEC 60079-0, IEC60079-1, IEC60079-7, IEC60079-31

Ambient Temperarture:-50℃ ≦ Tamb ≦ +80℃

Connection Thread:Metric Thread, NPT Thread

• SELECTION TABLE OF CABLE GLAND

Gland Size	Available Entry Thread AG(mm)		Overall Cable Diameter				Minimum Thread Length GL(mm)	Nominal Protrusion Length L(mm)	Across Flats/Corner S(ΦE) (mm)
			ΦB(mm)		ΦC(mm)
	Metric	NPT	Min	Max	Min	Max
16	M16*1.5	NPT3/8	9.5	12	6.5	10.5	16	65	24(29)
20	M20*1.5	NPT1/2	9.5	16.5	10	14.5	16	67	30(34)
25	M25*1.5	NPT3/4	14	20	12.5	19.5	16	71	36(40)
32	M32*1.5	NPT1	18	26	19	25.5	18	76	45(51)
40	M40*1.5	NPT1 1/4	24	32.5	25	31	18	76	55(61)
50	M50*1.5	NPT1 1/2	30	41	31.5	43	20	91	68(74)
63	M63*1.5	NPT2	40	52	42.5	50	21	98	86(95)
75	M75*1.5	NPT2 1/2	50	65	54.5	65	22	102	95(109)

• SCHEMATIC DIAGRAM

• ORDERING GUIDE

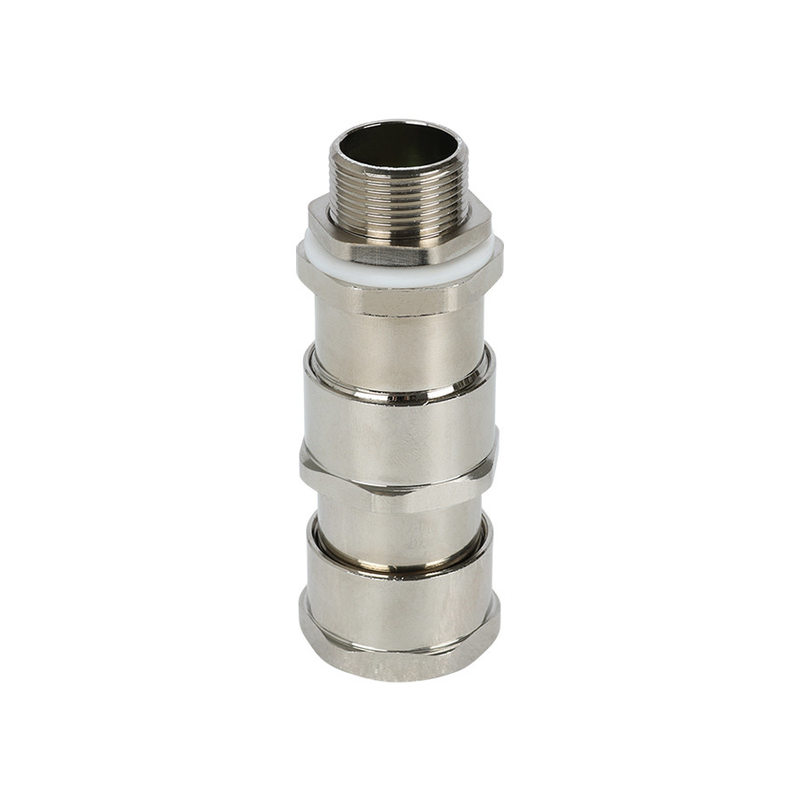

• EX-QM05-C1K



• FEATURES

ATEX and IECEx certified for safe use in potentially explosive atmospheres

Single seal, suitable for armored cable.

Valid over the entire temperature range from -50°C to 80°C (-58 ºF to 176ºF)

Degree of protection: IP66/IP68.

• APPLICATION

Marking ATEX

Ⅱ2 GD Ex eb ⅡC Gb/ Ex db ⅡC Gb

Ex tb ⅢC Db IP66/IP68

Marking IECEx

Ex eb ⅡC Gb/ Ex db ⅡC Gb

Ex tb ⅢC Db IP66/IP68

Standards

EN60079-0, EN60079-1, EN60079-7, EN60079-31, IEC 60079-0, IEC60079-1, IEC60079-7, IEC60079-31

Ambient Temperarture:-50℃ ≦ Tamb ≦ +80℃

Connection Thread:Metric Thread, NPT Thread

• SELECTION TABLE OF CABLE GLAND

Gland Size	Available Entry Thread AG(mm)		Overall Cable Diameter			Minimum Thread Length L1(mm)	Total Length l(mm)	Across Flats/Corner S(ΦE) (mm)
			ΦB(mm)		ΦC(mm)
	Metric	NPT	Min	Max	Max
16	M16*1.5	NPT3/8	7	16	8	15	85	24(27)
20	M20*1.5	NPT1/2	7	16	10.5	15	87	24(27)
25	M25*1.5	NPT3/4	14	20	15	15	88	30(33)
32	M32*1.5	NPT1	18	25	20	17	96	36(39)
40	M40*1.5	NPT1 1/4	24	33	27	19	105	45(50)
50	M50*1.5	NPT1 1/2	31	40	31	19	108	55(60)
63	M63*1.5	NPT2	41	50	41	20	118	68(73)
75	M75*1.5	NPT2 1/2	52	63	55	21	124	86(89)
90	M90*1.5	NPT3	65	76	65	24	128	96(99)

• SCHEMATIC DIAGRAM

• ORDERING GUIDE

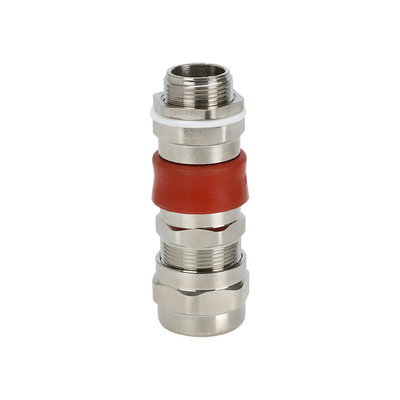

• EX-QM06-B1K

• FEATURES

ATEX and IECEx certified for safe use in potentially explosive atmospheres

Dual seal, suitable for armored cable.

Valid over the entire temperature range from -50°C to 80°C (-58 ºF to 176ºF)

Degree of protection: IP66/IP68.

• APPLICATION

• TECHNICAL DATA

Marking ATEX

Ⅱ2 GD Ex eb ⅡC Gb/Ex db ⅡC Gb

Ex tb ⅢC Db IP66/IP68

Marking ATEx

Ex eb ⅡC Gb/ Ex db ⅡC Gb

Ex tb ⅢC Db IP66/IP68

Standards

EN60079-0, EN60079-1, EN60079-7, EN60079-31, IEC 60079-0, IEC60079-1, IEC60079-7, IEC60079-31

Ambient Temperarture:-50℃ ≦ Tamb ≦ +80℃

Connection Thread:Metric Thread, NPT Thread

• SELECTION TABLE OF CABLE GLAND

Gland Size	Available Entry Thread (mm)		Overall Cable Diameter				Minimum Thread Length L1(mm)	Total Length L(mm)	Across Flats/Corner S(ΦE) (mm)
			ΦB(mm)		ΦC(mm)
	Metric	NPT	Min	Max	Min	Max
16	M16*1.5	NPT3/8	7	16	5	8	15	85	24(27)
20	M20*1.5	NPT1/2	7	16	5	10.5	15	87	24(27)
25	M25*1.5	NPT3/4	14	20	8	15	15	88	30(33)
32	M32*1.5	NPT1	18	25	11	20	17	96	36(39)
40	M40*1.5	NPT1 1/4	24	33	14	27	19	105	45(50)
50	M50*1.5	NPT1 1/2	31	40	20	31	19	108	55(60)
63	M63*1.5	NPT2	41	50	30	41	20	118	68(73)
75	M75*1.5	NPT2 1/2	52	63	42	55	21	124	86(89)
90	M90*1.5	NPT3	65	76	52	65	24	128	96(99)

• SCHEMATIC DIAGRAM

• ORDERING GUIDE

• EX-QM10-B1

• FEATURES

ATEX and IECEx certified for safe use in potentially explosive atmospheres

Single seal, suitable for unarmored cable

Ex d structure.

Degree of protection: IP66/IP68.

• APPLICATION

• TECHNICAL DATA

Marking ATEX

Ⅱ2 GD Ex eb ⅡC Gb/ Ex db IIC Gb

Ex tb ⅢC Db IP66/IP68

Marking ATEx

Ex eb ⅡC Gb/ Ex db ⅡC Gb

Ex tb ⅢC Db IP66/IP68

Standards

EN60079-0, EN60079-1, EN60079-7, EN60079-31, IEC 60079-0, IEC60079-1, IEC60079-7, IEC60079-31

Ambient Temperarture:-50℃ ≦ Tamb ≦ +80℃

Connection Thread:Metric Thread, NPT Thread

• SELECTION TABLE OF CABLE GLAND

Gland Size	Available Entry Thread (mm)		Overall Cable Diameter ΦB(mm)		Minimum Thread Length L1(mm)	Total Length L(mm)	Across Flats/Corner S(ΦE) (mm)
	Metric	NPT	Min	Max
16	M16*1.5	NPT3/8	4	7	16	62	27(29)
20	M20*1.5	NPT1/2	5	8	16	62	27(29)
25	M25*1.5	NPT3/4	8	12	16	62	30(33)
32	M32*1.5	NPT1	12	16	18	67	38(42)
40	M40*1.5	NPT1 1/4	16	24	20	77	45(50)
50	M50*1.5	NPT1 1/2	18	28	20	79	55(60)
63	M63*1.5	NPT2	25.5	38	20	81	68(73)
75	M75*1.5	NPT2 1/2	29	46	20	100	85(89)
90	M90*1.5	NPT3	41	60	21	100	98(102)

• SCHEMATIC DIAGRAM

• ORDERING GUIDE

• EX-QM10-B1

• FEATURES

ATEX and IECEx certified for safe use in potentially explosive atmospheres

Single seal, suitable for unarmored cable

Ex d structure.

Degree of protection: IP66/IP68.

• APPLICATION

• TECHNICAL DATA

Marking ATEX

Ⅱ2 GD Ex eb ⅡC Gb/ Ex db IIC Gb

Ex tb ⅢC Db IP66/IP68

Marking ATEx

Ex eb ⅡC Gb/ Ex db ⅡC Gb

Ex tb ⅢC Db IP66/IP68

Standards

EN60079-0, EN60079-1, EN60079-7, EN60079-31, IEC 60079-0, IEC60079-1, IEC60079-7, IEC60079-31

Ambient Temperarture:-50℃ ≦ Tamb ≦ +80℃

Connection Thread:Metric Thread, NPT Thread

• SELECTION TABLE OF CABLE GLAND

Gland Size	Available Entry Thread (mm)		Overall Cable Diameter ΦB(mm)		Minimum Thread Length L1(mm)	Nominal Protrusion Length(mm)	Across Flats/Corner S(ΦE) (mm)
	Metric	NPT	Min	Max
16	M16*1.5	/	5	8	15	30	24(27)
20	M20*1.5	NPT1/2	7.5	11.5	15	30	24(27)
25	M25*1.5	NPT3/4	11	14.5	15	30	30(33)
32	M32*1.5	NPT1	14	20	20	32	36(39)
40	M40*1.5	NPT1 1/4	19	20	20	32	45(50)
50	M50*1.5	NPT1 1/2	25	32	20	36	55(60)
63	M63*1.5	NPT2	31.5	42.5	20	37	68(73)

• SCHEMATIC DIAGRAM

• ORDERING GUIDE

• EX-QM13-B1T

• FEATURES

ATEX and IECEx certified for safe use in potentially explosive atmospheres

Single seal, suitable for unarmored cable

Ex d structure.

Degree of protection: IP66/IP68.

• APPLICATION

• TECHNICAL DATA

Marking ATEX

Ⅱ2 GD Ex eb ⅡC Gb/ Ex db IIC Gb

Ex tb ⅢC Db IP66/IP68

Marking ATEx

Ex eb ⅡC Gb/ Ex db ⅡC Gb

Ex tb ⅢC Db IP66/IP68

Standards

EN60079-0, EN60079-1, EN60079-7, EN60079-31, IEC 60079-0, IEC60079-1, IEC60079-7, IEC60079-31

Ambient Temperarture:-50℃ ≦ Tamb ≦ +80℃

Connection Thread:Metric Thread, NPT Thread

• SELECTION TABLE OF CABLE GLAND

Gland Size	Available Entry Thread (mm)		Overall Cable Diameter ΦB(mm)		Minimum Thread Length L1(mm)	Nominal Protrusion Length(mm)	Across Flats/Corner S(ΦE) (mm)
	Metric	NPT	Min	Max
16	M16*1.5	/	5	8	15	40	24(27)
20	M20*1.5	NPT1/2	7.5	11.5	15	40	24(27)
25	M25*1.5	NPT3/4	11	14.5	15	40	30(33)
32	M32*1.5	NPT1	14	20	20	44	36(39)
40	M40*1.5	NPT1 1/4	19	20	20	48	45(50)
50	M50*1.5	NPT1 1/2	25	32	20	49	55(60)
63	M63*1.5	NPT2	31.5	43.5	20	63	68(73)

• SCHEMATIC DIAGRAM

• ORDERING GUIDE

• EX-QM18-C1

• FEATURES

ATEX and IECEx certified for safe use in potentially explosive atmospheres

Single seal, suitable for unarmored cable

Ex d structure.

Degree of protection: IP66/IP68.

• APPLICATION

• TECHNICAL DATA

Marking ATEX

Ⅱ2 GD Ex eb ⅡC Gb/ Ex db IIC Gb

Ex tb ⅢC Db IP66/IP68

Marking ATEx

Ex eb ⅡC Gb/ Ex db ⅡC Gb

Ex tb ⅢC Db IP66/IP68

Standards

EN60079-0, EN60079-1, EN60079-7, EN60079-31, IEC 60079-0, IEC60079-1, IEC60079-7, IEC60079-31

Ambient Temperarture:-50℃ ≦ Tamb ≦ +80℃

Connection Thread:Metric Thread, NPT Thread

• SELECTION TABLE OF CABLE GLAND

Gland Size	Available Entry Thread (mm)		Overall Cable Diameter ΦB(mm)		Minimum Thread Length L1(mm)	Nominal Protrusion Length(mm)	Across Flats/Corner S(ΦE) (mm)
	Metric	NPT	Min	Max
16	M16*1.5	/	5	8	15	57	24(27)
20	M20*1.5	NPT1/2	5	8	15	57	24(27)
20	M20*1.5	NPT1/2	7.5	11.5	15	57	24(27)
25	M25*1.5	NPT3/4	11	14.5	15	57	30(33)
32	M32*1.5	NPT1	14	20	20	59	36(39)
40	M40*1.5	NPT1 1/4	19	26	20	60	45(50)
50	M50*1.5	NPT1 1/2	25	32	20	62	55(60)
63	M63*1.5	NPT2	31.5	43.5	20	73	68(73)

• SCHEMATIC DIAGRAM

• ORDERING GUIDE



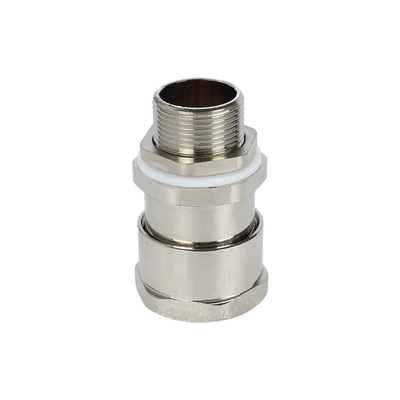

• EX-QM21-C1K

• FEATURES

ATEX and IECEx certified for safe use in potentially explosive atmospheres

Single seal, suitable for unarmored cable.

Valid over the entire temperature range from -50°C to 80°C (-58 ºF to 176ºF)

Degree of protection: IP66/IP68.

• APPLICATION

• TECHNICAL DATA

Marking ATEX

Ⅱ2 GD Ex eb ⅡC Gb/Ex db ⅡC Gb

Ex tb ⅢC Db IP66/IP68

Marking ATEx

Ex eb ⅡC Gb/ Ex db ⅡC Gb

Ex tb ⅢC Db IP66/IP68

Standards

EN60079-0, EN60079-1, EN60079-7, EN60079-31, IEC 60079-0, IEC60079-1, IEC60079-7, IEC60079-31

Ambient Temperarture:-50℃ ≦ Tamb ≦ +80℃

Connection Thread:Metric Thread, NPT Thread

• SELECTION TABLE OF CABLE GLAND

Gland Size	Available Entry Thread (mm)		Overall Cable Diameter			Minimun Thread Length L1(mm)	Total Length L(mm)	Across Flats/Corner S(ΦE) (mm)
			ΦB(mm)		ΦC(mm)
	Metric	NPT	Min	Max	Max
16	M16*1.5	NPT3/8	9.5	12	7	16	66	27(29)
20	M20*1.5	NPT1/2	9.5	16.5	12	16	66	27(29)
25	M25*1.5	NPT3/4	14	20	17	16	68	34(37)
32	M32*1.5	NPT1	18	26	23	18	77	40(44)
40	M40*1.5	NPT1 1/4	24	32.5	30	18	81	50(55)
50	M50*1.5	NPT1 1/2	30	41	37	20	88	60(67)
63	M63*1.5	NPT2	40	52	52	21	96	68(73)
75	M75*1.5	NPT2 1/2	50	65	62	22	114	86(89)
90	M90*1.5	NPT3	62	77	66	22	119	102(105)

• SCHEMATIC DIAGRAM

• ORDERING GUIDE

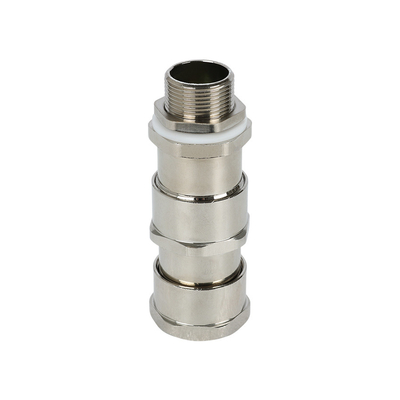

• EX-QM22-B1K

• FEATURES

ATEX and IECEx certified for safe use in potentially explosive atmospheres

Dual seal, suitable for armored cable.

Valid over the entire temperature range from -50°C to 80°C (-58 ºF to 176ºF)

Degree of protection: IP66/IP68.

• APPLICATION

• TECHNICAL DATA

Marking ATEX

Ⅱ2 GD Ex eb ⅡC Gb/Ex db ⅡC Gb

Ex tb ⅢC Db IP66/IP68

Marking ATEx

Ex eb ⅡC Gb/ Ex db ⅡC Gb

Ex tb ⅢC Db IP66/IP68

Standards

EN60079-0, EN60079-1, EN60079-7, EN60079-31, IEC 60079-0, IEC60079-1, IEC60079-7, IEC60079-31

Ambient Temperarture:-50℃ ≦ Tamb ≦ +80℃

Connection Thread:Metric Thread, NPT Thread

• SELECTION TABLE OF CABLE GLAND

Gland Size	Available Entry Thread (mm)		Overall Cable Diameter				Minimun Thread Length L1(mm)	Total Length L(mm)	Across Flats/Corner S(ΦE) (mm)
			ΦB(mm)		ΦC(mm)
	Metric	NPT	Min	Max	Min	Max
16	M16*1.5	NPT3/8	9.5	12	5	8	15	66	27(29)
20	M20*1.5	NPT1/2	9.5	16.5	8	10.5	15	66	27(29)
25	M25*1.5	NPT3/4	14	20	10	15	15	68	34(37)
32	M32*1.5	NPT1	18	26	15	19.5	19	77	40(44)
40	M40*1.5	NPT1 1/4	24	32.5	19	26	19	81	50(55)
50	M50*1.5	NPT1 1/2	30	41	26	32	19	88	60(67)
63	M63*1.5	NPT2	40	52	31.5	40	19	96	68(73)
75	M75*1.5	NPT2 1/2	50	65	38	50	19	114	86(89)
90	M90*1.5	NPT3	62	77	54.5	62	19	119	102(105)

• SCHEMATIC DIAGRAM



• ORDERING GUIDE

• FAQ

  Q1. Can I have a sample order ?

  Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
  Q2: Do you offer guarantee for the products?
  Yes, we offer 2-5 years warranty to our products.
