IP66 IP68 ATEX IECEx M20 Cable Gland Explosion Proof

ATEX and IECEx certified explosion proof cable gland IP66 cable glands size M20

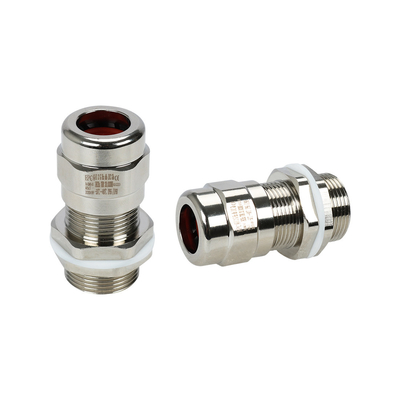

• EX-QM01-A1
• FEATURES

ATEX and IECEx certified for safe use in potentially explosive atmospheres

Single seal, suitable for unarmored cable.

Ex e, structure.

Degree of protection: IP66/IP68.

• APPLICATION

• TECHNICAL DATA

Marking ATEX

Ⅱ2 GD Ex eb ⅡC Gb

Ex tb ⅢC Db IP66/IP68

Marking ATEX

Ex eb ⅡC Gb

Ex tb ⅢC Db IP66/IP68

Standards

EN60079-0, EN60079-1, EN60079-7, EN60079-31, IEC 60079-0, IEC60079-1, IEC60079-7, IEC60079-31

Ambient Temperature:-50℃ ≦ Tamb ≦ +80℃

Connection Thread:Metric Thread, NPT Thread

• SELECTION TABLE OF CABLE GLAND

Gland Size	Available Entry Thread AG(mm)		Overall Cable Diameter ΦB(mm)		Minimum Thread Length GL(mm)	Nominal Protrusion Length L(mm)	Across Flats/Corner S(ΦE) (mm)
	Metric	NPT	Min	Max
16	M16*1.5	NPT3/8	9.5	12	16	30	27(29)
20	M20*1.5	NPT1/2	9.5	16.5	16	30	27(29)
25	M25*1.5	NPT3/4	14	20	16	38	34(37)
32	M32*1.5	NPT1	18	26	18	44	40(44)
40	M40*1.5	NPT1 1/4	24	32.5	18	46	50(55)
50	M50*1.5	NPT1 1/2	30	41	20	50	60(67)
63	M63*1.5	NPT2	40	52	21	64	68(73)
75	M75*1.5	NPT2 1/2	50	65	22	70	86(89)
90	M90*1.5	NPT3	62	77	22	80	102(105)

• SCHEMATIC DIAGRAM

• ORDERING GUIDE

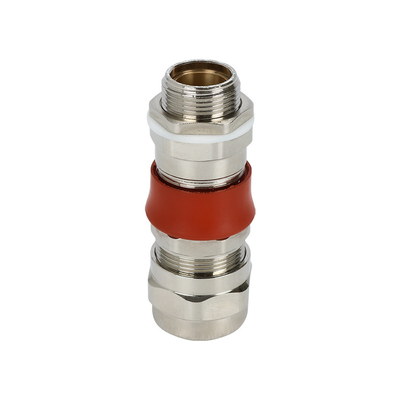

• EX-QM03-C1K

• FEATURES

ATEX and IECEx certified for safe use in potentially explosive atmospheres

Single seal, suitable for armored cable.

Valid over the entire temperature range from -50°C to 80°C (-58 ºF to 176ºF)

Degree of protection: IP66/IP68

• APPLICATION

• TECHNICAL DATA

Marking ATEX

Ⅱ2 GD Ex eb ⅡC Gb

Ex db ⅡC Gb Ex tb ⅢC Db IP66/IP68

Marking IECEx

Ex eb ⅡC Gb

Ex db ⅡC Gb Ex tb ⅢC Db IP66/IP68

Standards

EN60079-0, EN60079-1, EN60079-7, EN60079-31, IEC 60079-0, IEC60079-1, IEC60079-7, IEC60079-31

Ambient Temperarture:-50℃ ≦ Tamb ≦ +80℃

Connection Thread:Metric Thread, NPT Thread

• SELECTION TABLE OF CABLE GLAND

Gland Size	Available Entry Thread AG(mm)		Overall Cable Diameter			Minimum Thread Length GL(mm)	Nominal Protrusion Length L(mm)	Across Flats/Corner S(ΦE) (mm)
			ΦB(mm)		ΦC(mm)
	Metric	NPT	Min	Max	Max
16	M16*1.5	NPT3/8	9.5	12	/	16	65	24(29)
20	M20*1.5	NPT1/2	9.5	16.5	/	16	67	30(34)
25	M25*1.5	NPT3/4	14	20	/	16	71	36(40)
32	M32*1.5	NPT1	18	26	/	18	76	45(51)
40	M40*1.5	NPT1 1/4	24	32.5	/	18	76	55(61)
50	M50*1.5	NPT1 1/2	30	41	/	20	91	68(74)
63	M63*1.5	NPT2	40	52	/	21	98	86(95)
75	M75*1.5	NPT2 1/2	50	65	/	22	102	95(109)

• SCHEMATIC DIAGRAM

• ORDERING GUIDE



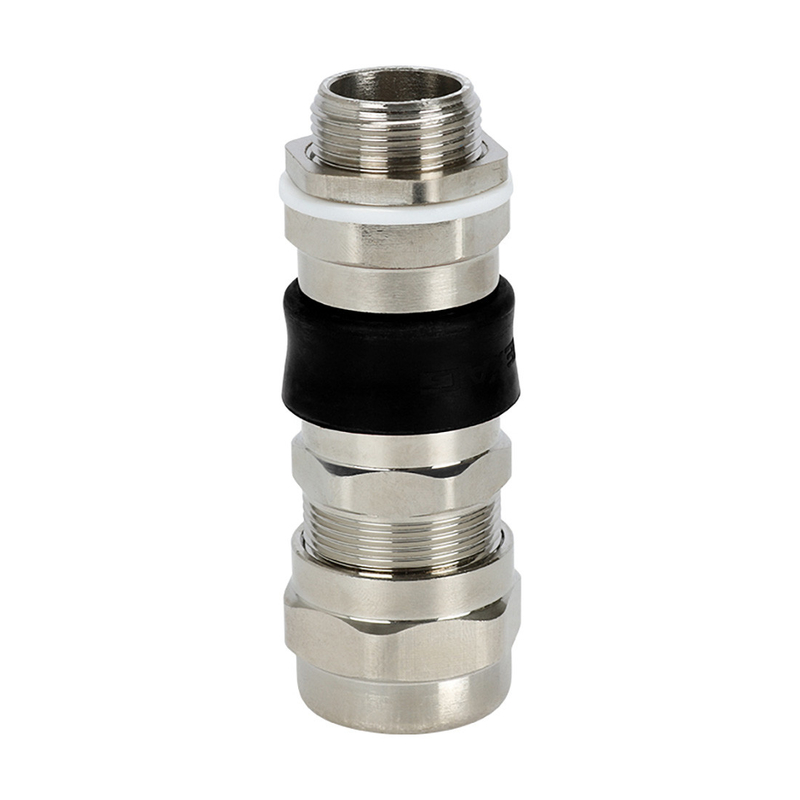

• EX-QM04-B1K

• FEATURES

ATEX and IECEx certified for safe use in potentially explosive atmospheres

Dual seal, suitable for armored cable.

Valid over the entire temperature range from -50°C to 80°C (-58 ºF to 176ºF)

Degree of protection: IP66/IP68.

• APPLICATION

• TECHNICAL DATA

Marking ATEX

Ⅱ2 GD Ex eb ⅡC Gb/ Ex db ⅡC Gb

Ex tb ⅢC Db IP66/IP68

Marking IECEx

Ex eb ⅡC Gb/ Ex db ⅡC Gb

Ex tb ⅢC Db IP66/IP68

Standards

EN60079-0, EN60079-1, EN60079-7, EN60079-31, IEC 60079-0, IEC60079-1, IEC60079-7, IEC60079-31

Ambient Temperarture:-50℃ ≦ Tamb ≦ +80℃

Connection Thread:Metric Thread, NPT Thread

• SELECTION TABLE OF CABLE GLAND

Gland Size	Available Entry Thread AG(mm)		Overall Cable Diameter				Minimum Thread Length GL(mm)	Nominal Protrusion Length L(mm)	Across Flats/Corner S(ΦE) (mm)
			ΦB(mm)		ΦC(mm)
	Metric	NPT	Min	Max	Min	Max
16	M16*1.5	NPT3/8	9.5	12	6.5	10.5	16	65	24(29)
20	M20*1.5	NPT1/2	9.5	16.5	10	14.5	16	67	30(34)
25	M25*1.5	NPT3/4	14	20	12.5	19.5	16	71	36(40)
32	M32*1.5	NPT1	18	26	19	25.5	18	76	45(51)
40	M40*1.5	NPT1 1/4	24	32.5	25	31	18	76	55(61)
50	M50*1.5	NPT1 1/2	30	41	31.5	43	20	91	68(74)
63	M63*1.5	NPT2	40	52	42.5	50	21	98	86(95)
75	M75*1.5	NPT2 1/2	50	65	54.5	65	22	102	95(109)

• SCHEMATIC DIAGRAM

• ORDERING GUIDE

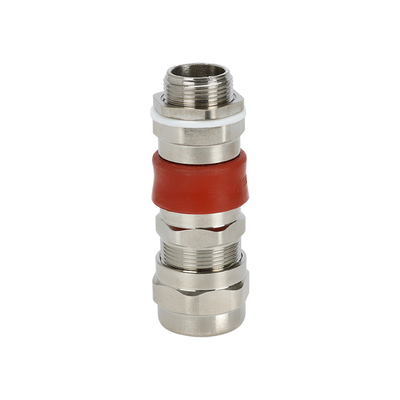

• EX-QM05-C1K



• FEATURES

ATEX and IECEx certified for safe use in potentially explosive atmospheres

Single seal, suitable for armored cable.

Valid over the entire temperature range from -50°C to 80°C (-58 ºF to 176ºF)

Degree of protection: IP66/IP68.

• APPLICATION

Marking ATEX

Ⅱ2 GD Ex eb ⅡC Gb/ Ex db ⅡC Gb

Ex tb ⅢC Db IP66/IP68

Marking IECEx

Ex eb ⅡC Gb/ Ex db ⅡC Gb

Ex tb ⅢC Db IP66/IP68

Standards

EN60079-0, EN60079-1, EN60079-7, EN60079-31, IEC 60079-0, IEC60079-1, IEC60079-7, IEC60079-31

Ambient Temperarture:-50℃ ≦ Tamb ≦ +80℃

Connection Thread:Metric Thread, NPT Thread

• SELECTION TABLE OF CABLE GLAND

Gland Size	Available Entry Thread AG(mm)		Overall Cable Diameter			Minimum Thread Length L1(mm)	Total Length l(mm)	Across Flats/Corner S(ΦE) (mm)
			ΦB(mm)		ΦC(mm)
	Metric	NPT	Min	Max	Max
16	M16*1.5	NPT3/8	7	16	8	15	85	24(27)
20	M20*1.5	NPT1/2	7	16	10.5	15	87	24(27)
25	M25*1.5	NPT3/4	14	20	15	15	88	30(33)
32	M32*1.5	NPT1	18	25	20	17	96	36(39)
40	M40*1.5	NPT1 1/4	24	33	27	19	105	45(50)
50	M50*1.5	NPT1 1/2	31	40	31	19	108	55(60)
63	M63*1.5	NPT2	41	50	41	20	118	68(73)
75	M75*1.5	NPT2 1/2	52	63	55	21	124	86(89)
90	M90*1.5	NPT3	65	76	65	24	128	96(99)

• SCHEMATIC DIAGRAM

• ORDERING GUIDE

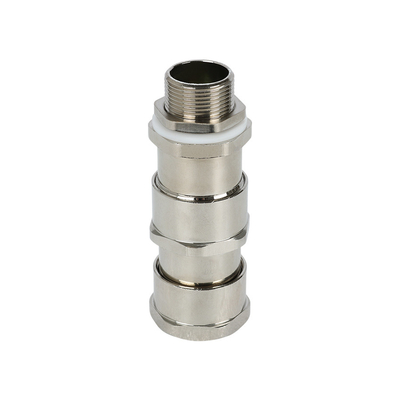

• EX-QM06-B1K

• FEATURES

ATEX and IECEx certified for safe use in potentially explosive atmospheres

Dual seal, suitable for armored cable.

Valid over the entire temperature range from -50°C to 80°C (-58 ºF to 176ºF)

Degree of protection: IP66/IP68.

• APPLICATION

• TECHNICAL DATA

Marking ATEX

Ⅱ2 GD Ex eb ⅡC Gb/Ex db ⅡC Gb

Ex tb ⅢC Db IP66/IP68

Marking ATEx

Ex eb ⅡC Gb/ Ex db ⅡC Gb

Ex tb ⅢC Db IP66/IP68

Standards

EN60079-0, EN60079-1, EN60079-7, EN60079-31, IEC 60079-0, IEC60079-1, IEC60079-7, IEC60079-31

Ambient Temperarture:-50℃ ≦ Tamb ≦ +80℃

Connection Thread:Metric Thread, NPT Thread

• SELECTION TABLE OF CABLE GLAND

Gland Size	Available Entry Thread (mm)		Overall Cable Diameter				Minimum Thread Length L1(mm)	Total Length L(mm)	Across Flats/Corner S(ΦE) (mm)
			ΦB(mm)		ΦC(mm)
	Metric	NPT	Min	Max	Min	Max
16	M16*1.5	NPT3/8	7	16	5	8	15	85	24(27)
20	M20*1.5	NPT1/2	7	16	5	10.5	15	87	24(27)
25	M25*1.5	NPT3/4	14	20	8	15	15	88	30(33)
32	M32*1.5	NPT1	18	25	11	20	17	96	36(39)
40	M40*1.5	NPT1 1/4	24	33	14	27	19	105	45(50)
50	M50*1.5	NPT1 1/2	31	40	20	31	19	108	55(60)
63	M63*1.5	NPT2	41	50	30	41	20	118	68(73)
75	M75*1.5	NPT2 1/2	52	63	42	55	21	124	86(89)
90	M90*1.5	NPT3	65	76	52	65	24	128	96(99)

• SCHEMATIC DIAGRAM

• ORDERING GUIDE

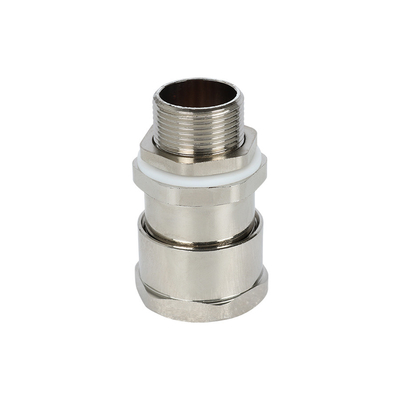

• EX-QM10-B1

• FEATURES

ATEX and IECEx certified for safe use in potentially explosive atmospheres

Single seal, suitable for unarmored cable

Ex d structure.

Degree of protection: IP66/IP68.

• APPLICATION

• TECHNICAL DATA

Marking ATEX

Ⅱ2 GD Ex eb ⅡC Gb/ Ex db IIC Gb

Ex tb ⅢC Db IP66/IP68

Marking ATEx

Ex eb ⅡC Gb/ Ex db ⅡC Gb

Ex tb ⅢC Db IP66/IP68

Standards

EN60079-0, EN60079-1, EN60079-7, EN60079-31, IEC 60079-0, IEC60079-1, IEC60079-7, IEC60079-31

Ambient Temperarture:-50℃ ≦ Tamb ≦ +80℃

Connection Thread:Metric Thread, NPT Thread

• SELECTION TABLE OF CABLE GLAND

Gland Size	Available Entry Thread (mm)		Overall Cable Diameter ΦB(mm)		Minimum Thread Length L1(mm)	Total Length L(mm)	Across Flats/Corner S(ΦE) (mm)
	Metric	NPT	Min	Max
16	M16*1.5	NPT3/8	4	7	16	62	27(29)
20	M20*1.5	NPT1/2	5	8	16	62	27(29)
25	M25*1.5	NPT3/4	8	12	16	62	30(33)
32	M32*1.5	NPT1	12	16	18	67	38(42)
40	M40*1.5	NPT1 1/4	16	24	20	77	45(50)
50	M50*1.5	NPT1 1/2	18	28	20	79	55(60)
63	M63*1.5	NPT2	25.5	38	20	81	68(73)
75	M75*1.5	NPT2 1/2	29	46	20	100	85(89)
90	M90*1.5	NPT3	41	60	21	100	98(102)

• SCHEMATIC DIAGRAM

• ORDERING GUIDE

• EX-QM10-B1

• FEATURES

ATEX and IECEx certified for safe use in potentially explosive atmospheres

Single seal, suitable for unarmored cable

Ex d structure.

Degree of protection: IP66/IP68.

• APPLICATION

• TECHNICAL DATA

Marking ATEX

Ⅱ2 GD Ex eb ⅡC Gb/ Ex db IIC Gb

Ex tb ⅢC Db IP66/IP68

Marking ATEx

Ex eb ⅡC Gb/ Ex db ⅡC Gb

Ex tb ⅢC Db IP66/IP68

Standards

EN60079-0, EN60079-1, EN60079-7, EN60079-31, IEC 60079-0, IEC60079-1, IEC60079-7, IEC60079-31

Ambient Temperarture:-50℃ ≦ Tamb ≦ +80℃

Connection Thread:Metric Thread, NPT Thread

• SELECTION TABLE OF CABLE GLAND

Gland Size	Available Entry Thread (mm)		Overall Cable Diameter ΦB(mm)		Minimum Thread Length L1(mm)	Nominal Protrusion Length(mm)	Across Flats/Corner S(ΦE) (mm)
	Metric	NPT	Min	Max
16	M16*1.5	/	5	8	15	30	24(27)
20	M20*1.5	NPT1/2	7.5	11.5	15	30	24(27)
25	M25*1.5	NPT3/4	11	14.5	15	30	30(33)
32	M32*1.5	NPT1	14	20	20	32	36(39)
40	M40*1.5	NPT1 1/4	19	20	20	32	45(50)
50	M50*1.5	NPT1 1/2	25	32	20	36	55(60)
63	M63*1.5	NPT2	31.5	42.5	20	37	68(73)

• SCHEMATIC DIAGRAM

• ORDERING GUIDE

• EX-QM13-B1T

• FEATURES

ATEX and IECEx certified for safe use in potentially explosive atmospheres

Single seal, suitable for unarmored cable

Ex d structure.

Degree of protection: IP66/IP68.

• APPLICATION

• TECHNICAL DATA

Marking ATEX

Ⅱ2 GD Ex eb ⅡC Gb/ Ex db IIC Gb

Ex tb ⅢC Db IP66/IP68

Marking ATEx

Ex eb ⅡC Gb/ Ex db ⅡC Gb

Ex tb ⅢC Db IP66/IP68

Standards

EN60079-0, EN60079-1, EN60079-7, EN60079-31, IEC 60079-0, IEC60079-1, IEC60079-7, IEC60079-31

Ambient Temperarture:-50℃ ≦ Tamb ≦ +80℃

Connection Thread:Metric Thread, NPT Thread

• SELECTION TABLE OF CABLE GLAND

Gland Size	Available Entry Thread (mm)		Overall Cable Diameter ΦB(mm)		Minimum Thread Length L1(mm)	Nominal Protrusion Length(mm)	Across Flats/Corner S(ΦE) (mm)
	Metric	NPT	Min	Max
16	M16*1.5	/	5	8	15	40	24(27)
20	M20*1.5	NPT1/2	7.5	11.5	15	40	24(27)
25	M25*1.5	NPT3/4	11	14.5	15	40	30(33)
32	M32*1.5	NPT1	14	20	20	44	36(39)
40	M40*1.5	NPT1 1/4	19	20	20	48	45(50)
50	M50*1.5	NPT1 1/2	25	32	20	49	55(60)
63	M63*1.5	NPT2	31.5	43.5	20	63	68(73)

• SCHEMATIC DIAGRAM

• ORDERING GUIDE

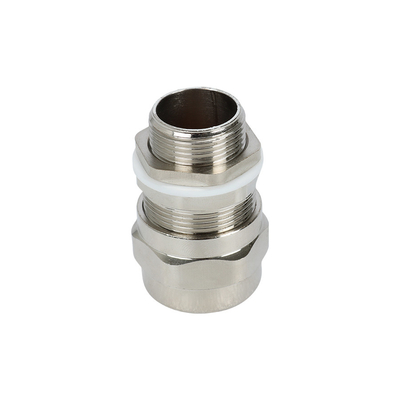

• EX-QM18-C1

• FEATURES

ATEX and IECEx certified for safe use in potentially explosive atmospheres

Single seal, suitable for unarmored cable

Ex d structure.

Degree of protection: IP66/IP68.

• APPLICATION

• TECHNICAL DATA

Marking ATEX

Ⅱ2 GD Ex eb ⅡC Gb/ Ex db IIC Gb

Ex tb ⅢC Db IP66/IP68

Marking ATEx

Ex eb ⅡC Gb/ Ex db ⅡC Gb

Ex tb ⅢC Db IP66/IP68

Standards

EN60079-0, EN60079-1, EN60079-7, EN60079-31, IEC 60079-0, IEC60079-1, IEC60079-7, IEC60079-31

Ambient Temperarture:-50℃ ≦ Tamb ≦ +80℃

Connection Thread:Metric Thread, NPT Thread

• SELECTION TABLE OF CABLE GLAND

Gland Size	Available Entry Thread (mm)		Overall Cable Diameter ΦB(mm)		Minimum Thread Length L1(mm)	Nominal Protrusion Length(mm)	Across Flats/Corner S(ΦE) (mm)
	Metric	NPT	Min	Max
16	M16*1.5	/	5	8	15	57	24(27)
20	M20*1.5	NPT1/2	5	8	15	57	24(27)
20	M20*1.5	NPT1/2	7.5	11.5	15	57	24(27)
25	M25*1.5	NPT3/4	11	14.5	15	57	30(33)
32	M32*1.5	NPT1	14	20	20	59	36(39)
40	M40*1.5	NPT1 1/4	19	26	20	60	45(50)
50	M50*1.5	NPT1 1/2	25	32	20	62	55(60)
63	M63*1.5	NPT2	31.5	43.5	20	73	68(73)

• SCHEMATIC DIAGRAM

• ORDERING GUIDE



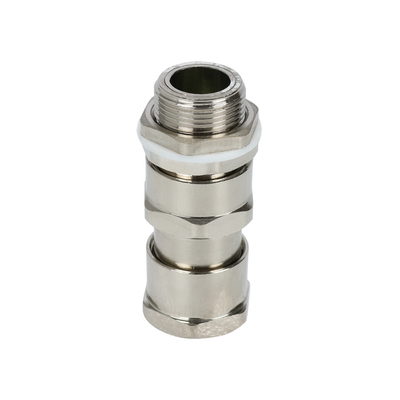

• EX-QM21-C1K

• FEATURES

ATEX and IECEx certified for safe use in potentially explosive atmospheres

Single seal, suitable for unarmored cable.

Valid over the entire temperature range from -50°C to 80°C (-58 ºF to 176ºF)

Degree of protection: IP66/IP68.

• APPLICATION

• TECHNICAL DATA

Marking ATEX

Ⅱ2 GD Ex eb ⅡC Gb/Ex db ⅡC Gb

Ex tb ⅢC Db IP66/IP68

Marking ATEx

Ex eb ⅡC Gb/ Ex db ⅡC Gb

Ex tb ⅢC Db IP66/IP68

Standards

EN60079-0, EN60079-1, EN60079-7, EN60079-31, IEC 60079-0, IEC60079-1, IEC60079-7, IEC60079-31

Ambient Temperarture:-50℃ ≦ Tamb ≦ +80℃

Connection Thread:Metric Thread, NPT Thread

• SELECTION TABLE OF CABLE GLAND

Gland Size	Available Entry Thread (mm)		Overall Cable Diameter			Minimun Thread Length L1(mm)	Total Length L(mm)	Across Flats/Corner S(ΦE) (mm)
			ΦB(mm)		ΦC(mm)
	Metric	NPT	Min	Max	Max
16	M16*1.5	NPT3/8	9.5	12	7	16	66	27(29)
20	M20*1.5	NPT1/2	9.5	16.5	12	16	66	27(29)
25	M25*1.5	NPT3/4	14	20	17	16	68	34(37)
32	M32*1.5	NPT1	18	26	23	18	77	40(44)
40	M40*1.5	NPT1 1/4	24	32.5	30	18	81	50(55)
50	M50*1.5	NPT1 1/2	30	41	37	20	88	60(67)
63	M63*1.5	NPT2	40	52	52	21	96	68(73)
75	M75*1.5	NPT2 1/2	50	65	62	22	114	86(89)
90	M90*1.5	NPT3	62	77	66	22	119	102(105)

• SCHEMATIC DIAGRAM

• ORDERING GUIDE

• EX-QM22-B1K

• FEATURES

ATEX and IECEx certified for safe use in potentially explosive atmospheres

Dual seal, suitable for armored cable.

Valid over the entire temperature range from -50°C to 80°C (-58 ºF to 176ºF)

Degree of protection: IP66/IP68.

• APPLICATION

• TECHNICAL DATA

Marking ATEX

Ⅱ2 GD Ex eb ⅡC Gb/Ex db ⅡC Gb

Ex tb ⅢC Db IP66/IP68

Marking ATEx

Ex eb ⅡC Gb/ Ex db ⅡC Gb

Ex tb ⅢC Db IP66/IP68

Standards

EN60079-0, EN60079-1, EN60079-7, EN60079-31, IEC 60079-0, IEC60079-1, IEC60079-7, IEC60079-31

Ambient Temperarture:-50℃ ≦ Tamb ≦ +80℃

Connection Thread:Metric Thread, NPT Thread

• SELECTION TABLE OF CABLE GLAND

Gland Size	Available Entry Thread (mm)		Overall Cable Diameter				Minimun Thread Length L1(mm)	Total Length L(mm)	Across Flats/Corner S(ΦE) (mm)
			ΦB(mm)		ΦC(mm)
	Metric	NPT	Min	Max	Min	Max
16	M16*1.5	NPT3/8	9.5	12	5	8	15	66	27(29)
20	M20*1.5	NPT1/2	9.5	16.5	8	10.5	15	66	27(29)
25	M25*1.5	NPT3/4	14	20	10	15	15	68	34(37)
32	M32*1.5	NPT1	18	26	15	19.5	19	77	40(44)
40	M40*1.5	NPT1 1/4	24	32.5	19	26	19	81	50(55)
50	M50*1.5	NPT1 1/2	30	41	26	32	19	88	60(67)
63	M63*1.5	NPT2	40	52	31.5	40	19	96	68(73)
75	M75*1.5	NPT2 1/2	50	65	38	50	19	114	86(89)
90	M90*1.5	NPT3	62	77	54.5	62	19	119	102(105)

• SCHEMATIC DIAGRAM



• ORDERING GUIDE

• FAQ

  Q1. Can I have a sample order ?

  Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
  Q2. How do you ship the goods and how long does it take to arrive?
  We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping also optional.
  Q3. How to proceed an order ?
  Firstly, let us know your requirements or application.
  Secondly, We quote according to your requirements or our suggestions.
  Thirdly,customer confirms the samples and places deposit for formal order.
  Fourthly, We arrange the production.
