Product Details:
|
| ITEM TYPE: | GLAND | IP: | IP66 |
|---|---|---|---|
| WARRANTY: | 5 YEARS | CERTIFICATION: | ATEX,IECEX |
| High Light: | M20 Cable Gland Explosion Proof,Cable Gland Explosion Proof IP66,m20 explosion proof cable gland |
||

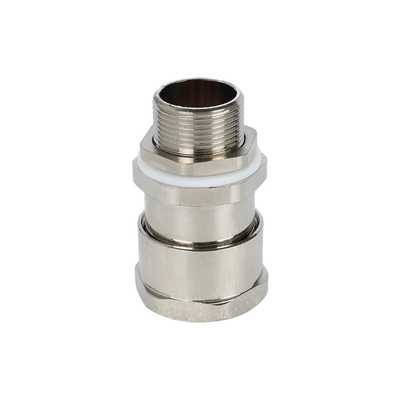

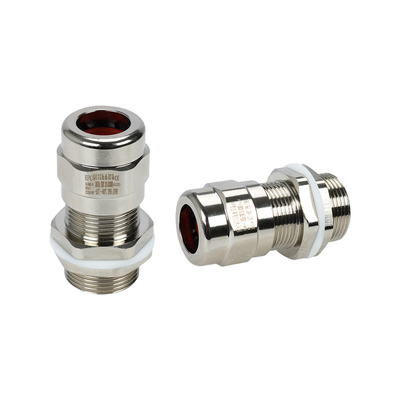

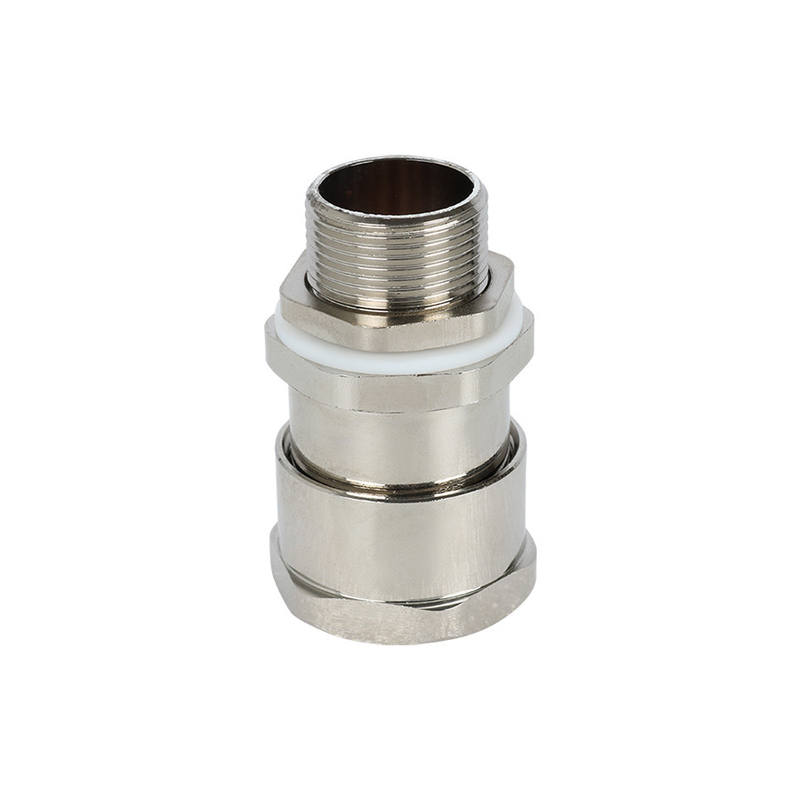

Buy Now M20 Metallic Compact Ex Cable Glands Flameproof Enclosure Ex d IIC Increased Saftey Ex e IIC Explosion Gland
ATEX and IECEx certified for safe use in potentially explosive atmospheres
Single seal, suitable for unarmored cable.
Ex e, structure.
Degree of protection: IP66/IP68.
Marking ATEX
Ⅱ2 GD Ex eb ⅡC Gb
Ex tb ⅢC Db IP66/IP68
Marking ATEX
Ex eb ⅡC Gb
Ex tb ⅢC Db IP66/IP68
Standards
EN60079-0, EN60079-1, EN60079-7, EN60079-31, IEC 60079-0, IEC60079-1, IEC60079-7, IEC60079-31
Ambient Temperature:-50℃ ≦ Tamb ≦ +80℃
Connection Thread:Metric Thread, NPT Thread
| Gland Size | Available Entry Thread AG(mm) | Overall Cable Diameter ΦB(mm) | Minimum Thread Length GL(mm) | Nominal Protrusion Length L(mm) |
Across Flats/Corner S(ΦE) (mm) | ||
| Metric | NPT | Min | Max | ||||
| 16 | M16*1.5 | NPT3/8 | 9.5 | 12 | 16 | 30 | 27(29) |
| 20 | M20*1.5 | NPT1/2 | 9.5 | 16.5 | 16 | 30 | 27(29) |
| 25 | M25*1.5 | NPT3/4 | 14 | 20 | 16 | 38 | 34(37) |
| 32 | M32*1.5 | NPT1 | 18 | 26 | 18 | 44 | 40(44) |
| 40 | M40*1.5 | NPT1 1/4 | 24 | 32.5 | 18 | 46 | 50(55) |
| 50 | M50*1.5 | NPT1 1/2 | 30 | 41 | 20 | 50 | 60(67) |
| 63 | M63*1.5 | NPT2 | 40 | 52 | 21 | 64 | 68(73) |
| 75 | M75*1.5 | NPT2 1/2 | 50 | 65 | 22 | 70 | 86(89) |
| 90 | M90*1.5 | NPT3 | 62 | 77 | 22 | 80 | 102(105) |

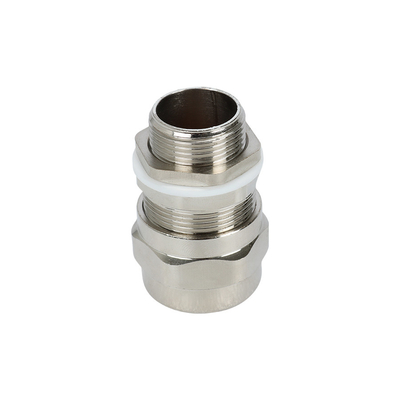

ATEX and IECEx certified for safe use in potentially explosive atmospheres
Single seal, suitable for armored cable.
Valid over the entire temperature range from -50°C to 80°C (-58 ºF to 176ºF)
Degree of protection: IP66/IP68
Marking ATEX
Ⅱ2 GD Ex eb ⅡC Gb
Ex db ⅡC Gb Ex tb ⅢC Db IP66/IP68
Marking IECEx
Ex eb ⅡC Gb
Ex db ⅡC Gb Ex tb ⅢC Db IP66/IP68
Standards
EN60079-0, EN60079-1, EN60079-7, EN60079-31, IEC 60079-0, IEC60079-1, IEC60079-7, IEC60079-31
Ambient Temperarture:-50℃ ≦ Tamb ≦ +80℃
Connection Thread:Metric Thread, NPT Thread
| Gland Size | Available Entry Thread AG(mm) | Overall Cable Diameter | Minimum Thread Length GL(mm) | Nominal Protrusion Length L(mm) |
Across Flats/Corner S(ΦE) (mm) | |||
| ΦB(mm) | ΦC(mm) | |||||||
| Metric | NPT | Min | Max | Max | ||||
| 16 | M16*1.5 | NPT3/8 | 9.5 | 12 | / | 16 | 65 | 24(29) |
| 20 | M20*1.5 | NPT1/2 | 9.5 | 16.5 | / | 16 | 67 | 30(34) |
| 25 | M25*1.5 | NPT3/4 | 14 | 20 | / | 16 | 71 | 36(40) |
| 32 | M32*1.5 | NPT1 | 18 | 26 | / | 18 | 76 | 45(51) |
| 40 | M40*1.5 | NPT1 1/4 | 24 | 32.5 | / | 18 | 76 | 55(61) |
| 50 | M50*1.5 | NPT1 1/2 | 30 | 41 | / | 20 | 91 | 68(74) |
| 63 | M63*1.5 | NPT2 | 40 | 52 | / | 21 | 98 | 86(95) |
| 75 | M75*1.5 | NPT2 1/2 | 50 | 65 | / | 22 | 102 | 95(109) |

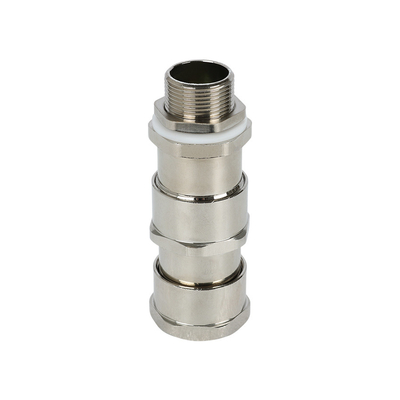

ATEX and IECEx certified for safe use in potentially explosive atmospheres
Dual seal, suitable for armored cable.
Valid over the entire temperature range from -50°C to 80°C (-58 ºF to 176ºF)
Degree of protection: IP66/IP68.
Marking ATEX
Ⅱ2 GD Ex eb ⅡC Gb/ Ex db ⅡC Gb
Ex tb ⅢC Db IP66/IP68
Marking IECEx
Ex eb ⅡC Gb/ Ex db ⅡC Gb
Ex tb ⅢC Db IP66/IP68
Standards
EN60079-0, EN60079-1, EN60079-7, EN60079-31, IEC 60079-0, IEC60079-1, IEC60079-7, IEC60079-31
Ambient Temperarture:-50℃ ≦ Tamb ≦ +80℃
Connection Thread:Metric Thread, NPT Thread
| Gland Size | Available Entry Thread AG(mm) | Overall Cable Diameter | Minimum Thread Length GL(mm) | Nominal Protrusion Length L(mm) |
Across Flats/Corner S(ΦE) (mm) | ||||
| ΦB(mm) | ΦC(mm) | ||||||||
| Metric | NPT | Min | Max | Min | Max | ||||
| 16 | M16*1.5 | NPT3/8 | 9.5 | 12 | 6.5 | 10.5 | 16 | 65 | 24(29) |
| 20 | M20*1.5 | NPT1/2 | 9.5 | 16.5 | 10 | 14.5 | 16 | 67 | 30(34) |
| 25 | M25*1.5 | NPT3/4 | 14 | 20 | 12.5 | 19.5 | 16 | 71 | 36(40) |
| 32 | M32*1.5 | NPT1 | 18 | 26 | 19 | 25.5 | 18 | 76 | 45(51) |
| 40 | M40*1.5 | NPT1 1/4 | 24 | 32.5 | 25 | 31 | 18 | 76 | 55(61) |
| 50 | M50*1.5 | NPT1 1/2 | 30 | 41 | 31.5 | 43 | 20 | 91 | 68(74) |
| 63 | M63*1.5 | NPT2 | 40 | 52 | 42.5 | 50 | 21 | 98 | 86(95) |
| 75 | M75*1.5 | NPT2 1/2 | 50 | 65 | 54.5 | 65 | 22 | 102 | 95(109) |
ATEX and IECEx certified for safe use in potentially explosive atmospheres
Single seal, suitable for armored cable.
Valid over the entire temperature range from -50°C to 80°C (-58 ºF to 176ºF)
Degree of protection: IP66/IP68.
Marking ATEX
Ⅱ2 GD Ex eb ⅡC Gb/ Ex db ⅡC Gb
Ex tb ⅢC Db IP66/IP68
Marking IECEx
Ex eb ⅡC Gb/ Ex db ⅡC Gb
Ex tb ⅢC Db IP66/IP68
Standards
EN60079-0, EN60079-1, EN60079-7, EN60079-31, IEC 60079-0, IEC60079-1, IEC60079-7, IEC60079-31
Ambient Temperarture:-50℃ ≦ Tamb ≦ +80℃
Connection Thread:Metric Thread, NPT Thread
| Gland Size | Available Entry Thread AG(mm) | Overall Cable Diameter | Minimum Thread Length L1(mm) | Total Length l(mm) | Across Flats/Corner S(ΦE) (mm) | |||
| ΦB(mm) | ΦC(mm) | |||||||
| Metric | NPT | Min | Max | Max | ||||
| 16 | M16*1.5 | NPT3/8 | 7 | 16 | 8 | 15 | 85 | 24(27) |
| 20 | M20*1.5 | NPT1/2 | 7 | 16 | 10.5 | 15 | 87 | 24(27) |
| 25 | M25*1.5 | NPT3/4 | 14 | 20 | 15 | 15 | 88 | 30(33) |
| 32 | M32*1.5 | NPT1 | 18 | 25 | 20 | 17 | 96 | 36(39) |
| 40 | M40*1.5 | NPT1 1/4 | 24 | 33 | 27 | 19 | 105 | 45(50) |
| 50 | M50*1.5 | NPT1 1/2 | 31 | 40 | 31 | 19 | 108 | 55(60) |
| 63 | M63*1.5 | NPT2 | 41 | 50 | 41 | 20 | 118 | 68(73) |
| 75 | M75*1.5 | NPT2 1/2 | 52 | 63 | 55 | 21 | 124 | 86(89) |
| 90 | M90*1.5 | NPT3 | 65 | 76 | 65 | 24 | 128 | 96(99) |

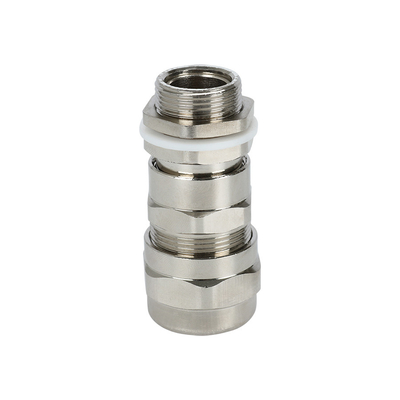

ATEX and IECEx certified for safe use in potentially explosive atmospheres
Dual seal, suitable for armored cable.
Valid over the entire temperature range from -50°C to 80°C (-58 ºF to 176ºF)
Degree of protection: IP66/IP68.
Marking ATEX
Ⅱ2 GD Ex eb ⅡC Gb/Ex db ⅡC Gb
Ex tb ⅢC Db IP66/IP68
Marking ATEx
Ex eb ⅡC Gb/ Ex db ⅡC Gb
Ex tb ⅢC Db IP66/IP68
Standards
EN60079-0, EN60079-1, EN60079-7, EN60079-31, IEC 60079-0, IEC60079-1, IEC60079-7, IEC60079-31
Ambient Temperarture:-50℃ ≦ Tamb ≦ +80℃
Connection Thread:Metric Thread, NPT Thread
| Gland Size | Available Entry Thread (mm) | Overall Cable Diameter | Minimum Thread Length L1(mm) | Total Length L(mm) | Across Flats/Corner S(ΦE) (mm) | ||||
| ΦB(mm) | ΦC(mm) | ||||||||
| Metric | NPT | Min | Max | Min | Max | ||||
| 16 | M16*1.5 | NPT3/8 | 7 | 16 | 5 | 8 | 15 | 85 | 24(27) |
| 20 | M20*1.5 | NPT1/2 | 7 | 16 | 5 | 10.5 | 15 | 87 | 24(27) |
| 25 | M25*1.5 | NPT3/4 | 14 | 20 | 8 | 15 | 15 | 88 | 30(33) |
| 32 | M32*1.5 | NPT1 | 18 | 25 | 11 | 20 | 17 | 96 | 36(39) |
| 40 | M40*1.5 | NPT1 1/4 | 24 | 33 | 14 | 27 | 19 | 105 | 45(50) |
| 50 | M50*1.5 | NPT1 1/2 | 31 | 40 | 20 | 31 | 19 | 108 | 55(60) |
| 63 | M63*1.5 | NPT2 | 41 | 50 | 30 | 41 | 20 | 118 | 68(73) |
| 75 | M75*1.5 | NPT2 1/2 | 52 | 63 | 42 | 55 | 21 | 124 | 86(89) |
| 90 | M90*1.5 | NPT3 | 65 | 76 | 52 | 65 | 24 | 128 | 96(99) |
ATEX and IECEx certified for safe use in potentially explosive atmospheres
Single seal, suitable for unarmored cable
Ex d structure.
Degree of protection: IP66/IP68.
Marking ATEX
Ⅱ2 GD Ex eb ⅡC Gb/ Ex db IIC Gb
Ex tb ⅢC Db IP66/IP68
Marking ATEx
Ex eb ⅡC Gb/ Ex db ⅡC Gb
Ex tb ⅢC Db IP66/IP68
Standards
EN60079-0, EN60079-1, EN60079-7, EN60079-31, IEC 60079-0, IEC60079-1, IEC60079-7, IEC60079-31
Ambient Temperarture:-50℃ ≦ Tamb ≦ +80℃
Connection Thread:Metric Thread, NPT Thread
| Gland Size | Available Entry Thread (mm) | Overall Cable Diameter ΦB(mm) | Minimum Thread Length L1(mm) | Total Length L(mm) | Across Flats/Corner S(ΦE) (mm) | ||
| Metric | NPT | Min | Max | ||||
| 16 | M16*1.5 | NPT3/8 | 4 | 7 | 16 | 62 | 27(29) |
| 20 | M20*1.5 | NPT1/2 | 5 | 8 | 16 | 62 | 27(29) |
| 25 | M25*1.5 | NPT3/4 | 8 | 12 | 16 | 62 | 30(33) |
| 32 | M32*1.5 | NPT1 | 12 | 16 | 18 | 67 | 38(42) |
| 40 | M40*1.5 | NPT1 1/4 | 16 | 24 | 20 | 77 | 45(50) |
| 50 | M50*1.5 | NPT1 1/2 | 18 | 28 | 20 | 79 | 55(60) |
| 63 | M63*1.5 | NPT2 | 25.5 | 38 | 20 | 81 | 68(73) |
| 75 | M75*1.5 | NPT2 1/2 | 29 | 46 | 20 | 100 | 85(89) |
| 90 | M90*1.5 | NPT3 | 41 | 60 | 21 | 100 | 98(102) |
ATEX and IECEx certified for safe use in potentially explosive atmospheres
Single seal, suitable for unarmored cable
Ex d structure.
Degree of protection: IP66/IP68.
Marking ATEX
Ⅱ2 GD Ex eb ⅡC Gb/ Ex db IIC Gb
Ex tb ⅢC Db IP66/IP68
Marking ATEx
Ex eb ⅡC Gb/ Ex db ⅡC Gb
Ex tb ⅢC Db IP66/IP68
Standards
EN60079-0, EN60079-1, EN60079-7, EN60079-31, IEC 60079-0, IEC60079-1, IEC60079-7, IEC60079-31
Ambient Temperarture:-50℃ ≦ Tamb ≦ +80℃
Connection Thread:Metric Thread, NPT Thread
| Gland Size | Available Entry Thread (mm) | Overall Cable Diameter ΦB(mm) | Minimum Thread Length L1(mm) | Nominal Protrusion Length(mm) | Across Flats/Corner S(ΦE) (mm) | ||
| Metric | NPT | Min | Max | ||||
| 16 | M16*1.5 | / | 5 | 8 | 15 | 30 | 24(27) |
| 20 | M20*1.5 | NPT1/2 | 7.5 | 11.5 | 15 | 30 | 24(27) |
| 25 | M25*1.5 | NPT3/4 | 11 | 14.5 | 15 | 30 | 30(33) |
| 32 | M32*1.5 | NPT1 | 14 | 20 | 20 | 32 | 36(39) |
| 40 | M40*1.5 | NPT1 1/4 | 19 | 20 | 20 | 32 | 45(50) |
| 50 | M50*1.5 | NPT1 1/2 | 25 | 32 | 20 | 36 | 55(60) |
| 63 | M63*1.5 | NPT2 | 31.5 | 42.5 | 20 | 37 | 68(73) |
ATEX and IECEx certified for safe use in potentially explosive atmospheres
Single seal, suitable for unarmored cable
Ex d structure.
Degree of protection: IP66/IP68.
Marking ATEX
Ⅱ2 GD Ex eb ⅡC Gb/ Ex db IIC Gb
Ex tb ⅢC Db IP66/IP68
Marking ATEx
Ex eb ⅡC Gb/ Ex db ⅡC Gb
Ex tb ⅢC Db IP66/IP68
Standards
EN60079-0, EN60079-1, EN60079-7, EN60079-31, IEC 60079-0, IEC60079-1, IEC60079-7, IEC60079-31
Ambient Temperarture:-50℃ ≦ Tamb ≦ +80℃
Connection Thread:Metric Thread, NPT Thread
| Gland Size | Available Entry Thread (mm) | Overall Cable Diameter ΦB(mm) | Minimum Thread Length L1(mm) | Nominal Protrusion Length(mm) | Across Flats/Corner S(ΦE) (mm) | ||
| Metric | NPT | Min | Max | ||||
| 16 | M16*1.5 | / | 5 | 8 | 15 | 40 | 24(27) |
| 20 | M20*1.5 | NPT1/2 | 7.5 | 11.5 | 15 | 40 | 24(27) |
| 25 | M25*1.5 | NPT3/4 | 11 | 14.5 | 15 | 40 | 30(33) |
| 32 | M32*1.5 | NPT1 | 14 | 20 | 20 | 44 | 36(39) |
| 40 | M40*1.5 | NPT1 1/4 | 19 | 20 | 20 | 48 | 45(50) |
| 50 | M50*1.5 | NPT1 1/2 | 25 | 32 | 20 | 49 | 55(60) |
| 63 | M63*1.5 | NPT2 | 31.5 | 43.5 | 20 | 63 | 68(73) |
ATEX and IECEx certified for safe use in potentially explosive atmospheres
Single seal, suitable for unarmored cable
Ex d structure.
Degree of protection: IP66/IP68.
Marking ATEX
Ⅱ2 GD Ex eb ⅡC Gb/ Ex db IIC Gb
Ex tb ⅢC Db IP66/IP68
Marking ATEx
Ex eb ⅡC Gb/ Ex db ⅡC Gb
Ex tb ⅢC Db IP66/IP68
Standards
EN60079-0, EN60079-1, EN60079-7, EN60079-31, IEC 60079-0, IEC60079-1, IEC60079-7, IEC60079-31
Ambient Temperarture:-50℃ ≦ Tamb ≦ +80℃
Connection Thread:Metric Thread, NPT Thread
| Gland Size | Available Entry Thread (mm) | Overall Cable Diameter ΦB(mm) | Minimum Thread Length L1(mm) | Nominal Protrusion Length(mm) | Across Flats/Corner S(ΦE) (mm) | ||
| Metric | NPT | Min | Max | ||||
| 16 | M16*1.5 | / | 5 | 8 | 15 | 57 | 24(27) |
| 20 | M20*1.5 | NPT1/2 | 5 | 8 | 15 | 57 | 24(27) |
| 20 | M20*1.5 | NPT1/2 | 7.5 | 11.5 | 15 | 57 | 24(27) |
| 25 | M25*1.5 | NPT3/4 | 11 | 14.5 | 15 | 57 | 30(33) |
| 32 | M32*1.5 | NPT1 | 14 | 20 | 20 | 59 | 36(39) |
| 40 | M40*1.5 | NPT1 1/4 | 19 | 26 | 20 | 60 | 45(50) |
| 50 | M50*1.5 | NPT1 1/2 | 25 | 32 | 20 | 62 | 55(60) |
| 63 | M63*1.5 | NPT2 | 31.5 | 43.5 | 20 | 73 | 68(73) |
ATEX and IECEx certified for safe use in potentially explosive atmospheres
Single seal, suitable for unarmored cable.
Valid over the entire temperature range from -50°C to 80°C (-58 ºF to 176ºF)
Degree of protection: IP66/IP68.
Marking ATEX
Ⅱ2 GD Ex eb ⅡC Gb/Ex db ⅡC Gb
Ex tb ⅢC Db IP66/IP68
Marking ATEx
Ex eb ⅡC Gb/ Ex db ⅡC Gb
Ex tb ⅢC Db IP66/IP68
Standards
EN60079-0, EN60079-1, EN60079-7, EN60079-31, IEC 60079-0, IEC60079-1, IEC60079-7, IEC60079-31
Ambient Temperarture:-50℃ ≦ Tamb ≦ +80℃
Connection Thread:Metric Thread, NPT Thread
| Gland Size | Available Entry Thread (mm) | Overall Cable Diameter | Minimun Thread Length L1(mm) | Total Length L(mm) | Across Flats/Corner S(ΦE) (mm) | |||
| ΦB(mm) | ΦC(mm) | |||||||
| Metric | NPT | Min | Max | Max | ||||
| 16 | M16*1.5 | NPT3/8 | 9.5 | 12 | 7 | 16 | 66 | 27(29) |
| 20 | M20*1.5 | NPT1/2 | 9.5 | 16.5 | 12 | 16 | 66 | 27(29) |
| 25 | M25*1.5 | NPT3/4 | 14 | 20 | 17 | 16 | 68 | 34(37) |
| 32 | M32*1.5 | NPT1 | 18 | 26 | 23 | 18 | 77 | 40(44) |
| 40 | M40*1.5 | NPT1 1/4 | 24 | 32.5 | 30 | 18 | 81 | 50(55) |
| 50 | M50*1.5 | NPT1 1/2 | 30 | 41 | 37 | 20 | 88 | 60(67) |
| 63 | M63*1.5 | NPT2 | 40 | 52 | 52 | 21 | 96 | 68(73) |
| 75 | M75*1.5 | NPT2 1/2 | 50 | 65 | 62 | 22 | 114 | 86(89) |
| 90 | M90*1.5 | NPT3 | 62 | 77 | 66 | 22 | 119 | 102(105) |

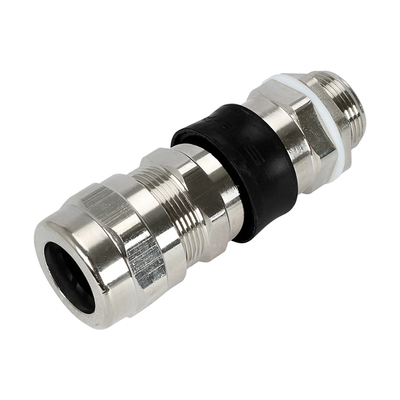

ATEX and IECEx certified for safe use in potentially explosive atmospheres
Dual seal, suitable for armored cable.
Valid over the entire temperature range from -50°C to 80°C (-58 ºF to 176ºF)
Degree of protection: IP66/IP68.
Marking ATEX
Ⅱ2 GD Ex eb ⅡC Gb/Ex db ⅡC Gb
Ex tb ⅢC Db IP66/IP68
Marking ATEx
Ex eb ⅡC Gb/ Ex db ⅡC Gb
Ex tb ⅢC Db IP66/IP68
Standards
EN60079-0, EN60079-1, EN60079-7, EN60079-31, IEC 60079-0, IEC60079-1, IEC60079-7, IEC60079-31
Ambient Temperarture:-50℃ ≦ Tamb ≦ +80℃
Connection Thread:Metric Thread, NPT Thread
| Gland Size | Available Entry Thread (mm) | Overall Cable Diameter | Minimun Thread Length L1(mm) | Total Length L(mm) | Across Flats/Corner S(ΦE) (mm) | ||||
| ΦB(mm) | ΦC(mm) | ||||||||
| Metric | NPT | Min | Max | Min | Max | ||||
| 16 | M16*1.5 | NPT3/8 | 9.5 | 12 | 5 | 8 | 15 | 66 | 27(29) |
| 20 | M20*1.5 | NPT1/2 | 9.5 | 16.5 | 8 | 10.5 | 15 | 66 | 27(29) |
| 25 | M25*1.5 | NPT3/4 | 14 | 20 | 10 | 15 | 15 | 68 | 34(37) |
| 32 | M32*1.5 | NPT1 | 18 | 26 | 15 | 19.5 | 19 | 77 | 40(44) |
| 40 | M40*1.5 | NPT1 1/4 | 24 | 32.5 | 19 | 26 | 19 | 81 | 50(55) |
| 50 | M50*1.5 | NPT1 1/2 | 30 | 41 | 26 | 32 | 19 | 88 | 60(67) |
| 63 | M63*1.5 | NPT2 | 40 | 52 | 31.5 | 40 | 19 | 96 | 68(73) |
| 75 | M75*1.5 | NPT2 1/2 | 50 | 65 | 38 | 50 | 19 | 114 | 86(89) |
| 90 | M90*1.5 | NPT3 | 62 | 77 | 54.5 | 62 | 19 | 119 | 102(105) |
FAQ
Q1. Can I have a sample order ?
Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
Q2: Do you offer guarantee for the products?
Yes, we offer 2-5 years warranty to our products.
Contact Person: Anne
Tel: 15986671240
