Product Details:
|
| Material: | Copper-free Aluminum | Power: | 20,40,60,80,100,150,200,220 |
|---|---|---|---|
| Item Type: | Industry Light | Color Temperature(cct): | Pure White, Cool White ,warm White |
| Input Voltage(v): | AC100-277V/DC12-48V AC200-480V | Working Lifetime(hour): | 50000 |
| High Light: | 220W Industrial Explosion Proof Light,20W Industrial Explosion Proof Light,ATEX explosion proof flood light |
||

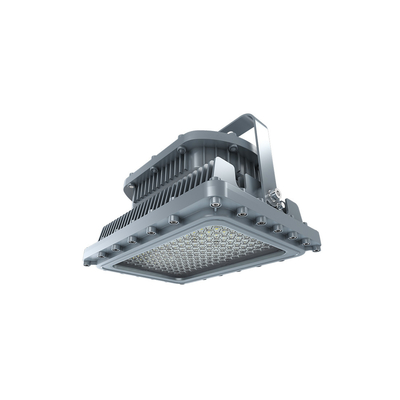

ATEX Certified 20~220W LED Explosion Proof High Bay Fixtures industry light
• Working Temperature: -40°C ~ +55°C.
• High quality SMT LED and Meanwell Driver.
• Heavy-duty and high impact resistance. • Replaceable LED board and drivers.
• Integrated junction box for driver .
• Dimmable and battery back up function available.
• Marine rating powder coated finish treatment.
• Up to 5 years warranty.
• Emergency Battery back up .
• Various installation ways for different applications.
• Glass lens or polycarbonate lens to make various beam angles
Oil and Gas industry
• All petroleum production and refining
• Petroleum loading and transportation
• Petroleum storage and retail
• LNG industry
• All mining operations and service
Chemical industry
• All types of paint facilities
• Chemical production and storage
Ocean, marine and aerospace field
• Ocean platform operation facilities and structure
• Aerospace clean room and production
• Ocean vessel operations
Metal treatment
• Steel and aluminum factories
• Pumping stations in any environment
• Metal smelting, foundry and fabrication
Food and alcohol industry
• Flour and fine particle production and storage
• Food and distilling production
• Alcohol industry
MATERIALS Marking UL844 (North American)
Class I, Div. 1, Groups C, D
Class I, Div. 2, Groups A, B, C,D
Class II, Div. 1, Groups E, F, G
Class II, Div. 2, Groups F, G
Class III
Marine Marking
1598, UL1598A
ABS
Other Rating
IP 66
IK 10
• Housing: Copper-free aluminum
• Lens: Tempered glass
• Hardware: Stainless steel
• Mounting Bracket: Stainless steel
| Model | Wattage | Operating Voltage |
Lumens (Im) |
Efficacy (Im/W) |
CRI | CCT | Emergency time |
| EX-20W D2YZDA | 20W | AC 100-277V/200-480V or DC12-48V | 2800 | 140 | >70 | 2200-7000k | 3 hours |
| EX-40W D2YZDA | 40W | 5600 | |||||
| EX-60W D2YZDA | 60W | 8400 | |||||
| EX-80W D2YZDA | 80W | 11200 | |||||
| EX-100W DYZDA | 100W | 14000 | |||||
| EX-150W DYZDA | 150W | 21000 | |||||
| EX-200W DYZDA | 200W | 28000 | |||||
| EX-220W DYZDA | 220W | 30800 |
| Model | Quantity/Carton | Length(mm) | Width(mm) | Height(mm) | Net weight(kg) | Gross weight(mm) |
| D2 | 1 | 400mm | 385mm | 335mm | 7kg | 9.5kg |
| D | 1 | 502mm | 376mm | 350mm | 17.9kg | 19.5kg |
Q1. How do you ship the goods and how long does it take to arrive?
A: Ship by DHL, UPS, FedEx or TNT. It takes 3-5 days to arrive. Airline and sea shipping also optional.
Q2. What about the lead time?
A: 3-5 days for Sample preparing ,8-10 working days for mass production
