Product Details:
|
| Light Source: | LED | Ip Rating: | IP66/IP67 |
|---|---|---|---|
| Item Type: | Explosion Proof Lights | Cri (ra>): | 70 |
| Working Temperature(℃): | -40 - 70 | Application: | Gas Station, Chemical Industry, Factory, Gas/chemical Industry, Platform |
| Warranty: | 5 Years | ||
| High Light: | 2200k High Temperature Industrial Explosion Proof Light,2200k Industrial Explosion Proof Light IK09,2200k 150W explosion proof flood lights |
||

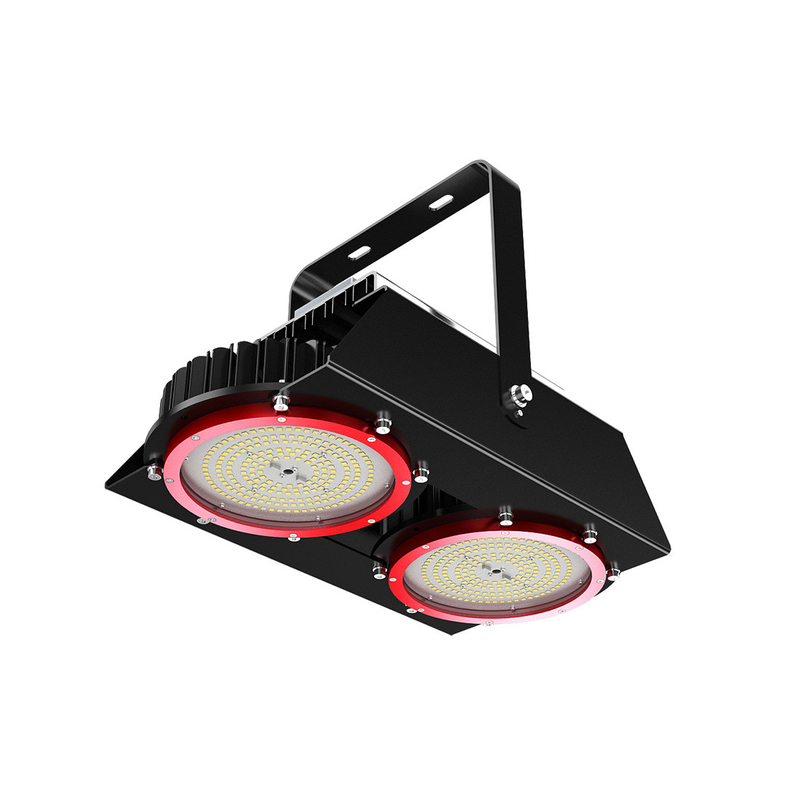

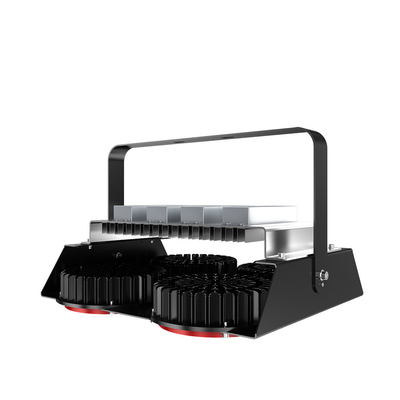

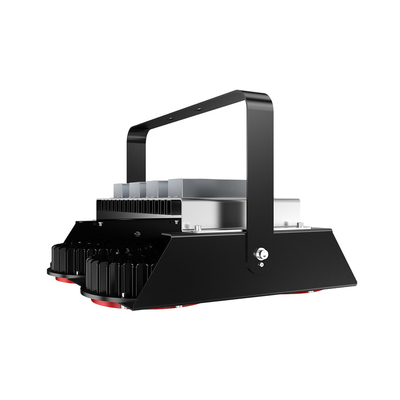

Hazardous Arean Explosion-Proof Explosion Proof Light high temprature light
High Temperature High Bay Light, which is applied to ambient high temperature working area where operation temperature may reach 158℉(70°C), such as steel plant, aluminum smelter, and other high-temperature, dust, corrosive gas environment.
The HB Series high heat resistant lights combine optical performance energy efficiency and outstanding versatility to meet the requirements of high temperature lighting applications in high-temperature, dust, corrosive gas environment, delivering a wide range of light outputs. The enclosure body is made of aluminum with corrosion-resistant coating which protects against overheating damage.
| Model | HB-xxxW-D1YZDG | HB-xxxW-D2YZDG | HB-xxxW-D4YZDG |
| Power | 10-150W | 100-300W | 300-600W |
| Voltage | AC127-270V/AC347-480V,50/60Hz | ||
| Efficiency | 150Im/W | ||
| CRI | >70 | ||
| Beam Angle | 20°-120° | ||
| CCT | 2200k-7000k | ||
| Amebient Temperature | 40℉ to + 158℉(-40℃ to +70℃) | ||
| IP Rating | IP66/IP67 | ||
| IK | IK09 | ||
| LED Chip | 5050/3535/3030 | ||
| Model | Quantity/Carton | Packing Size(mm) | N.W(KG) | G.W(KG) |
| HB-xxxW-D1YZDG | 1 | 340*340*550 | 8 | 9 |
| HB-xxxW-D2YZDG | 1 | 380*670*306 | 16 | 17 |
| HB-xxxW-D4YZDG | 1 | 696*675*306 | 32.25 | 33.25 |
Unit:mm or inch
HB-xxxWD1
HB-xxxWD4
No.1 Hook Pendant Mounting

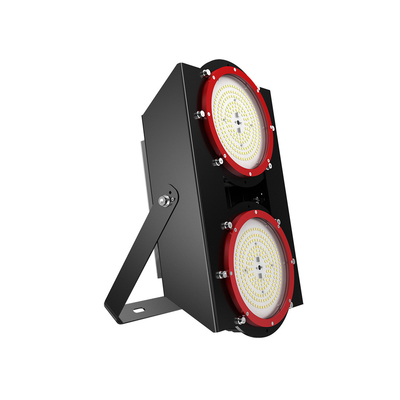

No.2 Bracket Mounting
FAQ
Q1. Can I have a sample order ?
Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
Q2. How do you ship the goods and how long does it take to arrive?
We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping also optional.
Q3. How to proceed an order ?
Firstly, let us know your requirements or application.
Secondly, We quote according to your requirements or our suggestions.
Thirdly,customer confirms the samples and places deposit for formal order.
Fourthly, We arrange the production.
