Product Details:
|
| Material: | Copper-free Aluminum | Power: | 20,30,40,50,60 |
|---|---|---|---|
| Item Type: | Explosion- Proof Lights | Color Temperature(cct): | Pure White, Cool White ,warm White |
| Ip Rating: | 66 | Input Voltage(v): | AC100-277V/ 200-480V |
| High Light: | 2200K IP66 industrial explosion proof light,2200K 60W industrial explosion proof light,2200K ATEX explosion proof high bay led light |
||

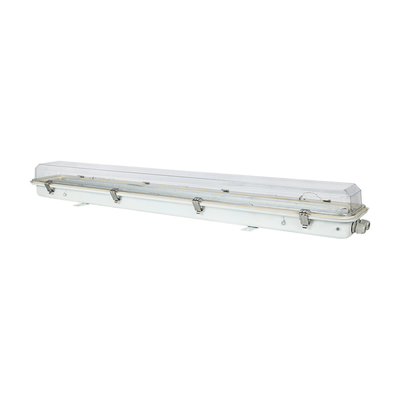

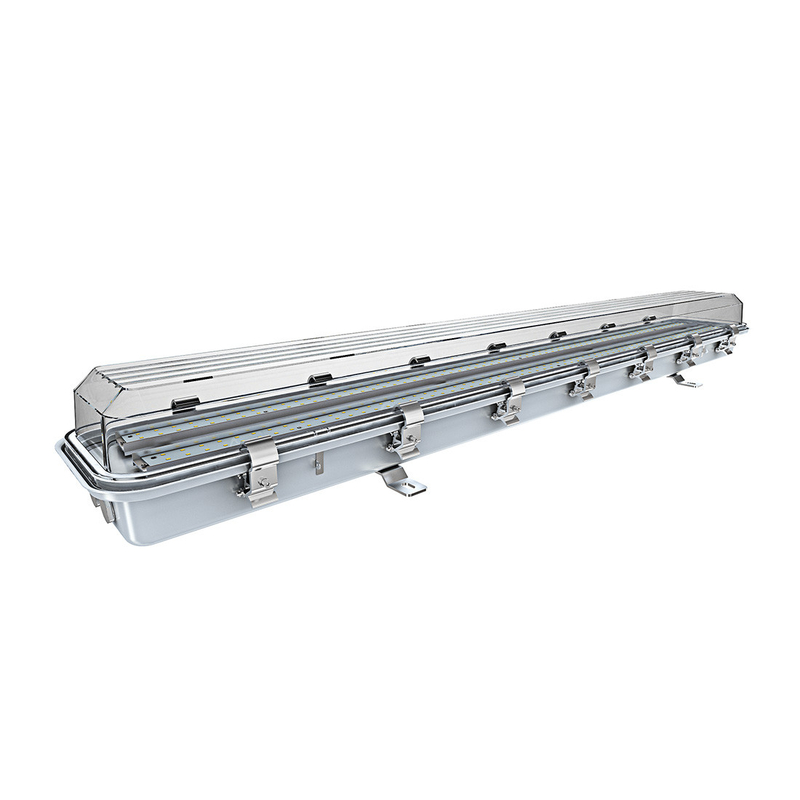

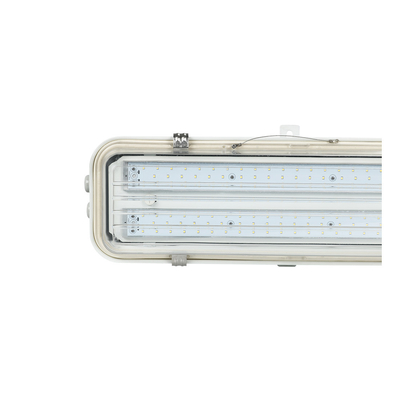

Atex 20W-60W IP66 explosion proof led lighting led high bay lighting for factory and warehouse atex lamp
ATEX Marking:
II 2 G Ex db eb mb IIC T5/T6 Gb
II 2 D Ex tb IIIC T95°C/T85°C Db IP66
IECEx Marking:
Ex db eb mb IIC T5/T6 Gb
Ex tb IIIC T95°C/T85°C Db
UL844 Marking (North American):
Class I, Division 2, Groups A, B, C, D
Class II, Division 1, Groups E, F, G
Class II, Division 2, Groups F, G
Class III
Marine Marking:
UL 1598
UL 844
Ambient Temperature:
Normal: -40°C to 45°C/60°C (-40°F to 113°F/140°F)
Emergency: -10°C to 45°C/60°C (14°F to 113°F/140°F)
IP66
Oil and gas industry
• All petroleum production and refining
• Petroleum loading and transportation
• Petroleum storage and retail
• LNG industry
• All mining operations and service
Ocean, marine and aerospace field
• Ocean platform operation facilities
• Aerospace clean room and production
• Ocean vessel operations
Food and alcohol industry
• Flour and fine particle production and storage
• Food and distilling production
• Alcohol industry
Chemical industry
• All types of paint facilities
• Chemical production and storage
Metal treatment
• Steel and aluminum factories
• Pumping stations in any environment
• Metal smelting, foundry and fabrication
Other high humidity, high dust, high temperature, vapor locations.
Backup battery is optional.
AC or DC power supply is available.
Stainless-steel body and PC cover.
Heavy-duty and high impact resistance.

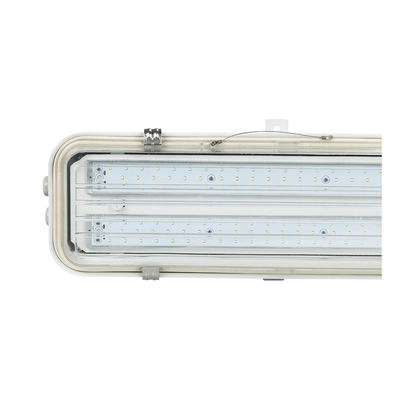

High-quality SMT LED and Meanwell driver.
Water-proof, vapor-proof, dust-proof, and corrosion resistant.
5-year warranty.
Technical Data:
| Model | Wattage | Operating Voltage | Efficacy(Im/W) | Total Lumens(Im) | CRI | CCT |
| EX-20W R2YZDA | 2*10W/2ft | AC100-277/220-480V | 140 | 2800 | >70 | 2200K-7000K |
| EX-30W R2YZDA | 2*15W/2ft | AC100-277/220-480V | 140 | 4200 | >70 | 2200K-7000K |
| EX-40W R4YZDA | 2*20W/4ft | AC100-277/220-480V | 140 | 5600 | >70 | 2200K-7000K |
| EX-50W R4YZDA | 2*25W/4ft | AC100-277/220-480V | 140 | 7000 | >70 | 2200K-7000K |
| EX-60W R4YZDA | 2*30W/4ft | AC100-277/220-480V | 140 | 8400 | >70 | 2200K-7000K |

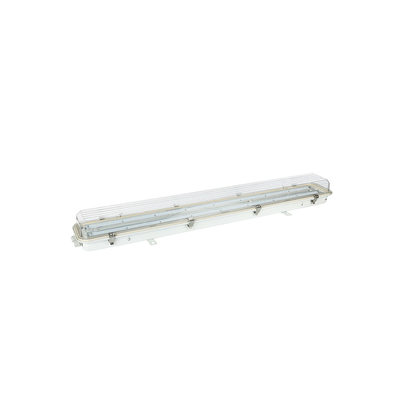

R2

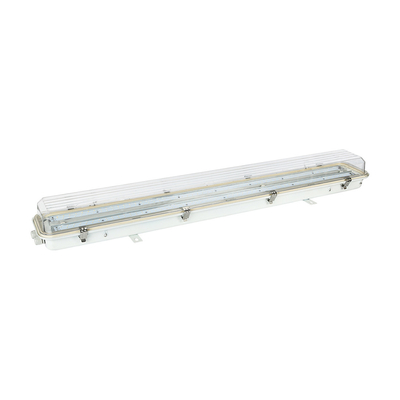

R4
| Model | Quantity/Carton | Packing Size | Net Weight(kg) | Gross Weight(kg) |
| R2 | 1 PCS | 32.28*9.84*7.09 | 4 | 5 |
| R4 | 1 PCS | 51.97*8.66*7.09 | 8 | 10.7 |

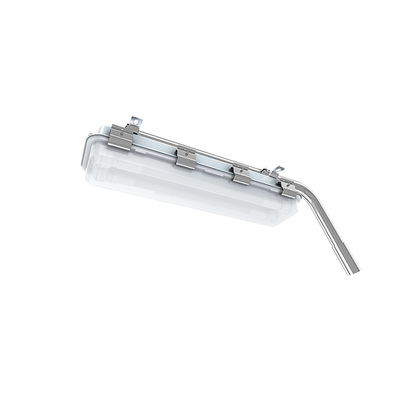

Rope Mounting:

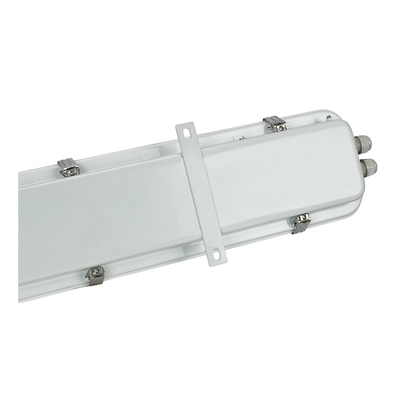

Ceiling Mounting:
Ceiling Mounting:
FAQ
Q1. Can I have a sample order ?
Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
Q2: Do you offer guarantee for the products?
Yes, we offer 2-5 years warranty to our products.
Q3: How to deal with the faulty?
Firstly, Our products are produced in strict quality control system and the defective rate will be less than 0.2%.
Secondly,during the guarantee period, we will send new lights with new order for small quantity. For defective batch products, we
will repair them and resend them to you or we can discuss the solution including re-call according to real situation.
