Product Details:
|
| Item Type: | Linear High Bay | IP: | IP65 |
|---|---|---|---|
| COLOR TEMPRATURE: | 2700K-5000K | WARRANTY: | 5 YEARS |
| High Light: | Waterproof linear high bay fixture,IP65 linear high bay fixture,100W industrial led linear bay |
||

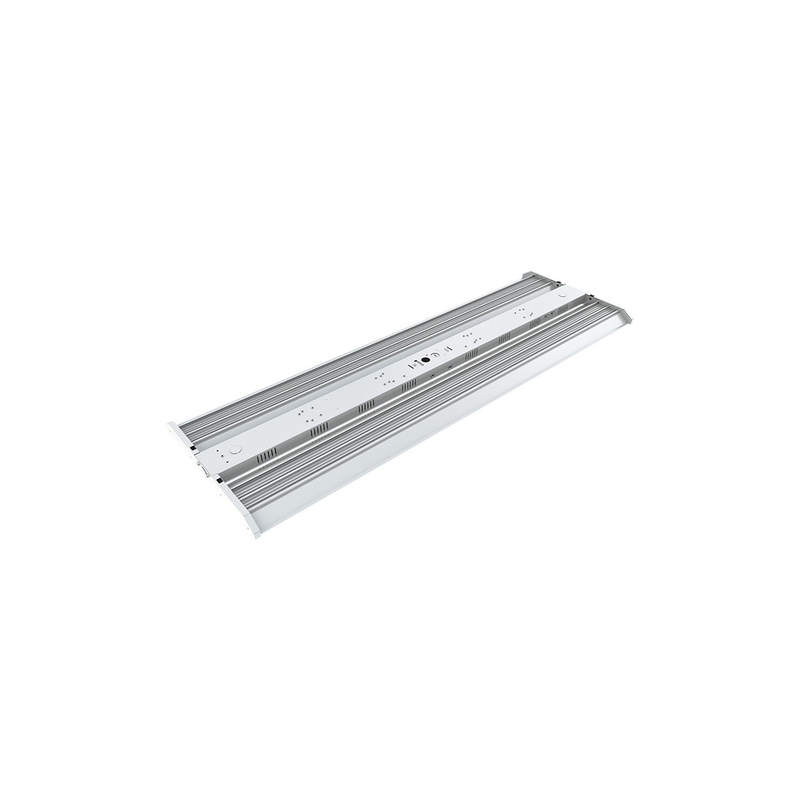

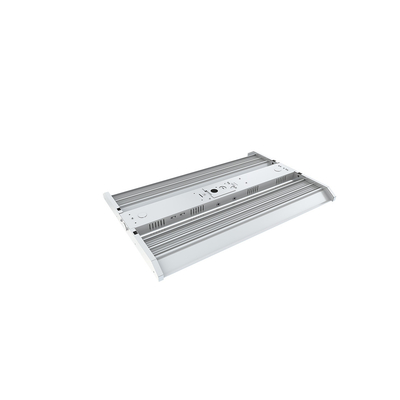

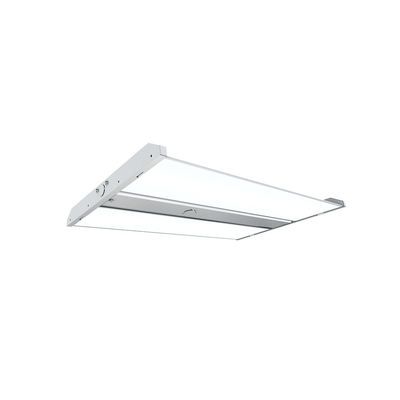

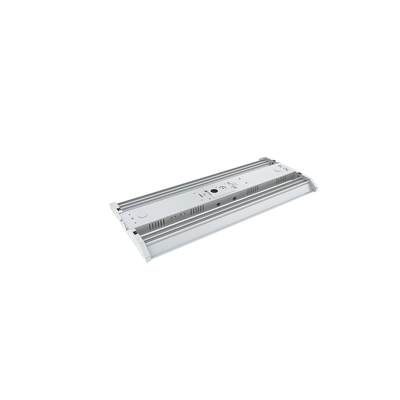

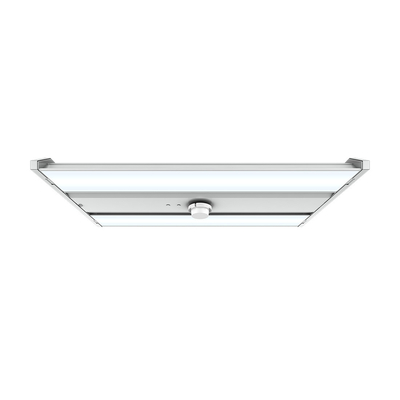

Good quality 5 years warranty New design IP65 waterproof Tunnel led light Linear high bay leds150LM/W 100W OEM ODM
Warranty
This product has a warranty of period of 5 years from the date of purchase. The warranty is invalid in the case of improper use installation, tampering, and removal of the Q.C.
| Common Technical Data | |||
| Color Temperature | 2700Kto 5000K | IflPut VoltaflBwith ballast | 100-277VZ100-347V |
| Beam Angle | 97.40 degree | Frequency | 50/60Hz |
| Color Consistency | 4 steps | Power Factor | More than 0.99 |
| CRI | More than 80 | Rated Life | 5 years |
| Operation Temperature | -20-45℃ | Led Type | SMT 2835 Led |
| Efficiency | More than 110 LPW | Housing | Aluminum |
| Ip65 Wet Location | UL.cUL and FCC certified | ||
Installation Instruction
1.Turn off power and remove door frame and diffuser.
2. Remove existing lamps,lamp holder.socket brackets,ballast cover and electronic ballasts.
3. Secure LED strips with self-tapping screws.
4. Placed LED driver in the location where the electronic ballast was, secure with self-tapping screw.
5. Wire LED strips and driver according to wiring diagram.
6. Connect input wires with driver with wire connectors.
7. Place the original ballast cover back. 8. Install lens & frame.
FAQ
Q1. Can I have a sample order ?
Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
Q2. What about the lead time?
Sample needs 3-5 days, mass production time needs 1-2 weeks for order quantity more than
Q3. Do you have any MOQ limit for order?
Low MOQ, 1pc for sample checking is available
Q4. How do you ship the goods and how long does it take to arrive?
We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping also optional.
Q5. How to proceed an order ?
Firstly, let us know your requirements or application.
Secondly, We quote according to your requirements or our suggestions.
Thirdly,customer confirms the samples and places deposit for formal order.
Fourthly, We arrange the production.
