Product Details:
|
| Item Type: | Linear High Bay | IP: | IP65 |
|---|---|---|---|
| COLOR TEMPRATURE: | 2700K-5000K | WARRANTY: | 5 YEARS |
| High Light: | 5000K LED Linear High Bay Light,110W LED Linear High Bay Light,IP65 high bay linear |
||

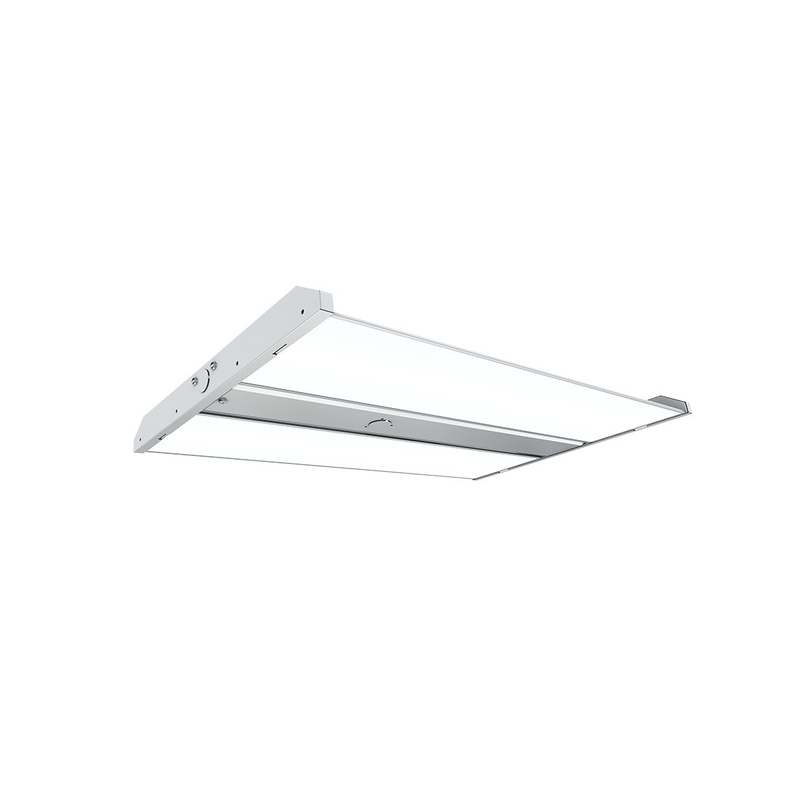

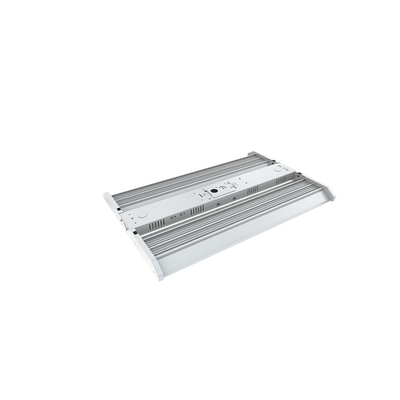

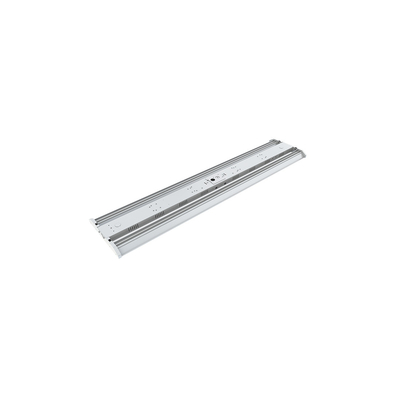

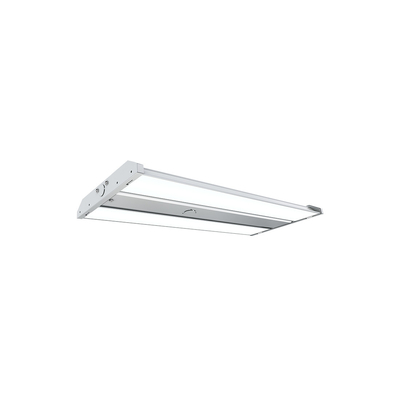

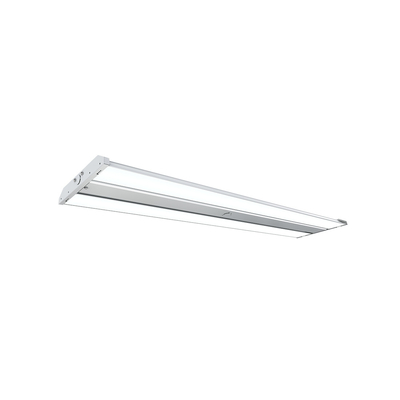

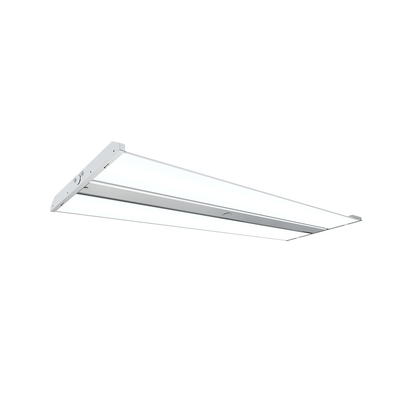

110W-5000K die cast aluminum led high bay light housing linear high bay 135lm/w beam angle adjustable
Warranty
This product has a warranty of period of 5 years from the date of purchase. The warranty is invalid in the case of improper use installation, tampering, and removal of the Q.C.
| Common Technical Data | |||
| Color Temperature | 2700Kto 5000K | IflPut VoltaflBwith ballast | 100-277VZ100-347V |
| Beam Angle | 97.40 degree | Frequency | 50/60Hz |
| Color Consistency | 4 steps | Power Factor | More than 0.99 |
| CRI | More than 80 | Rated Life | 5 years |
| Operation Temperature | -20-45℃ | Led Type | SMT 2835 Led |
| Efficiency | More than 110 LPW | Housing | Aluminum |
| Ip65 Wet Location | UL.cUL and FCC certified | ||
Installation Instruction
1.Turn off power and remove door frame and diffuser.
2. Remove existing lamps,lamp holder.socket brackets,ballast cover and electronic ballasts.
3. Secure LED strips with self-tapping screws.
4. Placed LED driver in the location where the electronic ballast was, secure with self-tapping screw.
5. Wire LED strips and driver according to wiring diagram.
6. Connect input wires with driver with wire connectors.
7. Place the original ballast cover back. 8. Install lens & frame.
FAQ
Q1. Can I have a sample order ?
Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
Q2. How do you ship the goods and how long does it take to arrive?
We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping also optional.
