Product Details:
|
| Item Type: | Linear High Bay | IP: | IP65 |
|---|---|---|---|
| COLOR TEMPRATURE: | 2700K-5000K | WARRANTY: | 5 YEARS |
| High Light: | Commercial LED Linear High Bay Light,LED Linear High Bay Light 80W,linear led high bays 140W |
||

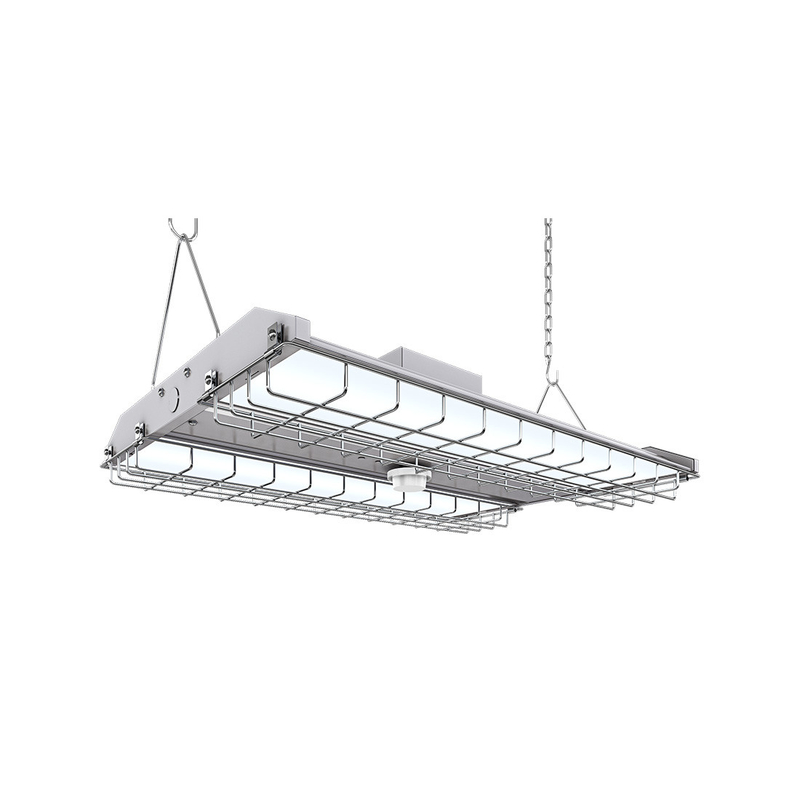

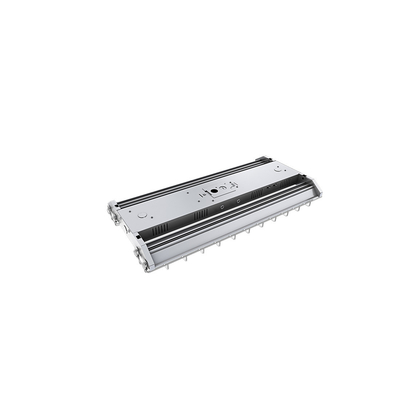

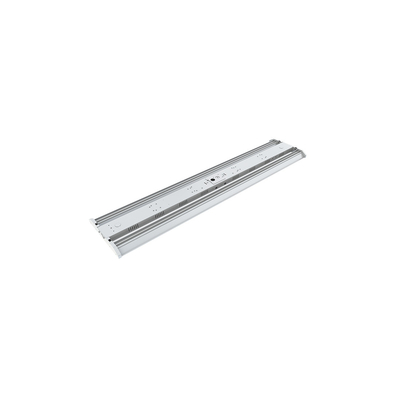

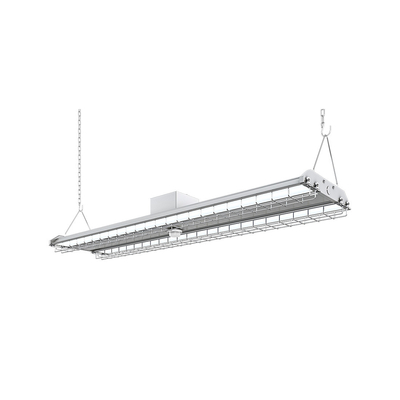

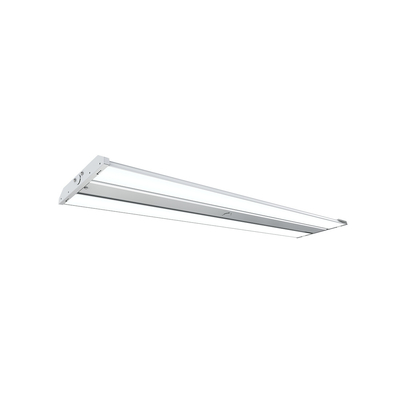

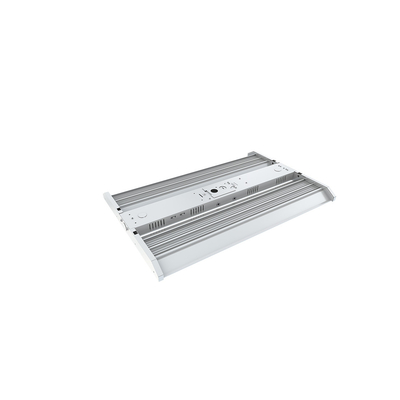

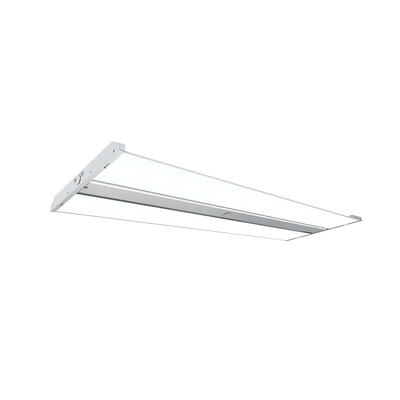

High Brightness 80w 100w 140w Commercial Industrial Lighting Linear Led High Bay Light
Warranty
This product has a warranty of period of 5 years from the date of purchase. The warranty is invalid in the case of improper use installation, tampering, and removal of the Q.C.
| Common Technical Data | |||
| Color Temperature | 2700Kto 5000K | IflPut VoltaflBwith ballast | 100-277VZ100-347V |
| Beam Angle | 97.40 degree | Frequency | 50/60Hz |
| Color Consistency | 4 steps | Power Factor | More than 0.99 |
| CRI | More than 80 | Rated Life | 5 years |
| Operation Temperature | -20-45℃ | Led Type | SMT 2835 Led |
| Efficiency | More than 110 LPW | Housing | Aluminum |
| Ip65 Wet Location | UL.cUL and FCC certified | ||
Installation Instruction
1.Turn off power and remove door frame and diffuser.
2. Remove existing lamps,lamp holder.socket brackets,ballast cover and electronic ballasts.
3. Secure LED strips with self-tapping screws.
4. Placed LED driver in the location where the electronic ballast was, secure with self-tapping screw.
5. Wire LED strips and driver according to wiring diagram.
6. Connect input wires with driver with wire connectors.
7. Place the original ballast cover back. 8. Install lens & frame.
FAQ
Q1. Can I have a sample order ?
Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
Q2. What about the lead time?
Sample needs 3-5 days, mass production time needs 1-2 weeks for order quantity
Q3: How to deal with the faulty?
Firstly, Our products are produced in strict quality control system and the defective rate will be less than 0.2%.
Secondly,during the guarantee period, we will send new lights with new order for small quantity. For defective batch products, we
will repair them and resend them to you or we can discuss the solution including re-call according to real situation.
