Product Details:
|
| Item Type: | Led Street Light/shoebox Light | Certification: | CB ETL |
|---|---|---|---|
| Light Source: | LED | Ip Rating: | IP66 |
| Warranty(year): | 5 Years | ||
| High Light: | IP66 150w led parking lot lights,150w led parking lot lights Waterproof,300w led shoebox street light |
||

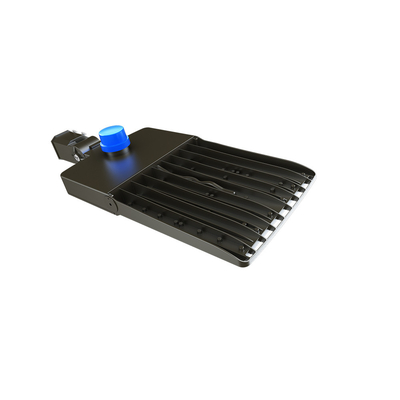

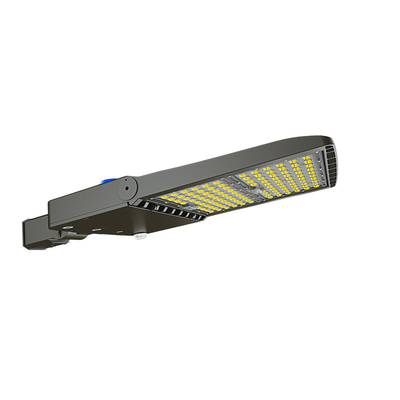

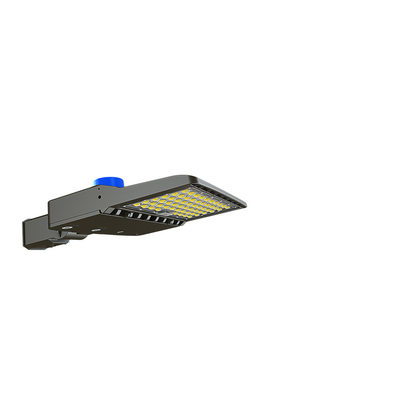

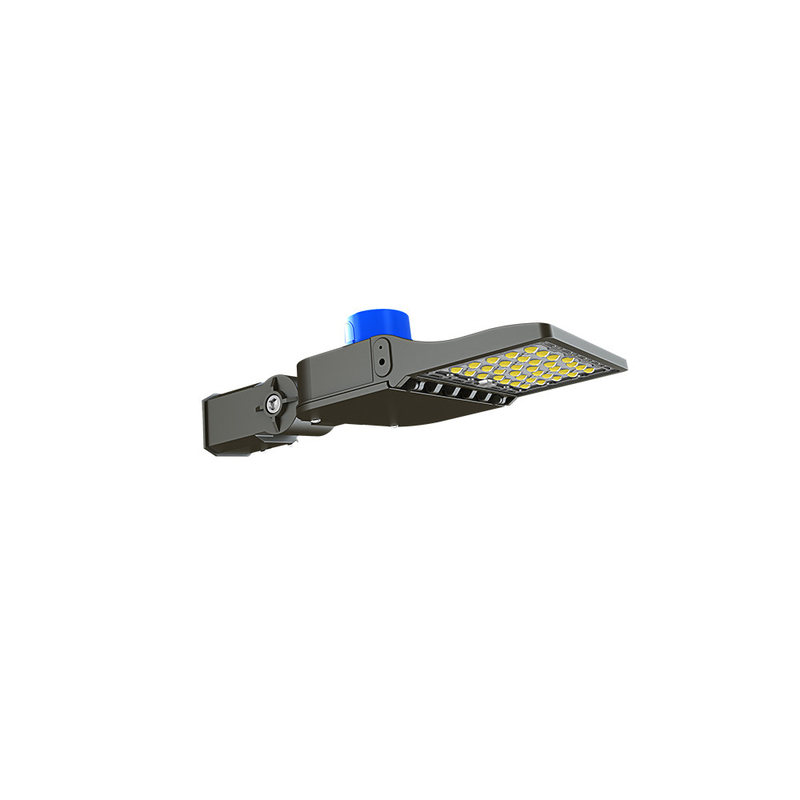

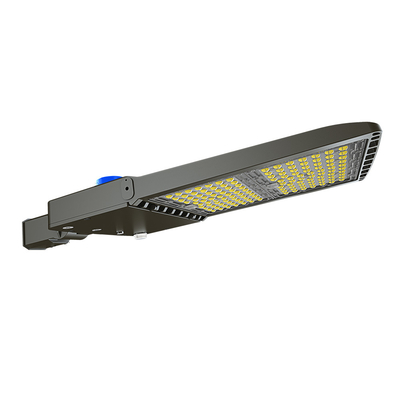

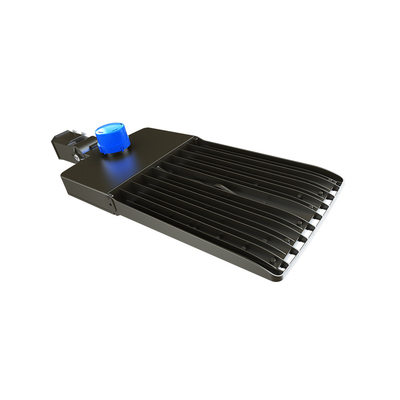

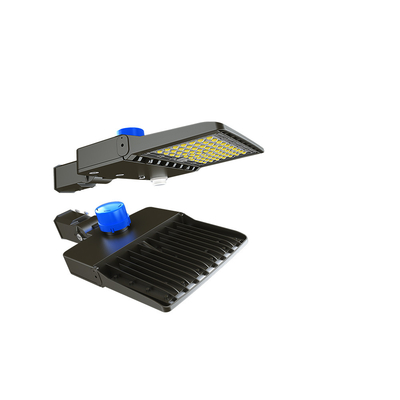

LED shoebox light ip66 waterproof 100w 150w 200w 250w 300w parking lot area light outdoor ip66 street light F series
Congo series shoe box light can be used in parking lot, highway, garden, campus, outdoor sports court, farm, backyard, etc.
0-10V / 1-10V dimming control.
10/20kV surge protection.
Intelligent cotrol: DALI, photocell control, motion sensor function.
CCT tunable (only for Congo 4 type): 3500K, 4000K, 5000K optional.
Polycarbonate optical lens, great UV resistance.
Professional fin-shaped heat sink design, excellent cooling performance.
Die-casting aluminum and bronze powder coated housing, better corrosion resistance.
High efficiency up to 144 lumens per watt, while energy saving up to 70% compared with traditional street lights.
Easy for single person to quickly install, 180° rotatable, angle adjustable.
On/off function: the luminaire will be activated when illumination is below a certain value.
IP66 ingress protection rating with excellent waterproof and dust-proof function, which is significant for outdoor lighting.
Photocell and motion sensor function available, with microwave sensor equipped. Optional accessories include motion sensor, photocell, and short circuit cap. Photocell can be chosen for dusk-to-dawn mode - autoon at dusk and auto-off at dawn. If manual mode is needed, replace the photocell with short circuit cap.
Temperature performance data: Ambient temperature
-40°C to 50°C (-40°F to 122°F)
Housing: Die-casting aluminum
Lens: Polycarbonate optical lens
Hardware: Stainless steel
Example: SB-CO1 80W YZD
| Type | Power(W) | Efficacy(Im/W) | Lumens(Im) | Input Voltage | CCT | CRI | Beam Angle | Ingress Protection |
| Congo 1 | 80/100 | 144 | 11520/14400 | 100-277/200-480VAC | 2700K-6000K | 70/80 | T2M/T3M/T4M/T5M | IP66 |
| Congo 3 | 150/200 | 144 | 21600/28800 | |||||
| Congo 4 | 250/300 | 144 | 36000/43200 |
| Type | Quantity/Carton | Packing Size(inch) | Net Weight(Ibs) | Gross Weight(Ibs) |
| Congo 1 | 1 PCS | 22.72x11.10x5.75 | 7.94 | 10.58 |
| Congo 3 | 1 PCS | 24.61x14.96x5.12 | 11.46 | 14.77 |
| Congo 4 | 1 PCS | 32.68x15.94x4.92 | 13.23 | 17.64 |
1. Typical height of installation:
2. Multiple installation accessories options:
FAQ
Q1. Can I have a sample order ?
Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
Q2. What about the lead time?
Sample needs 3-5 days, mass production time needs 1-2 weeks for order quantity more than
Q3. Do you have any MOQ limit for order?
Low MOQ, 1pc for sample checking is available
Q4. How do you ship the goods and how long does it take to arrive?
We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping also optional.
Q5. How to proceed an order ?
Firstly, let us know your requirements or application.
Secondly, We quote according to your requirements or our suggestions.
Thirdly,customer confirms the samples and places deposit for formal order.
Fourthly, We arrange the production.
