Product Details:
|
| Material: | Copper-free Aluminum | Item Type: | Explosion- Proof Lights |
|---|---|---|---|
| Warranty: | 5 Years | Input Voltage(v): | AC100-277V |
| Cri (ra>): | 80,70 | Ip Rating: | IP66 |
| High Light: | 277V LED Shoebox Light,100V LED Shoebox Light,Explosion Proof led shoebox flood light |
||

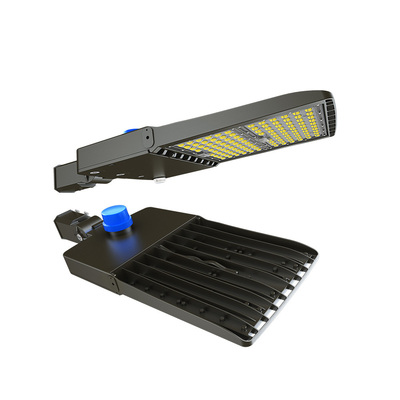

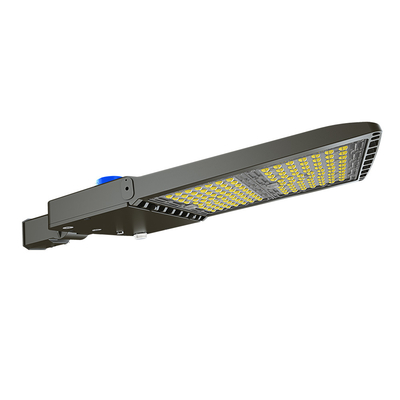

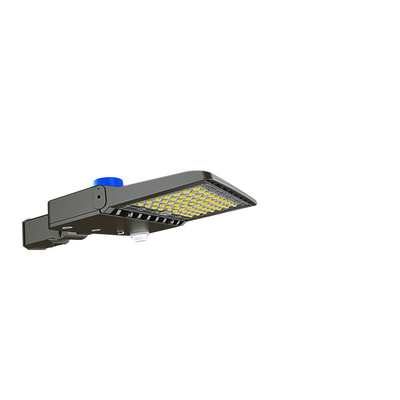

80~300W LED Street light outdoor lighting fixtures ShoeBox SERIES-57
Congo series shoe box light can be used in parking lot, highway, garden, campus, outdoor sports court, farm, backyard, etc.
0-10V / 1-10V dimming control.
10/20kV surge protection.
Intelligent cotrol: DALI, photocell control, motion sensor function.
CCT tunable (only for Congo 4 type): 3500K, 4000K, 5000K optional.
Polycarbonate optical lens, great UV resistance.
Professional fin-shaped heat sink design, excellent cooling performance.
Die-casting aluminum and bronze powder coated housing, better corrosion resistance.
High efficiency up to 144 lumens per watt, while energy saving up to 70% compared with traditional street lights.
Easy for single person to quickly install, 180° rotatable, angle adjustable.
On/off function: the luminaire will be activated when illumination is below a certain value.
IP66 ingress protection rating with excellent waterproof and dust-proof function, which is significant for outdoor lighting.

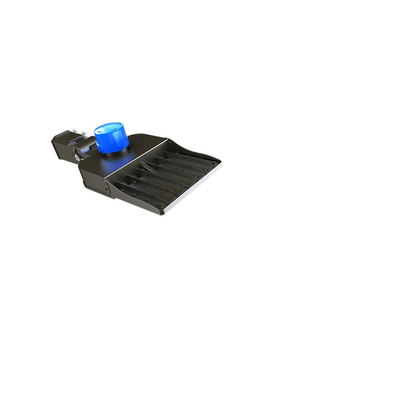

Photocell and motion sensor function available, with microwave sensor equipped. Optional accessories include motion sensor, photocell, and short circuit cap. Photocell can be chosen for dusk-to-dawn mode - autoon at dusk and auto-off at dawn. If manual mode is needed, replace the photocell with short circuit cap.
Temperature performance data: Ambient temperature
-40°C to 50°C (-40°F to 122°F)
Housing: Die-casting aluminum
Lens: Polycarbonate optical lens
Hardware: Stainless steel
Example: SB-CO1 80W YZD
| Type | Power(W) | Efficacy(Im/W) | Lumens(Im) | Input Voltage | CCT | CRI | Beam Angle | Ingress Protection |
| Congo 1 | 80/100 | 144 | 11520/14400 | 100-277/200-480VAC | 2700K-6000K | 70/80 | T2M/T3M/T4M/T5M | IP66 |
| Congo 3 | 150/200 | 144 | 21600/28800 | |||||
| Congo 4 | 250/300 | 144 | 36000/43200 |
| Type | Quantity/Carton | Packing Size(inch) | Net Weight(Ibs) | Gross Weight(Ibs) |
| Congo 1 | 1 PCS | 22.72x11.10x5.75 | 7.94 | 10.58 |
| Congo 3 | 1 PCS | 24.61x14.96x5.12 | 11.46 | 14.77 |
| Congo 4 | 1 PCS | 32.68x15.94x4.92 | 13.23 | 17.64 |

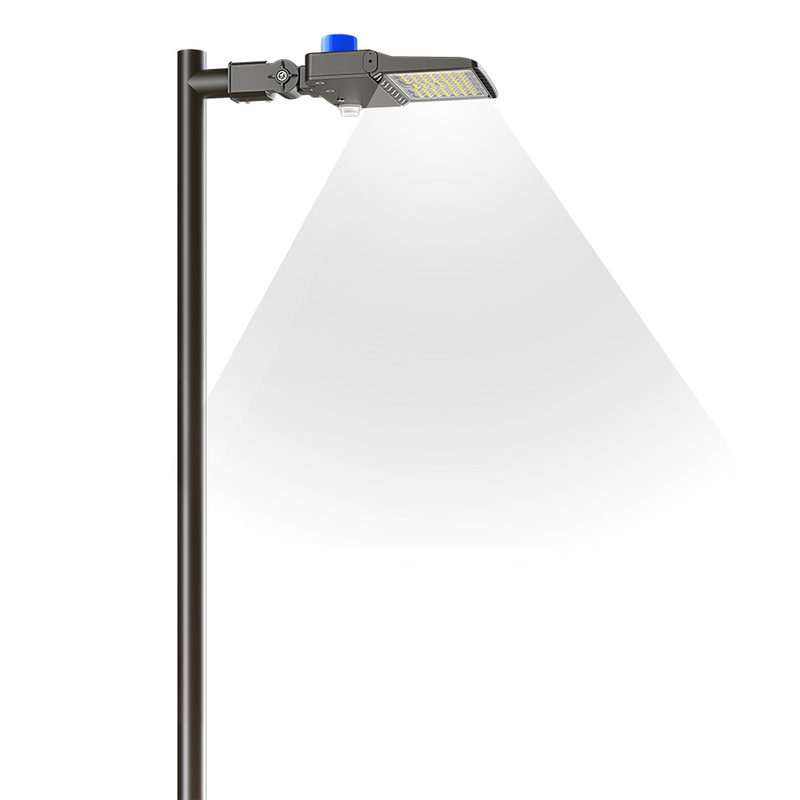

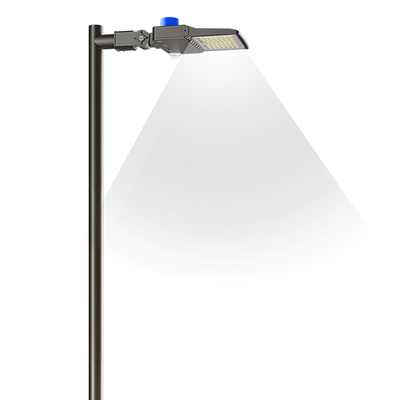

1. Typical height of installation:
2. Multiple installation accessories options:
Q1. Do you have any MOQ limit for led light order?
A: Low MOQ, 1pc for sample checking is available.
Q2. How do you ship the goods and how long does it take to arrive?
A: Ship by DHL, UPS, FedEx or TNT. It takes 3-5 days to arrive. Airline and sea shipping also optional.
