Product Details:
|
| Item Type: | Led Street Light/Sheobox Light | Certification: | CB,ETL |
|---|---|---|---|
| Ip Rating: | IP66 | Working Lifetime(hour): | 50000 |
| High Light: | 100W 300w led shoebox light,300w led shoebox light Outdoor,IP66 shoebox led parking lot lights |
||

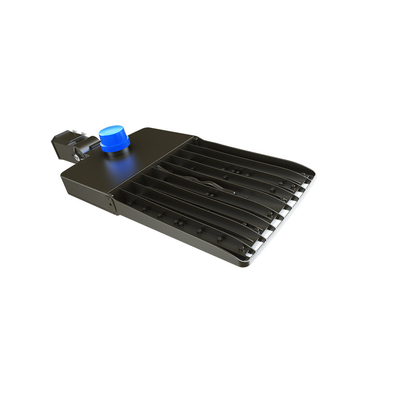

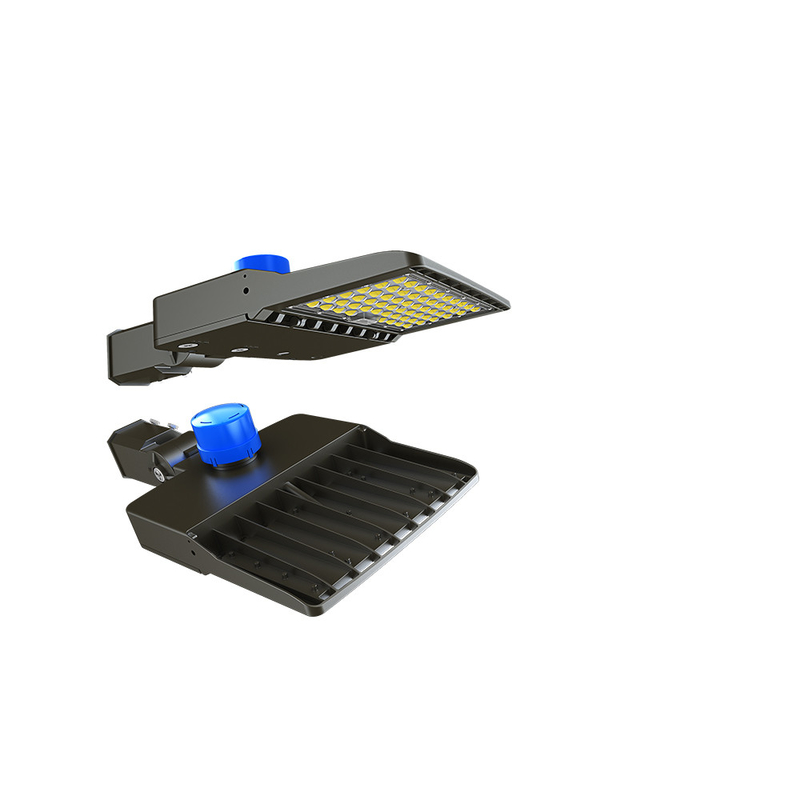

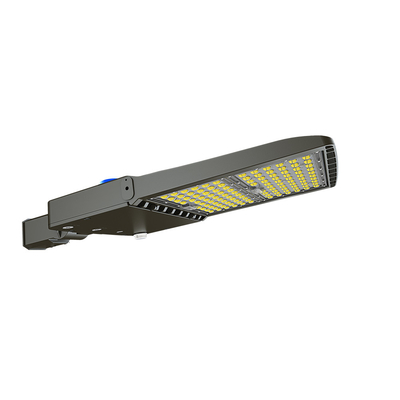

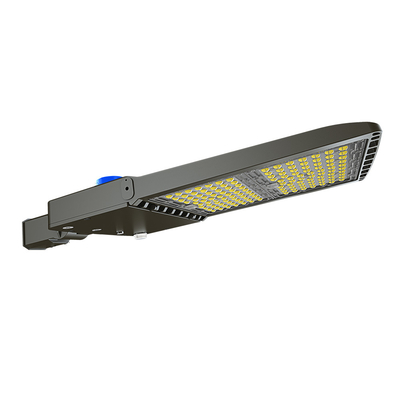

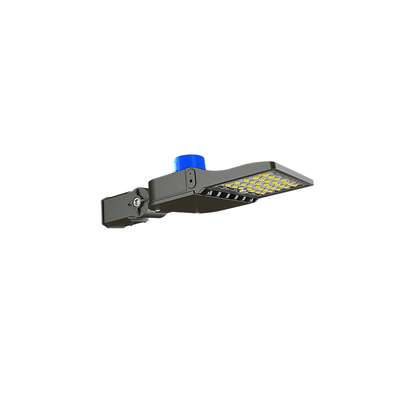

LED shoebox light energy saving 100w-300w parking lot area light outdoor ip66 led shoebox street light F Series
Congo series shoe box light can be used in parking lot, highway, garden, campus, outdoor sports court, farm, backyard, etc.
0-10V / 1-10V dimming control.
10/20kV surge protection.
Intelligent cotrol: DALI, photocell control, motion sensor function.
CCT tunable (only for Congo 4 type): 3500K, 4000K, 5000K optional.
Polycarbonate optical lens, great UV resistance.
Professional fin-shaped heat sink design, excellent cooling performance.
Die-casting aluminum and bronze powder coated housing, better corrosion resistance.
High efficiency up to 144 lumens per watt, while energy saving up to 70% compared with traditional street lights.
Easy for single person to quickly install, 180° rotatable, angle adjustable.
On/off function: the luminaire will be activated when illumination is below a certain value.
IP66 ingress protection rating with excellent waterproof and dust-proof function, which is significant for outdoor lighting.
Photocell and motion sensor function available, with microwave sensor equipped. Optional accessories include motion sensor, photocell, and short circuit cap. Photocell can be chosen for dusk-to-dawn mode - autoon at dusk and auto-off at dawn. If manual mode is needed, replace the photocell with short circuit cap.
Temperature performance data: Ambient temperature
-40°C to 50°C (-40°F to 122°F)
Housing: Die-casting aluminum
Lens: Polycarbonate optical lens
Hardware: Stainless steel
Example: SB-CO1 80W YZD
| Type | Power(W) | Efficacy(Im/W) | Lumens(Im) | Input Voltage | CCT | CRI | Beam Angle | Ingress Protection |
| Congo 1 | 80/100 | 144 | 11520/14400 | 100-277/200-480VAC | 2700K-6000K | 70/80 | T2M/T3M/T4M/T5M | IP66 |
| Congo 3 | 150/200 | 144 | 21600/28800 | |||||
| Congo 4 | 250/300 | 144 | 36000/43200 |
| Type | Quantity/Carton | Packing Size(inch) | Net Weight(Ibs) | Gross Weight(Ibs) |
| Congo 1 | 1 PCS | 22.72x11.10x5.75 | 7.94 | 10.58 |
| Congo 3 | 1 PCS | 24.61x14.96x5.12 | 11.46 | 14.77 |
| Congo 4 | 1 PCS | 32.68x15.94x4.92 | 13.23 | 17.64 |
1. Typical height of installation:
2. Multiple installation accessories options:
FAQ
Q1. Can I have a sample order ?
Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
Q2. What about the lead time?
Sample needs 3-5 days, mass production time needs 1-2 weeks for order quantity
Q3: How to deal with the faulty?
Firstly, Our products are produced in strict quality control system and the defective rate will be less than 0.2%.
Secondly,during the guarantee period, we will send new lights with new order for small quantity. For defective batch products, we
will repair them and resend them to you or we can discuss the solution including re-call according to real situation.
