Product Details:
|
| Light Source: | LED | Ip Rating: | IP66/IP67 |
|---|---|---|---|
| Item Type: | Explosion Proof Lights | Cri (ra>): | 70 |
| Working Temperature(℃): | -40 - 70 | Application: | Gas Station, Chemical Industry, Factory, Gas/chemical Industry, Platform |
| Warranty: | 5 Years | ||
| High Light: | High Temprature Ex Proof LED Flood Light,Ex Proof LED Flood Light IP66,IP67 explosion proof flood light |
||
Ing Switch Led Light Atex Flood Hazardous Arean Explosion-Proof Explosion Proof Light high temprature light

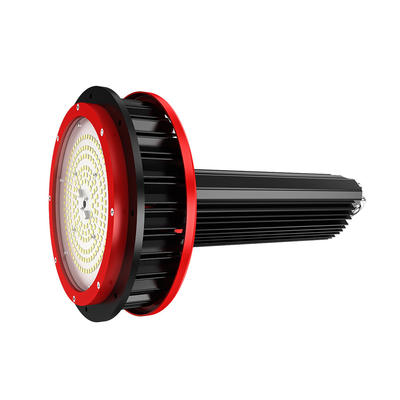

High Temperature High Bay Light, which is applied to ambient high temperature working area where operation temperature may reach 158℉(70°C), such as steel plant, aluminum smelter, and other high-temperature, dust, corrosive gas environment.
The HB Series high heat resistant lights combine optical performance energy efficiency and outstanding versatility to meet the requirements of high temperature lighting applications in high-temperature, dust, corrosive gas environment, delivering a wide range of light outputs. The enclosure body is made of aluminum with corrosion-resistant coating which protects against overheating damage.
| Model | HB-xxxW-D1YZDG | HB-xxxW-D2YZDG | HB-xxxW-D4YZDG |
| Power | 10-150W | 100-300W | 300-600W |
| Voltage | AC127-270V/AC347-480V,50/60Hz | ||
| Efficiency | 150Im/W | ||
| CRI | >70 | ||
| Beam Angle | 20°-120° | ||
| CCT | 2200k-7000k | ||
| Amebient Temperature | 40℉ to + 158℉(-40℃ to +70℃) | ||
| IP Rating | IP66/IP67 | ||
| IK | IK09 | ||
| LED Chip | 5050/3535/3030 | ||
| Model | Quantity/Carton | Packing Size(mm) | N.W(KG) | G.W(KG) |
| HB-xxxW-D1YZDG | 1 | 340*340*550 | 8 | 9 |
| HB-xxxW-D2YZDG | 1 | 380*670*306 | 16 | 17 |
| HB-xxxW-D4YZDG | 1 | 696*675*306 | 32.25 | 33.25 |
Unit:mm or inch
HB-xxxWD1
HB-xxxWD4

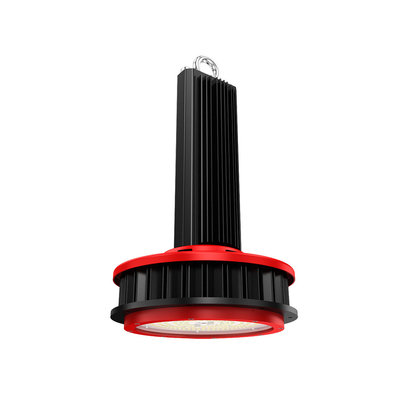

No.1 Hook Pendant Mounting

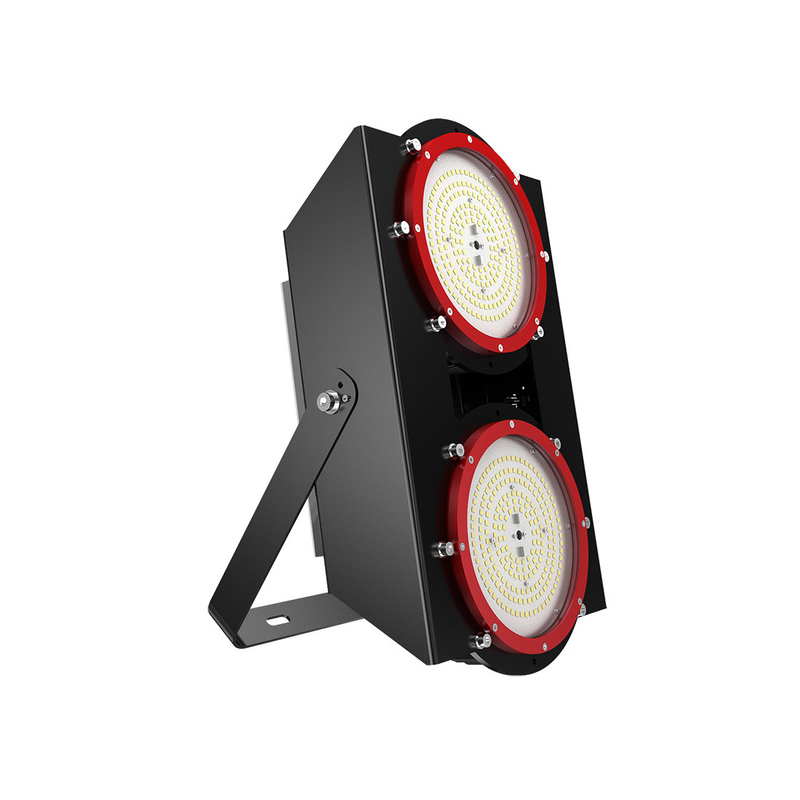

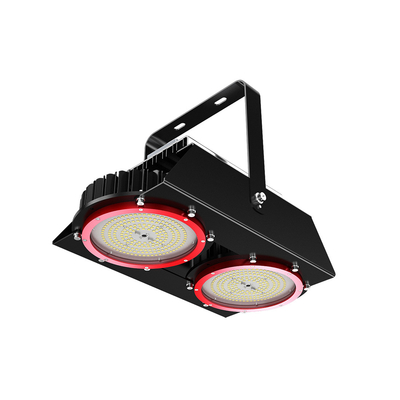

No.2 Bracket Mounting
FAQ
Q1. Can I have a sample order ?
Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
Q2: Do you offer guarantee for the products?
Yes, we offer 2-5 years warranty to our products.
