Product Details:
|
| Material: | Copper-free Aluminum | Power: | 20,40,60,80,100,150 |
|---|---|---|---|
| Item Type: | Explosion- Proof Lights | Color Temperature(cct): | Pure White, Cool White ,warm White |
| Ip Rating: | 66 | Input Voltage(v): | AC100-277V/DC12-48V AC200-480V |
| High Light: | 150W explosion proof high bay light fixture 7000k,7000k 150W explosion proof high bay light fixture,explosion proof high bay light fixture 150W 7000k |
||

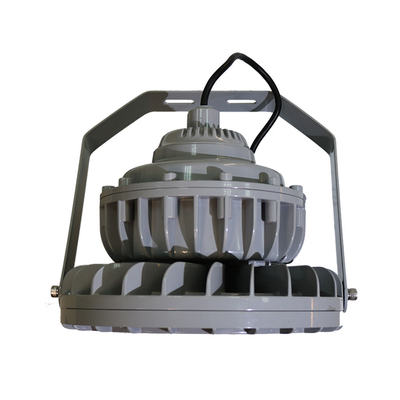

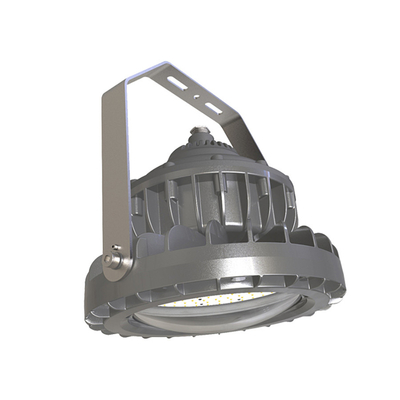

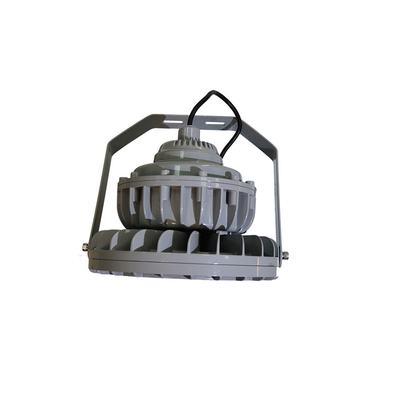

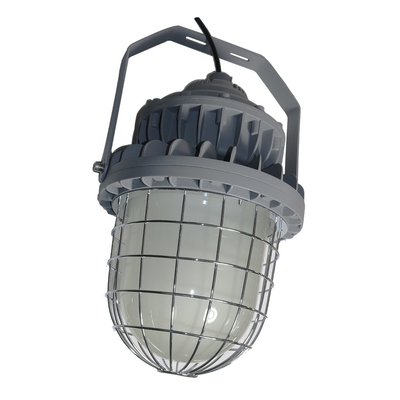

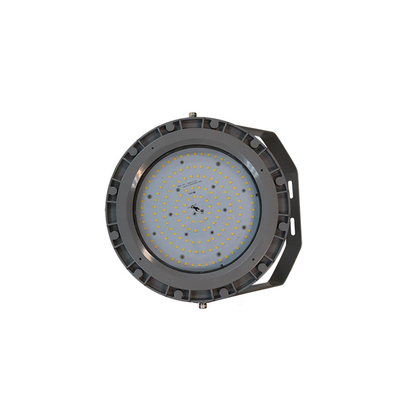

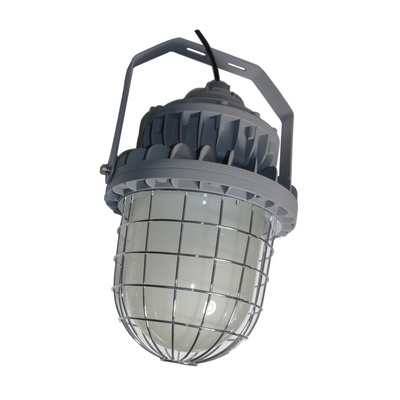

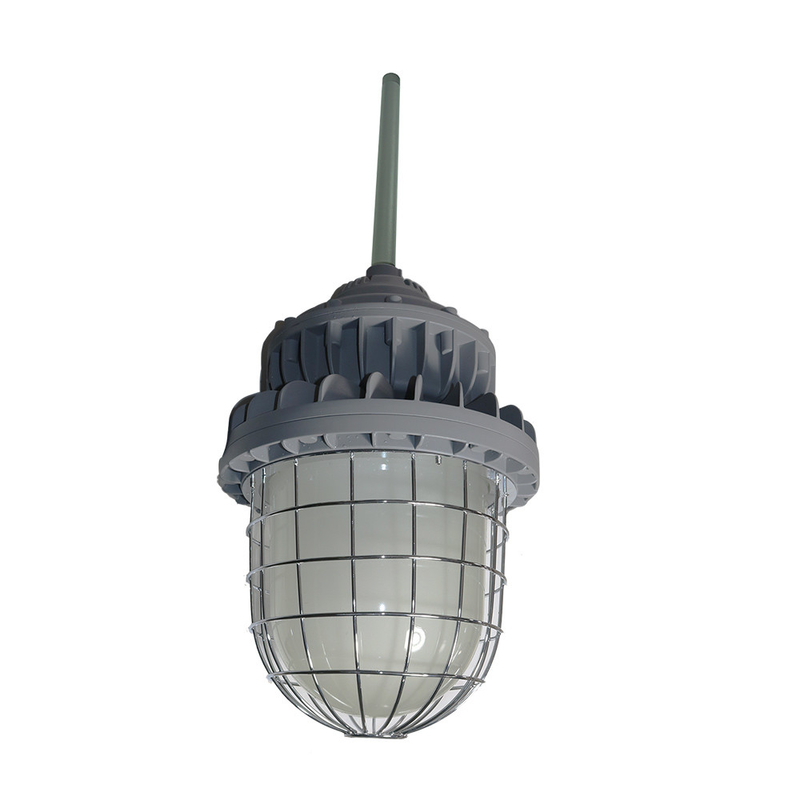

20~150W ATEX Certified LED Explosion Proof High Bay Fixtures-E SERIES 2
Oil and Gas industry
• All petroleum production and refining
• Petroleum loading and transportation
• Petroleum storage and retail
• LNG industry
• All mining operations and service Chemical industry
• All types of paint facilities
• Chemical production and storage
Ocean, marine and aerospace field
• Ocean platform operation facilities and structure
• Aerospace clean room and production
• Ocean vessel operations
Metal treatment
• Steel and aluminum factories
• Pumping stations in any environment
• Metal smelting, foundry and fabrication
Food and alcohol industry
• Flour and fine particle production and storage
• Food and distilling production
• Alcohol industry
Other high humidity, high dust, high temperature, vapor locations.
• Housing: Die-casting Aluminum
• Lens: Tempered glass
• Hardware: stainless steel
• Mounting Bracket: stainless steel
• Working Temperature: -40°C ~ +65°C.
• High quality SMT LED and Meanwell Driver.
• Light-weight design by aircraft aluminum.
• Heavy-duty and high impact resistance.
• Three connection cable entry points.
• Replaceable LED board and drivers.
• Integrated junction box for driver with emergency back up.
• Dimmable and battery back up function available.
• Marine rating powder coated appearance treatment.
• Up to 5 years limited warranty option.
• Emergency Battery back up to three hours.
• Various installation ways for different applications.
• Glass lens or Glass with polycarbonate lens to make bigger beam angle.
| Model | Wattage | Color Temperature | Voltage | Lumens | Warranty | CRI | Emergency Time |
| EX-20W EYZDA | 20W | 2200K-7000K | AC100-277V Or AC200-480V | 2800 | 5 years | 80 | 3 hours |
| EX-40W EYZDA | 40W | 5600 | |||||
| EX-60W EYZDA | 60W | 8400 | |||||
| EX-80W EYZDA | 80W | AC100-277V Or DC12-48V | 11200 | ||||
| EX-100W EYZDA | 100W | 14000 | |||||
| EX-150W EYZDA | 150W | 21000 |
| Model | Quantity/Carton | Packing Size(mm) | N.W(KG) | G.W(KG) |
| E(Flat glass) | 1 PCS | 480*505*455 | 15.2 | 17 |
| E(Spherical glass) | 1 PCS | 660*505*455 | 19.5 | 22.5 |
Marking UL844 (North American)
Class I, Division 1, Groups C, D
Class I, Division 2, Groups A, B, C, D
Class II, Division 1, Groups E, F, G
Class II, Division 2, Groups F, G
Class III
Marking Marine
UL1598A
ABS
Other Rating
IP 66
Ik10
Q1. Can I have a sample order for led light?
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
Q2. Do you have any MOQ limit for led light order?
A: Low MOQ, 1pc for sample checking is available
