Product Details:
|
| Light Source: | LED | Ip Rating: | IP66 |
|---|---|---|---|
| Item Type: | Explosion Proof Lights | Working Lifetime(hour): | 50000 |
| Working Temperature(℃): | -40 - 55 | Application: | Gas Station, Chemical Industry, Factory, Gas/chemical Industry, Platform |
| Warranty: | 5 Years |

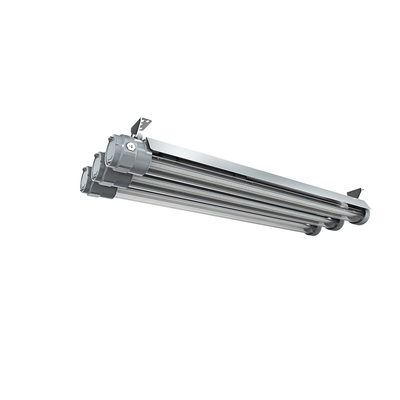

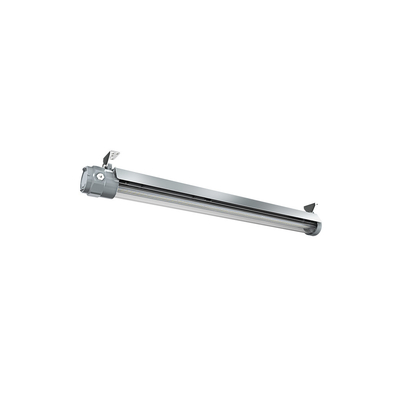

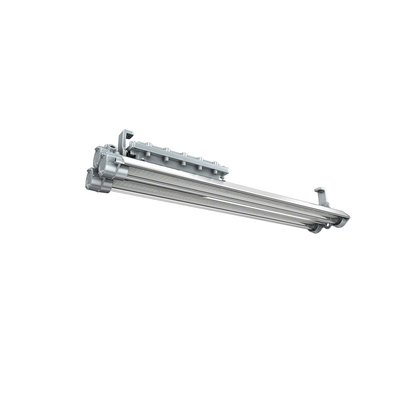

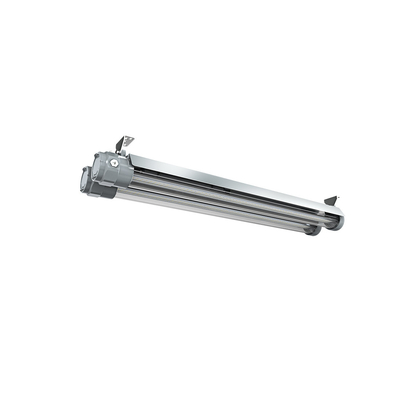

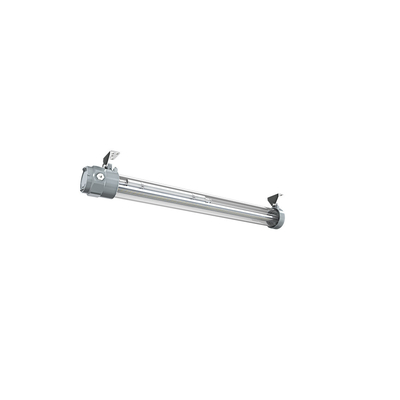

Industrial 150Wled Lights Round Explosion Proof Marine Portable Light Watertight Explosion Proof Light FLB Series
Marking ATEX
II2 G Ex eb db mb IIC T6/T5 Gb
II2 D Ex tb IIIC T80°C / T95°C Db IP66/IP67/IP68
Gas:Zone1&2
Dust:Zone21&22
TemperatureClass:T6/T5
Surface Temperature:+80°C/+95°C
Marking IECEx
Ex eb db mb IIC T6/T5 Gb
Ex tb IIIC T80°C / T95°C Db IP66/IP67/IP68
Standard
EN 60079-0, EN 60079-1, EN60079-7,EN 60079-18, EN 60079-31
IEC 60079-0, IEC 60079-1, IEC 60079-7,IEC 60079-18, IEC 60079-31
Electrical class: Class I
Connection: Connection to a 3x2,5mm² terminal block
1 cable gland in black polyamide (Ø8-13 mm) including 2 blind plugs.
Shell material: Copper free aluminum, plastic sprayed surface
Installation accessories: Stainless Steel 304
Gaskets: Silicon rubber
Lens: Transparent Borosilicate glass or polvcarbonate protected by a coextruded laver of PMMA
Illuminate: LED
The explosion-proof type type of wiring chamber can be “Ex e” explosion-proof type. See Figure.
The opening mode of the wiring chamber cover is threaded connection, which is convenient for incoming wire and wiring.
The structure can save additional incoming junction box for users.
Method of construction: Housing in one piece with high mechanical and chemical resistance.
Long-lasting imperviousness by screw fitting.
Rated voltage: AC100V to 277 V or DC12V to 48V
Rated Power: A series: 1 x (15 to 28) W, 2 x (15 to 28) W, 3 x (15 to 28) W
B series: 1 x (20 to 45) W, 2 x (20 to 45) W, 3 x (20 to 45) W
C series: 1 x (36 to 72) W, 2 x (36 to 72) W, 3 x (36 to 72) W
IP Degree of protection: IP66/IP67/IP68
Ambient temperature: Normal: -40°C - +45°C for T6/T80°C
-40°C - +60°C for T5/T95°C
Emergency: -10°C - +45°C for T6/T80°C
-10°C - +60°C for T5/T95°C
Enclosures Code: IK10
Glass Code: IK08
| Model | Wattage | Voltage | CCT | Transparency Type | Dimming Options | Emergency Lighting |
| EX-FLB-A | 1*15W 2*15W 3*15W 1*18W 2*18W 3*18W 1*20W 2*20W 3*20W 1*28W 2*28W 3*28W | AC100 to 277V or DC12 to 48V | 30,3000K 40,4000K 50,5000K 65,6500K | G, Tempered glass P, Plastic | D, Dimming; N, No Dimming | E, Emergency lighting luminaires. Ellipsis, General lighting luminaires. |
| EX-FLB-B | 1*15W 2*15W 3*15W 1*18W 2*18W 3*18W 1*20W 2*20W 3*20W 1*28W 2*28W 3*28W | |||||
| EX-FLB-C | 1*15W 2*15W 3*15W 1*18W 2*18W 3*18W 1*20W 2*20W 3*20W 1*28W 2*28W 3*28W |
