Product Details:
|
| Material: | Copper-free Aluminum | Item Type: | Explosion Proof Lights |
|---|---|---|---|
| Working Lifetime(hour): | 50000 | Warranty: | 5 Years |

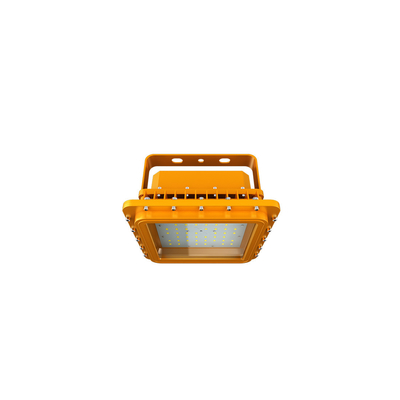

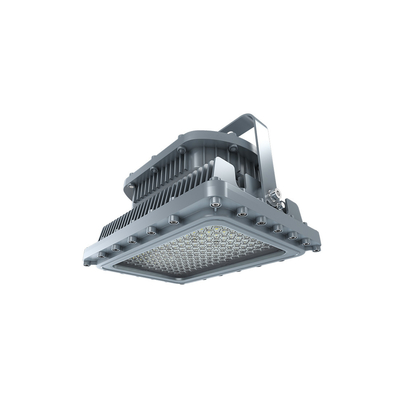

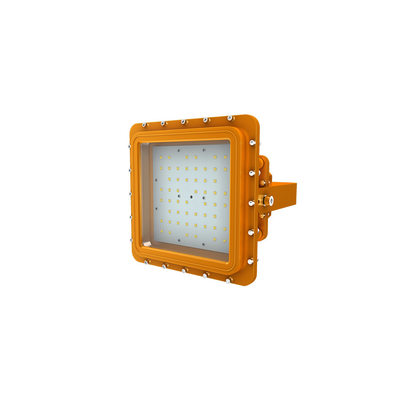

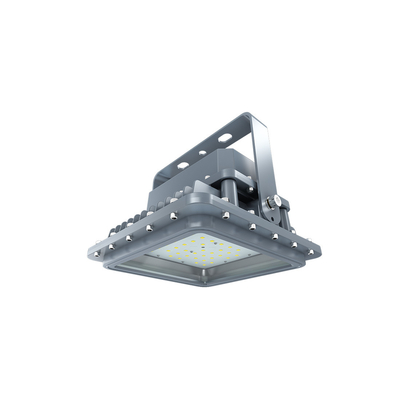

Cheap Atex Listed Explosion Proof Light 200w Waterproof Rectangular Appearance Gas Station LIGHT D SERIES
• Working Temperature: -40°C ~ +55°C.
• High quality SMT LED and Meanwell Driver.
• Heavy-duty and high impact resistance. • Replaceable LED board and drivers.
• Integrated junction box for driver .
• Dimmable and battery back up function available.
• Marine rating powder coated finish treatment.
• Up to 5 years warranty.
• Emergency Battery back up .
• Various installation ways for different applications.
• Glass lens or polycarbonate lens to make various beam angles
Oil and Gas industry
• All petroleum production and refining
• Petroleum loading and transportation
• Petroleum storage and retail
• LNG industry
• All mining operations and service
Chemical industry
• All types of paint facilities
• Chemical production and storage
Ocean, marine and aerospace field
• Ocean platform operation facilities and structure
• Aerospace clean room and production
• Ocean vessel operations
Metal treatment
• Steel and aluminum factories
• Pumping stations in any environment
• Metal smelting, foundry and fabrication
Food and alcohol industry
• Flour and fine particle production and storage
• Food and distilling production
• Alcohol industry
MATERIALS Marking UL844 (North American)
Class I, Div. 1, Groups C, D
Class I, Div. 2, Groups A, B, C,D
Class II, Div. 1, Groups E, F, G
Class II, Div. 2, Groups F, G
Class III
Marine Marking
1598, UL1598A
ABS
Other Rating
IP 66
IK 10
• Housing: Copper-free aluminum
• Lens: Tempered glass
• Hardware: Stainless steel
• Mounting Bracket: Stainless steel
| Model | Wattage | Operating Voltage |
Lumens (Im) |
Efficacy (Im/W) |
CRI | CCT | Emergency time |
| EX-20W D2YZDA | 20W | AC 100-277V/200-480V or DC12-48V | 2800 | 140 | >70 | 2200-7000k | 3 hours |
| EX-40W D2YZDA | 40W | 5600 | |||||
| EX-60W D2YZDA | 60W | 8400 | |||||
| EX-80W D2YZDA | 80W | 11200 | |||||
| EX-100W DYZDA | 100W | 14000 | |||||
| EX-150W DYZDA | 150W | 21000 | |||||
| EX-200W DYZDA | 200W | 28000 | |||||
| EX-220W DYZDA | 220W | 30800 |
| Model | Quantity/Carton | Length(mm) | Width(mm) | Height(mm) | Net weight(kg) | Gross weight(mm) |
| D2 | 1 | 400mm | 385mm | 335mm | 7kg | 9.5kg |
| D | 1 | 502mm | 376mm | 350mm | 17.9kg | 19.5kg |
Q1. What about the lead time?
Sample needs 3-5 days, mass production time needs 1-2 weeks for order quantity
Q2. Do you have any MOQ limit for order?
Low MOQ, 1pc for sample checking is available
Q3. How do you ship the goods and how long does it take to arrive?
We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping also optional.
