Product Details:
|
| Material: | Copper-free Aluminum | Item Type: | Explosion- Proof Lights |
|---|---|---|---|
| Warranty: | 5 Years | Ip Rating: | IP66/67 |
| Working Temperature(℃): | -10 -40 | Lamp Power(w): | 10,35,40,70,80,140 |
| High Light: | 140W Explosion Proof LED Lights,10W Explosion Proof LED Lights,140W explosion proof light fixture |
||

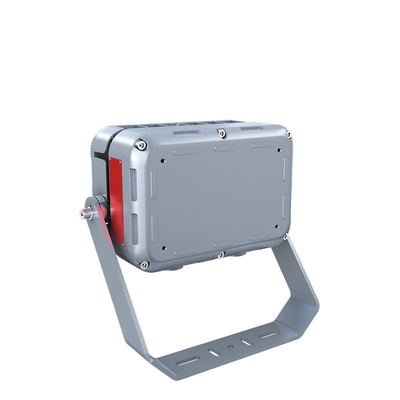

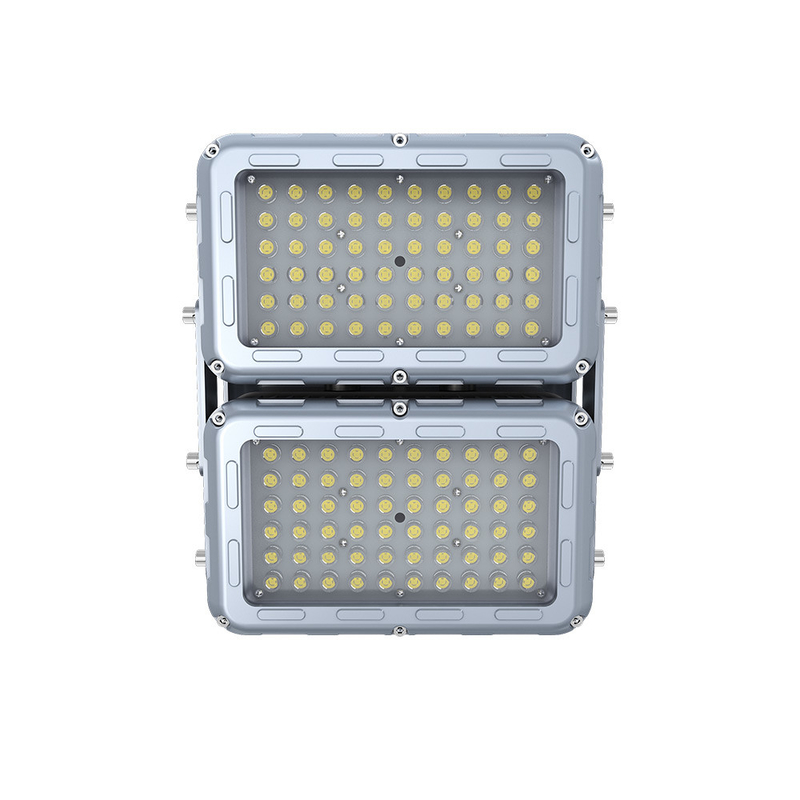

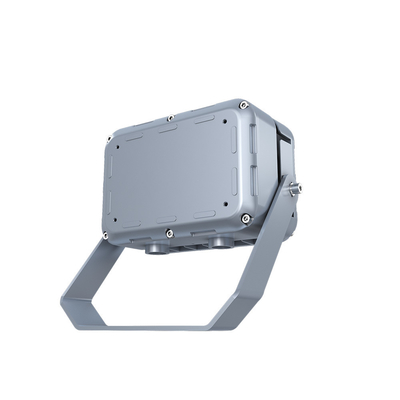

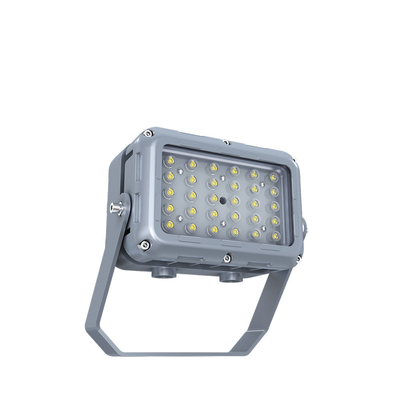

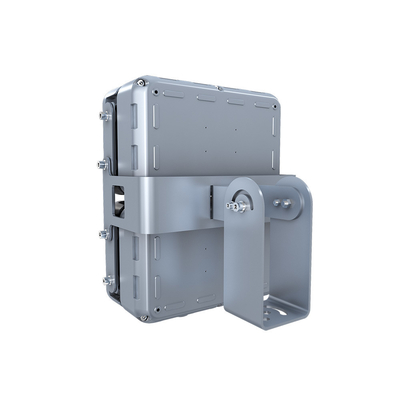

ATEX Certified 10~140W LED Explosion Proof High Bay Fixtures
Assyria 4 series LED explosion proof light is suitable for various harsh and hazardous application scenarios:
Oil and gas industry
Chemical industry
Metal treatment
Food and alcohol industry
Ocean, marine location
Aerospace field
0-10V dimming control.
Beam angles optional: 40°/60°/90°/120°.
Stainless steel fasteners and ADC12 aluminum housing for better corrosion resistance.
Various mounting ways for different applications.
Tempered glass for high light transmittance and impact resistance.
Simple structure for easy and quick installation.
Emergency operation available,
ATEX Marking:
II2 G Ex eb mb IIC T5/T6 Gb
II2 D Ex tb IIIC T95/80°C Db
IECEx Marking:
Ex eb mb IIC T5/T6 Gb
Ex tb IIIC T95/80°C Db
Ingress Protection: IP66 / IP67(wet location)
Impact Resistance (shock): IK09
Housing: ADC12 aluminum
Lens: Tempered glass
Hardware: Stainless steel
Temperature performance data:
T6 (10-100W) : -40°C to 60°C (-40°F to 140°F)
T5 (100-250W): -40°C to 60°C (-40°F to 140°F)
T6 (10W, in emergency): -10°C to 40°C (14°F to 104°F)
Example: EX-40W AS4-AYZDA
| Model | Power(W) | Input Voltage | Lumens(Im) | Efficiency(Im/W) | CRI | CCT | Dimming |
| Assyria 4-A | 10-35W | AC100-305V 50/60Hz | 1200-9800 | 120-140 | >70 | 2700K-7000K | 0-10V dimmable |
| Assyria 4-B | 40-70W | AC100-305V 50/60Hz | 4800-9800 | ||||
| Assyria 4-C | 80-140W | AC100-305V 50/60Hz | 9600-19600 |
| Type | Qty/Carton | Packing Size(inch) | Net Weight(Ibs) | Gross Weight(Ibs) |
| Assyria 4-A | 1 PCS | 9.5x6.8x5.1 | 10.36 | 12.57 |
| Assyria 4-A | 1 PCS | 11.8x7.7x6.2 | 16.53 | 19.4 |
| Assyria 4-A | 1 PCS | 15.4x13x6.5 | 33.07 | 38.58 |
Assyria 4-A
Assyria 4-B Assyria 4-C
Q1. What about the lead time?
A: 3-5 days for Sample preparing ,8-10 working days for mass production.
Q2. Can I have a sample order for led light?
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
