Product Details:
|
| Material: | Copper-free Aluminum | Item Type: | Explosion- Proof Lights |
|---|---|---|---|
| Ip Rating: | 66 | Working Lifetime(hour): | 50000 |
| Input Voltage(v): | AC120V-277V(50/60Hz) | Warranty: | 5 Years |

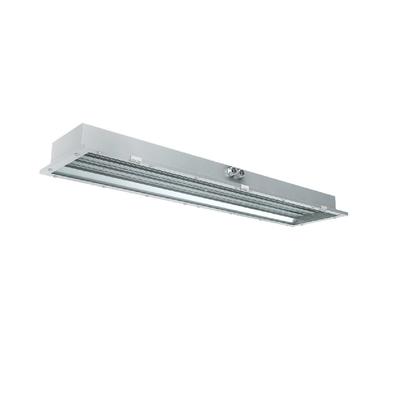

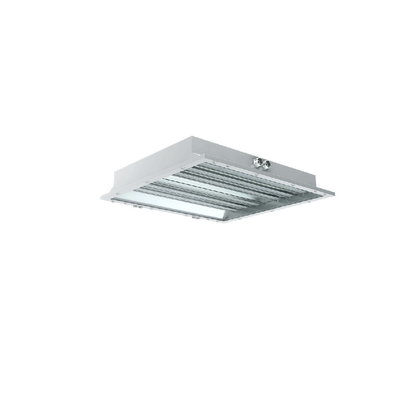

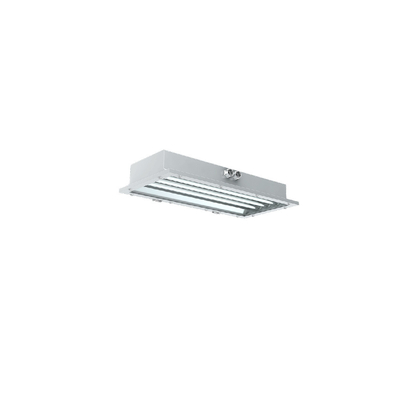

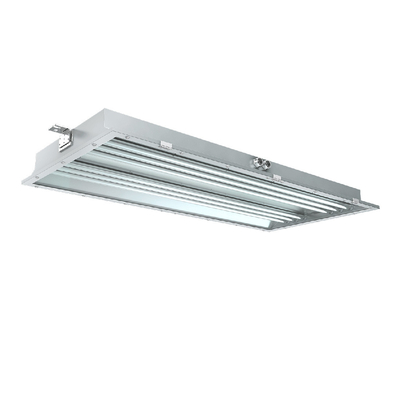

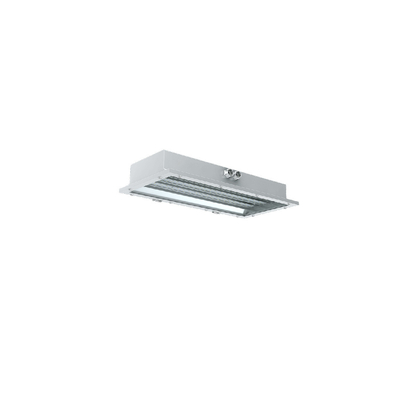

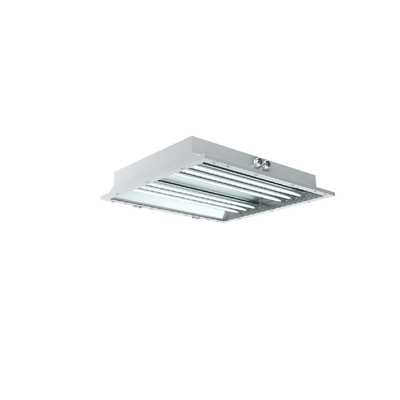

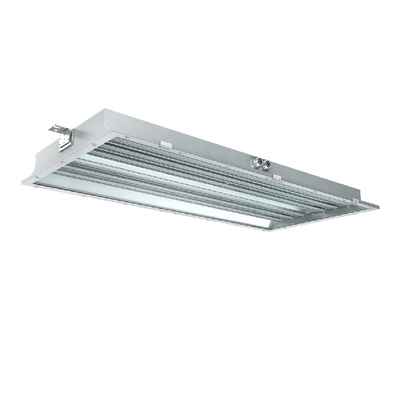

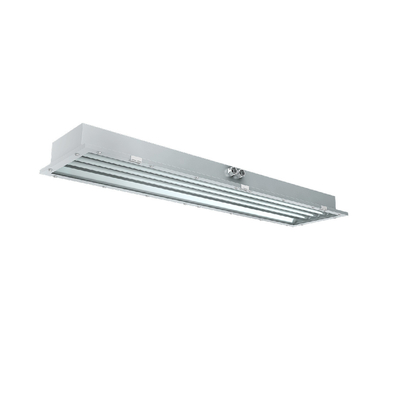

Explosion Proof Lamp 20~240W Chemical Industry IP66 Led Explosion Proof Light Gas Station Ex High Bay Fixtures FLD
UL Marking
Class | Division 2,Groups A,B,C,D;
Class II Division 1,Groups F,G;
Class III;
ATEX Marking
II2 G Ex eb mb db IIC T6/T5 Gb
II2 D Ex tb IIIC T80°C /T95°C Db IP66
Example: EX-xxW-FLD12YZD
EX-xxW-FLD14YZD
EX-xxW-FLD22YZD
EX-xxW-FLD24YZD
EX : Product categories; EX denotes explosion-proof light.
xxW: Wattage of luminaires.
The power ranges from 20W to 240W. It increases by 5W stepwise, maximum 240W.
FLDxx: Shell shape; it can be FLD12, FLD14, FLD22, FLD24.
Y: Dimming options.
Y=D means Dimmable
Y=N means Non-dimmable
Z: Color temperature options. "Z" can be 27 to 70, which denotes 2700K to 7000K. The value increases incrementally by 100K, up to a maximum of 7000K.
D: Beam angle options.
The beam angle is adjustable with different lenses used.
"D"= D15 (denotes 15°) to D180 (denotes 180°)
Model No. EX-20W-FLD12 YZD; EX-40W-FLD12 YZD;
EX-60W-FLD12 YZD; EX-80W-FLD12 YZD;
EX-40W-FLD14 YZD; EX-60W-FLD14 YZD;
EX-80W-FLD14 YZD; EX-120W-FLD14 YZD;
EX-40W-FLD22 YZD; EX-60W-FLD22 YZD;
EX-80W-FLD22 YZD; EX-120W-FLD22 YZD;
EX-60W-FLD24 YZD; EX-80W-FLD24 YZD;
EX-100W-FLD24 YZD; EX-120W-FLD24 YZD;
EX-160W-FLD24 YZD; EX-240W-FLD24 YZD; (the power halved in emergency mode)
Construction: Die cast aluminum shell
Waterproof sealing ring: Polytetrafluoroethylene
Finish: Powder coating
Hardware: Stainless steel
Light source: 130 lm/W
120° beam angle
CCT 2700K-7000K
50,000 hours rated life
Power source: 120-277V, 50-60Hz
Built-in power supply
Over-voltage, over-current and short-circuit protection.
IP : IP66
IK : IK09
Ambient
temperature: -40°C to +40°C (-40°F to +104°F)
EX-60W-FLD12 YZD; EX-80W-FLD12 YZD;
EX-80W-FLD14 YZD; EX-120W-FLD14 YZD;
EX-120W-FLD22 YZD; EX-160W-FLD24 YZD;
EX-240W-FLD24 YZD; -40°C to +60°C (-40°F to +140°F)
EX-20W-FLD12 YZD; EX-40W-FLD12 YZD;
EX-40W-FLD14 YZD; EX-60W-FLD14 YZD;
EX-40W-FLD22 YZD; EX-60W-FLD22 YZD;
EX-80W-FLD22 YZD; EX-60W-FLD24 YZD;
EX-80W-FLD24 YZD; EX-100W-FLD24 YZD;
EX-120W-FLD24 YZD;
Mounting
Methods : Pendant Mounting, ceiling mounting;
embedded mounting
Fixture
Dimensions :EX-xxW-FLD12 YZD: 640x305x95mm
25.2x12x3.7inch
EX-xxW-FLD14 YZD: 1250x305x95mm
49.2x12x3.7inch
EX-xxW-FLD22 YZD: 640x605x95mm
25.2x23.8x3.7inch
EX-xxW-FLD24 YZD: 1250x605x95mm
49.2x23.8x3.7inch
Warranty : 5 years
| Model | Packing Size | Gross Weight(kg) |
| EX-xxW-FLD12 YZD | 700x350x175mm | 9 |
| EX-xxW-FLD14 YZD | 1320x350x175mm | 20 |
| EX-xxW-FLD22 YZD | 700x680x175mm | 21 |
| EX-xxW-FLD24 YZD | 1320x680x175mm | 40 |
Q1. Do you have any MOQ limit for led light order?
A: Low MOQ, 1pc for sample checking is available.
Q2: How to deal with the faulty?
Firstly, Our products are produced in strict quality control system and the defective rate will be less than 0.2%.
Secondly,during the guarantee period, we will send new lights with new order for small quantity. For defective batch products, we
will repair them and resend them to you or we can discuss the solution including re-call according to real situation.
