Product Details:
|
| Material: | Copper-free Aluminum | Item Type: | Explosion- Proof Lights |
|---|---|---|---|
| Lamp Power(w): | 17,35,40,54,60 | Ip Rating: | 66 ; 67 |
| Working Lifetime(hour): | 50000 | Input Voltage(v): | AC120V-277V(50/60Hz);DC12V-24V |

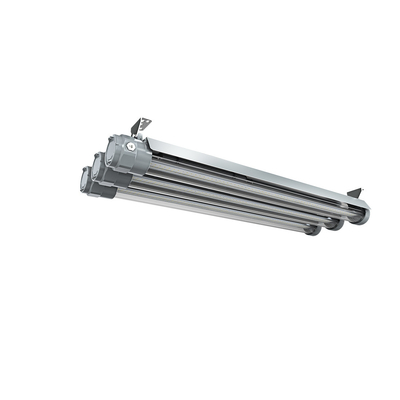

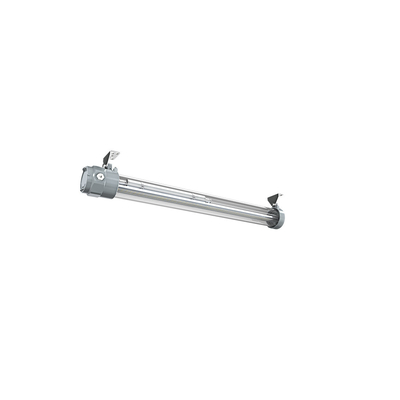

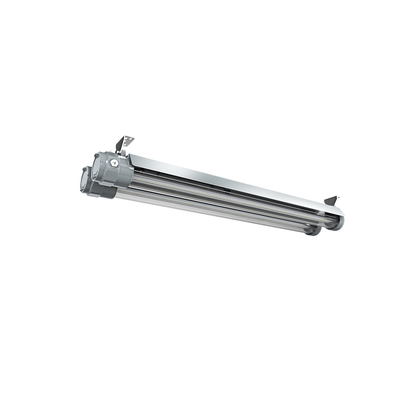

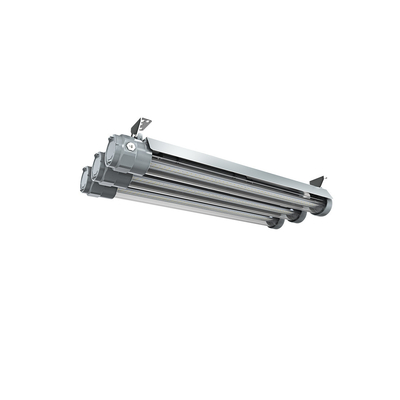

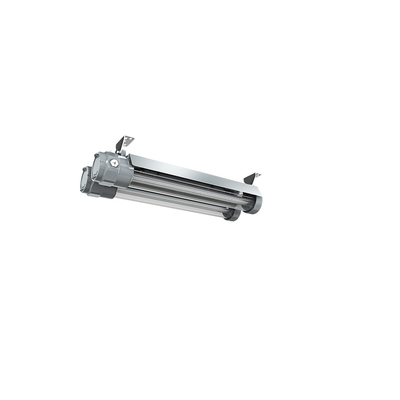

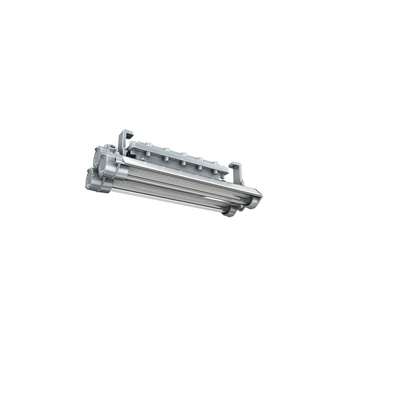

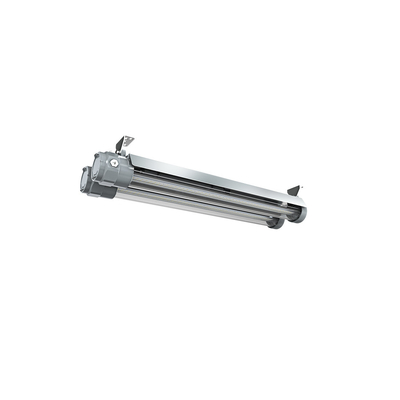

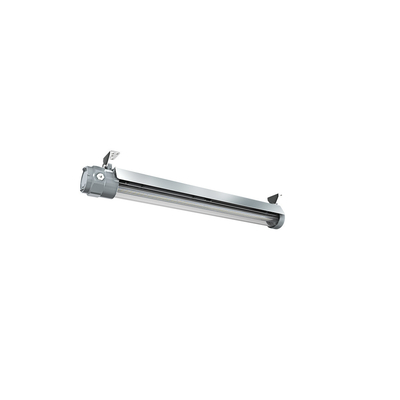

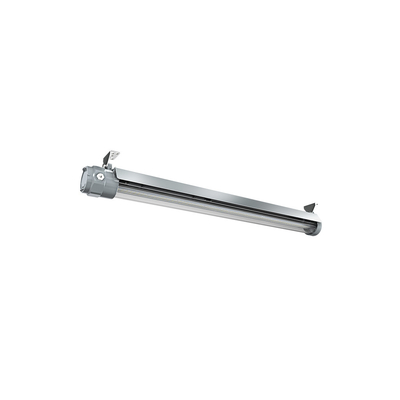

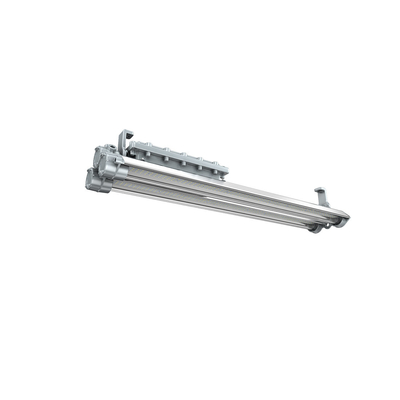

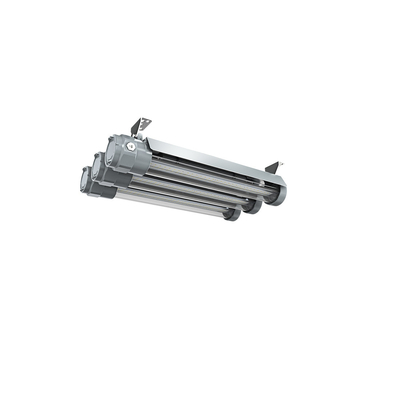

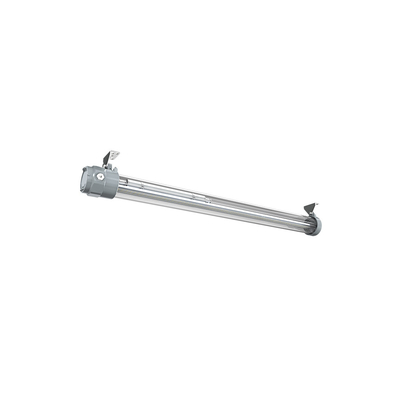

Led Explosion Proof Lamp FLB Series Industrial Lighting Hazardous Lighting Explosion Proof Lighting High Humidity
Ex- mark
Class I, Division 1, Groups B, C and D
Class I, Division 2, Groups A, B, C and D
Class Il, Division 1, Groups E, F, G
Class II, Division 2, Groups F, G
Class III
Standard
UL844, UL924, UL 1598, UL1598A
Shell material: Copper free aluminum, plastic sprayed surface
Hardwear: Stainless steel bolts
Lens: Explosion-proof, impact and heat resistant tempered glass tubes, provide lamps protection
Illuminate: LED
Corrosion resistant, marine grade, copper free aluminum, heavy gauge extruded reflectors with high gloss reflective finish.
The opening mode of the wiring chamber cover is threaded connection, which is convenient for incoming wire and wiring.
Field replaceable led circuit boards and drivers with quick disconnects
Versatile mounting arrangements: standard end mounting and pendent mounting.
Factory sealed.
Wiring Hub: 1/2" Threaded.
Rated voltage: AC120V to 277 V (50/60Hz); DC12V to 24V (optional)
Rated power: 17W, 35W, 40W, 54W, 60W
IP Degree of protection: Type NEMA 4X IP66/IP67
Ambient temperature: Normal: -40°C - +70°C, T5/T6
Enclosure code: IK10 Glass code: IK08
Dimming: 0-10V (optional)
Emergency runtime: 90 minutes (optional)
Q1. Do you have any MOQ limit for led light order?
A: Low MOQ, 1pc for sample checking is available.
Q2. How do you ship the goods and how long does it take to arrive?
A: Ship by DHL, UPS, FedEx or TNT. It takes 3-5 days to arrive. Airline and sea shipping also optional.
