Product Details:
|
| Material: | Copper-free Aluminum | Item Type: | Explosion- Proof Lights |
|---|---|---|---|
| Working Lifetime(hour): | 50000 | Warranty: | 5 Years |
| Lamp Power(w): | 20,40,60,80,100,150,180,200,250,300,350,400 | Working Temperature(℃): | -40 - 55 |
| High Light: | 400W explosion proof led,20W explosion proof led,ATEX explosion proof lamp |
||

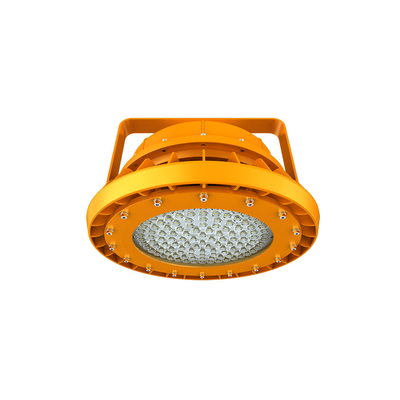

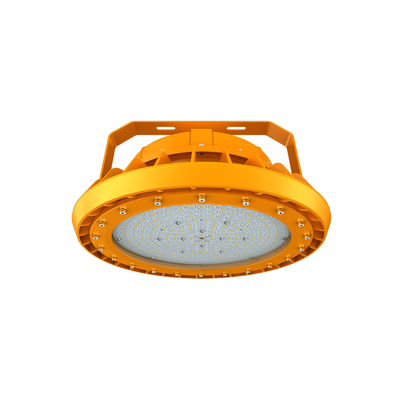

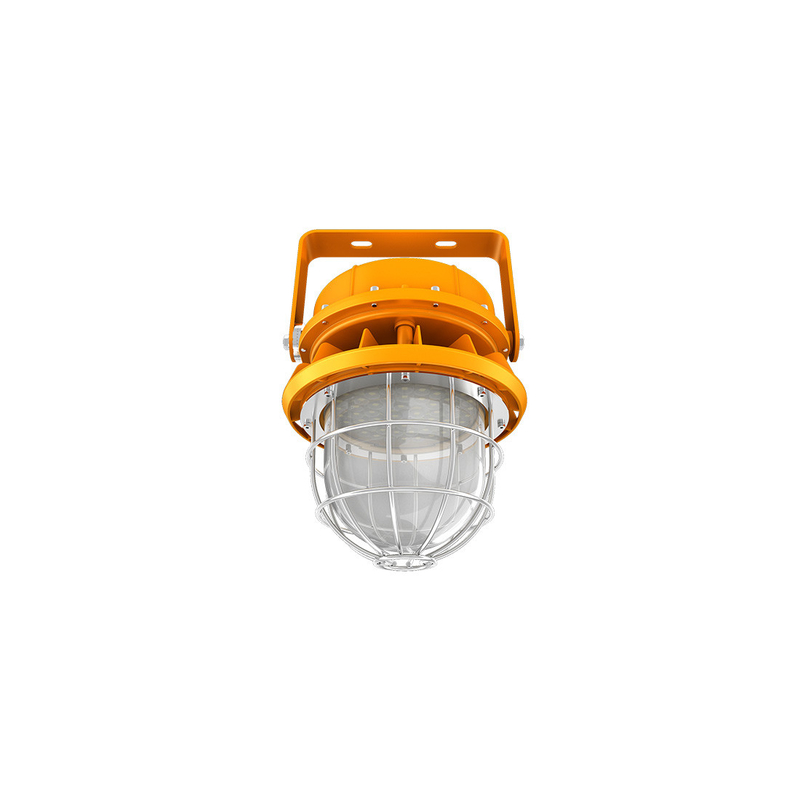

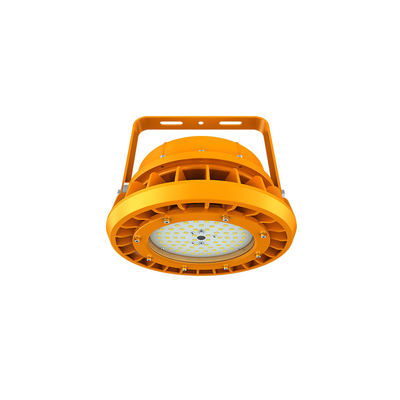

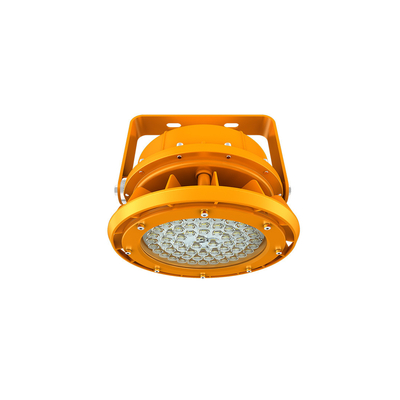

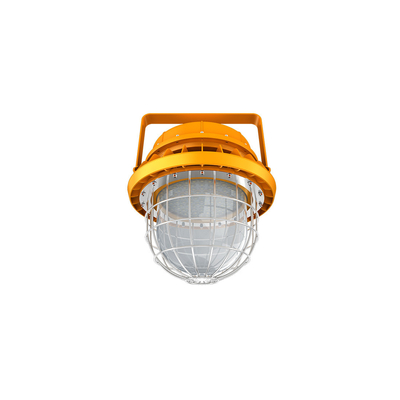

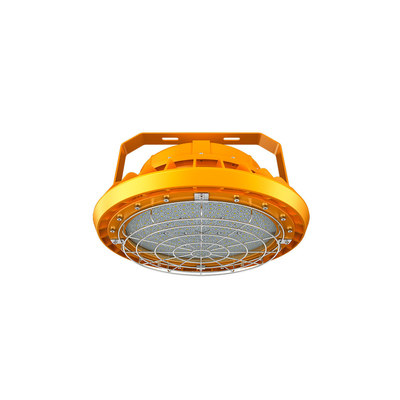

Factory Price Atex Led Explosion Proof Light 20-400w High Impact Resistance Aluminum Housing Gas Station
Marking ATEX
II 3 G Ex ec IIC T6...T3 Gc
II 2 D Ex tb IIIC T85°C...T100°C Db
II 2 G Ex eb mb IIC T5...T6 Gb
II 2 D Ex tb IIIC T80°C...T100°C Db
Marking IECEx
Ex ec IIC T6...T3 Gc
Ex tb IIIC T85°C...T100°C Db
Ex eb mb IIC T5...T6 Gb
Ex tb IIIC T80°C...T100°C Db
Marking UL844 (North American)
Class I, Division 2, Groups A, B, C, D
Class II, Division 1, Groups E, F, G
Class II, Division 2, Groups F, G
Class III
Marine Marking
UL 1598
UL1598A
ABS
IP66
Housing: Copper-free aluminum
Lens: Tempered glass
Hardware: Stainless steel
Mounting Bracket: Stainless steel
| Model | Wattage | Operating Voltage | Lumens(Im) | Efficacy(Im/W) | CRI | CCT | Emergency Time |
| EX-20W B2YZDA | 20W | AC100-277V/DC12-48V | 2800 | 140 | >70 | 2200K-7000K | 3 hours |
| EX-40W B2YZDA | 40W | 5600 | |||||
| EX-60W B2YZDA | 60W | AC100-277V/DC12-48V,AC200-480V | 8400 | ||||
| EX-80W BYZDA | 80W | 11200 | |||||
| EX-100W BYZDA | 100W | 14000 | |||||
| EX-150W B3YZDA | 150W | 21000 | |||||
| EX-180W B3YZDA | 180W | 25200 | |||||
| EX-200W B3YZDA | 200W | 28000 | |||||
| EX-150W B4YZDA | 150W | 21000 | |||||
| EX-180W B4YZDA | 180W | 25200 | |||||
| EX-200W B3YZDA | 200W | 28000 | |||||
| EX-250W B4YZDA | 250W | 35000 | |||||
| EX-300W B4YZDA | 300W | 42000 | |||||
| EX-350W B4YZDA | 350W | 49000 | |||||
| EX-400W B4YZDA | 400W | 56000 |
| Model | Quantity/Carton | Packing Size | Net Weight(kg) | Gross Weight(kg) |
| B2 | 1 PCS | 14.17x13.94x10.24inch | 3.5 | 5 |
| B2 | 1 PCS | 15.19x12.99x8.66inch | 4.4 | 5.5 |
| B3 | 1 PCS | 18.90x18.11x10.43inch | 8.2 | 10.5 |
| B4 | 1 PCS | 20.87x20.87x11.81inch | 18.8 | 21.5 |
Oil and gas industry
• All petroleum production and refining
• Petroleum loading and transportation
• Petroleum storage and retail
• LNG industry
• All mining operations and service
Ocean, marine and aerospace field
• Ocean platform operation facilities
• Aerospace clean room and production
• Ocean vessel operations
Food and alcohol industry
• Flour and fine particle production and storage
• Food and distilling production
• Alcohol industry
Chemical industry
• All types of paint facilities
• Chemical production and storage
Metal treatment
• Steel and aluminum factories
• Pumping stations in any environment
• Metal smelting, foundry and fabrication
Other high humidity, high dust, high temperature, vapor locations.
Q1. What about the lead time?
A: 3-5 days for Sample preparing ,8-10 working days for mass production.
Q2. Do you have any MOQ limit for led light order?
A: Low MOQ, 1pc for sample checking is available.
