Product Details:
|
| Material: | Copper-free Aluminum | Item Type: | Explosion Proof Lights |
|---|---|---|---|
| Working Lifetime(hour): | 50000 | Color Temperature(cct): | 3000k-6500k |
| Cri (ra>): | 80,70 | Warranty: | 5 Years |

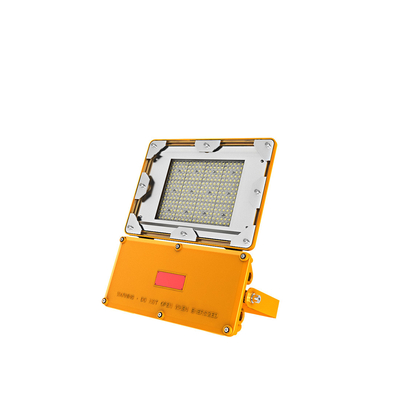

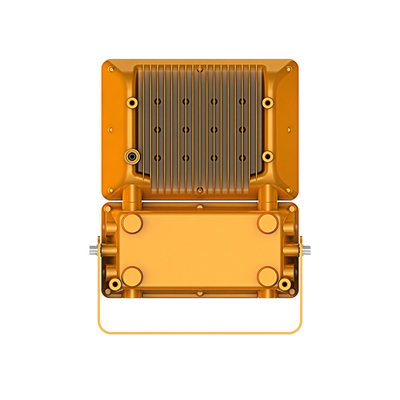

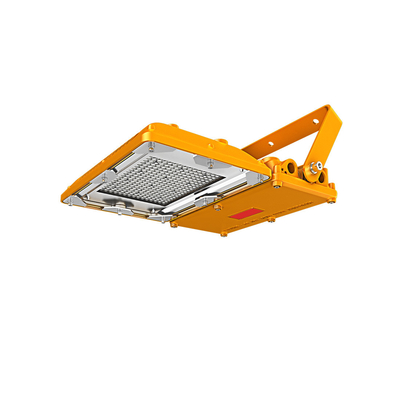

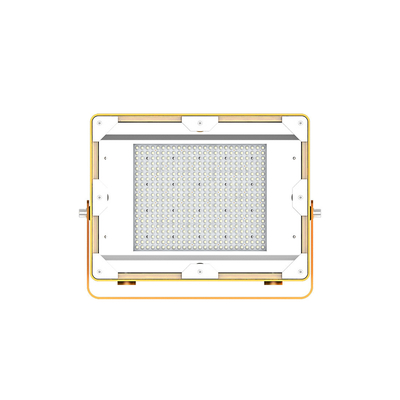

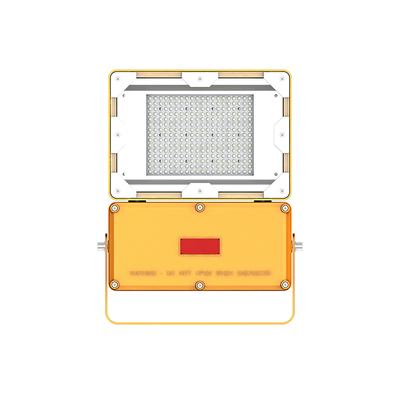

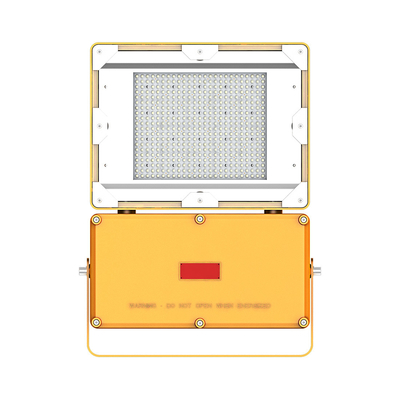

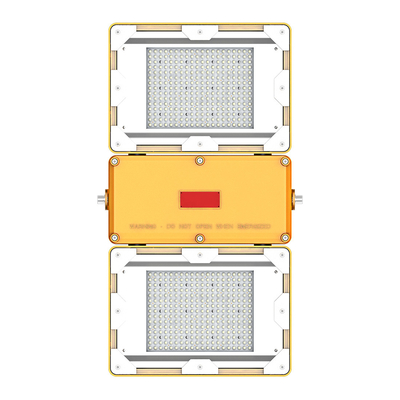

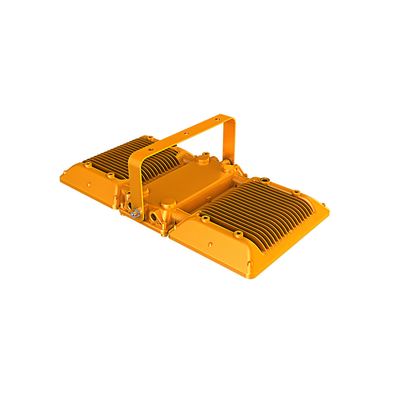

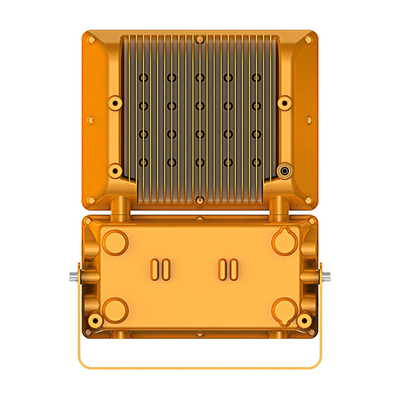

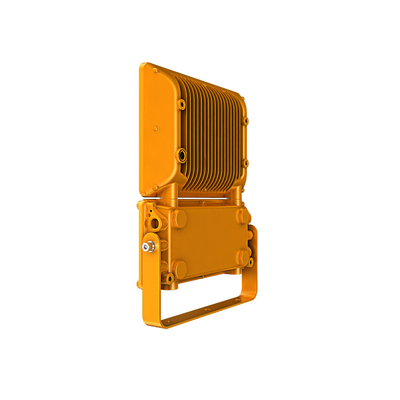

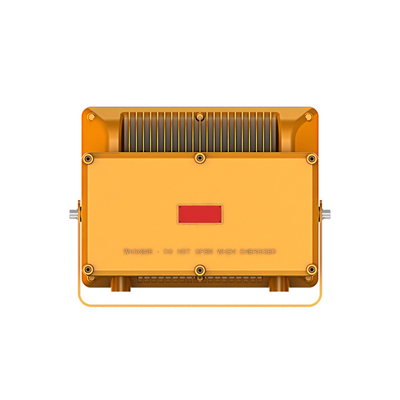

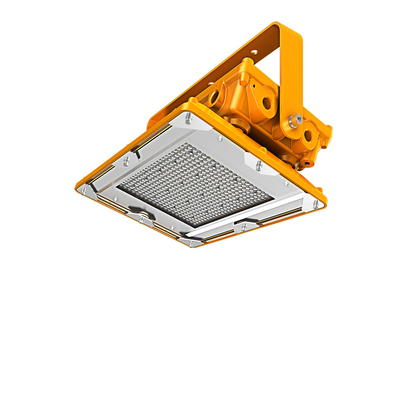

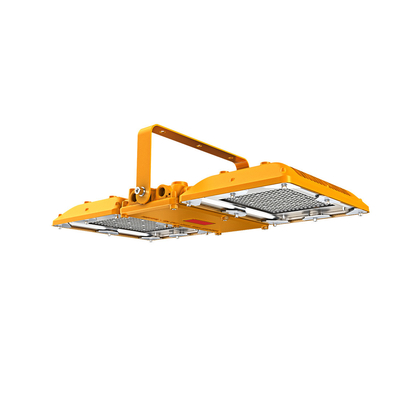

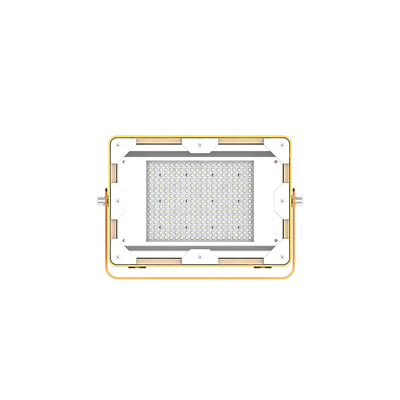

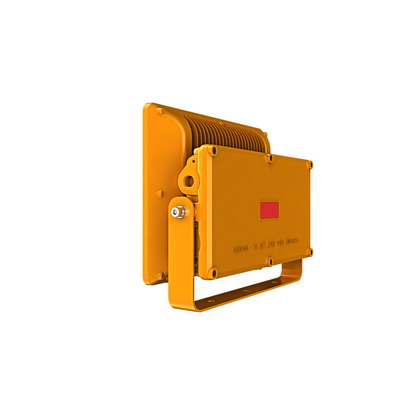

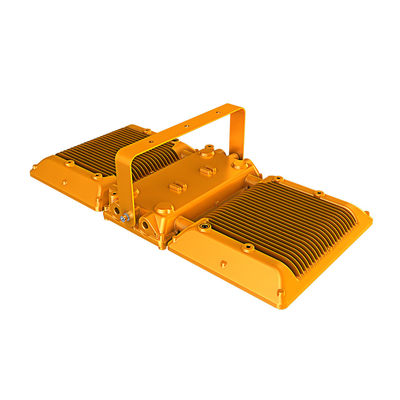

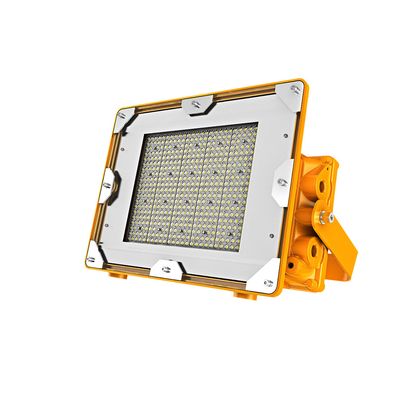

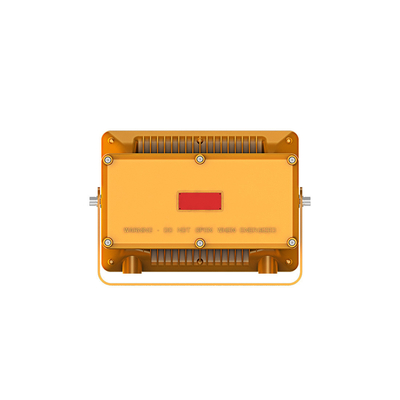

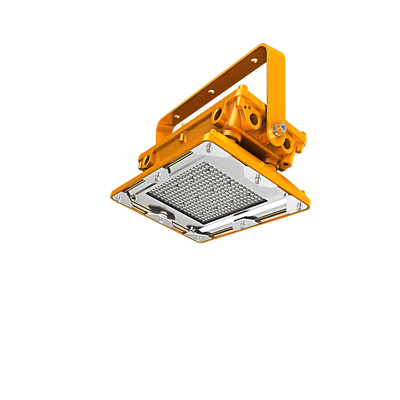

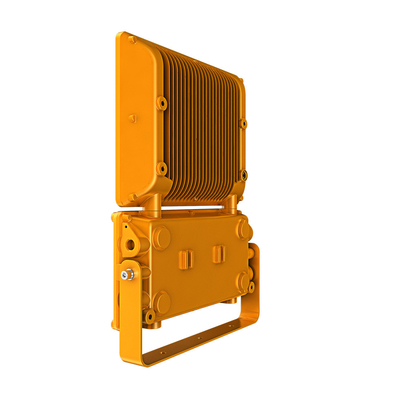

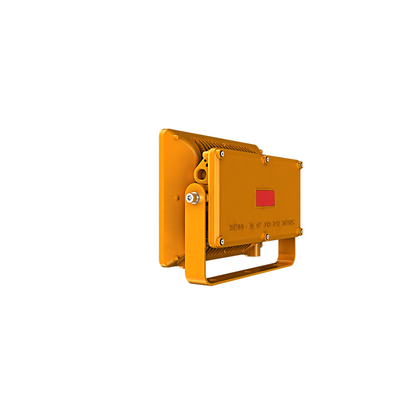

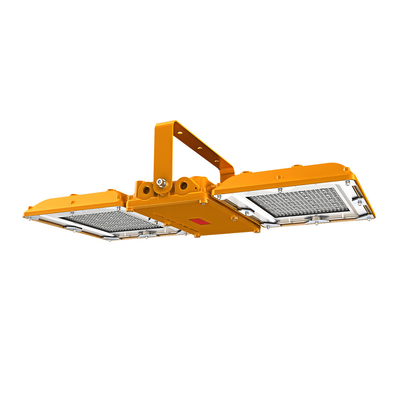

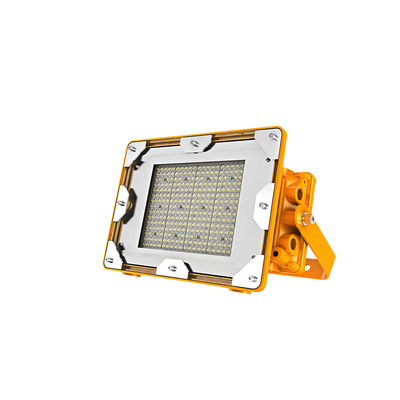

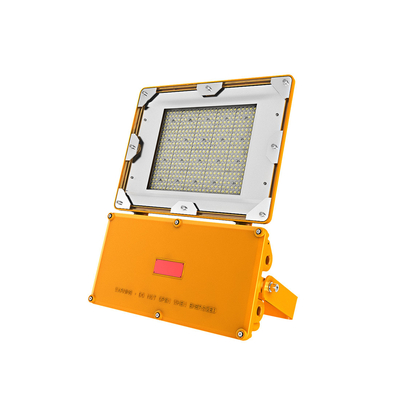

ATEX Certified 100~480W Explosion Proof Lamp 400W Chemical Industry IP66 Led Explosion Proof Light Gas Station A5
Input Voltage:AC110-277V/120-277V/220-244V
Power Consumption(±5%):50W, 60W, 70W, 80W, 100W, 120W, 135W, 150W, 180W, 200W, 240W
Power Factor:＞0.92
Surge Protection:4kV/6kV or 6kV/10kV
Intelligent Control:0-10V dimming
CCT:3500K-6500K
CRI:70Ra / 80Ra
Efficiency (±10%):140lm/W(3500K-4000K), 150lm/W(4000K-6500K)
LED Chip:EMC3030
Beam Angle:30°/60°/90°/120°/T2M/T3M/T4M
Working Temperature:Normal:-40°C - +45°C for T6/T80°C
-40°C - +60°C for T5/T95°C
Emergency:-10°C - +45°C for T6/T80°C
-10°C - +60°C for T5/T95°C
Degree of Protection:IP66
Enclosures Code:IK09
Glass Code:IK08
Lifespan:50,000 Hours
Warranty:5 Years
Ex-mark ATEX:
Ex II 2 G Ex mb eb IIC T5/T6 Gb,
Ex II 2 D Ex tb IIIC T80°C/T95°C Db IP66
IECEx: Ex mb eb IIC T5/T6 Gb,
Ex tb IIIC T80°C/T95°C Db IP66
Input Voltage:AC110-277V/120-277V/220-244V
Power Consumption(±5%):50W, 60W, 70W, 80W, 100W, 120W
Power Factor:＞0.92
Surge Protection:4kV/6kV or 6kV/10kV
Intelligent Control:0-10V dimming
CCT:3500K-6500K
CRI:70Ra / 80Ra
Efficiency (±10%):140lm/W(3500K-4000K), 150lm/W(4000K-6500K)
LED Chip:EMC3030
Beam Angle:30°/60°/90°/120°/T2M/T3M/T4M
Working Temperature:Normal:-40°C - +45°C for T6/T80°C
-40°C - +60°C for T5/T95°C
Emergency:-10°C - +45°C for T6/T80°C
-10°C - +60°C for T5/T95°C
Degree of Protection:IP66
Enclosures Code:IK09
Glass Code:IK08
Lifespan:50,000 Hours
Warranty:5 Years
Ex-mark ATEX: Ex II 2 G Ex mb eb IIC T5/T6 Gb,
Ex II 2 D Ex tb IIIC T80°C/T95°C Db IP66
IECEx: Ex mb eb IIC T5/T6 Gb,
Ex tb IIIC T80°C/T95°C Db IP66
Input Voltage:AC110-277V/120-277V/220-244V
Power Consumption(±5%):100W, 120W, 140W, 160W, 200W, 240W, 270W, 300W, 360W, 400W, 480W
Power Factor:＞0.92
Surge Protection:4kV/6kV or 6kV/10kV
Intelligent Control:0-10V dimming
CCT:3500K-6500K
CRI:70Ra / 80Ra
Efficiency (±10%):140lm/W(3500K-4000K), 150lm/W(4000K-6500K)
LED Chip:EMC3030
Beam Angle:30°/60°/90°/120°/T2M/T3M/T4M
Working Temperature:Normal:-40°C - +45°C for T6/T80°C
-40°C - +60°C for T5/T95°C
Emergency:-10°C - +45°C for T6/T80°C
-10°C - +60°C for T5/T95°C
Degree of Protection:IP66
Enclosures Code:IK09
Glass Code:IK08
Lifespan:50,000 Hours
Warranty:5 Years
Ex-mark ATEX: Ex II 2 G Ex mb eb IIC T5/T6 Gb,
Ex II 2 D Ex tb IIIC T80°C/T95°C Db IP66
IECEx: Ex mb eb IIC T5/T6 Gb,
Ex tb IIIC T80°C/T95°C Db IP66
Input Voltage:AC110-277V/120-277V/220-244V
Power Consumption(±5%):100W, 120W, 140W, 160W, 200W, 240W
Power Factor:＞0.92
Surge Protection:4kV/6kV or 6kV/10kV
Intelligent Control:0-10V
Dimming CCT:3500K-6500K
CRI:70Ra / 80Ra
Efficiency (±10%):140lm/W(3500K-4000K), 150lm/W(4000K-6500K)
LED Chip:EMC3030
Beam Angle:30°/60°/90°/120°/T2M/T3M/T4M
Working Temperature:Normal:-40°C - +45°C for T6/T80°C
-40°C - +60°C for T5/T95°C
Emergency:-10°C - +45°C for T6/T80°C
-10°C - +60°C for T5/T95°C
Degree of Protection:IP66
Enclosures Code:IK09
Glass Code:IK08
Lifespan:50,000
Hours Warranty:5 Years
Ex-mark ATEX: Ex II 2 G Ex mb eb IIC T5/T6 Gb,
Ex II 2 D Ex tb IIIC T80°C/T95°C Db IP66
IECEx: Ex mb eb IIC T5/T6 Gb,
Ex tb IIIC T80°C/T95°C Db IP66
Input Voltage:AC110-277V/120-277V/220-244V
Power Consumption(±5%):50W, 60W, 70W, 80W, 100W, 120W, 135W, 150W, 180W, 200W, 240W
Power Factor:＞0.92
Surge Protection:4kV/6kV or 6kV/10kV
Intelligent Control:0-10V dimming
CCT:3500K-6500K
CRI:70Ra / 80Ra
Efficiency (±10%):140lm/W(3500K-4000K), 150lm/W(4000K-6500K)
LED Chip:EMC3030
Beam Angle:30°/60°/90°/120°/T2M/T3M/T4M
Working Temperature:Normal:-40°C - +45°C for T6/T80°C
-40°C - +60°C for T5/T95°C
Emergency:-10°C - +45°C for T6/T80°C
-10°C - +60°C for T5/T95°C
Degree of Protection:IP66
Enclosures Code:IK09
Glass Code:IK08
Lifespan:50,000 Hours
Warranty:5 Years
Ex-mark ATEX: Ex II 2 G Ex mb eb IIC T5/T6 Gb,
Ex II 2 D Ex tb IIIC T80°C/T95°C Db IP66
IECEx: Ex mb eb IIC T5/T6 Gb,
Ex tb IIIC T80°C/T95°C Db IP66
Input Voltage:AC110-277V/120-277V/220-244V
Power Consumption(±5%):50W, 60W, 70W, 80W, 100W, 120W
Power Factor:＞0.92
Surge Protection:4kV/6kV or 6kV/10kV
Intelligent Control:0-10V dimming
CCT:3500K-6500K CRI:70Ra / 80Ra
Efficiency (±10%):140lm/W(3500K-4000K), 150lm/W(4000K-6500K)
LED Chip:EMC3030
Beam Angle:30°/60°/90°/120°/T2M/T3M/T4M
Working Temperature:Normal:-40°C - +45°C for T6/T80°C
-40°C - +60°C for T5/T95°C
Emergency:-10°C - +45°C for T6/T80°C
-10°C - +60°C for T5/T95°C
Degree of Protection:IP66
Enclosures Code:IK09
Glass Code:IK08
Lifespan:50,000 Hours
Warranty:5 Years
Ex-mark ATEX: Ex II 2 G Ex mb eb IIC T5/T6 Gb,
Ex II 2 D Ex tb IIIC T80°C/T95°C Db IP66
IECEx: Ex mb eb IIC T5/T6 Gb,
Ex tb IIIC T80°C/T95°C Db IP66
■ High quality EMC LED and MEAN WELL Driver.
■ Light-weight design by aircraft aluminum.
■ Heavy-duty and high impact resistance.
■ Replaceable LED board and drivers.
■ Integrated junction box for driver with emergency back up.
■ Dimmable and battery back up function available.
■ Marine rating powder coated appearance treatment.
■ Up to 5 years limited warranty option.
■ Emergency time is over 90 minutes.
■ Various installation ways for different applications.
■ Glass lens or Glass with polycarbonate lens to make bigger beam angle.
Oil and Gas industry
■ All petroleum production and refining
■ Petroleum loading and transportation
■ Petroleum storage and retail
■ LNG industry
■ All mining operations and service Chemical industry
■ All types of paint facilities
■ Chemical production and storage Ocean, marine and aerospace field
■ Ocean platform operation facilities and structure
■ Aerospace clean room and production
■ Ocean vessel operations
Metal treatment
■ Steel and aluminum factories
■ Pumping stations in any environment
■ Metal smelting, foundry and fabrication
Food and alcohol industry
■ Flour and fine particle production and storage
■ Food and distilling production
■ Alcohol industry
Other high humidity, high dust, high temperature, vapor locations
Q1. How do you ship the goods and how long does it take to arrive?
A: Ship by DHL, UPS, FedEx or TNT. It takes 3-5 days to arrive. Airline and sea shipping also optional.
Q2. Can I have a sample order for led light?
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
