Product Details:
|
| Material: | Copper-free Aluminum | Item Type: | Explosion-proof Lights |
|---|---|---|---|
| Cri (ra>): | 70 | Working Lifetime(hour): | 100000 |
| Operating Voltage(v): | AC100-277V/DC12-48V | Color Temperature(cct): | 2700k-6500k |
| High Light: | IP66 Explosion Proof LED Lights,100W Explosion Proof LED Lights,6500k explosion proof led fixtures |
||
ATEX Certified 10-100W Dimmable Led Explosion Proof Light IP66 explosion proof led light fixtures
Marking ATEX
II2 G Ex db eb mb IIC T6/T5 Gb
II2 D Ex tb tp IIIC T80°C/T95°C Db IP66
Marking IECEx
Ex db eb mb IIC T6/T5 Gb
Ex tb tp IIIC T80°C/T95°C Db IP66
Ambient Temperature:
T6: -40°C to 40°C (-40°F to 104°F)
T5: -40°C to 55°C (-40°F to 131°F)
Marking UL844
Class l, Division 2, Groups A, B, C and D
Class l, Zone 2, Group llC
Die-casting aluminum housing for good corrosion resistance.
High efficacy up to 130 lumens per watt.
Rugged and compact construction design.
Multiple beam angles include 40°, 60° and 90°.
Housing: Die-casting aluminum and A6061
Cover: Transparent tempered glass
| Model | Wattage | Operating Voltage | Lumens(Im) | Efficacy(Im/W) | CRI | CCT |
| EX-xxW-FLE2 AZDA | 10W-40W | AC100-277V/DC12-48V | 1300-5200 | 130 | >70 | 2700K-6500K |
| EX-xxW-FLE4 AZDA | 40W-80W | 5200-10400 | ||||
| EX-xxW-FLE5 AZDA | 60W-100W | 7800-13000 |
| Model | Quantity/Carton | Packing Size | Net Weight(kg) | Gross Weight(kg) |
| FLE2 | 1 PCS | 28.94*10.83*8.27inch | 8 | 10 |
| FLE4 | 1 PCS | 52.36*10.83*8.27inch | 14 | 16.5 |
| FLE5 | 1 PCS | 64.76*11.61*9.06inch | 18 | 20 |

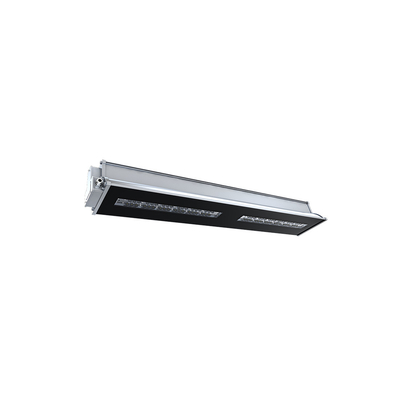

FLE2

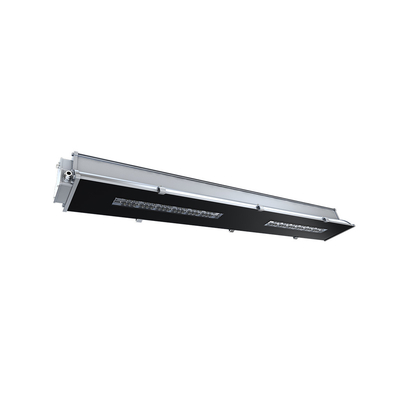

FLE4

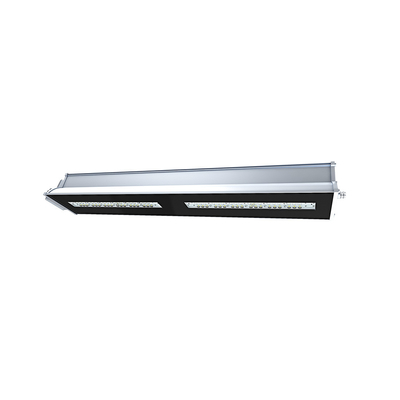

FLE5
FLE2:
FLE4:
FLE5:
Q1. What about the lead time?
A: 3-5 days for Sample preparing ,8-10 working days for mass production.
Q2. Do you have any MOQ limit for led light order?
A: Low MOQ, 1pc for sample checking is available.
