Product Details:
|
| Material: | Copper-free Aluminum | Item Type: | Explosion- Proof Lights |
|---|---|---|---|
| Ip Rating: | 66 | Cri (ra>): | 70 |
| Color Temperature(cct): | 3000k-5000k | Working Lifetime(hour): | 100000 |
| High Light: | High Bay Explosion Proof LED Lights,Explosion Proof LED Lights ATEX,60W explosion proof lighting |
||
ATEX Certified 10~60W LED Explosion Proof High Bay Fixtures
Designed for humid environment.
Optimize heat dissipation for longer lifespan up to 100,000 hours.
Easy for angle adjustment.
Available in multiple lengths and a variety of LED colors.
5-year warranty.
Low temperature applications to -20°C (-4°F) and high temperature up to 40°C/50°C (104°F/122°F).
Standard Materials:
Housing: Aluminum ADC12
Glass: Tempered glass
| Model | HB-10Y-WKD-A-YZ | HB-10Y-WKD-B-YZ | HB-10Y-WKD-C-YZ |
| Wattage | 10w | 30W-60W | |
| Operating Voltage | AC120V,50/60Hz | ||
| Light Effiency | 120Im/W-140Im/W | ||
| Lumens | 1200Im-1400Im | 3600Im-8400Im | |
| CRI | >70 | ||
| CCT | 3000k-5000k | ||
| Beam Angle | Type III 30°-90° | Type III 100° | |
| Operating Temperature | -20℃ to 50℃ | -20℃ to 40℃ | |
| Ingress Protection | Wet Location | Damp Location | Wet Location |
| Model | Quantity/Carton | Packing Size | Weight/Carton |
| HB-10Y-WKD-A-YZ | 1 PCS | 4.06*30.31*24.02inch | 2.5kg /5.51Ibs |
| HB-10Y-WKD-B-YZ | 1 PCS | 8.54*20.87*5.12inch | 3kg / 6.61Ibs |
| HB-10Y-WKD-C-YZ | 1 PCS | 5.9*5.91*6.57inch | 9kg / 19.84Ibs |

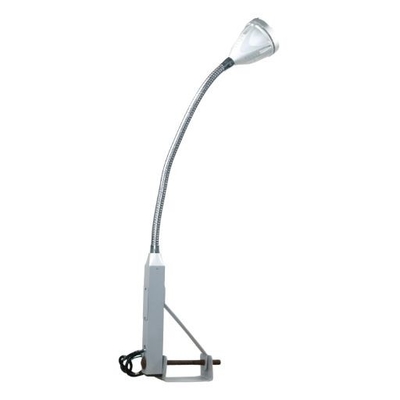

HB-10Y-WKD-A-YZ

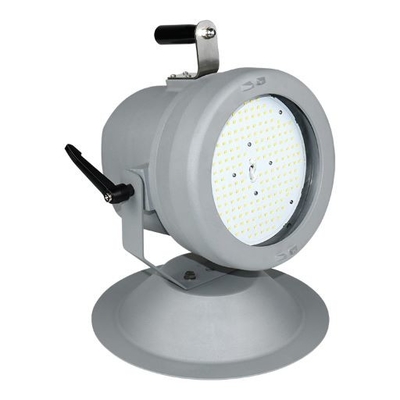

HB-10Y-WKD-B-YZ

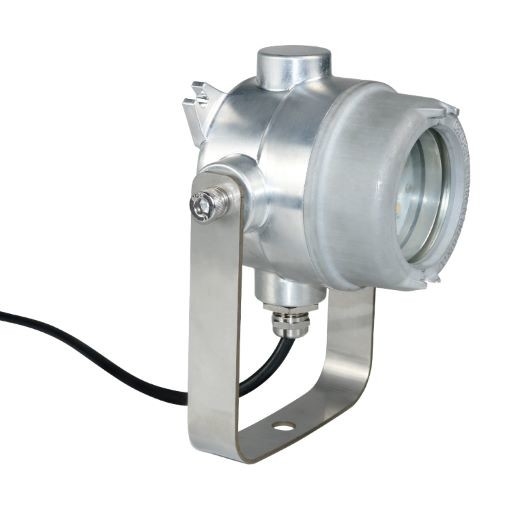

HB-10Y-WKD-C-YZ
HB-10Y-WKD-A-YZ
HB-10Y-WKD-B-YZ
HB-10Y-WKD-C-YZ
Q1. Do you have any MOQ limit for led light order?
A: Low MOQ, 1pc for sample checking is available.
Q2. How do you ship the goods and how long does it take to arrive?
A: Ship by DHL, UPS, FedEx or TNT. It takes 3-5 days to arrive. Airline and sea shipping also optional.
