Product Details:
|
| Material: | Copper-free Aluminum | Item Type: | Explosion- Proof Lights |
|---|---|---|---|
| Color Temperature(cct): | Pure White, Cool White ,warm White | Ip Rating: | 66/67 |
| Input Voltage(v): | AC100-277V/DC12-48V AC200-480V | Cri (ra>): | 70 |
| High Light: | Industrial explosion proof led light fixtures,explosion proof led light fixtures High Temprature,600W atex approved led lighting |
||

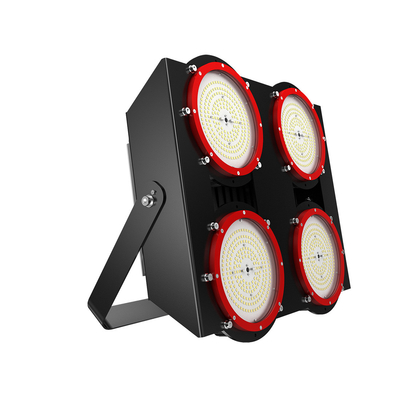

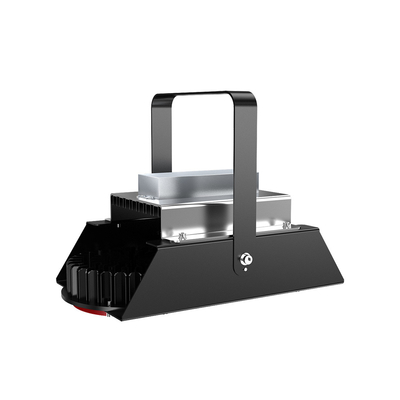

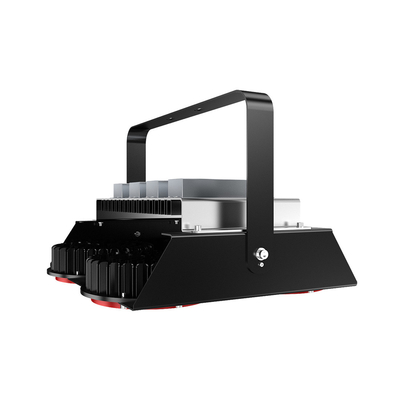

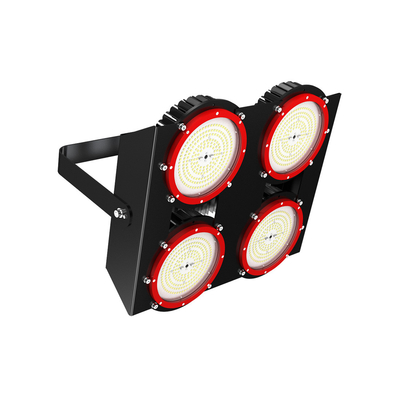

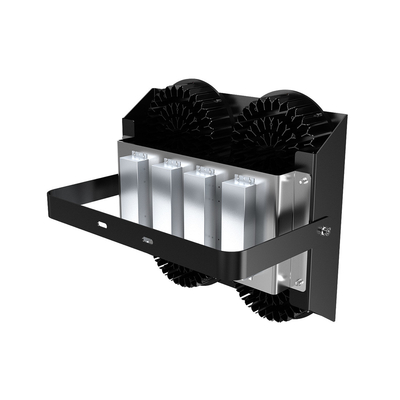

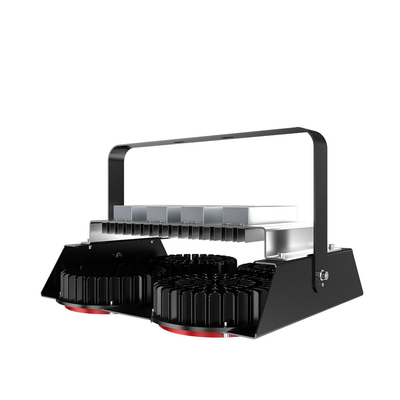

Factory Price High temprature Light Waterproof Ip67 10-600w Industrial Lighting explosion proof Fixture
Venas High Temperature High Bay Light, which is applied to ambient high temperature working area where operation temperature may reach 158℉(70°C), such as steel plant, aluminum smelter, and other high-temperature, dust, corrosive gas environment.
The HB Series high heat resistant lights combine optical performance energy efficiency and outstanding versatility to meet the requirements of high temperature lighting applications in high-temperature, dust, corrosive gas environment, delivering a wide range of light outputs. The enclosure body is made of aluminum with corrosion-resistant coating which protects against overheating damage.
| Model | HB-xxxW-D1YZDG | HB-xxxW-D2YZDG | HB-xxxW-D4YZDG |
| Power | 10-150W | 100-300W | 300-600W |
| Voltage | AC127-270V/AC347-480V,50/60Hz | ||
| Efficiency | 150Im/W | ||
| CRI | >70 | ||
| Beam Angle | 20°-120° | ||
| CCT | 2200k-7000k | ||
| Amebient Temperature | 40℉ to + 158℉(-40℃ to +70℃) | ||
| IP Rating | IP66/IP67 | ||
| IK | IK09 | ||
| LED Chip | 5050/3535/3030 | ||
| Model | Quantity/Carton | Packing Size(mm) | N.W(KG) | G.W(KG) |
| HB-xxxW-D1YZDG | 1 | 340*340*550 | 8 | 9 |
| HB-xxxW-D2YZDG | 1 | 380*670*306 | 16 | 17 |
| HB-xxxW-D4YZDG | 1 | 696*675*306 | 32.25 | 33.25 |
Unit:mm or inch

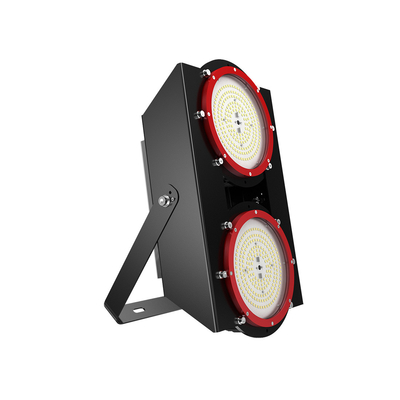

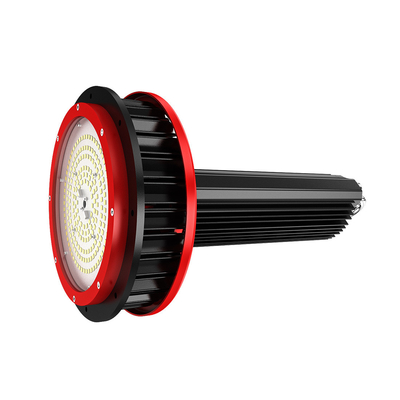

HB-xxxWD1

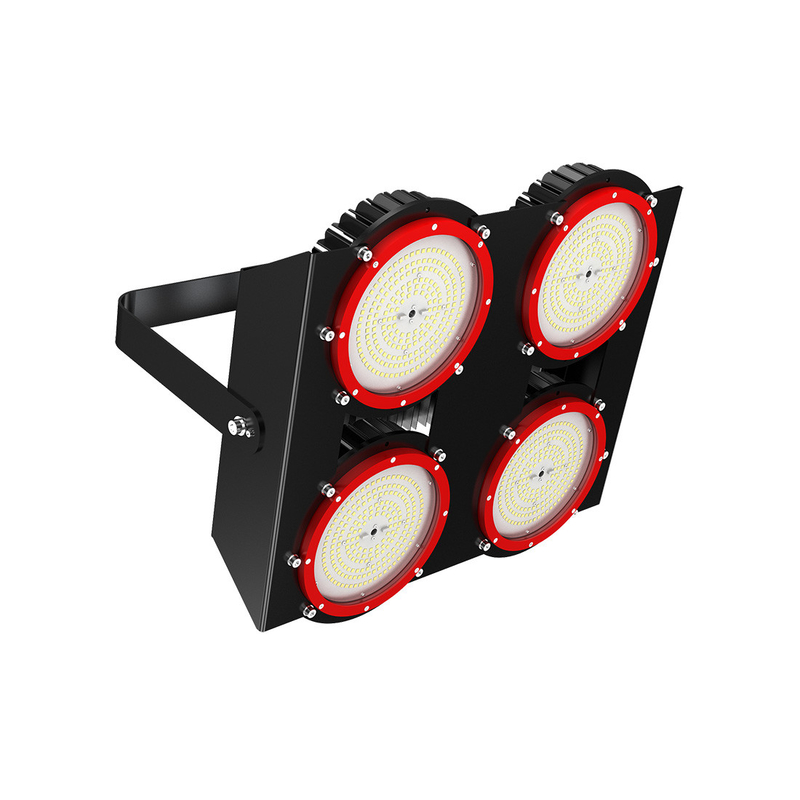

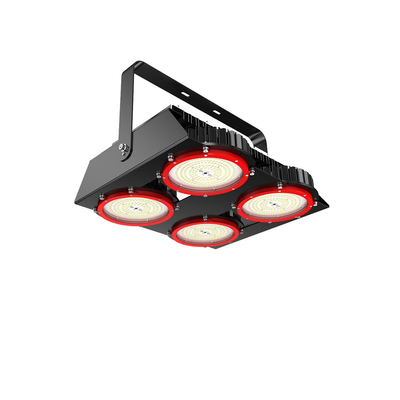

HB-xxxWD4

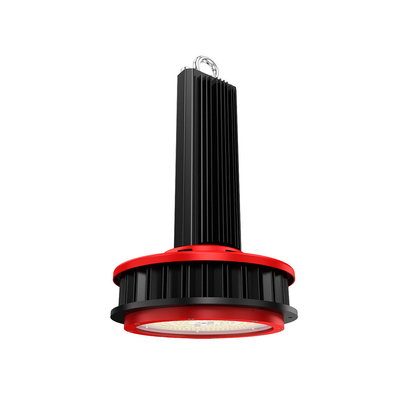

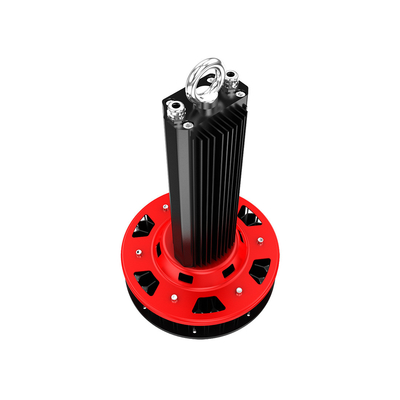

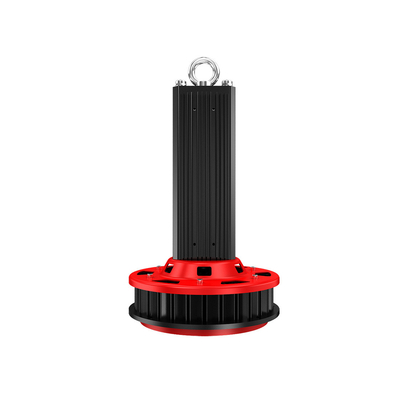

No.1 Hook Pendant Mounting

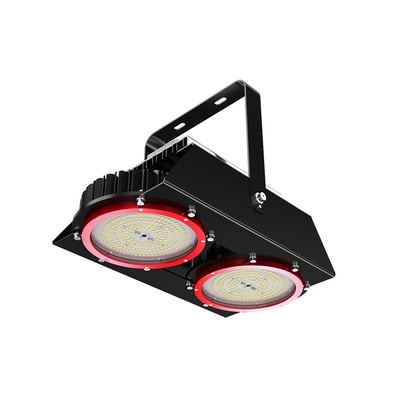

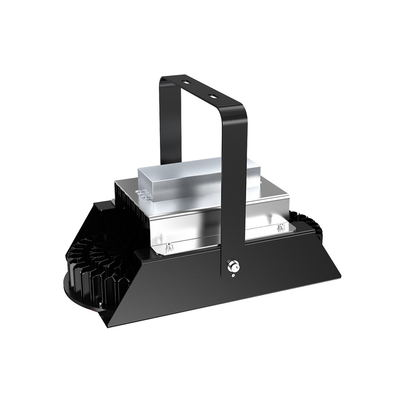

No.2 Bracket Mounting
Q1. Do you have any MOQ limit for led light order?
A: Low MOQ, 1pc for sample checking is available.
Q2. How do you ship the goods and how long does it take to arrive?
A: Ship by DHL, UPS, FedEx or TNT. It takes 3-5 days to arrive. Airline and sea shipping also optional.
