Product Details:
|
| Material: | Copper-free Aluminum | Power: | 20,40,60,80,100,150,200 |
|---|---|---|---|
| Item Type: | Explosion-proof Lights | Ip Rating: | 66 |
| Input Voltage(v): | AC100-277V/ AC200-480V | Color Temperature(cct): | 2200k-7000k |
| High Light: | 20W explosion proof flood light fixtures 7000k,7000k 20W explosion proof flood light fixtures,20W 7000k explosion proof flood light fixtures |
||

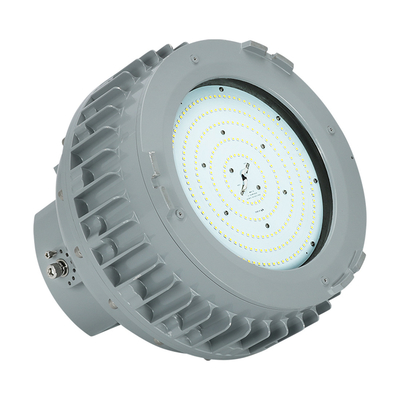

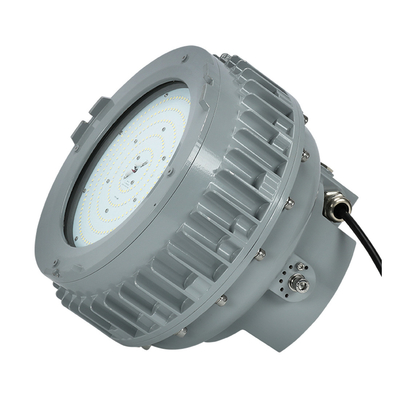

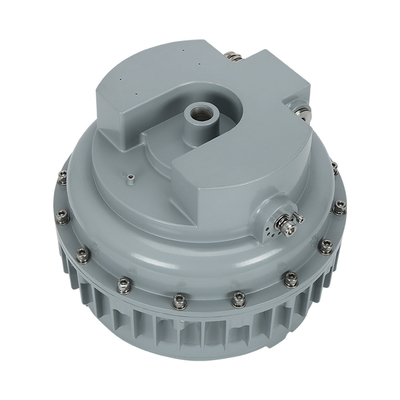

Atex Approved Lights For Oil And Gas Explosion Proof With 3 Hours Battery 20-200w Explosion Proof Lighting S series
ATEX Marking:
Ex db IIC T6/T5/T4 Gb
Ex tb IIIC T80℃/T95℃/T130℃ Db
IECEx Marking:
Ex db IIC T6/T5/T4 Gb
Ex tb IIIC T80℃/T95℃/T130℃ Db
Ambient Temperature:
-40℃ to 60℃ (-40℉ to 140℉)
IP66
IK10
Oil and gas industry
• All petroleum production and refining
• Petroleum loading and transportation
• Petroleum storage and retail • LNG industry
• All mining operations and service
Ocean, marine and aerospace field
• Ocean platform operation facilities
• Aerospace clean room and production
• Ocean vessel operations
Food and alcohol industry
• Flour and fine particle production and storage
• Food and distilling production
• Alcohol industry
Chemical industry
• All types of paint facilities
• Chemical production and storage
Metal treatment
• Steel and aluminum factories
• Pumping stations in any environment
• Metal smelting, foundry and fabrication
Other high humidity, high dust, high temperature, vapor locations.
Standard Materials:
Housing: Aluminum
Lens: Tempered glass
Hardware: Aluminum
Mounting Bracket: Aluminum/SUS 304
| Model | Wattage | Operating Voltage | Total Lumens(Im) | Efficacy(Im/W) | CRI | CCT |
| EX-20W S1YZDA | 20W | AC100-277V/220-480V | 2800 | 140 | >70 | 2200k-7000k |
| EX-40W S1YZDA | 40W | AC100-277V/220-480V | 5600 | 140 | >70 | 2200k-7000k |
| EX-60W S1YZDA | 60W | AC100-277V/220-480V | 8400 | 140 | >70 | 2200k-7000k |
| EX-80W S1YZDA | 80W | AC100-277V/220-480V | 11200 | 140 | >70 | 2200k-7000k |
| EX-100W S2YZDA | 100W | AC100-277V/220-480V | 14000 | 140 | >70 | 2200k-7000k |
| EX-150W S2YZDA | 150W | AC100-277V/220-480V | 21000 | 140 | >70 | 2200k-7000k |
| EX-200W S2YZDA | 200W | AC100-277V/220-480V | 28000 | 140 | >70 | 2200k-7000k |
| Model | Quantity/Carton | Packing Size | Net Weight(kg) | Gross Weight(kg) |
| EX-xxxW SxYZDA | 1 PCS | 18.11*19.29*11,42 | 12.5 | 15 |

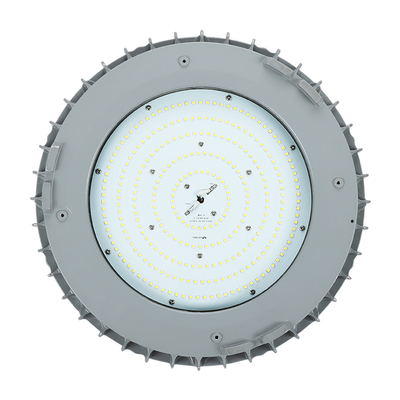

Option A: Flat glass
Option B: Globe glass

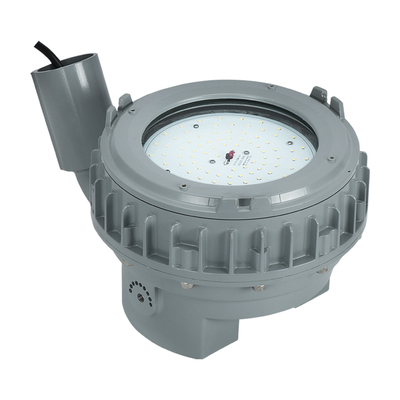

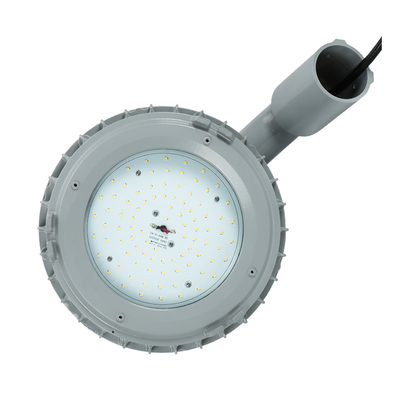

Pole Mounting

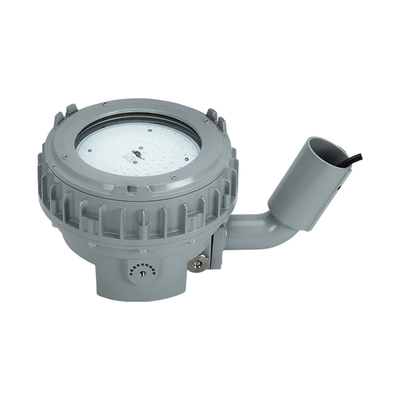

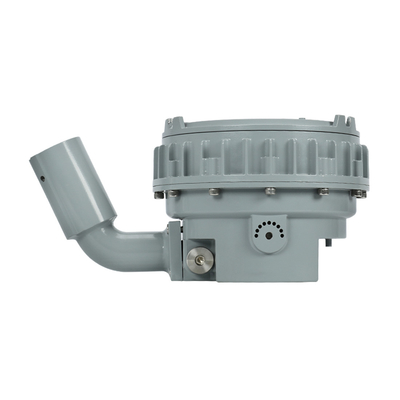

25° Pole Mounting

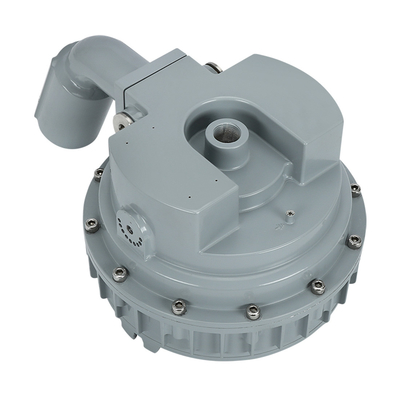

Pendant Pole Mounting

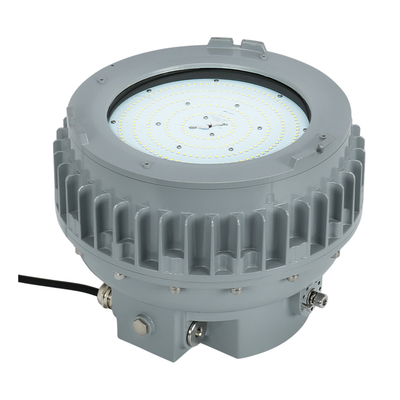

Bracket Surface Mounting
Q1. Do you have any MOQ limit for led light order?
A: Low MOQ, 1pc for sample checking is available.
Q2. How do you ship the goods and how long does it take to arrive?
A: Ship by DHL, UPS, FedEx or TNT. It takes 3-5 days to arrive. Airline and sea shipping also optional
