Product Details:
|
| Material: | Copper-free Aluminum | Power: | 20,30,40,50,60 |
|---|---|---|---|
| Item Type: | Explosion- Proof Lights | Color Temperature(cct): | Pure White, Cool White ,warm White |
| Ip Rating: | 66 | Input Voltage(v): | AC100-277V/ 200-480V |
ATEX Certified 20~60W LED Explosion Proof High Bay Fixtures
ATEX Marking:
II 2 G Ex db eb mb IIC T5/T6 Gb
II 2 D Ex tb IIIC T95°C/T85°C Db IP66
IECEx Marking:
Ex db eb mb IIC T5/T6 Gb
Ex tb IIIC T95°C/T85°C Db
UL844 Marking (North American):
Class I, Division 2, Groups A, B, C, D
Class II, Division 1, Groups E, F, G
Class II, Division 2, Groups F, G
Class III
Marine Marking:
UL 1598
UL 844
Ambient Temperature:
Normal: -40°C to 45°C/60°C (-40°F to 113°F/140°F)
Emergency: -10°C to 45°C/60°C (14°F to 113°F/140°F)
IP66
Oil and gas industry
• All petroleum production and refining
• Petroleum loading and transportation
• Petroleum storage and retail
• LNG industry
• All mining operations and service
Ocean, marine and aerospace field
• Ocean platform operation facilities
• Aerospace clean room and production
• Ocean vessel operations
Food and alcohol industry
• Flour and fine particle production and storage
• Food and distilling production
• Alcohol industry
Chemical industry
• All types of paint facilities
• Chemical production and storage
Metal treatment
• Steel and aluminum factories
• Pumping stations in any environment
• Metal smelting, foundry and fabrication
Other high humidity, high dust, high temperature, vapor locations.
Backup battery is optional.
AC or DC power supply is available.
Stainless-steel body and PC cover.
Heavy-duty and high impact resistance.
High-quality SMT LED and Meanwell driver.
Water-proof, vapor-proof, dust-proof, and corrosion resistant.
5-year warranty.
Technical Data:
| Model | Wattage | Operating Voltage | Efficacy(Im/W) | Total Lumens(Im) | CRI | CCT |
| EX-20W R2YZDA | 2*10W/2ft | AC100-277/220-480V | 140 | 2800 | >70 | 2200K-7000K |
| EX-30W R2YZDA | 2*15W/2ft | AC100-277/220-480V | 140 | 4200 | >70 | 2200K-7000K |
| EX-40W R4YZDA | 2*20W/4ft | AC100-277/220-480V | 140 | 5600 | >70 | 2200K-7000K |
| EX-50W R4YZDA | 2*25W/4ft | AC100-277/220-480V | 140 | 7000 | >70 | 2200K-7000K |
| EX-60W R4YZDA | 2*30W/4ft | AC100-277/220-480V | 140 | 8400 | >70 | 2200K-7000K |
R2
R4
| Model | Quantity/Carton | Packing Size | Net Weight(kg) | Gross Weight(kg) |
| R2 | 1 PCS | 32.28*9.84*7.09 | 4 | 5 |
| R4 | 1 PCS | 51.97*8.66*7.09 | 8 | 10.7 |

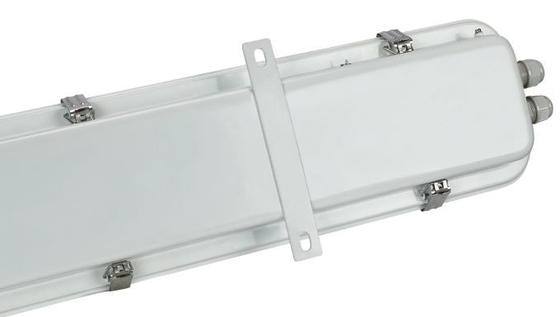

Rope Mounting:
Ceiling Mounting:
Ceiling Mounting:
