Product Details:
|
| Material: | Copper-free Aluminum | Power: | 20,40,60,80,100,150,200 |
|---|---|---|---|
| Item Type: | Explosion- Proof Lights | Color Temperature(cct): | Pure White, Cool White ,warm White |
| Input Voltage(v): | AC100-277V/DC12-48V AC200-480V | Warranty: | 5 Years |
| High Light: | 2200K 200W explosion proof led high bay lights,2200K 20W explosion proof led high bay lights,2200K IP66 ex proof led lights |
||

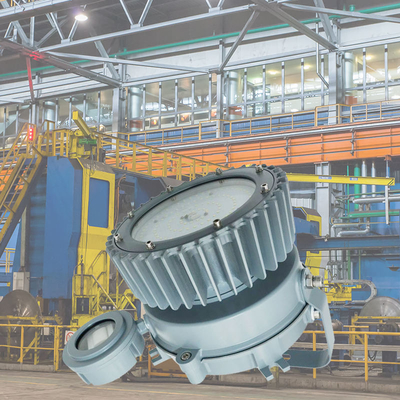

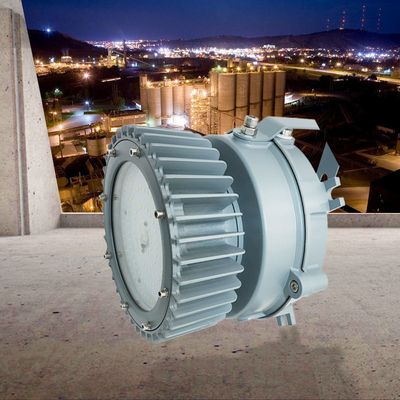

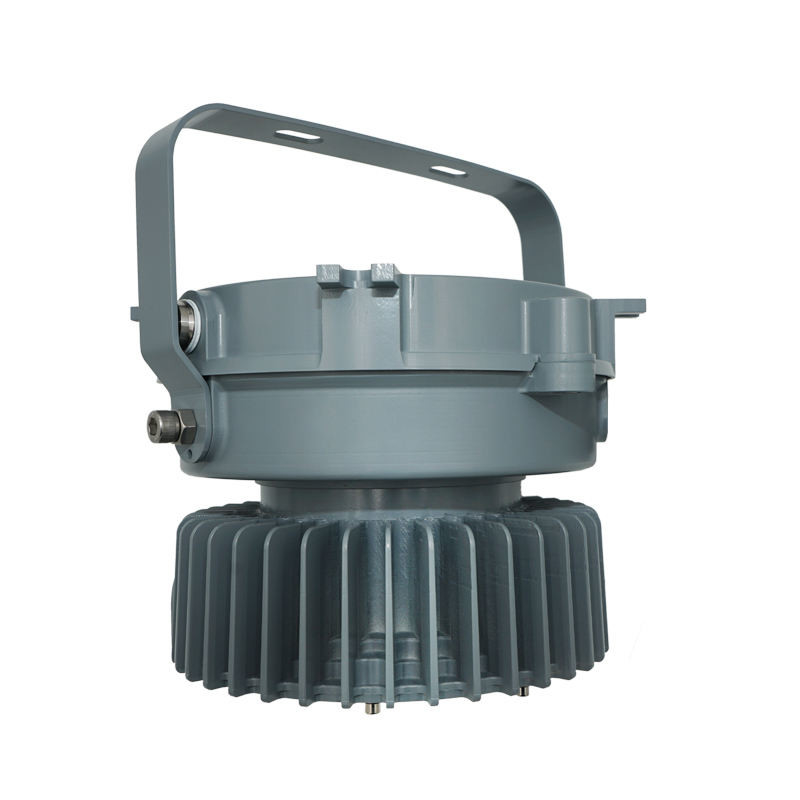

Hot Sale 20-200w Explosion-Proof High Bay Lighting Chemical Industry Gas Station Ip66 Led Explosion Proof Light Q Series
Oil and Gas industry
• All petroleum production and refining
• Petroleum loading and transportation
• Petroleum storage and retail
• LNG industry
• All mining operations and service Chemical industry
• All types of paint facilities
• Chemical production and storage
Ocean, marine and aerospace field
• Ocean platform operation facilities and structure
• Aerospace clean room and production
• Ocean vessel operations
Metal treatment
• Steel and aluminum factories
• Pumping stations in any environment
• Metal smelting, foundry and fabrication
Food and alcohol industry
• Flour and fine particle production and storage
• Food and distilling production
• Alcohol industry
Other high humidity, high dust, high temperature, vapor locations
Marking ATEX
II 2 G Ex nr IIC T6 GC
Il 2 D Ex tb IIIC T80 Db IP66
Marking IECEx
Ex nr IIC T6 GC
Ex tb IIIC T80 Db IP66
Other Rating IP 66
• Housing: Aluminum
• Lens: Tempered Glass
• Mounting Bracket: Aluminum/SUS 304
• Working Temperature: -40°C ~ +60°C.
• High quality SMT LED and Meanwell Driver.
• Light-weight design by aluminum.

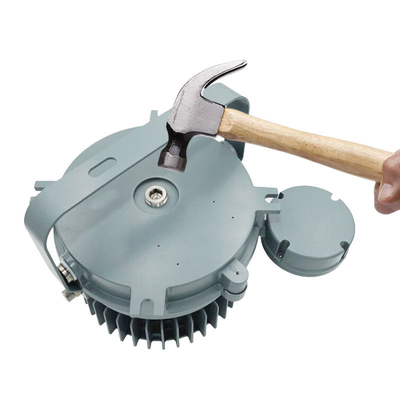

• Heavy-duty and high impact resistance.
• Round low bay lighting with motion sensor.

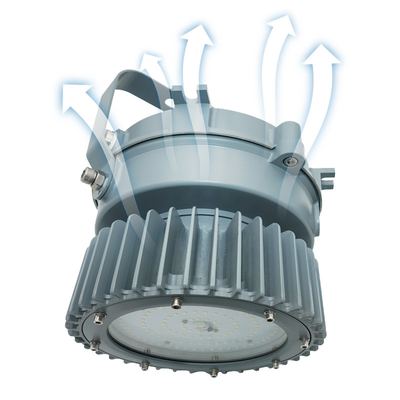

• Unique design enhance airflow for greater heat dissipation.
• Field installation in a few minutes.
• Isolated LED compartment reduce temperature within LED driver housing.
| Model | Wattage | Color Temperature | Voltage | Lumens | Warranty | CRI |
| EX-20W Q1YZDA | 20 | 2200K-7000K | AC100-277/220-480V | 2800 | 5 years | >70 |
| EX-40W Q1YZDA | 40 | 5600 | ||||
| EX-60W Q1YZDA | 60 | 8400 | ||||
| EX-80W Q1YZDA | 80 | 11200 | ||||
| EX-100W Q2YZDA | 100 | 14000 | ||||
| EX-150W Q2YZDA | 150 | 21000 | ||||
| EX-200W Q2YZDA | 200 | 28000 |
“Q1,Q2”=Product code, “Y”=D or N:Dimmable or non-dimmable “Z”=CCT, from 2200-7000K “D”=Beam angle, D40 for 40°, D60 for 60°, D90 for 90°, D120 for 120° A for glass info. blank for flat glass, c for spherical glass.
| Model | Quantity/Carton | Packing Size(mm) | N.W(KG) | G.W(KG) |
| Q1 | 1 | 530*520*380 | 10.5 | 12.5 |
| Q2 | 1 | 400*480*300 | 12.6 | 15 |
