Product Details:
|
| Material: | Die Casting Aluminum | Power: | 20,40,60,80,100,120 |
|---|---|---|---|
| Item Type: | Explosion Proof Lights | Color Temperature(cct): | Pure White, Cool White ,warm White |
| Ip Rating: | 66 | Input Voltage(v): | AC100-277V/DC12-48V AC200-480V |

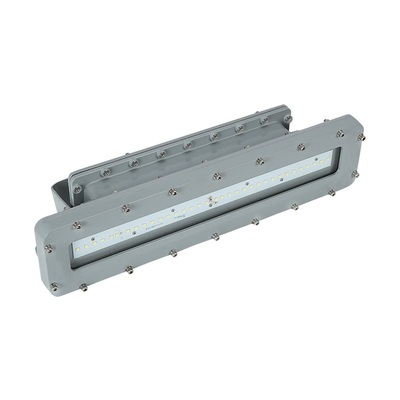

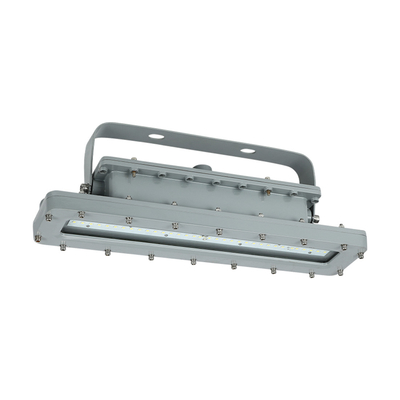

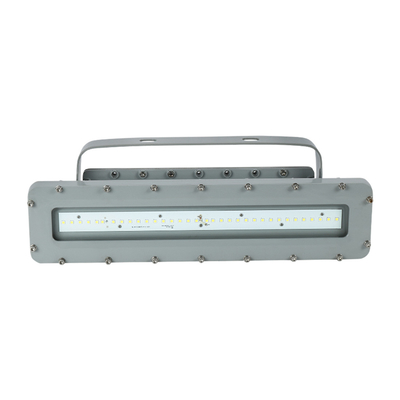

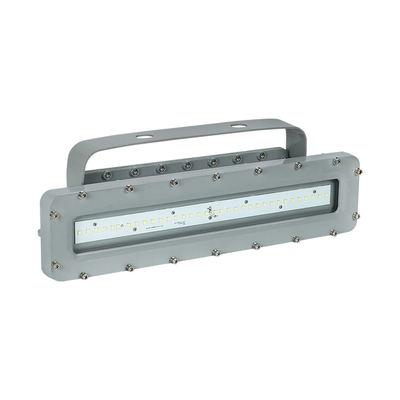

20~120W LED Explosion Proof High Bay Fixtures Atex Listed Extention Light 80w Led Explosion Proof Iights I
Oil and Gas industry
• All petroleum production and refining
• Petroleum loading and transportation
• Petroleum storage and retail
• LNG industry
• All mining operations and service
Chemical industry
• All types of paint facilities
• Chemical production and storage
Ocean, marine and aerospace field
• Ocean platform operation facilities and structure
• Aerospace clean room and production
• Ocean vessel operations
Metal treatment
• Steel and aluminum factories
• Pumping stations in any environment
• Metal smelting, foundry and fabrication
Food and alcohol industry
• Flour and fine particle production and storage
• Food and distilling production
• Alcohol industry
Other high humidity, high dust, high temperature, vapor location
Marking ATEX
Il2 G Ex db IIB T4 Gb
Il2 D Ex tb IIIC T63.5°C Db IP66
Marking IECEx
Ex db IIB T4 Gb Ex tb IIIC T63.5°C Db IP66
Marking UL844 (North American)
Class I, Division 1, Groups C, D
Class I, Division 2, Groups A, B, C, D
Class II, Division 1, Groups E, F, G
Class II, Division 2, Groups F, G
Class III
Marking Marine
UL1598, UL1598A
ABS
Other Rating
IP66
• Working Temperature: -40°C ~ +60°C.
• High quality SMT LED and Meanwell Driver.
• Heavy-duty and high impact resistance.
• Replaceable LED board and drivers.
• Integrated junction box for driver .
• Dimmable and battery back up function available.
• Marine rating powder coated finish treatment.
• Up to 5 years warranty.
• Polycarbonate lens to make various beam angles.
• Housing: Copper-free aluminum
• Lens: Glass
• Hardware: Stainless steel
• Mounting Bracket: Stainless steel
| Model | Wattage | Operating Voltage | Lumens(Im) | Efficacy(Im/W) | CRI | CCT | Emergency Time |
| EX-20W I2YZDA | 20W | AC100-277V/200-480V or DC12-36V | 2800 | 140 | >70 | 2200K-7000K | 3 hours |
| EX-40W I2YZDA | 40W | 5600 | |||||
| EX-60W I2YZDA | 60W | 5600 | |||||
| EX-60W I4YZDA | 60W | 8400 | |||||
| EX-80W I4YZDA | 80W | 5600 | |||||
| EX-100W I4YZDA | 100W | 5600 | |||||
| EX-120W I4YZDA | 120W | 8400 |
| Model | Quantity/Carton | Length(mm) | Width(mm) | Height(mm) | Net Weight(kg) | Gross Weight(kg) |
| I2 | 1 | 770 | 340 | 265 | 12 | 14 |
| I4 | 1 | 1360 | 340 | 265 | 18.5 | 21.5 |
Q1. What about the lead time?
A: 3-5 days for Sample preparing ,8-10 working days for mass production.
Q2. Do you have any MOQ limit for led light order?
A: Low MOQ, 1pc for sample checking is available.
