Product Details:
|
| Material: | Copper-free Aluminum | Power: | 20,40,60, |
|---|---|---|---|
| Item Type: | Explosion- Proof Lights | Color Temperature(cct): | Pure White, Cool White ,warm White |
| Input Voltage(v): | AC100-277V/DC12-48V AC200-480V | Working Temperature(℃): | -40 - 60 |

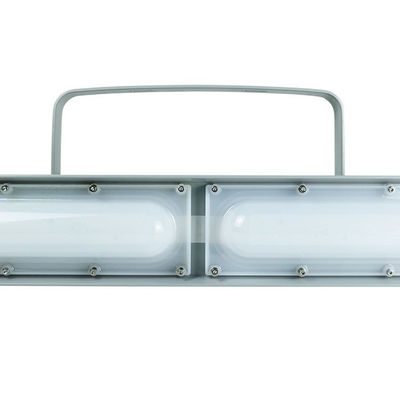

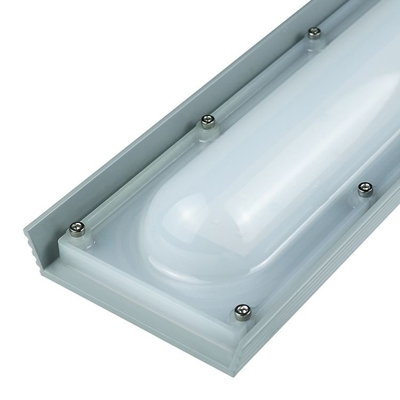

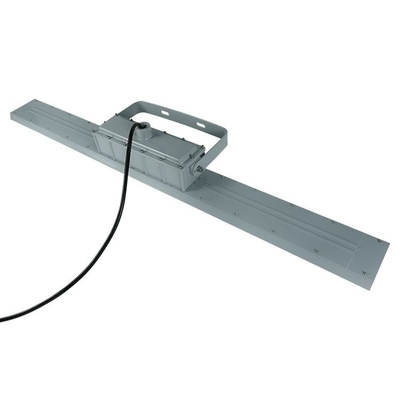

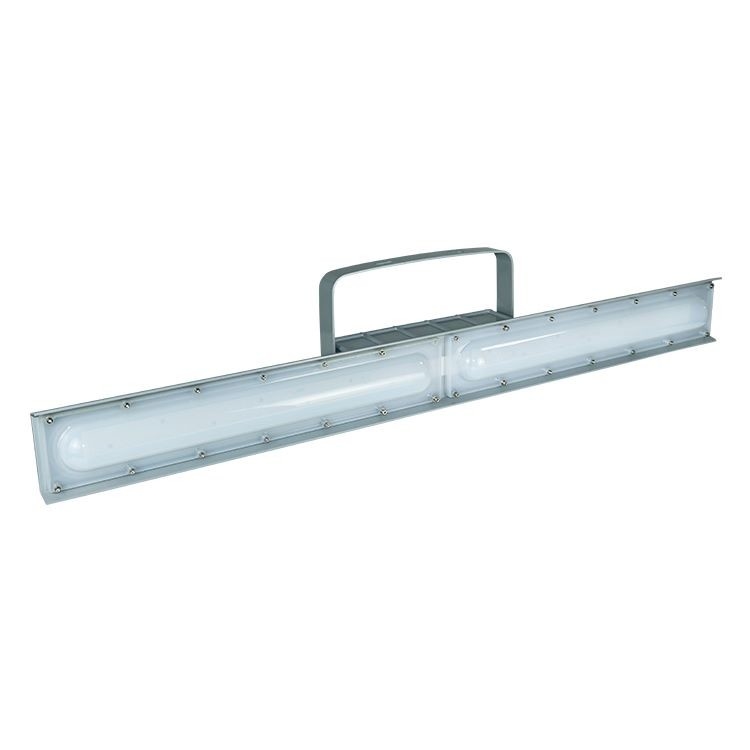

ATEX Certified 20~60W LED Explosion Proof High Bay Fixtures
• Working Temperature: -40°C ~ +60°C.
• High quality SMT LED and Meanwell Driver.
• Heavy-duty and high impact resistance.
• Replaceable LED board and drivers.
• Integrated junction box for driver .
• Dimmable and battery back up function available.
• Marine rating powder coated finish treatment.
• Up to 5 years warranty.
• Various installation ways for different applications.
• Polycarbonate lens to make various beam angles.
Oil and Gas industry
• All petroleum production and refining
• Petroleum loading and transportation
• Petroleum storage and retail
• LNG industry
• All mining operations and service
Chemical industry
• All types of paint facilities
• Chemical production and storage
Ocean, marine and aerospace field
• Ocean platform operation facilities and structure
• Aerospace clean room and production
• Ocean vessel operations
Metal treatment
• Steel and aluminum factories
• Pumping stations in any environment
• Metal smelting, foundry and fabrication
Food and alcohol industry
• Flour and fine particle production and storage
• Food and distilling production
• Alcohol industry
Other high humidity, high dust, high temperature, vapor locations
Marking ATEX
Il3 G Ex ec IIC T5/T6 Gc
Il2 D Ex tb IIIC T80/100°C Db IP66
Marking IECEx Ex ec IIC T5/T6 Gc
Ex tb IIIC T80/100°C Db IP66
Marking UL844 (North American)
Class I, Division 2, Groups A, B, C, D
Class II, Division 1, Groups E, F, G
Class II, Division 2, Groups F, G
Class III
Marking Marine
UL1598, UL1598A
ABS
Other Rating
IP66
• Housing: Copper-free aluminum
• Lens: PC
• Hardware: Stainless steel
• Mounting Bracket: Stainless steel
| Model | Wattage | Operating Voltage | Lumen(Im) | Efficacy(Im/W) | CRI | CCT | Emergency Time |
| EX-20W H2YZDA | 20W | AC100-277V/200-480 Vor DC12-48V | 2800 | 140 | >70 | 2200K-7000K | 3 hours |
| EX-40W H2YZDA | 40W | 5600 | |||||
| EX-40W H4YZDA | 40W | 5600 | |||||
| EX-60W H4YZDA | 60W | 8400 |
| Model | Quantity/Carton | Length(mm) | Width(mm) | Height(mm) | Net Weight(kg) | Gross Weight(kg) |
| H2 | 2 PCS | 691 | 400 | 290 | 4 | 9 |
| H4 | 2 PCS | 1300 | 400 | 290 | 5.5 | 14.5 |
Q1. Can I have a sample order for led light?
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
Q2. What about the lead time?
A: 3-5 days for Sample preparing ,8-10 working days for mass production.
