Product Details:
|
| Material: | Copper-free Aluminum | Power: | 20,40,60,80,100,120,150,200,250,300,350,400 |
|---|---|---|---|
| Item Type: | Explosion- Proof Lights | Color Temperature(cct): | Pure White, Cool White ,warm White |
| Ip Rating: | 66 | Input Voltage(v): | AC100-277V/DC12-48V AC200-480V |
| High Light: | High Bay Explosion Proof LED Lights,400W Explosion Proof LED Lights,7000K led explosion proof lamp |
||

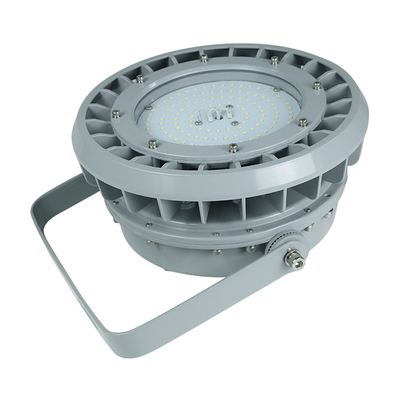

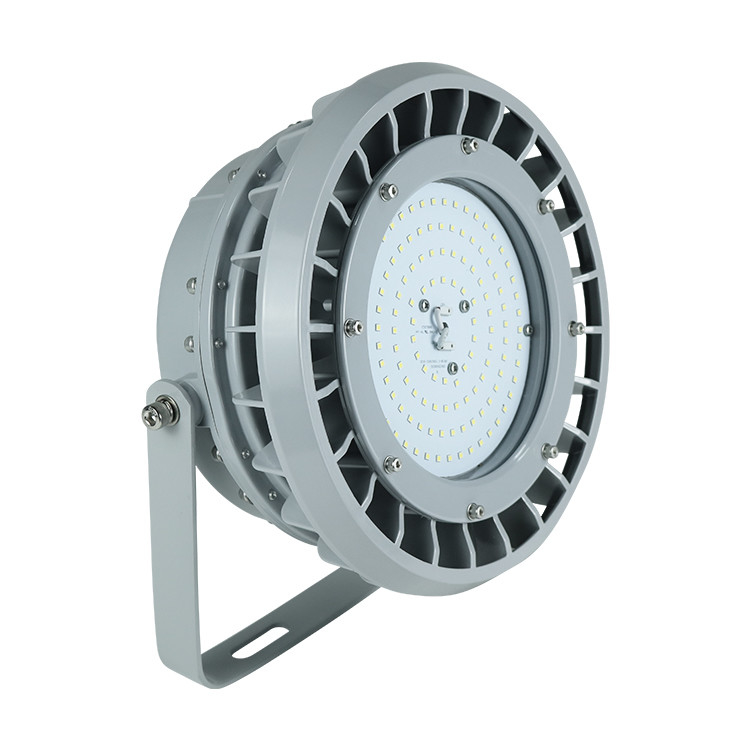

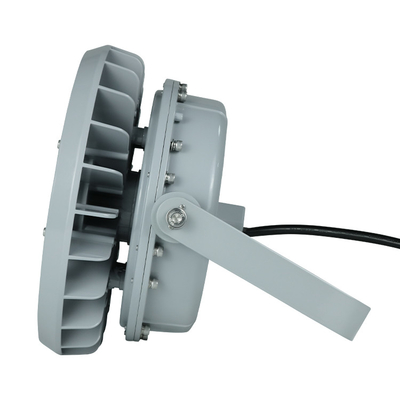

ATEX Certified 20~400W LED Explosion Proof High Bay Fixtures
Marking
Marking ATEX
II 2 G Ex mb eb IIC T4 Gb
II 2 D Ex tb IIIC T120°C Db IP66
II 3 G Ex ec IIC T3 Gc
II 2 D Ex tb IIIC T85°C Db IP66
Marking IECEx
Ex mb eb IIC T4 Gb
Ex tb IIIC T120°C Db IP66
Ex ec IIC T3 Gc
Ex tb IIIC T85°C Db IP66
Marking UL844 (North American)
Class I, Division 2, Groups A, B, C, D
Class II, Division 1, Groups E, F, G
Class II, Division 2, Groups F, G
Class III
Marine Marking
UL1598, UL1598A
ABS
Other Rating
I P 6 6
FEATURES
• Working Temperature: -40°C ~ +55°C.
• High quality SMT LED and Meanwell Driver.
• Heavy-duty and high impact resistance.
• Replaceable LED board and drivers.
• Integrated junction box for driver .
• Dimmable and battery back up function available.
• Marine rating powder coated finish treatment.
• Up to 5 years warranty .
• Various installation ways for different applications.
• Glass lens or polycarbonate lens to make different beam angles.
SPECIFICATION
| Product Number | Wattage | ColorTemperature | Voltage | Lumens | CRI | Emergency Time |
| EX-20W B2YZDA | 20W | 2200K-7000K | AC100-277V/DC12-48V | 2800 | >70 | 3 Hours |
| EX-40W B2YZDA | 40W | 5600 | ||||
| EX-60W BYZDA | 60W | 2200K-7000K | AC100-277V/DC12-48V/AC200-480V | 8400 | >70 | 3 Hours |
| EX-80W BYZDA | 80W | 11200 | ||||
| EX-100W B3YZDA | 100W | 2200K-7000K | AC100-277V/DC12-48V/AC200-480V | 14000 | >70 | 3 Hours |
| EX-120W B3YZDA | 120W | 16800 | ||||
| EX-150W B3YZDA | 150W | 21000 | ||||
| EX-200W B3YZDA | 200W | 28000 | ||||
| EX-250W B4YZDA | 250W | 2200K-7000K | AC100-277V/DC12-48V/AC200-480V | 35000 | >70 | 3 Hours |
| EX-300W B4YZDA | 300W | 42000 | ||||
| EX-350W B4YZDA | 350W | 49000 | ||||
| EX-400W B4YZDA | 400W | 56000 | ||||
“B,B2,B3,B4”=Product code.“Y”=D or N D:Dimmable or N: non-dimmable “Z”=CCT,
from 2200-7000k, 22 for 2200k...70 for 7000K.
“D”=Beam angle, D40 for 40°, D60 for 60°, D90 for 90°, D120 for 120°
“A”=glass type. blank for flat glass, C for spherical glass.
PACKING
| Model | Quantity/Carton | Length(cm) | Width(cm) | Height(cm) | Net weight(kg) | Gross weight(kg) |
| B2 | 1 | 36cm | 35.4cm | 26cm | 3.5kg | 5kg |
| B | 1 | 38.6cm | 33cm | 22cm | 4.4kg | 5.5kg |
| B3 | 1 | 48cm | 46cm | 26.5cm | 8.2kg | 10.5kg |
| B4 | 1 | 53cm | 53cm | 30cm | 18.8kg | 21.5kg |
Candela Distribution
