Product Details:
|
| High Light: | Linear Explosion Proof LED Lights,2 Feet Explosion Proof LED Lights,277V explosion proof linear light |
||
|---|---|---|---|

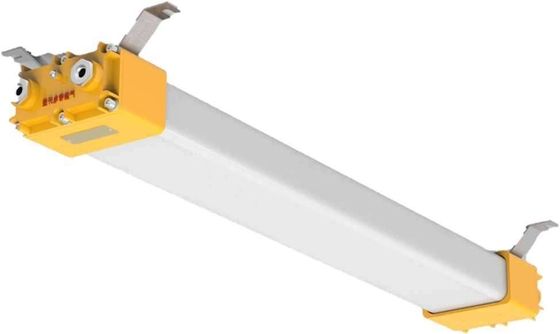

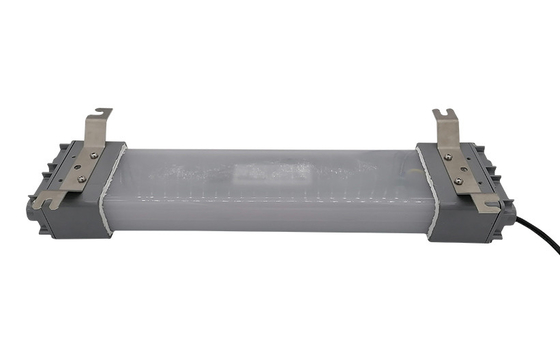

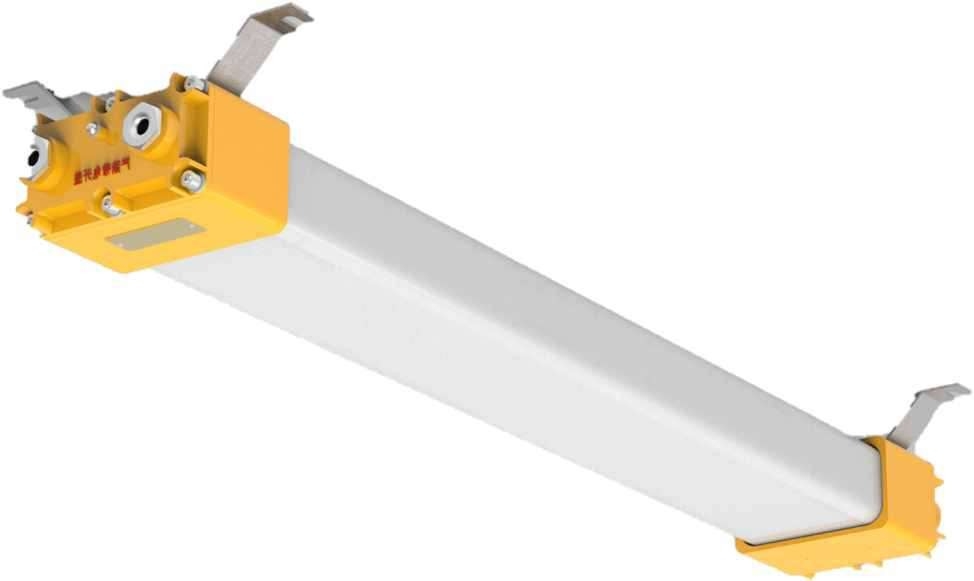

2 feet LED Explosion proof linear fixture high efficacy LED Super brightness
Features
High efficacy LED Source with long lifespan>100,000 hours
5-year performance warranty
Low THD around 15%,Less interference 5KV Surge Protection
Robust aluminium housing and strong tempered glass Vibration and shock resistant
Low maintenance
Application
Oil&Gas Exploration
Drilling
Oil Refinery
Petrochemical Plant
Power Plant
Pharmaceutical Plant
Parameters
| Electrical&photometic Features | |
| Luminaire Efficacy: | 140lm/W |
| Lifespan: | >50,000 hours |
| Operating Voltage: | 100-277 VAC |
| 141-392VDC | |
| 36 VAC | |
| 24VDC/24VAC | |
| Power(W): | 18/36/48/56/72/96 |
| Frequency: | 50/60Hz |
| Power Factor: | ＞0.98 |
| THD: | ＜15% |
| Insulation Class: | Ⅰ |
| Surge Protection: | 5KV |
| LED Driver: | Over voltage protection short circuit protection |
| Mechanical Features | |||
| Length: | 600mm | 900mm | 1200mm |
| Weight: | 6.9Kg | 9.2 Kg | 11.5Kg |
| Size: | 600X132X72mm | 900X132X72mm | 1200X132X72mm |
| Ambient Temperature: | -20℃-+55℃ | ||
| Connecting Terminals: | 3*1.0-4mm²(L+N+PE) | ||
| Available cable : | Outer diameter φ7-φ14mm | ||
| Cable Entries: | 2 XM20*1.5 (M25*1.5 are optional) | ||
| Earthing Protection: | M4 (Internal & external earth bolts) | ||
| IP Code: | IP66 | ||
| Enclosure Material: | ADC12+PC | ||
| Enclosure Colour: | Yellow RAL1026(optional Grey RAL7040) | ||
| Coating: | Epoxy powder coating | ||
| Exposed Fastener: | Stainless steel | ||
| Protective Cover: | Tempered glass,Stand 7J impact | ||
