Product Details:
|
| Type: | Food Light | Ip Rating: | IP66 |
|---|---|---|---|
| Application: | Ood And Distilling Production, Alcohol Industry | Warranty: | 5 Years |
| High Light: | Fresh Meat LED Food Lights,LED Food Lights Fruit,Vegetable food processing led lighting |
||

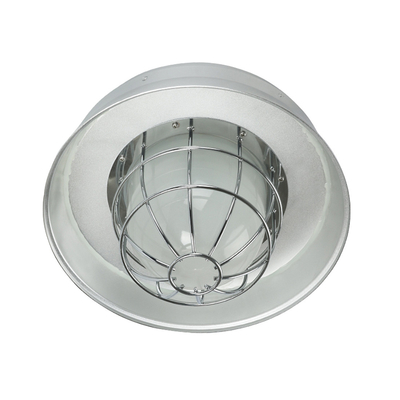

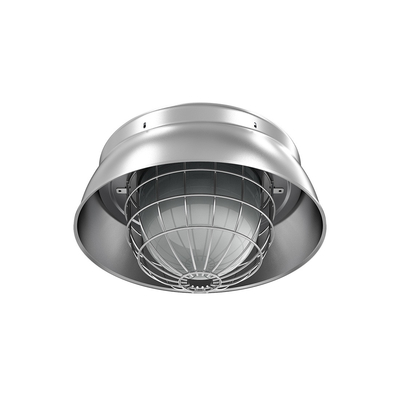

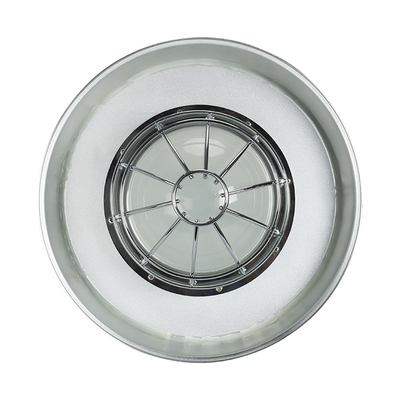

Fresh Meat Food Light Fruit Vegetable Cold Forging 36 Watt LED Fresh Ceiling Lamp
Marking ATEX
II3 G Ex ec IIC T3C Gc
II2 Ex tb IIIC T135°C Db IP66
Marking IECEx
Ex ec IIC T3C GC
Ex tb IIIC T135°C Db IP66
Ingress Protection: IP66
Marking UL844 (North American)
Class I, Division 2,Groups A, B, C, D
Class II, Division 1,Groups E, F, G
Class II, Division 2,Groups F, G
Class III
Ambient Temperature: -40°C to 60°C (-40°F to 140°F) Ex ec IIC T3C GC Ex tb IIIC T135°C Db IP66 Marking IECEx
Food Safety: NSF
Housing: Aluminum
Lens: Tempered glass
Hardware: Stainless steel
Dimmable and battery backup function is available.
High-quality SMT LED and Meanwell driver.
Heavy-duty and high impact resistance.
Replaceable LED board and drivers.
Integrated junction box for driver.
Marine rating powder coated finish treatment.
Various installation ways for different applications.
Glass lens or polycarbonate lens for making different beam angles.
High efficacy up to 140 lumens per watt
5-year warranty.
Wide beam angle of 120°.
Three connection cable entry points makes installation and configuration more resonable.
Low temperature applications to -40°C (-40°F) and high temperature up to 60°C (140°F).
| Model | Wattage | Lumens(Im) | Operating Voltage | CCT | CRI |
| EX-20W B2YZD A-F | 20W | 2800 | AC100-277V(by IC)/DC12-48V | 2200K-7000K | 80 |
| EX-40W B2YZD A-F | 40W | 5600 | |||
| EX-60W BYZD A-F | 60W | 8400 | |||
| EX-80W BYZD A-F | 80W | 11200 | |||
| EX-100W B3YZD A-F | 100W | 14000 | |||
| EX-120W B3YZD A-F | 120W | 16800 | |||
| EX-150W B3YZD A-F | 150W | 21000 | |||
| EX-200W B3YZD A-F | 200W | 28000 |
| Model | Quantity/Carton | Packing Size | Net Weight(kg) | Gross Weight(kg) |
| B2 | 1 PCS | 12.60x12.60x11.81inch | 3.25 | 5.25 |
| B | 1 PCS | 15.98x15.98x9.65inch | 3.5 | 4.5 |
| B3 | 1 PCS | 20.28x20.28x14.57inch | 8.25 | 10.25 |
| B4 | 1 PCS | 20.87x20.87x11.81inch | 18.8 | 21.5 |

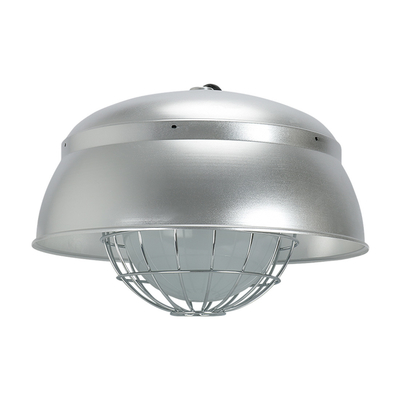

Model B2

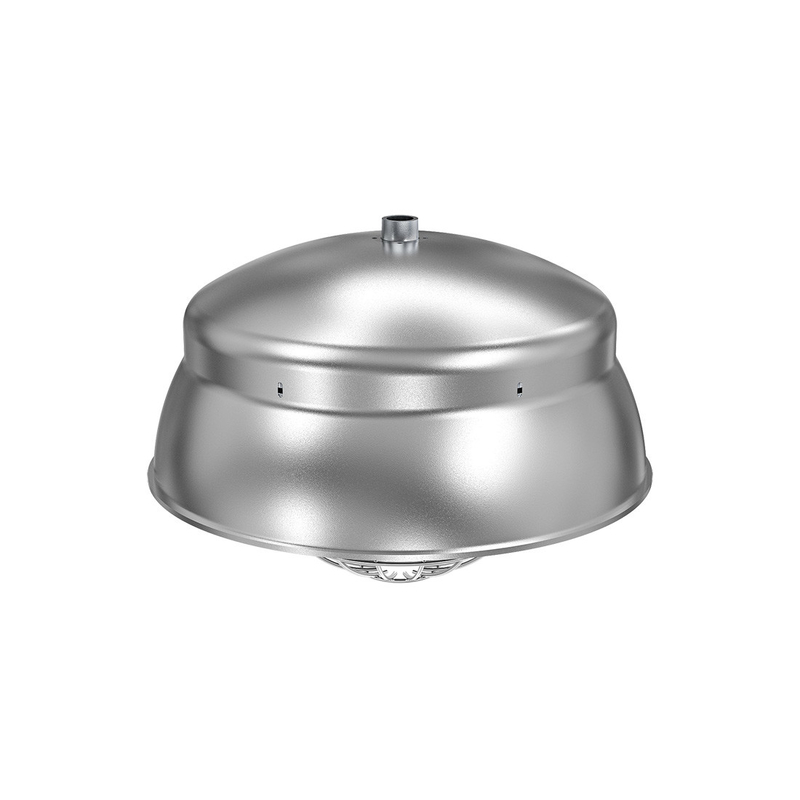

Model B3

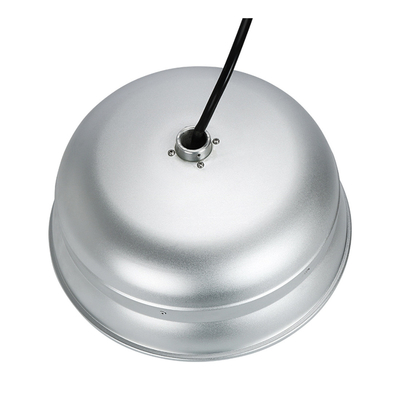

Stanchion Pendant Mounting:
Food and alcohol industry: flour and fine particle production and storage, food and distilling production, alcohol industry, etc
FAQ
Q1. Can I have a sample order ?
Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
Q2: Do you offer guarantee for the products?
Yes, we offer 2-5 years warranty to our products.
Q3: How to deal with the faulty?
Firstly, Our products are produced in strict quality control system and the defective rate will be less than 0.2%.
Secondly,during the guarantee period, we will send new lights with new order for small quantity. For defective batch products, we
will repair them and resend them to you or we can discuss the solution including re-call according to real situation.
