Product Details:
|
| Material: | Copper-free Aluminum | Item Type: | Explosion- Proof Food Light |
|---|---|---|---|
| Warranty: | 5 Years | Working Temperature(℃): | -40 -60 |
| Color Temperature(cct): | 2200k-7000k | Lamp Power(w): | 20,40,60,80,100,120,150,200 |
| High Light: | 2200K Explosion Proof LED Food Lights,Explosion Proof LED Food Lights 2200K,ATEX food safe led lights |
||
Factory Price Atex Led Explosion Proof Light food light High Impact Resistance Aluminum Housing food factory lighting
Marking ATEX
II3 G Ex ec IIC T3C Gc
II2 Ex tb IIIC T135°C Db IP66
Marking IECEx
Ex ec IIC T3C GC
Ex tb IIIC T135°C Db IP66
Ingress Protection: IP66
Marking UL844 (North American)
Class I, Division 2,Groups A, B, C, D
Class II, Division 1,Groups E, F, G
Class II, Division 2,Groups F, G
Class III
Ambient Temperature: -40°C to 60°C (-40°F to 140°F) Ex ec IIC T3C GC Ex tb IIIC T135°C Db IP66 Marking IECEx
Food Safety: NSF
Housing: Aluminum
Lens: Tempered glass
Hardware: Stainless steel
Dimmable and battery backup function is available.
High-quality SMT LED and Meanwell driver.
Heavy-duty and high impact resistance.
Replaceable LED board and drivers.
Integrated junction box for driver.
Marine rating powder coated finish treatment.
Various installation ways for different applications.
Glass lens or polycarbonate lens for making different beam angles.
High efficacy up to 140 lumens per watt
5-year warranty.
Wide beam angle of 120°.
Three connection cable entry points makes installation and configuration more resonable.
Low temperature applications to -40°C (-40°F) and high temperature up to 60°C (140°F).
| Model | Wattage | Lumens(Im) | Operating Voltage | CCT | CRI |
| EX-20W B2YZD A-F | 20W | 2800 | AC100-277V(by IC)/DC12-48V | 2200K-7000K | 80 |
| EX-40W B2YZD A-F | 40W | 5600 | |||
| EX-60W BYZD A-F | 60W | 8400 | |||
| EX-80W BYZD A-F | 80W | 11200 | |||
| EX-100W B3YZD A-F | 100W | 14000 | |||
| EX-120W B3YZD A-F | 120W | 16800 | |||
| EX-150W B3YZD A-F | 150W | 21000 | |||
| EX-200W B3YZD A-F | 200W | 28000 |
| Model | Quantity/Carton | Packing Size | Net Weight(kg) | Gross Weight(kg) |
| B2 | 1 PCS | 12.60x12.60x11.81inch | 3.25 | 5.25 |
| B | 1 PCS | 15.98x15.98x9.65inch | 3.5 | 4.5 |
| B3 | 1 PCS | 20.28x20.28x14.57inch | 8.25 | 10.25 |
| B4 | 1 PCS | 20.87x20.87x11.81inch | 18.8 | 21.5 |
Model B2
Model B3

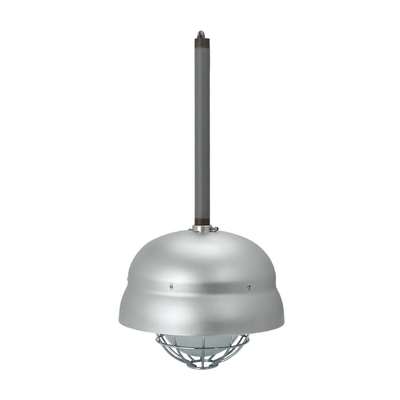

Stanchion Pendant Mounting:
Food and alcohol industry: flour and fine particle production and storage, food and distilling production, alcohol industry, etc
Q1. What about the lead time?
A: 3-5 days for Sample preparing ,8-10 working days for mass production.
Q2. Can I have a sample order for led light?
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
