Product Details:
|
| Item Type: | Explosion- Proof Lights | Ip Rating: | 66/67 |
|---|---|---|---|
| Working Temperature(℃): | -60-100 | Color: | Gray |
| Type: | Junction Box | Material: | Stainless Steel |
| High Light: | Flameproof Explosion Proof Junction Box,Stainless Steel Explosion Proof Junction Box,IP66 Flameproof Junction Box |
||
Custom Ex Rated Junction Box , Flameproof Junction Box For Zone 1 Zone 2 Hazardous Area
Copper free aluminum, plastic-sprayed surface.
Ex e type enclosure.
Valid over the entire temperature range from -60°C to 100°C (-76 ºF to 212ºF).
Degree of protection: IP66-IP67.
Widely used for connection in steel pipe wiring system
Marking ATEX:
Ⅱ 2 G Ex eb ⅡC Gb Ⅱ 2 D Ex tb ⅢC Db IP66
Marking IECEx:Ex eb ⅡC Gb Ex tb ⅢC Db IP66
Marking UL1203: Class I, Division 2, Groups A, B, C, D
Class II, Division 1, Groups E, F, G
Class II, Division 2, Groups F, G
Class III
Standard: EN 60079-0,EN 60079-7,EN 60079-31 IEC 60079-0,IEC 60079-7,IEC 60079-31
Ambient Temperature: -60℃ ~ +100℃

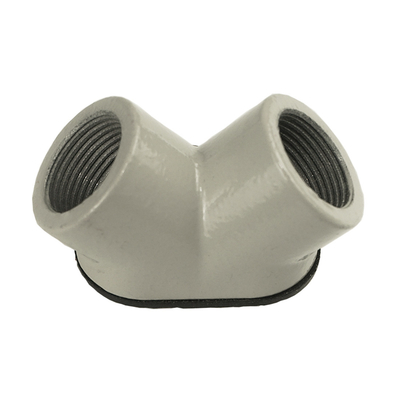

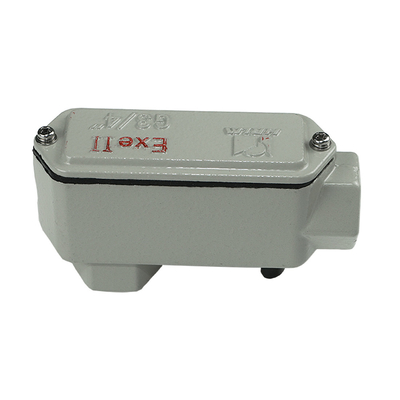

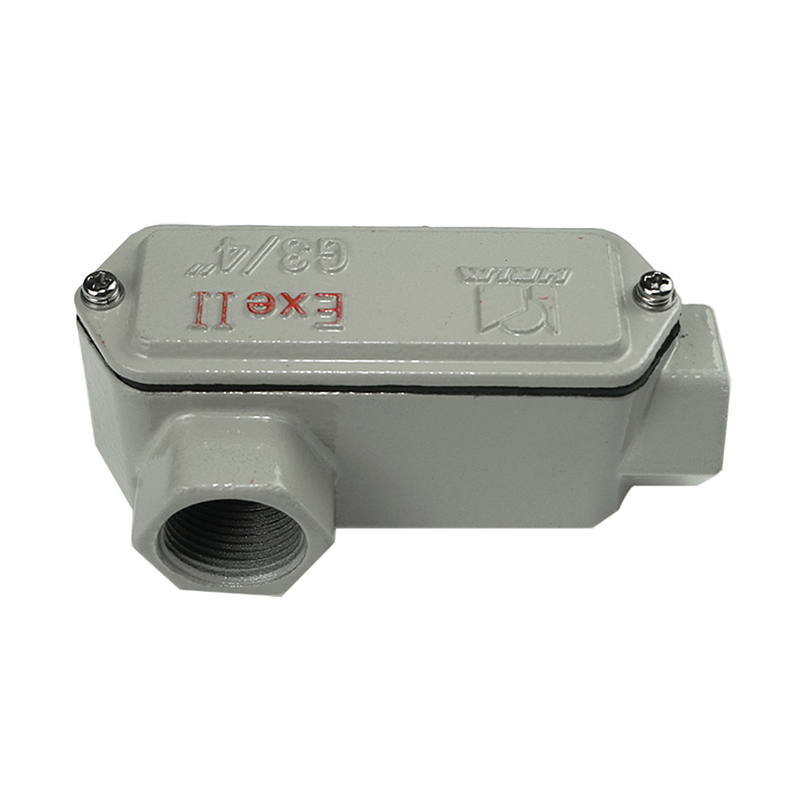

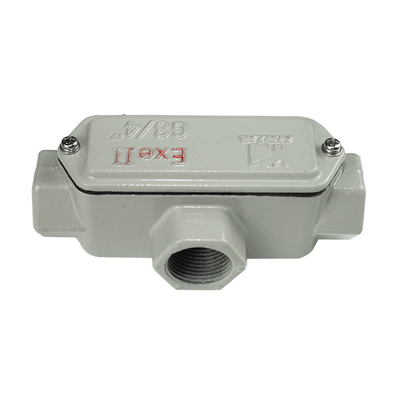

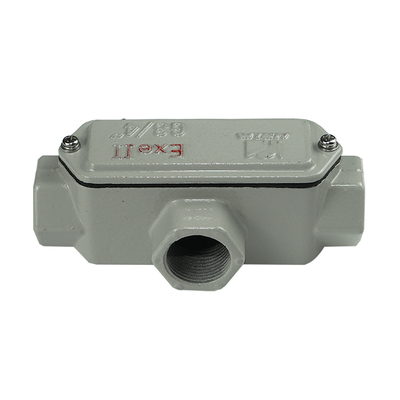

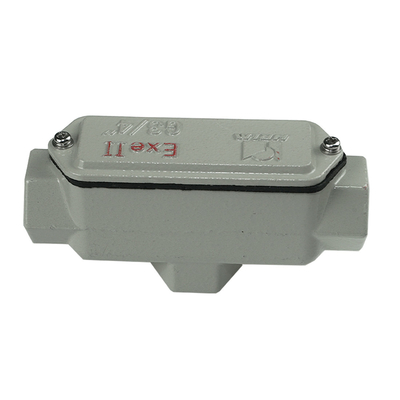

Structure Type: A, B, C, D, E, F, G, H
Connection Thread: Metric thread is standard type. NPT or other threads are optional, and please specify when ordering. The standard thread pitch of metric thread is 1.5mm. Other pitches can be customized, and please specify when ordering.
| Internal thread "A” | Dimension(mm) | |||
| Metric | NPT | W | H | L |
| M20*1.5 | ½ | 36 | 52.5 | 120 |
| M25*1.5 | ¾ | 42 | 58.5 | 135 |
| M32*1.5 | 1 | 50 | 68 | 160 |
| M40*1.5 | 1 1/4 | 61 | 78.5 | 185 |
| M50*1.5 | 1 1/2 | 70 | 85.5 | 190 |
| M63*1.5 | 2 | 84 | 99.5 | 210 |
| M75*1.5 | 2 1/2 | 99 | 115 | 280 |
| M90*1.5 | 3 | 118 | 134 | 290 |
| M100*1.5 | 3 1/2 | 133 | 147 | 320 |
| M115*1.5 | 4 | 145 | 159 | 320 |
| Internal thread "A” | Dimension(mm) | |||
| Metric | NPT | W | H | L |
| M20*1.5 | ½ | 54 | 52.5 | 120 |
| M25*1.5 | ¾ | 60 | 58.5 | 135 |
| M32*1.5 | 1 | 72 | 68 | 160 |
| M40*1.5 | 1 1/4 | 83 | 78.5 | 185 |
| M50*1.5 | 1 1/2 | 94 | 85.5 | 190 |
| M63*1.5 | 2 | 108 | 99.5 | 210 |
| M75*1.5 | 2 1/2 | 134 | 115 | 280 |
| M90*1.5 | 3 | 156 | 134 | 290 |
| M100*1.5 | 3 1/2 | 171 | 147 | 320 |
| M115*1.5 | 4 | 186 | 159 | 320 |
| Internal thread "A” | Dimension(mm) | |||
| Metric | NPT | W | H | L |
| M20*1.5 | ½ | 72 | 52.5 | 120 |
| M25*1.5 | ¾ | 78 | 58.5 | 135 |
| M32*1.5 | 1 | 94 | 68 | 160 |
| M40*1.5 | 1 1/4 | 105 | 78.5 | 185 |
| M50*1.5 | 1 1/2 | 118 | 85.5 | 190 |
| M63*1.5 | 2 | 132 | 99.5 | 210 |
| M75*1.5 | 2 1/2 | 169 | 115 | 280 |
| M90*1.5 | 3 | 194 | 134 | 290 |
| M100*1.5 | 3 1/2 | 209 | 147 | 320 |
| M115*1.5 | 4 | 277 | 159 | 320 |
| Internal thread "A” | Dimension(mm) | |||
| Metric | NPT | W | H | L |
| M20*1.5 | ½ | 54 | 52.5 | 111 |
| M25*1.5 | ¾ | 60 | 58.5 | 126 |
| M32*1.5 | 1 | 72 | 68 | 149.5 |
| M40*1.5 | 1 1/4 | 83 | 78.5 | 174.5 |
| M50*1.5 | 1 1/2 | 94 | 85.5 | 177.5 |
| M63*1.5 | 2 | 108 | 99.5 | 197.5 |
| M75*1.5 | 2 1/2 | 134 | 115 | 257.5 |
| M90*1.5 | 3 | 156 | 134 | 264.5 |
| M100*1.5 | 3 1/2 | 171 | 147 | 294.5 |
| M115*1.5 | 4 | 186 | 159 | 291.5 |
| Internal thread "A” | Dimension(mm) | |||
| Metric | NPT | W | H | L |
| M20*1.5 | ½ | 54 | 52.5 | 111 |
| M25*1.5 | ¾ | 60 | 58.5 | 126 |
| M32*1.5 | 1 | 72 | 68 | 149.5 |
| M40*1.5 | 1 1/4 | 83 | 78.5 | 174.5 |
| M50*1.5 | 1 1/2 | 94 | 85.5 | 177.5 |
| M63*1.5 | 2 | 108 | 99.5 | 197.5 |
| M75*1.5 | 2 1/2 | 134 | 115 | 257.5 |
| M90*1.5 | 3 | 156 | 134 | 264.5 |
| M100*1.5 | 3 1/2 | 171 | 147 | 294.5 |
| M115*1.5 | 4 | 186 | 159 | 291.5 |
| Internal thread "A” | Dimension(mm) | |||
| Metric | NPT | W | H | L |
| M20*1.5 | ½ | 36 | 52.5 | 111 |
| M25*1.5 | ¾ | 42 | 58.5 | 126 |
| M32*1.5 | 1 | 50 | 68 | 149.5 |
| M40*1.5 | 1 1/4 | 61 | 78.5 | 174.5 |
| M50*1.5 | 1 1/2 | 70 | 85.5 | 177.5 |
| M63*1.5 | 2 | 84 | 99.5 | 197.5 |
| M75*1.5 | 2 1/2 | 99 | 115 | 257.5 |
| M90*1.5 | 3 | 118 | 134 | 264.5 |
| M100*1.5 | 3 1/2 | 133 | 147 | 294.5 |
| M115*1.5 | 4 | 145 | 159 | 291.5 |
| Internal thread "A” | Dimension(mm) | |||
| Metric | NPT | W | H | L |
| M20*1.5 | ½ | 36 | 52.5 | 120 |
| M25*1.5 | ¾ | 42 | 58.5 | 135 |
| M32*1.5 | 1 | 50 | 68 | 160 |
| M40*1.5 | 1 1/4 | 61 | 78.5 | 185 |
| M50*1.5 | 1 1/2 | 70 | 85.5 | 190 |
| M63*1.5 | 2 | 84 | 99.5 | 210 |
| M75*1.5 | 2 1/2 | 99 | 115 | 280 |
| M90*1.5 | 3 | 118 | 134 | 290 |
| M100*1.5 | 3 1/2 | 133 | 147 | 320 |
| M115*1.5 | 4 | 145 | 159 | 320 |
| Internal thread "A” | Dimension(mm) | |||
| Metric | NPT | W | H | L |
| M20*1.5 | ½ | 30 | 51 | 84 |
| M25*1.5 | ¾ | 35 | 53 | 89 |
| M32*1.5 | 1 | 41 | 64 | 108 |
| M40*1.5 | 1 1/4 | 51 | 69 | 116 |
| M50*1.5 | 1 1/2 | 57 | 76 | 130 |
| M63*1.5 | 2 | 70 | 95 | 168 |
