Product Details:
|
| Item Type: | Explosion- Proof Lights | Ip Rating: | 66/67 |
|---|---|---|---|
| Working Temperature(℃): | -60-100 | Color: | Gray |
| Type: | Junction Box | Material: | Stainless Steel |
| High Light: | ATEX Explosion Proof Junction Box,Explosion Proof Junction Box Class 1 Division 2,IECEX class 1 division 2 junction box |
||
Factory Price Atex/IECEX Alloy Explosion Proof enclosures Explosion Bushings-HC Series-35
Copper free aluminum, plastic-sprayed surface.
Ex e type enclosure.
Valid over the entire temperature range from -60°C to 100°C (-76 ºF to 212ºF).
Degree of protection: IP66-IP67.
Widely used for connection in steel pipe wiring system
Marking ATEX:
Ⅱ 2 G Ex eb ⅡC Gb Ⅱ 2 D Ex tb ⅢC Db IP66
Marking IECEx:Ex eb ⅡC Gb Ex tb ⅢC Db IP66
Marking UL1203: Class I, Division 2, Groups A, B, C, D
Class II, Division 1, Groups E, F, G
Class II, Division 2, Groups F, G
Class III
Standard: EN 60079-0,EN 60079-7,EN 60079-31 IEC 60079-0,IEC 60079-7,IEC 60079-31
Ambient Temperature: -60℃ ~ +100℃

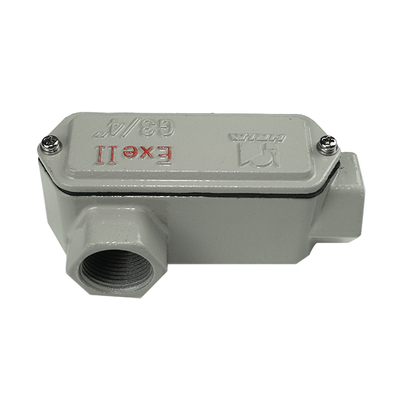

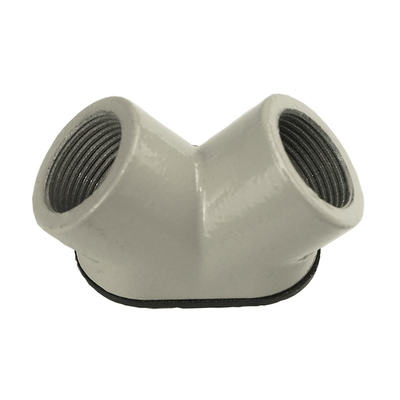

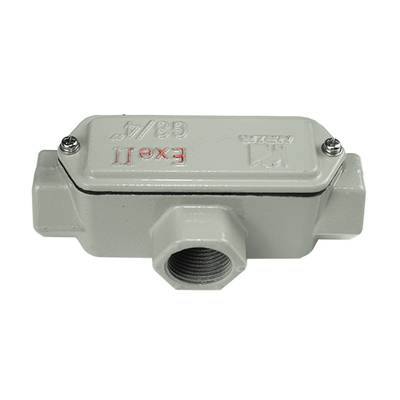

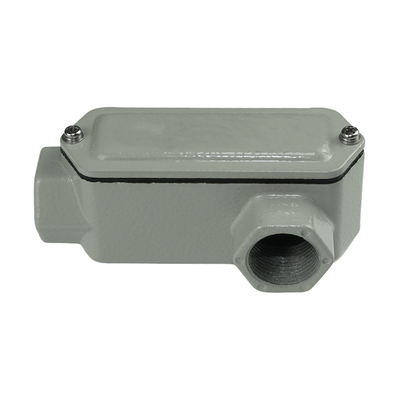

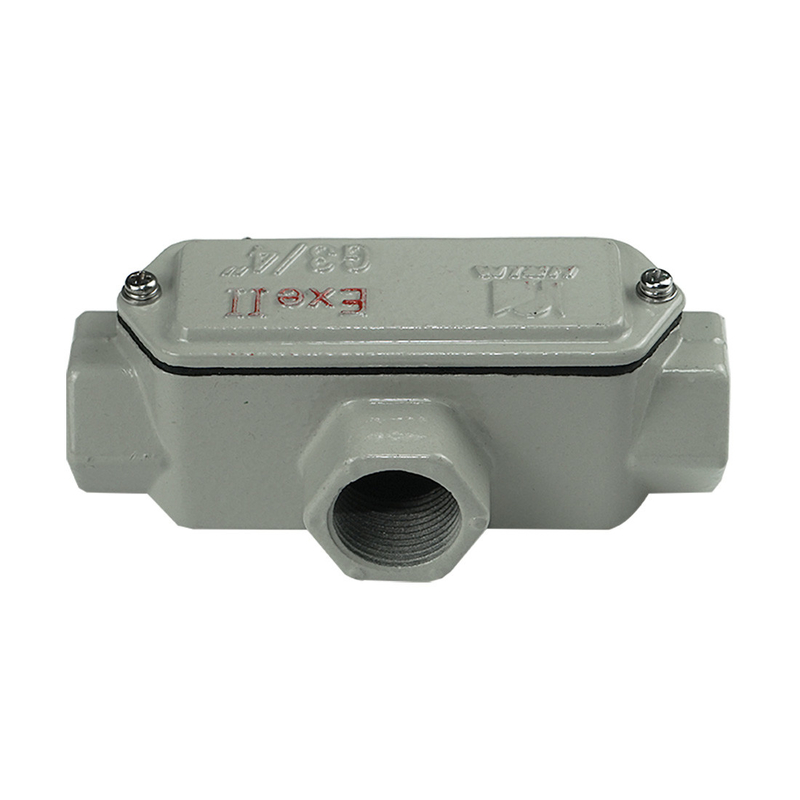

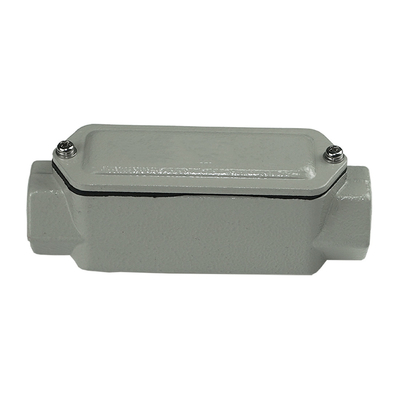

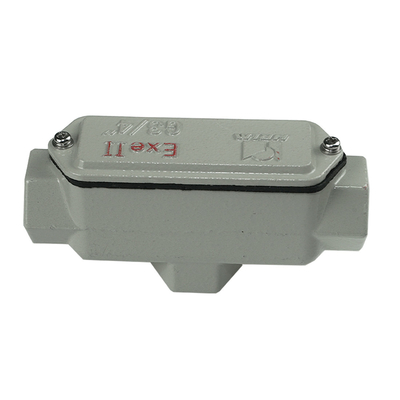

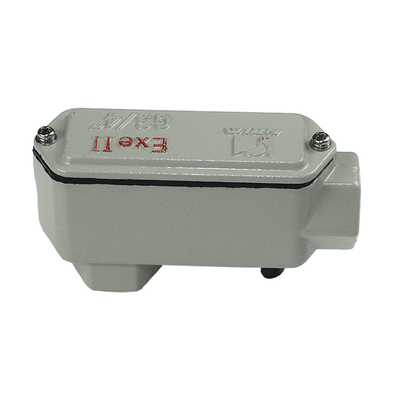

Structure Type: A, B, C, D, E, F, G, H
Connection Thread: Metric thread is standard type. NPT or other threads are optional, and please specify when ordering. The standard thread pitch of metric thread is 1.5mm. Other pitches can be customized, and please specify when ordering.
| Internal thread "A” | Dimension(mm) | |||
| Metric | NPT | W | H | L |
| M20*1.5 | ½ | 36 | 52.5 | 120 |
| M25*1.5 | ¾ | 42 | 58.5 | 135 |
| M32*1.5 | 1 | 50 | 68 | 160 |
| M40*1.5 | 1 1/4 | 61 | 78.5 | 185 |
| M50*1.5 | 1 1/2 | 70 | 85.5 | 190 |
| M63*1.5 | 2 | 84 | 99.5 | 210 |
| M75*1.5 | 2 1/2 | 99 | 115 | 280 |
| M90*1.5 | 3 | 118 | 134 | 290 |
| M100*1.5 | 3 1/2 | 133 | 147 | 320 |
| M115*1.5 | 4 | 145 | 159 | 320 |
| Internal thread "A” | Dimension(mm) | |||
| Metric | NPT | W | H | L |
| M20*1.5 | ½ | 54 | 52.5 | 120 |
| M25*1.5 | ¾ | 60 | 58.5 | 135 |
| M32*1.5 | 1 | 72 | 68 | 160 |
| M40*1.5 | 1 1/4 | 83 | 78.5 | 185 |
| M50*1.5 | 1 1/2 | 94 | 85.5 | 190 |
| M63*1.5 | 2 | 108 | 99.5 | 210 |
| M75*1.5 | 2 1/2 | 134 | 115 | 280 |
| M90*1.5 | 3 | 156 | 134 | 290 |
| M100*1.5 | 3 1/2 | 171 | 147 | 320 |
| M115*1.5 | 4 | 186 | 159 | 320 |
| Internal thread "A” | Dimension(mm) | |||
| Metric | NPT | W | H | L |
| M20*1.5 | ½ | 72 | 52.5 | 120 |
| M25*1.5 | ¾ | 78 | 58.5 | 135 |
| M32*1.5 | 1 | 94 | 68 | 160 |
| M40*1.5 | 1 1/4 | 105 | 78.5 | 185 |
| M50*1.5 | 1 1/2 | 118 | 85.5 | 190 |
| M63*1.5 | 2 | 132 | 99.5 | 210 |
| M75*1.5 | 2 1/2 | 169 | 115 | 280 |
| M90*1.5 | 3 | 194 | 134 | 290 |
| M100*1.5 | 3 1/2 | 209 | 147 | 320 |
| M115*1.5 | 4 | 277 | 159 | 320 |
| Internal thread "A” | Dimension(mm) | |||
| Metric | NPT | W | H | L |
| M20*1.5 | ½ | 54 | 52.5 | 111 |
| M25*1.5 | ¾ | 60 | 58.5 | 126 |
| M32*1.5 | 1 | 72 | 68 | 149.5 |
| M40*1.5 | 1 1/4 | 83 | 78.5 | 174.5 |
| M50*1.5 | 1 1/2 | 94 | 85.5 | 177.5 |
| M63*1.5 | 2 | 108 | 99.5 | 197.5 |
| M75*1.5 | 2 1/2 | 134 | 115 | 257.5 |
| M90*1.5 | 3 | 156 | 134 | 264.5 |
| M100*1.5 | 3 1/2 | 171 | 147 | 294.5 |
| M115*1.5 | 4 | 186 | 159 | 291.5 |
| Internal thread "A” | Dimension(mm) | |||
| Metric | NPT | W | H | L |
| M20*1.5 | ½ | 54 | 52.5 | 111 |
| M25*1.5 | ¾ | 60 | 58.5 | 126 |
| M32*1.5 | 1 | 72 | 68 | 149.5 |
| M40*1.5 | 1 1/4 | 83 | 78.5 | 174.5 |
| M50*1.5 | 1 1/2 | 94 | 85.5 | 177.5 |
| M63*1.5 | 2 | 108 | 99.5 | 197.5 |
| M75*1.5 | 2 1/2 | 134 | 115 | 257.5 |
| M90*1.5 | 3 | 156 | 134 | 264.5 |
| M100*1.5 | 3 1/2 | 171 | 147 | 294.5 |
| M115*1.5 | 4 | 186 | 159 | 291.5 |
| Internal thread "A” | Dimension(mm) | |||
| Metric | NPT | W | H | L |
| M20*1.5 | ½ | 36 | 52.5 | 111 |
| M25*1.5 | ¾ | 42 | 58.5 | 126 |
| M32*1.5 | 1 | 50 | 68 | 149.5 |
| M40*1.5 | 1 1/4 | 61 | 78.5 | 174.5 |
| M50*1.5 | 1 1/2 | 70 | 85.5 | 177.5 |
| M63*1.5 | 2 | 84 | 99.5 | 197.5 |
| M75*1.5 | 2 1/2 | 99 | 115 | 257.5 |
| M90*1.5 | 3 | 118 | 134 | 264.5 |
| M100*1.5 | 3 1/2 | 133 | 147 | 294.5 |
| M115*1.5 | 4 | 145 | 159 | 291.5 |
| Internal thread "A” | Dimension(mm) | |||
| Metric | NPT | W | H | L |
| M20*1.5 | ½ | 36 | 52.5 | 120 |
| M25*1.5 | ¾ | 42 | 58.5 | 135 |
| M32*1.5 | 1 | 50 | 68 | 160 |
| M40*1.5 | 1 1/4 | 61 | 78.5 | 185 |
| M50*1.5 | 1 1/2 | 70 | 85.5 | 190 |
| M63*1.5 | 2 | 84 | 99.5 | 210 |
| M75*1.5 | 2 1/2 | 99 | 115 | 280 |
| M90*1.5 | 3 | 118 | 134 | 290 |
| M100*1.5 | 3 1/2 | 133 | 147 | 320 |
| M115*1.5 | 4 | 145 | 159 | 320 |
| Internal thread "A” | Dimension(mm) | |||
| Metric | NPT | W | H | L |
| M20*1.5 | ½ | 30 | 51 | 84 |
| M25*1.5 | ¾ | 35 | 53 | 89 |
| M32*1.5 | 1 | 41 | 64 | 108 |
| M40*1.5 | 1 1/4 | 51 | 69 | 116 |
| M50*1.5 | 1 1/2 | 57 | 76 | 130 |
| M63*1.5 | 2 | 70 | 95 | 168 |
Q1. Do you have any MOQ limit for led light order?
A: Low MOQ, 1pc for sample checking is available.
Q2. How do you ship the goods and how long does it take to arrive?
A: Ship by DHL, UPS, FedEx or TNT. It takes 3-5 days to arrive. Airline and sea shipping also optional.
