Product Details:
|
| Power: | 100W 150W 200W 250W 300W 400W 500W | Ip Rating: | IP54 |
|---|---|---|---|
| Input Voltage(v): | AC100-277V/347V/480V | Working Temperature(℃): | -20 - 55 |
| Color Temperature(cct): | 3000K 4000K 5000K 6000K | Lamp Luminous Efficiency(lm/w): | 170 |
| High Light: | 500W commercial outdoor solar lights,100w commercial outdoor solar lights,IP54 electric solar lights |
||

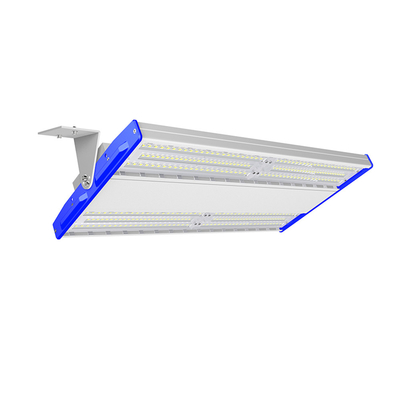

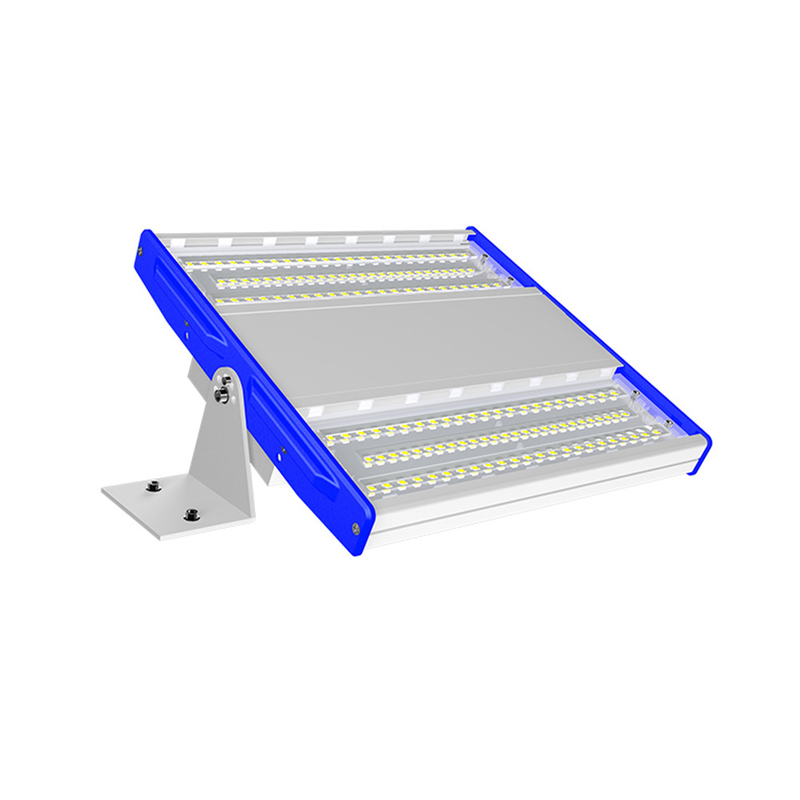

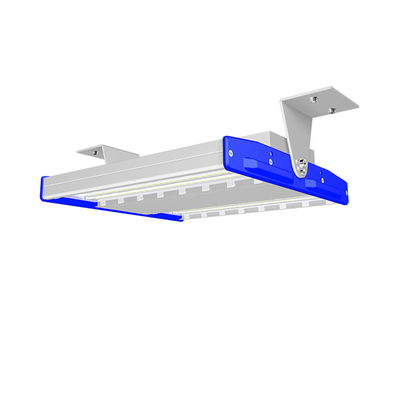

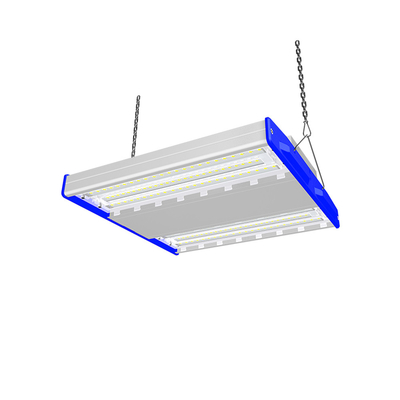

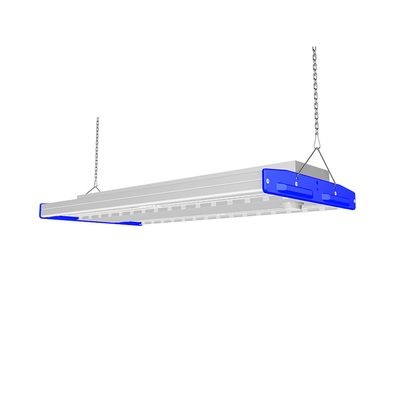

IP54 100~500W Hi-Panel Series Linear Led High Bay Light K5
Features:
• Lumens>170lm/w
• UL DLC 4.0 Premium,CB SAA Certificated
• MEAN WELL Driver,7 Years Warranty
• Separated heat dissipation for Led Driver and led chip
• Three-dimensional diamond light guide technology for optical lens (60 90 120 degree)
• Intelligent Lighting,Zigbee Control System, Daylight Sensor Dimming, Microwave sensor dimming,Three in one (0-10V,PWM,Resistance) dimming available
• Endless Connection for 2 pcs lamps
Specifications:
Technical Data
| Model Number | CODT-HB100/150W-K5 | CODT-HB200/250W-K5 | CODT-HB300W-K5 | CODT-HB400/500W-K5 |
| Power | 100/150W | 200/250W | 300W | 400/500W |
| Luminous Efficacy | 170lm/W | 170lm/W | 170lm/W | 170lm/W |
| Lumen Output | 17200lm/25500lm | 34000lm/425000lm | 51000lm | 68000lm/85000lm |
| LED Quantity | 384pcs | 768pcs | 1152pcs | 1536pcs |
| Dimension | 318*299*40.5mm | 613*299*40.5mm | 908*299*40.5mm | 1203*299*40.5mm |
| Luminaire Net Weight | 3KG | 4.7KG | 6.7KG | 10.2/10.5KG |
| CCT | 3000K 4000K 5000K 6000K (Custom Option) | |||
| CRI | >70Ra | |||
| System Efficiency | ≥90% | |||
| Beam angle | 60°/90°/120° | |||
Electrical Details
| Input Voltage | AC100-277V/347V/480V |
| Power Frequency | 50-60Hz |
| Output Voltage | DC36-48V |
| Power Efficiency | >92% |
| Power Factor | ≥0.95 |
| Total Harmonic Distortion | ≤15% |
| Dimmable | Yes (Optional) |
Other Details
| IP Rating | IP54 |
| Lifespan | 100,000+ Hours |
| Storage Temperature | -20º~65ºC |
| Operating Temperature | -20º~55ºc |
| Certification | UL,DLC Premium,SAA,TUV,VEET,CB |
| Color of housing | Blue+white(customized) |
| Model No. | N.G(KG) | G.W (KG) | Pcs/carton | Carton Size(CM) |
| CODT-HB100W-K5 | 2.9 | 6.6 | 2 | 41*37*27 |
| CODT-HB150W-K5 | 3.2 | 7 | 2 | 41*37*27 |
| CODT-HB200W-K5 | 4.65 | 11.1 | 2 | 70*38*26 |
| CODT-HB250W-K5 | 4.95 | 11.5 | 2 | 70*38*26 |
| CODT-HB300W-K5 | 8.2 | 17.9 | 2 | 101*38*27 |
| CODT-HB400W-K5 | 10.2 | 22.1 | 2 | 129*38*26 |
| CODT-HB500W-K5 | 10.5 | 23 | 2 | 129*38*26 |
Quick Details:
1.There is a junction box alongside the fixture for preventing wiring exposed outside. It is safer practice and complied with wiring code
2. Thinner and lighter housing Using high heat-conducting aviation aluminium materialsisolating light source and led driver to reduce light loss and increase power factor of led driver
Applications:
Widely used in Factory, Workshop, Warehouse, Logistics Center Exhibition Hall,Gymna-sium, Shipyards, Mining, Gas Station, Supermarket, etc.
FAQ:
Q1. Can I have a sample order for led light?
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
Q2. What about the lead time?
A: 3-5 days for Sample preparing ,8-10 working days for mass production.
Q3. Do you have any MOQ limit for led light order?
A: Low MOQ, 1pc for sample checking is available.
Q4. How do you ship the goods and how long does it take to arrive?
A: Ship by DHL, UPS, FedEx or TNT. It takes 3-5 days to arrive. Airline and sea shipping also optional.
