Product Details:
|
| Power: | 100W 150W 200W 250W 300W 360W 400W 500W | Ip Rating: | IP65 |
|---|---|---|---|
| Input Voltage(v): | AC90-305V | Cri (ra>): | 70 |
| Working Temperature(℃): | -40 - 55 | Material: | Aluminum+Clear/Frosted PC |
| High Light: | High Bay 500 led solar lights,500W 500 led solar lights,IP65 100 led solar lights |
||

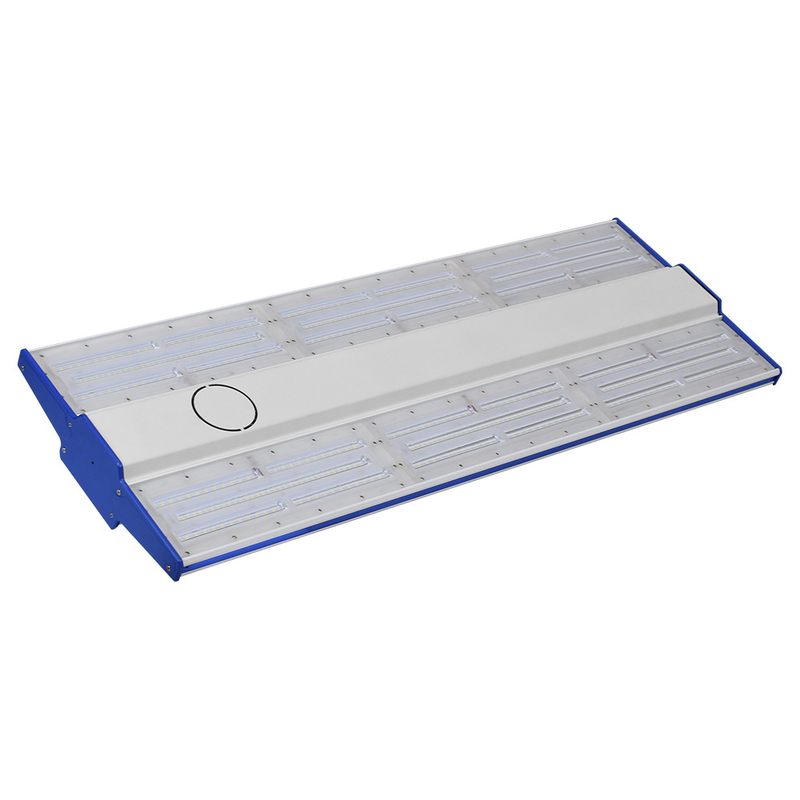

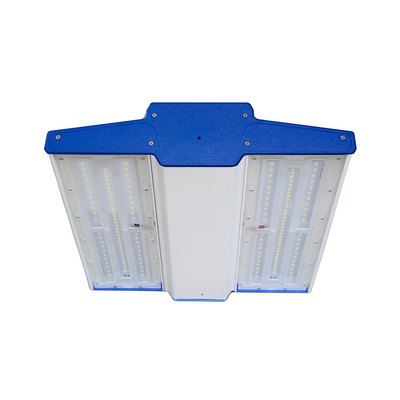

IP65 100~500W Hi-Panel Series Linear Led High Bay Light
Features:
• Lumens>170lm/w
• UL DLC 4.0 Premium,CB SAA Certificated
• MEAN WELL Driver,7 Years Warranty
• Separated heat dissipation for Led Driver and led chip
• Three-dimensional diamond light guide technology for optical lens (60 90 120 degree)
• Intelligent Lighting,Zigbee Control System, Daylight Sensor Dimming, Microwave sensor dimming,Three in one (0-10V,PWM,Resistance) dimming available
• Endless Connection for 2 pcs lamps
Specifications:
| Power | Input Voltage | LED Quantity | Lumens | Dimension |
| 100W | AC90-305V | 154PCS | 17000lm | 300*320*80mm |
| 150W | AC90-305V | 154PCS | 25500lm | 300*320*80mm |
| 200W | AC90-305V | 308PCS | 34000lm | 600*320*80mm |
| 250W | AC90-305V | 308PCS | 42500lm | 600*320*80mm |
| 300W | AC90-305V | 462PCS | 51000lm | 895*320*80mm |
| 360W | AC90-305V | 462PCS | 61200lm | 895*320*80mm |
| 400W | AC90-305V | 616PCS | 68000lm | 1190*320*80mm |
| 500W | AC90-305V | 616PCS | 85000lm | 1190*320*80mm |
Physical
| CRI: | >70Ra |
| Power Factor: | >0.95PF |
| Lumen Maintanance: | 90% |
| Output Voltage Range: | DC42-48V |
| Frequency : | 50-60HZ |
| Operating Temperature: | -40 C to 55 C |
| Beam Angle: | 60°/90/120° |
| Lens Material: | Clear/Frosted PC |
| Housing Material: | Aluminum |
| Mounting: | Pipe,Ceiling,Suspend mounts |
| Qualifications | *DLC Premium,UL/cUL,LM-79,ISTMT compliant,CB,SAA,IK10 |
| Material Usage | UL CB SAA Compliant;no mercury |
| Environment | Indoor,Outdoor,Dry/Wet Location |
| IP Rating | IP65 |
| Model No. | Carton Size(CM) | G.W (KG) | Loading OTY(PCS) | ||
| 20'GP | 4O'GP | 4O'HQ | |||
| CODT-HB100W-K2 | 40*40*18 | 3.8 | 950 | 2000 | 2300 |
| CODT-HB-150W-K2 | |||||
| CODT-HB200W-K2 | 70*40*18 | 7.5 | 500 | 1100 | 1300 |
| CODT-HB-250W-K2 | |||||
| CODT-HB300W-K2 | 100*40*18 | 10.9 | 350 | 750 | 900 |
| CODT-HB-360W-K2 | |||||
| CODT-HB400W-K2 | 130*40*18 | 14.6 | 280 | 600 | 700 |
| CODT-HB-500W-K2 | |||||
Installation ways :

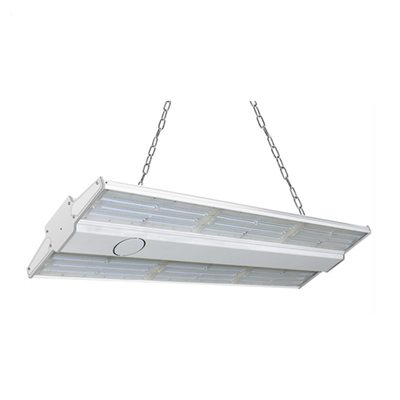

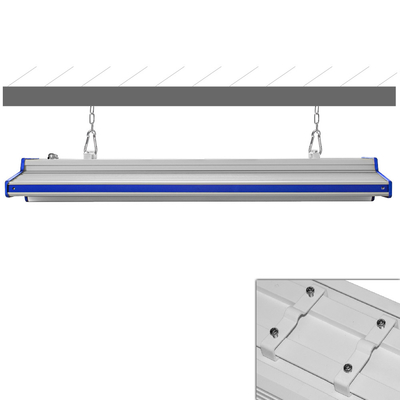

1. Suspended installation
2. Boom Installation
3. Abutting joint installation(between 2 lamps)
4.Bracket Surface Mounting installation
Applications:
Widely used in Factory, Workshop, Warehouse, Logistics Center Exhibition Hall,Gymna-sium, Shipyards, Mining, Gas Station, Supermarket, etc.
FAQ:
Q1. Can I have a sample order for led light?
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
Q2. What about the lead time?
A: 3-5 days for Sample preparing ,8-10 working days for mass production.
Q3. Do you have any MOQ limit for led light order?
A: Low MOQ, 1pc for sample checking is available.
Q4. How do you ship the goods and how long does it take to arrive?
A: Ship by DHL, UPS, FedEx or TNT. It takes 3-5 days to arrive. Airline and sea shipping also optional.
