Product Details:
|
| Power: | 50W 100W 150W 200W 250W | Ip Rating: | IP54 |
|---|---|---|---|
| Input Voltage(v): | AC100-277V/347V/480V | Cri (ra>): | 80 |
| Lamp Luminous Efficiency(lm/w): | 152 | Color Temperature(cct): | 3000K 4000K 5000K 6000K |
| High Light: | 50W Solar Powered Outdoor Lights,IP54 Solar Powered Outdoor Lights,150W led linear high bay light |
||

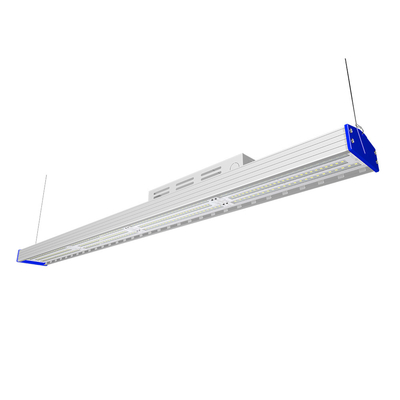

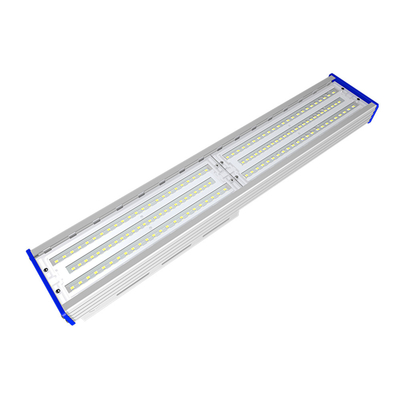

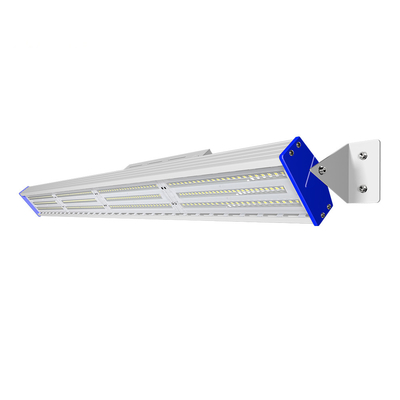

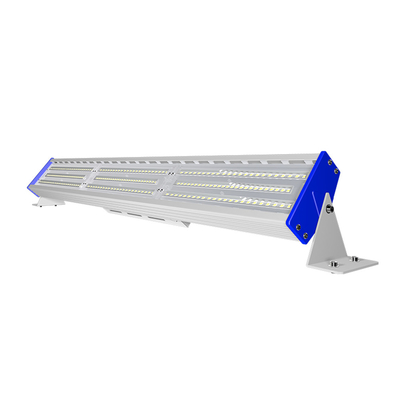

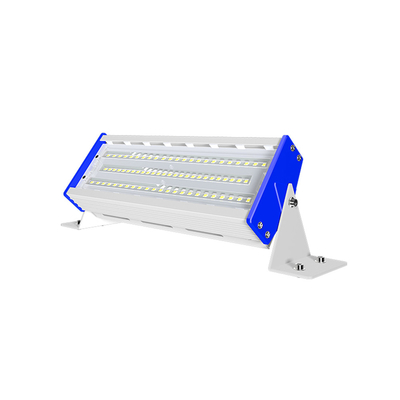

IP54 50W 100W 150W 200W 250W LED Linear High Bay Light
Features:
• High luminous efficacy up to 175lm/w
• Separate heat sink for led driver and led chip
• Intelligent lighting: Zigbee wireless control, daylight sensor dimming,microwave sensor dimming, three in one(0-10v,PWM, resistance) dimming available
• Colorful housing can be customized
Specifications:
Technical Data
| Model Number | CODT-HB50W-K4 | CODT-HB100W-K4 | CODT-HB150W-K4 | CODT-HB200W-K4 | CODT-HB250W-K4 |
| Power | 50W | 100W | 150W | 200W | 250W |
| Luminous Efficacy | 152lm/W | 152lm/W | 152lm/W | 152lm/W | 152lm/W |
| Lumen Output | 8750lm | 17500lm | 26250lm | 35000lm | 43750lm |
| LED Quantity | 84pcs | 168pcs | 252pcs | 336pcs | 336pcs |
| Dimension | 305*110*54mm | 600*110*54mm | 895*110*54mm | 1190*110*54mm | |
| Luminaire Net Weight | 1.4KG | 2.5KG | 3.2KG | 3.8KG | 4.6KG |
| CCT | 3000K 4000K 5000K 6000K (Custom Option) | ||||
| CRI | >80Ra | ||||
| System Efficiency | >90% | ||||
| Beam angle | 60°/90°/120° | ||||
Electrical Details
| Input Voltage | AC100-277V/347V/480V |
| Power Frequency | 50-60HZ |
| Output Voltage | DC36-48V |
| Power Efficiency | >92% |
| Power Factor | >0.95 |
| Total Harmonic Distortion | <15% |
| Dimmable | Yes (Optional) |
Other Details
| IP Rating | IP54 |
| Lifespan | 100,000+ Hours |
| Storage Temperature | -20°-65°C |
| Operating Temperature | -20°~55°C |
| Luminaire Net Weight | 1.4KG |
| Certification | UL,DLC Premium,SAA,TUV,VEET,CB |
| Color of housing | Blue+white(customized) |
| Model No. | N.G(KG) | G.W (KG) | Pcs/carton | Carton Size(CM) |
| CODT-HB50W-K4 | 1.4 | 2.2 | 1 | 36*16*10.8 |
| CODT-HB100W-K4 | 2.5 | 3.1 | 1 | 65.5*16*10.8 |
| CODT-HB150W-K4 | 3.2 | 3.8 | 1 | 95*16*10.8 |
| CODT-HB200W-K4 | 3.8 | 4.3 | 1 | 124.5*16*10.8 |
| CODT-HB250W-K4 | 4.6 | 5.2 | 1 | 124.5*16*10.8 |
Quick Details:
1. There is a junction box alongside the fixture for preventing wiring exposed outside. It is safer practice and complied with wiring code
2. Sandblasting oxidation treatment on heat sink makes fixture body with better abrasion performance and corrosion resistance
3. 3030 SMD LED chip,high lumen
4. he lenses are fixed by snap with less screws which makes assembling very conveniently.
Applications:
Widely use in Factory, Workshop, Warehouse, Logistics Center, Exhibition Hall, Stadium, Gas Station,Supermarket and etc.
