Product Details:
|
| Light Source: | LED | Item Type: | WALL PACK LIGHT |
|---|---|---|---|
| Working Lifetime(hour): | 50000 | Ip Rating: | IP66 |
| Warranty: | 5 Years | Application: | Garden, Shopping Mall, Etc, Building, Park |
| High Light: | 277V 120w led wall pack light,100V 120w led wall pack light,IP66 commercial wall pack light fixtures |
||

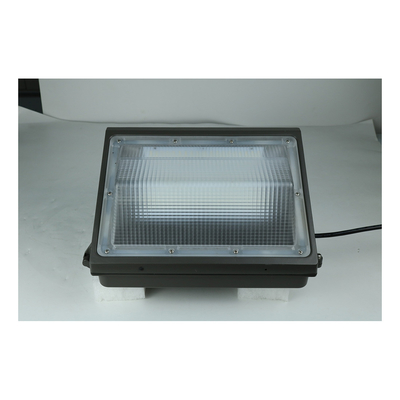

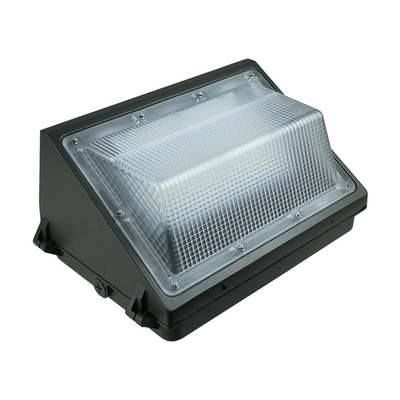

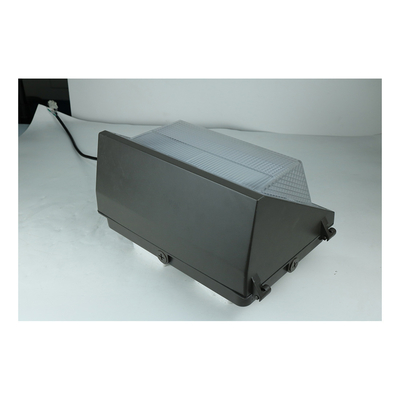

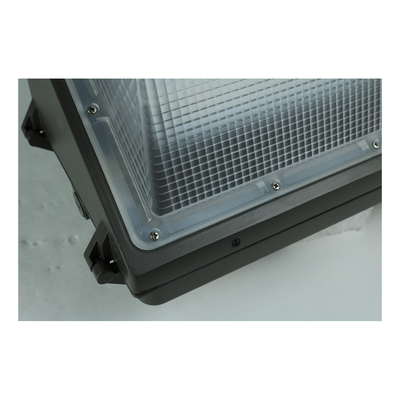

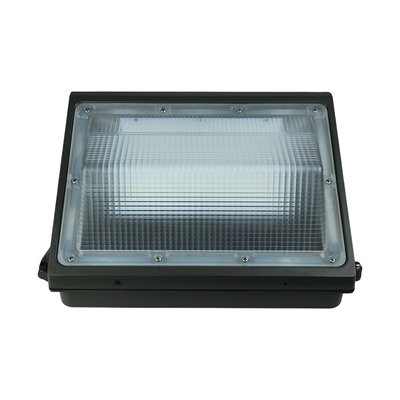

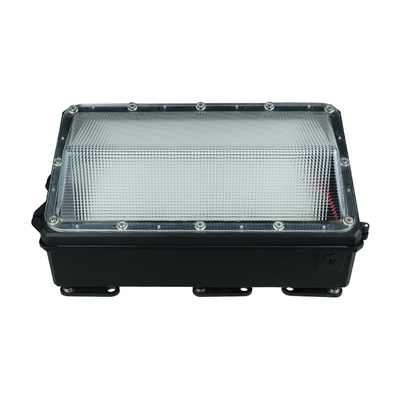

Wall Pack 40W 60W 80W 120W 100-277V LED Wall Pack Light IP66 Waterproof Outdoor Wall Lamp
The LED wall pack offers maximum light output for general purpose area and security lighting through a classic glass refractor design. Now available with enhanced the Venas platform, Wall pack provides improved energy savings compared with the former LED design.
Application
• Railway station&metros
• Car parks
• Industrial halls&warehouses
• Sport facilities
Construction
• Die-cast aluminum housing
• Durable dark bronze powdercoat
• Operating temperature -40° to +50°
| Model No | WP40WI1XYZ | WP60WI1XYZ | WP80WI2XYZ | WP100WI2XYZ | WP120WI3XYZ |
| LED POWER (W) | 40W | 60W | 80W | 100W | 120W |
| Light efficiency | > 130lm/W | ||||
| Input Voltage | AC 100-277V/ AC 347480V | ||||
| Lumen(lm) | >5200lm | >7800lm | > 104001m | >13000lm | > 156001m |
| CRI | >70 | ||||
| PF | >0.9 | ||||
| CCT | 2700K / 3000K / 4000K / 5000K / 5700K / 6500K | ||||
| Model No | WP40WI1XYZI | WP60WI1XYZI | WP80WI2XYZI | WP100WI2XYZI | WP120WI3XYZI |
| LED POWER (W) | 40W | 60W | 80W | 100W | 120W |
| Light efficiency | > 115lm/W | ||||
| Input Voltage | AC 100-277V | ||||
| Lumen (Im) | >4600lm | >6900lm | >9200lm | >115001m | > 138001m |
| CRI | >70 | ||||
| PF | >0.9 | ||||
| CCT | 2700K / 3000K / 4000K / 5000K / 5700K / 6500K | ||||
FAQ
Q1. Can I have a sample order ?
Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
Q2. What about the lead time?
Sample needs 3-5 days, mass production time needs 1-2 weeks for order quantity
Q3: How to deal with the faulty?
Firstly, Our products are produced in strict quality control system and the defective rate will be less than 0.2%.
Secondly,during the guarantee period, we will send new lights with new order for small quantity. For defective batch products, we
will repair them and resend them to you or we can discuss the solution including re-call according to real situation.
