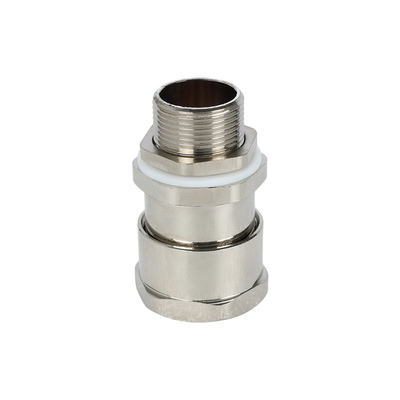

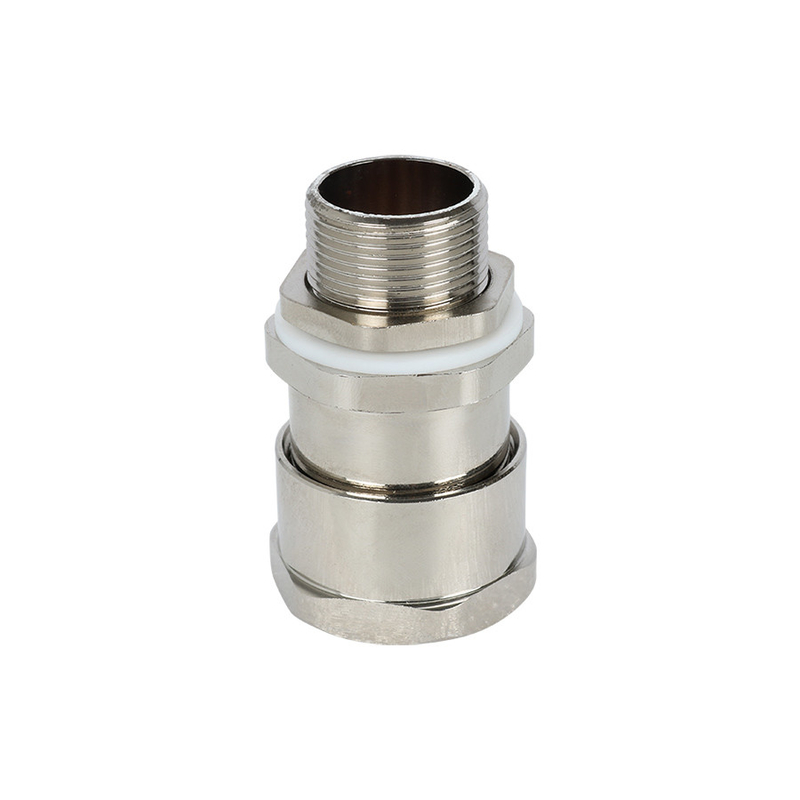

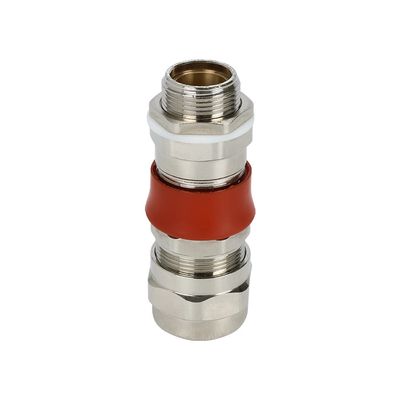

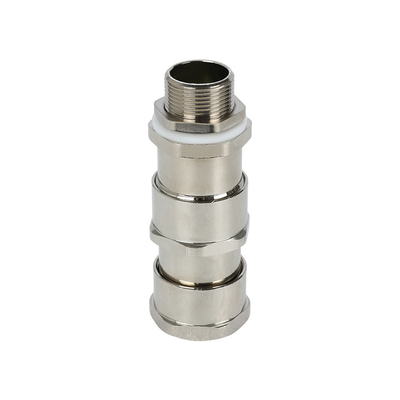

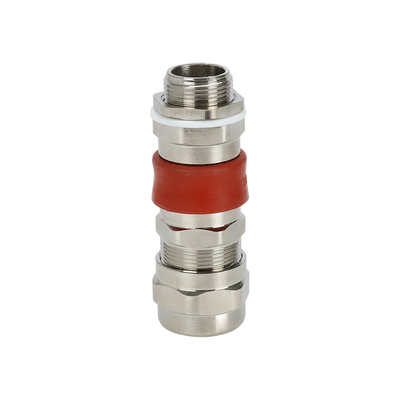

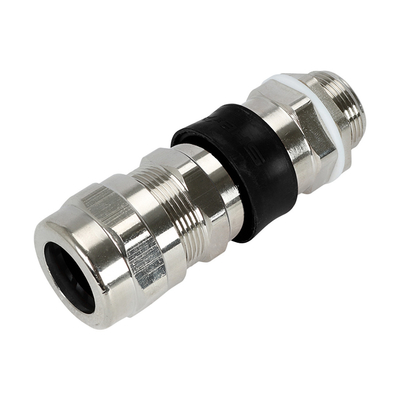

Metal Waterproof Explosion Proof Cable Brass IP66

Metal Waterproof And Dustproof Brass IP66 ATEX Straight-through Cable Gland

• EX-QM01-A1

• FEATURES

ATEX and IECEx certified for safe use in potentially explosive atmospheres

Single seal, suitable for unarmored cable.

Ex e, structure.

Degree of protection: IP66/IP68.

• APPLICATION

• TECHNICAL DATA

Marking ATEX

Ⅱ2 GD Ex eb ⅡC Gb

Ex tb ⅢC Db IP66/IP68

Marking ATEX

Ex eb ⅡC Gb

Ex tb ⅢC Db IP66/IP68

Standards

EN60079-0, EN60079-1, EN60079-7, EN60079-31, IEC 60079-0, IEC60079-1, IEC60079-7, IEC60079-31

Ambient Temperature:-50℃ ≦ Tamb ≦ +80℃

Connection Thread:Metric Thread, NPT Thread

• SELECTION TABLE OF CABLE GLAND

Gland Size	Available Entry Thread AG(mm)		Overall Cable Diameter ΦB(mm)		Minimum Thread Length GL(mm)	Nominal Protrusion Length L(mm)	Across Flats/Corner S(ΦE) (mm)
	Metric	NPT	Min	Max
16	M16*1.5	NPT3/8	9.5	12	16	30	27(29)
20	M20*1.5	NPT1/2	9.5	16.5	16	30	27(29)
25	M25*1.5	NPT3/4	14	20	16	38	34(37)
32	M32*1.5	NPT1	18	26	18	44	40(44)
40	M40*1.5	NPT1 1/4	24	32.5	18	46	50(55)
50	M50*1.5	NPT1 1/2	30	41	20	50	60(67)
63	M63*1.5	NPT2	40	52	21	64	68(73)
75	M75*1.5	NPT2 1/2	50	65	22	70	86(89)
90	M90*1.5	NPT3	62	77	22	80	102(105)

• SCHEMATIC DIAGRAM

• ORDERING GUIDE

• EX-QM03-C1K

• FEATURES

ATEX and IECEx certified for safe use in potentially explosive atmospheres

Single seal, suitable for armored cable.

Valid over the entire temperature range from -50°C to 80°C (-58 ºF to 176ºF)

Degree of protection: IP66/IP68

• APPLICATION

• TECHNICAL DATA

Marking ATEX

Ⅱ2 GD Ex eb ⅡC Gb

Ex db ⅡC Gb Ex tb ⅢC Db IP66/IP68

Marking IECEx

Ex eb ⅡC Gb

Ex db ⅡC Gb Ex tb ⅢC Db IP66/IP68

Standards

EN60079-0, EN60079-1, EN60079-7, EN60079-31, IEC 60079-0, IEC60079-1, IEC60079-7, IEC60079-31

Ambient Temperarture:-50℃ ≦ Tamb ≦ +80℃

Connection Thread:Metric Thread, NPT Thread

• SELECTION TABLE OF CABLE GLAND

Gland Size	Available Entry Thread AG(mm)		Overall Cable Diameter			Minimum Thread Length GL(mm)	Nominal Protrusion Length L(mm)	Across Flats/Corner S(ΦE) (mm)
			ΦB(mm)		ΦC(mm)
	Metric	NPT	Min	Max	Max
16	M16*1.5	NPT3/8	9.5	12	/	16	65	24(29)
20	M20*1.5	NPT1/2	9.5	16.5	/	16	67	30(34)
25	M25*1.5	NPT3/4	14	20	/	16	71	36(40)
32	M32*1.5	NPT1	18	26	/	18	76	45(51)
40	M40*1.5	NPT1 1/4	24	32.5	/	18	76	55(61)
50	M50*1.5	NPT1 1/2	30	41	/	20	91	68(74)
63	M63*1.5	NPT2	40	52	/	21	98	86(95)
75	M75*1.5	NPT2 1/2	50	65	/	22	102	95(109)

• SCHEMATIC DIAGRAM

• ORDERING GUIDE



• EX-QM04-B1K

• FEATURES

ATEX and IECEx certified for safe use in potentially explosive atmospheres

Dual seal, suitable for armored cable.

Valid over the entire temperature range from -50°C to 80°C (-58 ºF to 176ºF)

Degree of protection: IP66/IP68.

• APPLICATION

• TECHNICAL DATA

Marking ATEX

Ⅱ2 GD Ex eb ⅡC Gb/ Ex db ⅡC Gb

Ex tb ⅢC Db IP66/IP68

Marking IECEx

Ex eb ⅡC Gb/ Ex db ⅡC Gb

Ex tb ⅢC Db IP66/IP68

Standards

EN60079-0, EN60079-1, EN60079-7, EN60079-31, IEC 60079-0, IEC60079-1, IEC60079-7, IEC60079-31

Ambient Temperarture:-50℃ ≦ Tamb ≦ +80℃

Connection Thread:Metric Thread, NPT Thread

• SELECTION TABLE OF CABLE GLAND

Gland Size	Available Entry Thread AG(mm)		Overall Cable Diameter				Minimum Thread Length GL(mm)	Nominal Protrusion Length L(mm)	Across Flats/Corner S(ΦE) (mm)
			ΦB(mm)		ΦC(mm)
	Metric	NPT	Min	Max	Min	Max
16	M16*1.5	NPT3/8	9.5	12	6.5	10.5	16	65	24(29)
20	M20*1.5	NPT1/2	9.5	16.5	10	14.5	16	67	30(34)
25	M25*1.5	NPT3/4	14	20	12.5	19.5	16	71	36(40)
32	M32*1.5	NPT1	18	26	19	25.5	18	76	45(51)
40	M40*1.5	NPT1 1/4	24	32.5	25	31	18	76	55(61)
50	M50*1.5	NPT1 1/2	30	41	31.5	43	20	91	68(74)
63	M63*1.5	NPT2	40	52	42.5	50	21	98	86(95)
75	M75*1.5	NPT2 1/2	50	65	54.5	65	22	102	95(109)

• SCHEMATIC DIAGRAM

• ORDERING GUIDE

• EX-QM05-C1K



• FEATURES

ATEX and IECEx certified for safe use in potentially explosive atmospheres

Single seal, suitable for armored cable.

Valid over the entire temperature range from -50°C to 80°C (-58 ºF to 176ºF)

Degree of protection: IP66/IP68.

• APPLICATION

Marking ATEX

Ⅱ2 GD Ex eb ⅡC Gb/ Ex db ⅡC Gb

Ex tb ⅢC Db IP66/IP68

Marking IECEx

Ex eb ⅡC Gb/ Ex db ⅡC Gb

Ex tb ⅢC Db IP66/IP68

Standards

EN60079-0, EN60079-1, EN60079-7, EN60079-31, IEC 60079-0, IEC60079-1, IEC60079-7, IEC60079-31

Ambient Temperarture:-50℃ ≦ Tamb ≦ +80℃

Connection Thread:Metric Thread, NPT Thread

• SELECTION TABLE OF CABLE GLAND

Gland Size	Available Entry Thread AG(mm)		Overall Cable Diameter			Minimum Thread Length L1(mm)	Total Length l(mm)	Across Flats/Corner S(ΦE) (mm)
			ΦB(mm)		ΦC(mm)
	Metric	NPT	Min	Max	Max
16	M16*1.5	NPT3/8	7	16	8	15	85	24(27)
20	M20*1.5	NPT1/2	7	16	10.5	15	87	24(27)
25	M25*1.5	NPT3/4	14	20	15	15	88	30(33)
32	M32*1.5	NPT1	18	25	20	17	96	36(39)
40	M40*1.5	NPT1 1/4	24	33	27	19	105	45(50)
50	M50*1.5	NPT1 1/2	31	40	31	19	108	55(60)
63	M63*1.5	NPT2	41	50	41	20	118	68(73)
75	M75*1.5	NPT2 1/2	52	63	55	21	124	86(89)
90	M90*1.5	NPT3	65	76	65	24	128	96(99)

• SCHEMATIC DIAGRAM

• ORDERING GUIDE

• EX-QM06-B1K

• FEATURES

ATEX and IECEx certified for safe use in potentially explosive atmospheres

Dual seal, suitable for armored cable.

Valid over the entire temperature range from -50°C to 80°C (-58 ºF to 176ºF)

Degree of protection: IP66/IP68.

• APPLICATION

• TECHNICAL DATA

Marking ATEX

Ⅱ2 GD Ex eb ⅡC Gb/Ex db ⅡC Gb

Ex tb ⅢC Db IP66/IP68

Marking ATEx

Ex eb ⅡC Gb/ Ex db ⅡC Gb

Ex tb ⅢC Db IP66/IP68

Standards

EN60079-0, EN60079-1, EN60079-7, EN60079-31, IEC 60079-0, IEC60079-1, IEC60079-7, IEC60079-31

Ambient Temperarture:-50℃ ≦ Tamb ≦ +80℃

Connection Thread:Metric Thread, NPT Thread

• SELECTION TABLE OF CABLE GLAND

Gland Size	Available Entry Thread (mm)		Overall Cable Diameter				Minimum Thread Length L1(mm)	Total Length L(mm)	Across Flats/Corner S(ΦE) (mm)
			ΦB(mm)		ΦC(mm)
	Metric	NPT	Min	Max	Min	Max
16	M16*1.5	NPT3/8	7	16	5	8	15	85	24(27)
20	M20*1.5	NPT1/2	7	16	5	10.5	15	87	24(27)
25	M25*1.5	NPT3/4	14	20	8	15	15	88	30(33)
32	M32*1.5	NPT1	18	25	11	20	17	96	36(39)
40	M40*1.5	NPT1 1/4	24	33	14	27	19	105	45(50)
50	M50*1.5	NPT1 1/2	31	40	20	31	19	108	55(60)
63	M63*1.5	NPT2	41	50	30	41	20	118	68(73)
75	M75*1.5	NPT2 1/2	52	63	42	55	21	124	86(89)
90	M90*1.5	NPT3	65	76	52	65	24	128	96(99)

• SCHEMATIC DIAGRAM

• ORDERING GUIDE

• EX-QM10-B1

• FEATURES

ATEX and IECEx certified for safe use in potentially explosive atmospheres

Single seal, suitable for unarmored cable

Ex d structure.

Degree of protection: IP66/IP68.

• APPLICATION

• TECHNICAL DATA

Marking ATEX

Ⅱ2 GD Ex eb ⅡC Gb/ Ex db IIC Gb

Ex tb ⅢC Db IP66/IP68

Marking ATEx

Ex eb ⅡC Gb/ Ex db ⅡC Gb

Ex tb ⅢC Db IP66/IP68

Standards

EN60079-0, EN60079-1, EN60079-7, EN60079-31, IEC 60079-0, IEC60079-1, IEC60079-7, IEC60079-31

Ambient Temperarture:-50℃ ≦ Tamb ≦ +80℃

Connection Thread:Metric Thread, NPT Thread

• SELECTION TABLE OF CABLE GLAND

Gland Size	Available Entry Thread (mm)		Overall Cable Diameter ΦB(mm)		Minimum Thread Length L1(mm)	Total Length L(mm)	Across Flats/Corner S(ΦE) (mm)
	Metric	NPT	Min	Max
16	M16*1.5	NPT3/8	4	7	16	62	27(29)
20	M20*1.5	NPT1/2	5	8	16	62	27(29)
25	M25*1.5	NPT3/4	8	12	16	62	30(33)
32	M32*1.5	NPT1	12	16	18	67	38(42)
40	M40*1.5	NPT1 1/4	16	24	20	77	45(50)
50	M50*1.5	NPT1 1/2	18	28	20	79	55(60)
63	M63*1.5	NPT2	25.5	38	20	81	68(73)
75	M75*1.5	NPT2 1/2	29	46	20	100	85(89)
90	M90*1.5	NPT3	41	60	21	100	98(102)

• SCHEMATIC DIAGRAM

• ORDERING GUIDE

• EX-QM10-B1

• FEATURES

ATEX and IECEx certified for safe use in potentially explosive atmospheres

Single seal, suitable for unarmored cable

Ex d structure.

Degree of protection: IP66/IP68.

• APPLICATION

• TECHNICAL DATA

Marking ATEX

Ⅱ2 GD Ex eb ⅡC Gb/ Ex db IIC Gb

Ex tb ⅢC Db IP66/IP68

Marking ATEx

Ex eb ⅡC Gb/ Ex db ⅡC Gb

Ex tb ⅢC Db IP66/IP68

Standards

EN60079-0, EN60079-1, EN60079-7, EN60079-31, IEC 60079-0, IEC60079-1, IEC60079-7, IEC60079-31

Ambient Temperarture:-50℃ ≦ Tamb ≦ +80℃

Connection Thread:Metric Thread, NPT Thread

• SELECTION TABLE OF CABLE GLAND

Gland Size	Available Entry Thread (mm)		Overall Cable Diameter ΦB(mm)		Minimum Thread Length L1(mm)	Nominal Protrusion Length(mm)	Across Flats/Corner S(ΦE) (mm)
	Metric	NPT	Min	Max
16	M16*1.5	/	5	8	15	30	24(27)
20	M20*1.5	NPT1/2	7.5	11.5	15	30	24(27)
25	M25*1.5	NPT3/4	11	14.5	15	30	30(33)
32	M32*1.5	NPT1	14	20	20	32	36(39)
40	M40*1.5	NPT1 1/4	19	20	20	32	45(50)
50	M50*1.5	NPT1 1/2	25	32	20	36	55(60)
63	M63*1.5	NPT2	31.5	42.5	20	37	68(73)

• SCHEMATIC DIAGRAM

• ORDERING GUIDE

• EX-QM13-B1T

• FEATURES

ATEX and IECEx certified for safe use in potentially explosive atmospheres

Single seal, suitable for unarmored cable

Ex d structure.

Degree of protection: IP66/IP68.

• APPLICATION

• TECHNICAL DATA

Marking ATEX

Ⅱ2 GD Ex eb ⅡC Gb/ Ex db IIC Gb

Ex tb ⅢC Db IP66/IP68

Marking ATEx

Ex eb ⅡC Gb/ Ex db ⅡC Gb

Ex tb ⅢC Db IP66/IP68

Standards

EN60079-0, EN60079-1, EN60079-7, EN60079-31, IEC 60079-0, IEC60079-1, IEC60079-7, IEC60079-31

Ambient Temperarture:-50℃ ≦ Tamb ≦ +80℃

Connection Thread:Metric Thread, NPT Thread

• SELECTION TABLE OF CABLE GLAND

Gland Size	Available Entry Thread (mm)		Overall Cable Diameter ΦB(mm)		Minimum Thread Length L1(mm)	Nominal Protrusion Length(mm)	Across Flats/Corner S(ΦE) (mm)
	Metric	NPT	Min	Max
16	M16*1.5	/	5	8	15	40	24(27)
20	M20*1.5	NPT1/2	7.5	11.5	15	40	24(27)
25	M25*1.5	NPT3/4	11	14.5	15	40	30(33)
32	M32*1.5	NPT1	14	20	20	44	36(39)
40	M40*1.5	NPT1 1/4	19	20	20	48	45(50)
50	M50*1.5	NPT1 1/2	25	32	20	49	55(60)
63	M63*1.5	NPT2	31.5	43.5	20	63	68(73)

• SCHEMATIC DIAGRAM

• ORDERING GUIDE

• EX-QM18-C1

• FEATURES

ATEX and IECEx certified for safe use in potentially explosive atmospheres

Single seal, suitable for unarmored cable

Ex d structure.

Degree of protection: IP66/IP68.

• APPLICATION

• TECHNICAL DATA

Marking ATEX

Ⅱ2 GD Ex eb ⅡC Gb/ Ex db IIC Gb

Ex tb ⅢC Db IP66/IP68

Marking ATEx

Ex eb ⅡC Gb/ Ex db ⅡC Gb

Ex tb ⅢC Db IP66/IP68

Standards

EN60079-0, EN60079-1, EN60079-7, EN60079-31, IEC 60079-0, IEC60079-1, IEC60079-7, IEC60079-31

Ambient Temperarture:-50℃ ≦ Tamb ≦ +80℃

Connection Thread:Metric Thread, NPT Thread

• SELECTION TABLE OF CABLE GLAND

Gland Size	Available Entry Thread (mm)		Overall Cable Diameter ΦB(mm)		Minimum Thread Length L1(mm)	Nominal Protrusion Length(mm)	Across Flats/Corner S(ΦE) (mm)
	Metric	NPT	Min	Max
16	M16*1.5	/	5	8	15	57	24(27)
20	M20*1.5	NPT1/2	5	8	15	57	24(27)
20	M20*1.5	NPT1/2	7.5	11.5	15	57	24(27)
25	M25*1.5	NPT3/4	11	14.5	15	57	30(33)
32	M32*1.5	NPT1	14	20	20	59	36(39)
40	M40*1.5	NPT1 1/4	19	26	20	60	45(50)
50	M50*1.5	NPT1 1/2	25	32	20	62	55(60)
63	M63*1.5	NPT2	31.5	43.5	20	73	68(73)

• SCHEMATIC DIAGRAM

• ORDERING GUIDE



• EX-QM21-C1K

• FEATURES

ATEX and IECEx certified for safe use in potentially explosive atmospheres

Single seal, suitable for unarmored cable.

Valid over the entire temperature range from -50°C to 80°C (-58 ºF to 176ºF)

Degree of protection: IP66/IP68.

• APPLICATION

• TECHNICAL DATA

Marking ATEX

Ⅱ2 GD Ex eb ⅡC Gb/Ex db ⅡC Gb

Ex tb ⅢC Db IP66/IP68

Marking ATEx

Ex eb ⅡC Gb/ Ex db ⅡC Gb

Ex tb ⅢC Db IP66/IP68

Standards

EN60079-0, EN60079-1, EN60079-7, EN60079-31, IEC 60079-0, IEC60079-1, IEC60079-7, IEC60079-31

Ambient Temperarture:-50℃ ≦ Tamb ≦ +80℃

Connection Thread:Metric Thread, NPT Thread

• SELECTION TABLE OF CABLE GLAND

Gland Size	Available Entry Thread (mm)		Overall Cable Diameter			Minimun Thread Length L1(mm)	Total Length L(mm)	Across Flats/Corner S(ΦE) (mm)
			ΦB(mm)		ΦC(mm)
	Metric	NPT	Min	Max	Max
16	M16*1.5	NPT3/8	9.5	12	7	16	66	27(29)
20	M20*1.5	NPT1/2	9.5	16.5	12	16	66	27(29)
25	M25*1.5	NPT3/4	14	20	17	16	68	34(37)
32	M32*1.5	NPT1	18	26	23	18	77	40(44)
40	M40*1.5	NPT1 1/4	24	32.5	30	18	81	50(55)
50	M50*1.5	NPT1 1/2	30	41	37	20	88	60(67)
63	M63*1.5	NPT2	40	52	52	21	96	68(73)
75	M75*1.5	NPT2 1/2	50	65	62	22	114	86(89)
90	M90*1.5	NPT3	62	77	66	22	119	102(105)

• SCHEMATIC DIAGRAM

• ORDERING GUIDE

• EX-QM22-B1K

• FEATURES

ATEX and IECEx certified for safe use in potentially explosive atmospheres

Dual seal, suitable for armored cable.

Valid over the entire temperature range from -50°C to 80°C (-58 ºF to 176ºF)

Degree of protection: IP66/IP68.

• APPLICATION

• TECHNICAL DATA

Marking ATEX

Ⅱ2 GD Ex eb ⅡC Gb/Ex db ⅡC Gb

Ex tb ⅢC Db IP66/IP68

Marking ATEx

Ex eb ⅡC Gb/ Ex db ⅡC Gb

Ex tb ⅢC Db IP66/IP68

Standards

EN60079-0, EN60079-1, EN60079-7, EN60079-31, IEC 60079-0, IEC60079-1, IEC60079-7, IEC60079-31

Ambient Temperarture:-50℃ ≦ Tamb ≦ +80℃

Connection Thread:Metric Thread, NPT Thread

• SELECTION TABLE OF CABLE GLAND

Gland Size	Available Entry Thread (mm)		Overall Cable Diameter				Minimun Thread Length L1(mm)	Total Length L(mm)	Across Flats/Corner S(ΦE) (mm)
			ΦB(mm)		ΦC(mm)
	Metric	NPT	Min	Max	Min	Max
16	M16*1.5	NPT3/8	9.5	12	5	8	15	66	27(29)
20	M20*1.5	NPT1/2	9.5	16.5	8	10.5	15	66	27(29)
25	M25*1.5	NPT3/4	14	20	10	15	15	68	34(37)
32	M32*1.5	NPT1	18	26	15	19.5	19	77	40(44)
40	M40*1.5	NPT1 1/4	24	32.5	19	26	19	81	50(55)
50	M50*1.5	NPT1 1/2	30	41	26	32	19	88	60(67)
63	M63*1.5	NPT2	40	52	31.5	40	19	96	68(73)
75	M75*1.5	NPT2 1/2	50	65	38	50	19	114	86(89)
90	M90*1.5	NPT3	62	77	54.5	62	19	119	102(105)

• SCHEMATIC DIAGRAM



• ORDERING GUIDE

•

  FAQ

  Q1. Can I have a sample order ?

  Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
  Q2. What about the lead time?
  Sample needs 3-5 days, mass production time needs 1-2 weeks for order quantity
  Q3: How to deal with the faulty?
  Firstly, Our products are produced in strict quality control system and the defective rate will be less than 0.2%.
  Secondly,during the guarantee period, we will send new lights with new order for small quantity. For defective batch products, we
  will repair them and resend them to you or we can discuss the solution including re-call according to real situation.
