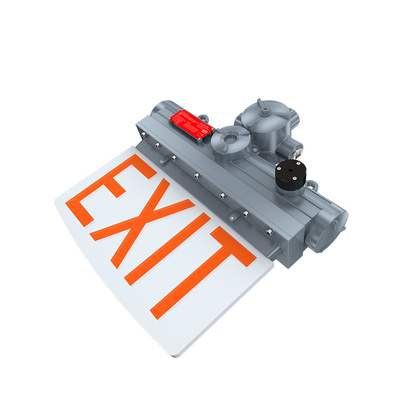

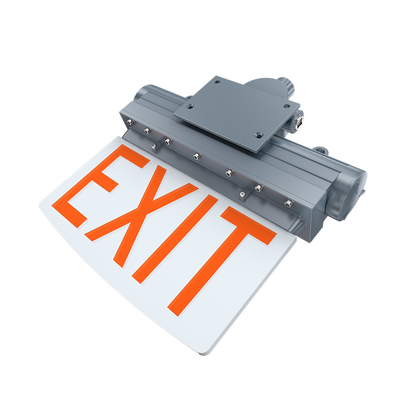

3w Class I Division 1 LED Exit Emergency Light For Oil Gas Industry And Chemical Industry

3w Class I, Division 1 LED Emergency Exit sign Lights for oil gas industry and chemical industry J series

• Applications:

Perisa Series LED exit sign is used:

In locations deemed hazardous due to the presence of flammable vapors, gases, or combustible dusts.

Such as:

- oil and gas industry

- chemical industry

- metal treatment

- food and alcohol industry

- ocean, marine location

- aerospace field

In areas where flammable gases and vapors may be present due to abnormal, unusual or accidental conditions.

To provide distinct, highly visible exit marking.

To indicate the direction of travel to exits.

• Features:

Energy-efficient for lower cost of operation (3W / 5W).

Can be used in a hazardous location.

Can be installed in moist, humid, rainy and wet environments.

Provided with 3/4＂NPT or M25 conduit hubs.

Alternate exit legend and languages available.

3-hour emergency operation.

Edge-lit sign.

• Certifications and compliances:

Marking UL844 (North American):

Class I, Division 1, Groups B, C, D

Class I, Division 2, Groups A, B, C, D

Class II, Division 1, Groups E, F, G

Class II, Division 2, Groups F, G

Class III

UL Marking:

UL 824

UL 924

UL 121201/CSA NO.213

CSA C22.2 No.137-18

Ingress Protection: IP66 (wet location)

• Electrical ratings:

3W or 5W rated power.

100-277 VAC or 12-36 VDC operation.

Color rendering index (CRI): >70.

Color temperature: red or green.

3-hour emergency time.

Temperature performance data:

Ambient temp : -40°C to 60°C Temp. class : T6

-40°F to 140°F

• Standard Materials:

Housing: A356T6 aluminum (less than 0.4% copper content) with baked-on gray epoxy finish.

Exit Sign: Tempered glass.

Hardware: Stainless steel

Mounting Sling: Stainless steel.

• Ordering information:

Part number example

• Example: EX-3W PEYZD

• Packing information:

• Dimension (in inches):

• Installation:

Mounting methods and accessoriess:

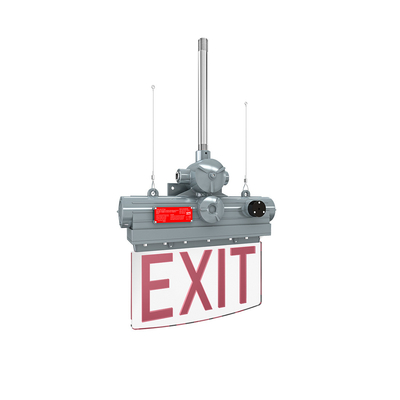

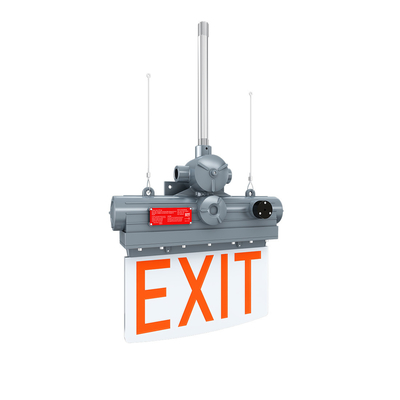

2. Pandent Mounting with safe wires:

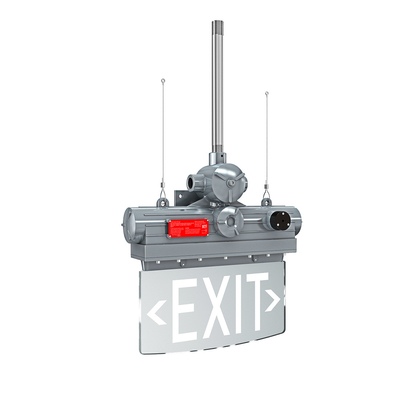

3. Pole Mounting

• Accessories :
