Product Details:
|
| Material: | Copper-free Aluminum | Item Type: | Explosion- Proof Lights |
|---|---|---|---|
| Ip Rating: | 66 | Working Lifetime(hour): | 50000 |
| Warranty: | 5 Years | Working Temperature(℃): | -30 -60 |
| High Light: | ATEX Lighting Accessories,Lighting Accessories IP66,IP66 Explosion Proof Sensor |
||

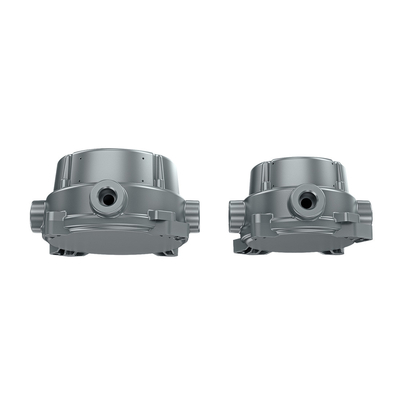

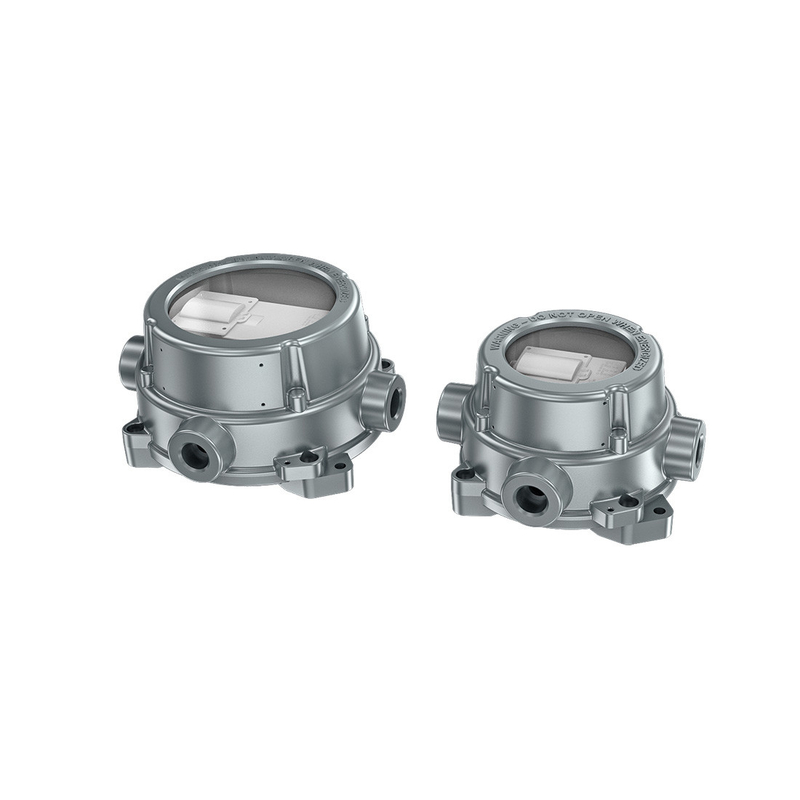

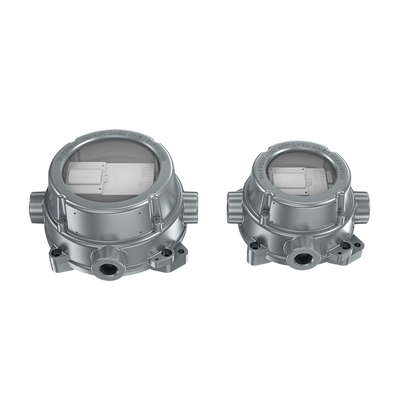

ATEX Certified explosion proof sensor for explosion proof lighting explosion proof light fitting
Ex nR IIC T6 Gc Only EX-IN02-A
Ex eb nR IIC T6 Gc Only EX-IN02-B and EX-IN02-C
Ex tb IIIC T80°C Db
| Model NO. | Ex-IN02-A/B/C-MS | MS: Motion sensor OS: Photocell Sensor MO: Motion sensor + Photocell sensor |
| Ex-IN02-A/B/C-OS | ||
| Ex-IN02-A/B/C-MO | ||
| Input | DC input voltage | N/A |
| Rated voltage | AC120-277V(Ex-IN02-A/B) AC120-347V(Ex-IN02-C) | |
| No-load power | N/A | |
| Stand-by power | ≤1.0W | |
| Surge test | N—L: 1kV | |
| Output | Working mode | ON/OFF 1 -10V dimming |
| Type of load | Inductive or resistive | |
| Load capacity | AC 120V 400W, AC220V AC220V-240V 800W AC 277V 1000W AC347V 1200W | |
| Current of load | N/A | |
| Max.surge capacity | 50A (50% Ipeak, twidth =500uS, 277Vac full load, cold start); 80A (50% Ipeak, twidth =200uS, 277Vac, full load, cold start | |
| Dim interface | 1-10V Dimming | < 50mA (Non-constant source) |
| Syn control | 0/5V | |
| High low voltage control | N/A | |
| PWM control | N/A | |
| Sensor Parameters | Operating frequency | 5.8 GHz ±75 Mhz, ISM band |
| Transmitting power | 0.5mW Max. | |
| Hold time | 5s/30s/90s/3min/20min/+∞ | |
| Stand-by dim Level | 10%/20%/30%/50% | |
| Stand-by Period | 0S/5S/5min/10min/30min/1h/+∞ | |
| Detection Area | 25%/50%/75%/100% | |
| Daylight Sensor | 2 lux/5Lux/10Lux/25Lux/ 50Lux/100Lux/Disable | |
| Mounting height | Suggest:3-10m support 12m Max | |
| Detecting Angle | 150°(Wall mounting) 360°(Ceiling mounting) | |
| Operating Environment | Operating Temperature | -30℃~60℃ |
| Storage Temperature | -40℃~80℃ | |
| Others | Wiring | Press-in terminals Wire diameter: 0.75-1.5mm |
| IP | IP 65 | |
| Protection Class | Class II | |
| Installation | Built-in | |
| Life Time | 50,000 hours |
Note 1. “N/A”means not available.
2. Detection area is effected on volume of motion object and motion speed. The detection area is tested by a 165cm height person and walking speed is 0.5m/s.
Detection Area
|
|
1 | 2 | |
| I | ON | ON | 100% |
| II | ON | - | 75% |
| III | - | ON | 50% |
| IV | - | - | 10% |
Daylight Sensor
| 1 | 2 | 3 | 4 | ||
| I | - | - | ON | ON | 2 lux |
| II | - | - | - | ON | 5 lux |
| III | - | ON | ON | - | 10 lux |
| IV | - | - | - | - | 25 lux |
| V | - | ON | - | - | 50 lux |
| VI | ON | - | - | - | 100 lux |
| VII | - | - | - | - | Disable |
Hold Time
| 3 | 4 | 5 | ||
| I | ON | ON | ON | 5 S |
| II | - | ON | ON | 30 S |
| III | ON | - | ON | 90 S |
| IV | - | - | ON | 3 min |
| V | ON | ON | - | 20 min |
| VI | - | - | - | ∞ |
Stand-by DIM Level
| 5 | 6 | ||
| I | ON | ON | 50% |
| II | - | ON | 30% |
| III | ON | - | 20% |
| IV | - | - | 10% |
Stand-by Period
| 6 | 7 | 8 | ||
| I | ON | ON | ON | 0 S |
| II | - | ON | ON | 5 S |
| III | ON | - | ON | 5 min |
| IV | - | - | ON | 10 min |
| V | ON | ON | - | 30 min |
| VI | - | ON | - | 1H |
| VII | - | - | - | ∞ |
Model IN02-A, IN02-B, and IN02-C are easy to operate and install, for it has independent junction box and terminals, which helps simplify on-site operation. The junction box is an increased safety type.
1. On-off function(Stand-by Period “0s”)
2. 2-step dimming function(Stand-by Period“+∞”)
3. 3-step dimming function(Stand-by Period“5s/5min/10min/30min/1h”)
Q1: Do you offer guarantee for the products?
A:Yes, we offer 2-5 years warranty to our products.
Q2. Can I have a sample order for led light?
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
