Product Details:
|
| Material: | Aluminum Alloy | IP: | IP65 |
|---|---|---|---|
| LED Type: | SMD3030 | Color Temp.: | 3000-6000K |
| THD: | <15% | Working Lifetime(hour): | 100000 Hours |
| High Light: | Waterproof led high bay ufo lights,IP65 led high bay ufo lights,150W high bay ufo lights |
||

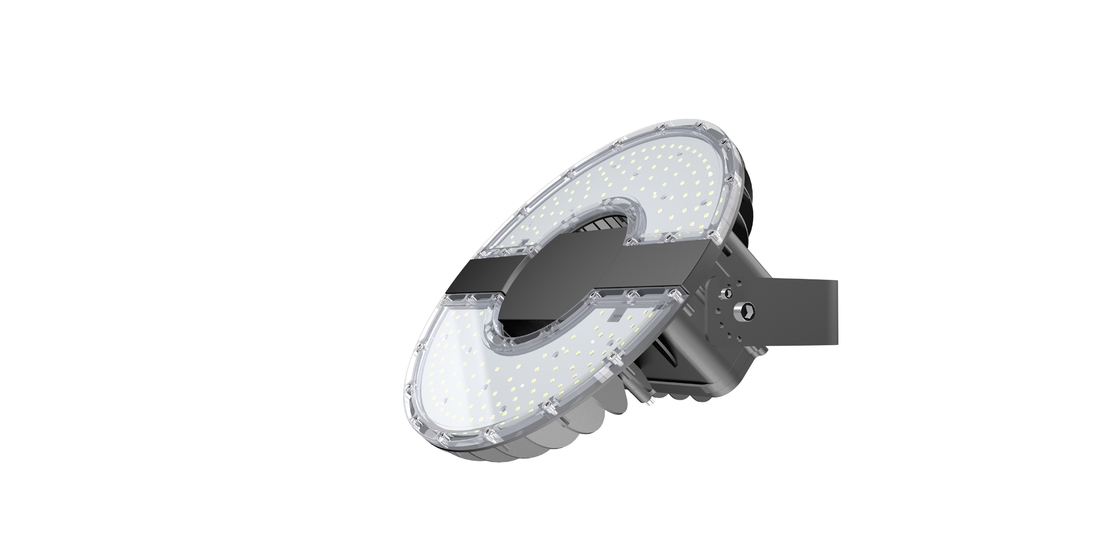

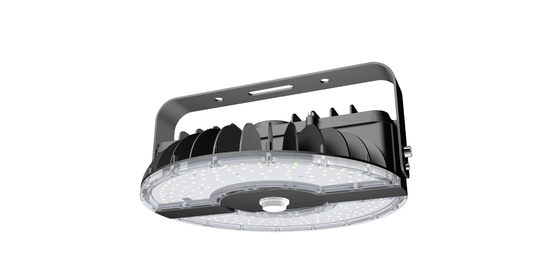

150W IP65 Waterproof High Efficacy High Bay Fixtures 180lm/W
Description:
▪ Ultra slim heat sink design makes the lamp lighter and better in heat dissipation
▪ High lumen SMD3030 chip, luminous efficacy 180lm/w
▪ Waterproof IP65,high thermal conductivity housing
▪ Beam angle 120 degree PC lens with transmittance 92%
▪ Support all kinds of intelligent sensors(Microwave, Daylight, Camera)
Specifications:
| Technical Data | |
| Part Number | CODT-HB150W-H3 |
| Power | 100W |
| Luminous Efficacy | 160lm/W |
| Lumen Output | 24000lm |
| Led Qty | 154pcs |
| Dimension | φ340*113mm |
| CCT | 3000K 4000K 5000K 6000K |
| CRI | >80Ra |
| System Efficiency | ≥90% |
| Beam Angle | 120° |
| Electrical Details | |
| Input Voltage | AC100-277V/347V/480V |
| Power Frequency | 50-60Hz |
| Output Voltage | DC36-48V |
| Power Efficiency | >92% |
| Power Factor | ≥0.95 |
| Total Harmonic Distortion | ≤15% |
| Dimmable | Yes (Optional) |
| Other Details | |
| IP Rating | IP65 |
| Lifespan | 100,000+ Hours |
| Storage Temperature | -20º~65ºC |
| Operating Temperature | |
| Luminaire Net Weight | -20º~65ºC 4.8KG |
| Certification | UL,DLC Premium,SAA,TUV,VEET,CB |
| Color of housing | Black(customized) |
Size:
Quick Details
1. Voltage: Avaliable for all kind of Voltage for different countries
2. Material: Aluminum housing
3. Color Temp.: 3000K, 4000K ,5000K,6000K
4. Installation Methods: Multiple
5. MOQ:1pc
6. OEM,ODM
Application:
Widely use in workshop,factory,warehouse,stadium,exhibitionhall,supermarket,court,etc.
FAQ:
Q1. Can I have a sample order for led light?
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
Q2. What about the lead time?
A: 3-5 days for Sample preparing ,8-10 working days for mass production.
Q3. Do you have any MOQ limit for led light order?
A: Low MOQ, 1pc for sample checking is available.
Q4. How do you ship the goods and how long does it take to arrive?
A: Ship by DHL, UPS, FedEx or TNT. It takes 3-5 days to arrive. Airline and sea shipping also optional.
