Product Details:
|
| Ip Rating: | IP66 | Lamp Luminous Flux(lm): | 160 |
|---|---|---|---|
| Input Voltage(v): | DC36-48V | Working Lifetime(hour): | 100000 |
| Working Temperature(℃): | -20 - 65 | Power: | 100W 150W 200W 250W |
| High Light: | 250W UFO LED High Bay Light,100W UFO LED High Bay Light,IP65 led ufo high bay 100w |
||

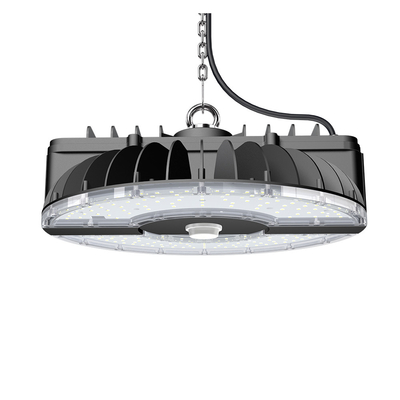

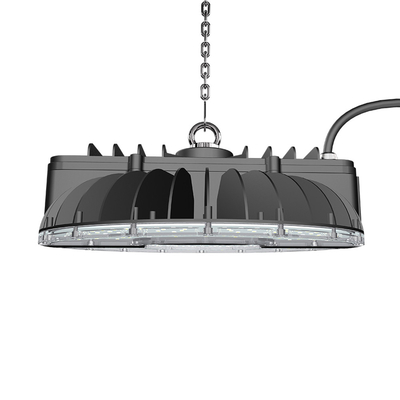

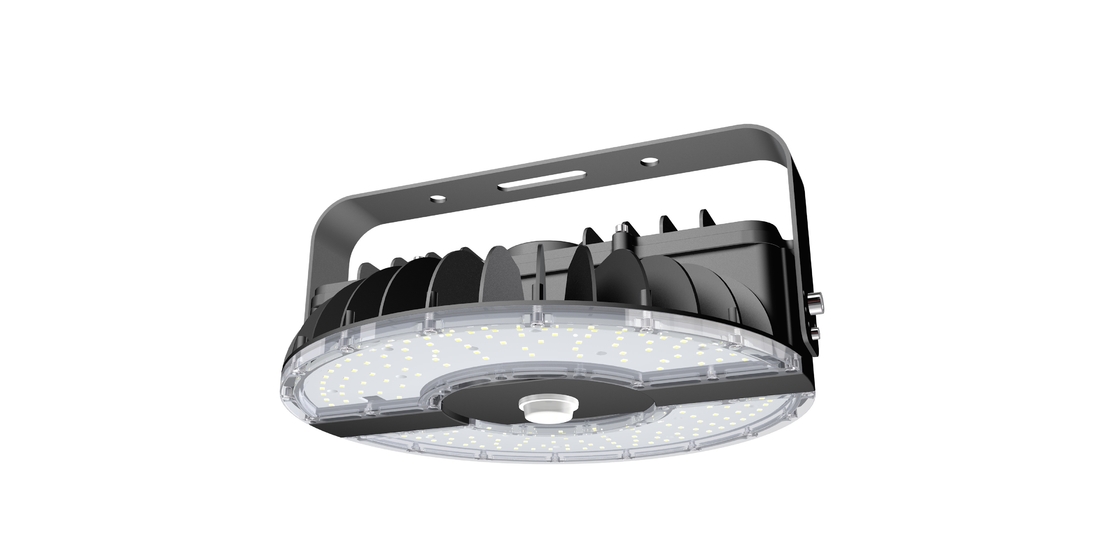

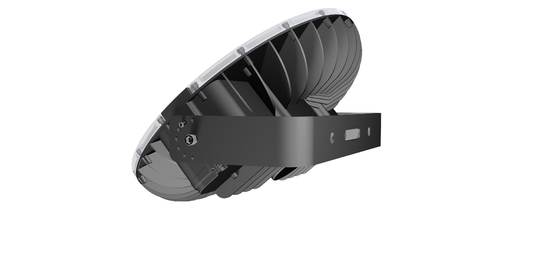

100W ~250W IP65 waterproof LED high bay fixtures 180lm/w high efficacy
Features:
▪ Ultra slim heat sink design makes the lamp lighter and better in heat dissipation
▪ High lumen SMD3030 chip, luminous efficacy 180lm/w
▪ Waterproof IP65,high thermal conductivity housing
▪ Beam angle 120 degree PC lens with transmittance 92%
▪ Support all kinds of intelligent sensors(Microwave, Daylight, Camera)
Specifications:
Technical Data
| Model Number | CODT-HB100W-H3 | CODT-HB150W-H3 | CODT-HB200W-H3 | CODT-HB250W-H3 |
| Power | 100W | 150W | 200W | 250W |
| Luminous Efficacy | 160lm/W | 160lm/W | 160lm/W | 160lm/W |
| Lumen Output | 16000lm | 24000lm | 32000lm | 40000lm |
| LED Quantity | 154pcs | 210pcs | 288pcs | 308pcs |
| Dimension | φ340*113mm | |||
| CCT | 3000K 4000K 5000K 6000K (Custom Option) | |||
| CRI | >80Ra | |||
| System Efficiency | ≥90% | |||
| Lens | 120° | |||
Electrical Details
| Input Voltage | AC100-277V/347V/480V |
| Power Frequency | 50-60Hz |
| Output Voltage | DC36-48V |
| Power Efficiency | >92% |
| Power Factor | ≥0.95 |
| Total Harmonic Distortion | ≤15% |
| Dimmable | Yes (Optional) |
Other Details
| IP Rating | IP65 |
| Lifespan | 100,000+ Hours |
| Storage Temperature | -20º~65ºC |
| Operating Temperature | -20º~65ºC |
| Luminaire Net Weight | 4.7KG(100W) 4.8KG(150W) 4.9KG(200W) 5KG(250W) |
| Certification | UL,DLC Premium,SAA,TUV,VEET,CB |
| Color of housing | Black(customized) |
Packing Information
| Part Number | N.T(KGS) | G.W(KGS) | Pcs/Carton | Carton Size (cm) |
| CODT-HB100W-H3 | 5.7 | 8.5 | 1 | 46*46*20 |
| CODT-HB150W-H3 | 6.5 | 8.5 | 1 | 46*46*20 |
| CODT-HB200W-H3 | 6.5 | 8.5 | 1 | 46*46*20 |
| CODT-HB250W-H3 | 6.5 | 9 | 1 | 46*46*20 |
Application:
FAQ:
Q1. Can I have a sample order for led light?
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
Q2. What about the lead time?
A: 3-5 days for Sample preparing ,8-10 working days for mass production.
Q3. Do you have any MOQ limit for led light order?
A: Low MOQ, 1pc for sample checking is available.
Q4. How do you ship the goods and how long does it take to arrive?
A: Ship by DHL, UPS, FedEx or TNT. It takes 3-5 days to arrive. Airline and sea shipping also optional.
