Product Details:
|
| Battery: | Rechargable | Light Source: | LED |
|---|---|---|---|
| Warranty: | 5 Years | Power: | 1-15W |
| Application: | Walking, Household Emergency Lighting, Camping, Hiking, Corridor Stairs Warehouses | IP: | IP66 |
| Highlight: | IP66 fire exit emergency lighting,15W fire exit emergency lighting,1W exit light fixtures |
||

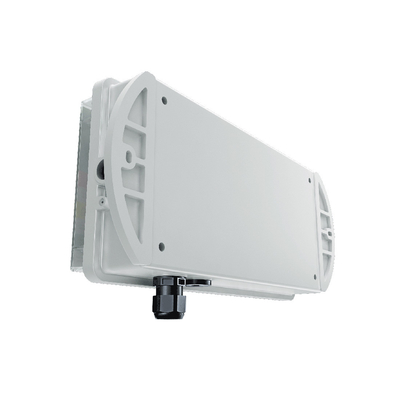

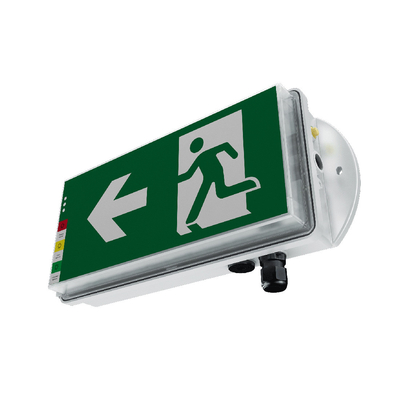

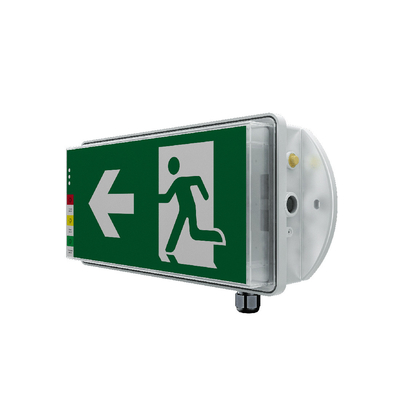

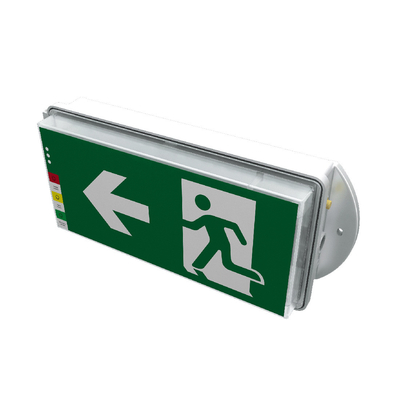

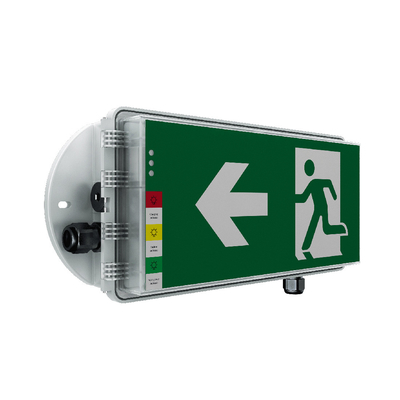

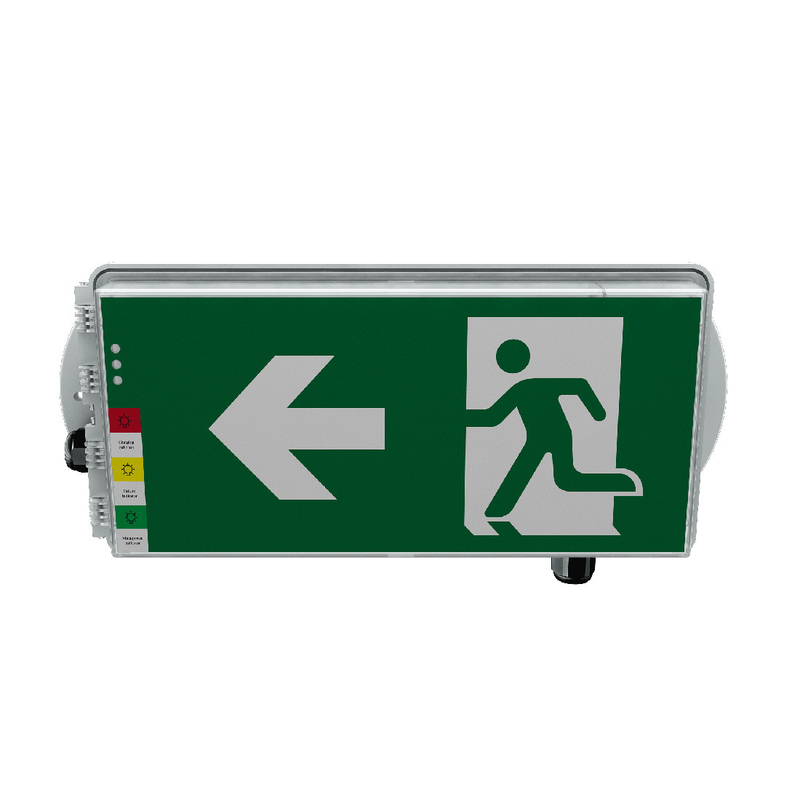

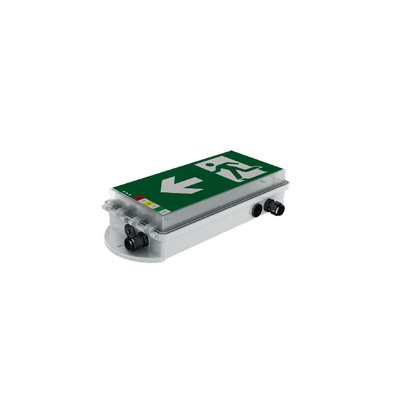

Wholesale Custom Running Man Wall Mount Hanging Fire Acrylic Emergency Light Sign Exit Board led emergency light ES01
Marking ATEX
II 2 G Ex db mb eb q IIC T5/T6 Gb
II 2 D Ex tb IIIC 80°C/100°C Db IP66
Marking IECEx
Ex db mb eb q IIC T5/T6 Gb
Ex tb IIIC 80°C/100°C Db IP66
Other Rating
IP 66
Suitable for wall, ceiling or pendant mounting.
Can be fitted to order with emergency exit signs.
Central locking.
Label content customizable.
Low working wattage for energy saving.
Excellent leakproofness up to IP66.
15w version available, switchable to ordinary illumination.
Working Temperature: -20℃ ~ +60℃
Value-Added Features
Up to 5 years limited warranty option.
Emergency time at least 180 minutes.
Up to 50,000 hours lifespan
| Model | Wattage | CCT | Voltage Options | Warranty | Emergency Time |
| EX-1W ES01YZDA | 1 | Non | AC100-277V AC/DC12-36V | 5 years | 3 hours |
| EX-2W ES01YZDA | 2 | ||||
| EX-3W ES01YZDA | 3 | ||||
| EX-15W ES01YZDA | 15 | 2200k-7000k |
| Model | Quantity/Ctn | Length(mm) | Width(mm) | Height(mm) | Net weight(kg) | Gross weight(kg) |
| ES01 | 2 | 580 | 590 | 210 | 3.5 | 8.3 |
READ INSTRUCTIONS CAREFULLY BEFORE INSTALLATION. KEEP THIS INSTRUCTIONS FOR FUTURE REFERENCE.
Fixtures must be wired in accordance with the National electrical code and all applicable local codes. Proper grounding is required for safety.
THIS PRODUCT MUST BE INSTALLED IN ACCORDANCE WITH THE APPLICABLE INSTALLATION CODE BY QUALIFIED ELECTRICIAN WHO IS FAMILIAR WITH THE CONSTRUCTION AND OPERATION OF THE PRODUCT AND THE HAZARDOUS INVOLVED.
Warning: Risk of fire or electric shock. Emergency light installation requires knowledge of luminaires and electrical systems. DO NOT open the enclosure when energized. DO NOT try to install if not qualified. Please contact a professional electrician
Warning: Risk of fire or electric shock. Suitable for wet locations. Make sure the power is off prior to installation.
Warning: Risk of fire or electric shock. Suitable for non-insulated surface and frame. DO NOT cover fixture with insulation liner or similar material.
Warning: DO NOT install in unstable, loose or breakable surfaces.
Warning: DO NOT let objects impact or exert force on the surface of the fixture
Q1. What about the lead time?
A: 3-5 days for Sample preparing ,8-10 working days for mass production.
Q2. Do you have any MOQ limit for led light order?
A: Low MOQ, 1pc for sample checking is available
