Product Details:
|
| Light Source: | LED | Ip Rating: | IP66 |
|---|---|---|---|
| Item Type: | Led Street Light | Application: | ROAD, Highway, Garden, Courtyard, Outdoor |
| Highlight: | 300w integrated solar street light,200w integrated solar street light,150w led street lamp solar |
||

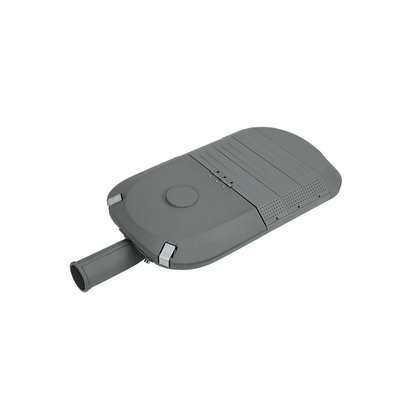

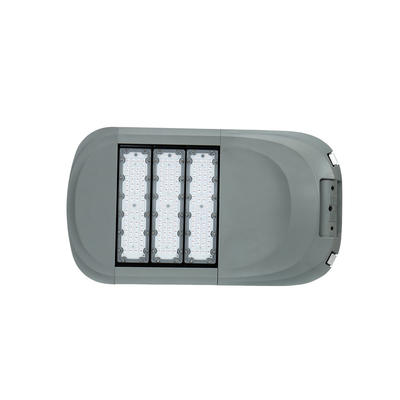

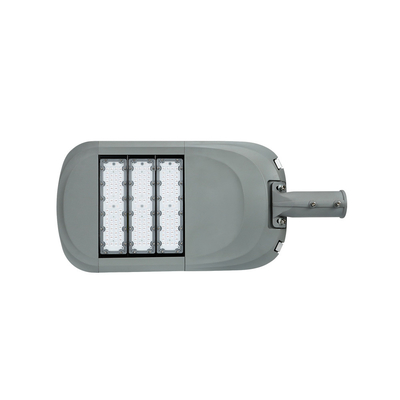

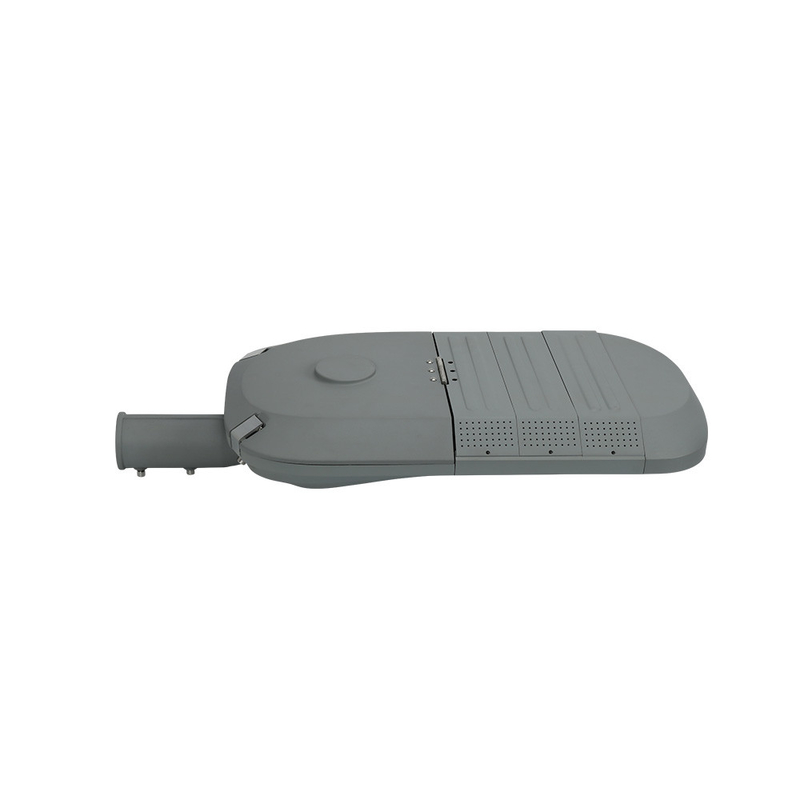

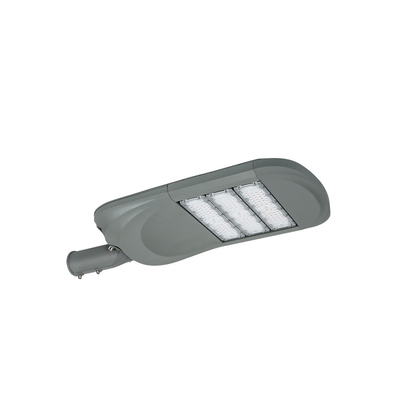

Waterproof Integrated 150 200w 300w Lights Road Outdoor Lamp Power All In One Led Solar Street Light K series
this highly efficient, low energy-consumption street light to bring you convenience and safety at outdoor areas. Aesthetic factors are considered in the design in order to beautify the city landscape. Technology innonovations are made to ensure that the light can withstand tough environments, and to reduce the maintenance cost to the minimum.
APPLICATION
AREAS Urban & residential Streets/Bridges/Bike & Pedestrian path/Railway stations & Metros/Car parks & Squares
FEATURES
■ Using high-power LED chips (3030/5050).
■ This fixture can be compatible with power supply of any brands.
■ The heat sink is integrated with the housing and the LED is closely connected with the housing. The air convection heat dissipation through the housing cooling fins fully guarantees the 50,000-hour service life of the LED street light.
■ The housing is made of die-casting aluminum, and with the sophisticated design, the fixture can effectively dissipate heat and prevent water and dust penetration (IP66).
■ The surface of the fixture is treated with UV-resistant and anti-corrosion powder coating.
■ Using standard ADC12 die-casting aluminum, which does not contain polluting elements such as lead and mercury that will contaminate environment.
■this product independently, owning appearance patents and utility model patents.
| Model NO. | ST-K1xxxW UXYZ | ST-K2xxxW UXYZ | ST-K3xxxW UXYZ | ST-K4xxxW UXYZ |
| Input Voltage | AC 100-277V | AC 100-277V | AC 100-277V | AC 100-277V |
| Power Consumption(±5%) | 50W | 100W | 150W | 200W |
| Power Factor | >0.95 | >0.95 | >0.95 | >0.95 |
| Surge Protection | 10Kv | 10Kv | 10Kv | 10Kv |
| Intelligent Control | DALI/Photocell Sensor | DALI/Photocell Sensor | DALI/Photocell Sensor | DALI/Photocell Sensor |
| Dimmable | 0-10V/1-10V Dimmable | 0-10V/1-10V Dimmable | 0-10V/1-10V Dimmable | 0-10V/1-10V Dimmable |
| EPA | 0.13ft2 | 0.15ft2 | 0.18ft2 | 0.25ft2 |
| LED Chip | 3030 | 3030 | 3030 | 3030 |
| Efficency (±10%) | 1301 m/W | 130lm/W | 1301 m/W | 130lm/W |
| CCT | 2700K-6500K | 2700K-6500K | 2700K-6500K | 2700K-6500K |
| CRI | >70 | >70 | >70 | >70 |
| Beam Angle | T2M/T3M/T4M | T2M/T3M/T4M | T2M/T3M/T4M | T2M/T3M/T4M |
| IP Rating | IP66 | IP66 | IP66 | IP66 |
| IK Rating | IK08 | IK08 | IK08 | IK08 |
| Vibration Test | 3G | 3G | 3G | 3G |
| Working Temperature | -40℃(-40°F) - +50℃(122°F) | -40℃(-40°F) - +50℃(122°F) | -40℃(-40°F) - +50℃(122°F) | -40℃(-40°F) - +50℃(122°F) |
| Lifespan | 50,000 Hours | 50,000 Hours | 50,000 Hours | 50,000 Hours |
| Warranty | 5 Years | 5 Years | 5 Years | 5 Years |
| Net Weight | 3.3kg(73lbs) | 3.8kg(8.4lbs) | 4.6kg(10.1lbs) | 6.8kg(15.0lbs) |
| Gross Weight | 5.0kg(11.0lbs) | 5.5kg(12.1lbs) | 6.5kg(14.3lbs) | 8.6kg(19.0lbs) |
| Product Dimension(mm/inch) | 483x230x127(19.0x9.1x5.0) | 548x230x127(21.6x9.1x5.0) | 598x257x129(23.5x10.1x5.1) | 655x320x131(25.8x12.6x5.2) |
| Packing Size(mm/inch) | 417x264x155(16.4x10.4x6.1) | 482x272x160(19.0x10.7x63) | 542x302x160(21.3x11.9x63) | 654x320x131(25.7x12.6x5.2) |
PHOTOMETRIC DIAGRAMS
Specialized anti glare optical lens to deliver asymmetrical lighting solution T2M/T3M/T4M
FAQ
Q1. Can I have a sample order ?
Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
Q2: Do you offer guarantee for the products?
Yes, we offer 2-5 years warranty to our products.
Q3: How to deal with the faulty?
Firstly, Our products are produced in strict quality control system and the defective rate will be less than 0.2%.
Secondly,during the guarantee period, we will send new lights with new order for small quantity. For defective batch products, we
will repair them and resend them to you or we can discuss the solution including re-call according to real situation.
