Product Details:
|
| Item Type: | Explosion- Proof Lights | Ip Rating: | 66/67 |
|---|---|---|---|
| Working Temperature(℃): | -60-75 | Color: | Gray |
| Material: | Stainless Steel | Warranty: | 5 Years |
| Highlight: | Stainless Steel Lighting Accessories,IP67 Lighting Accessories,IP66 explosion proof enclosures |
||

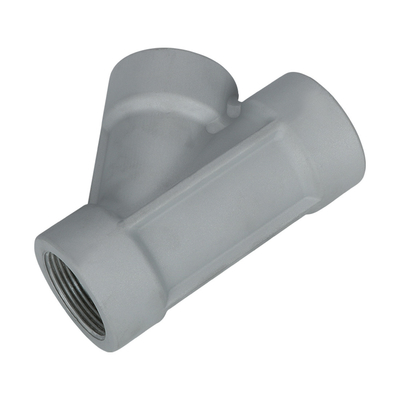

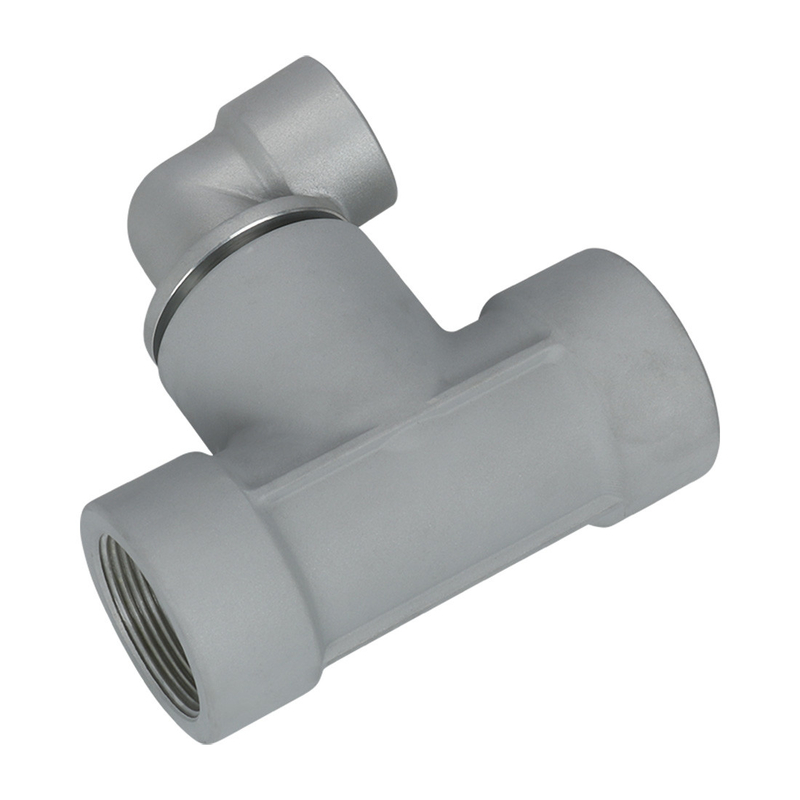

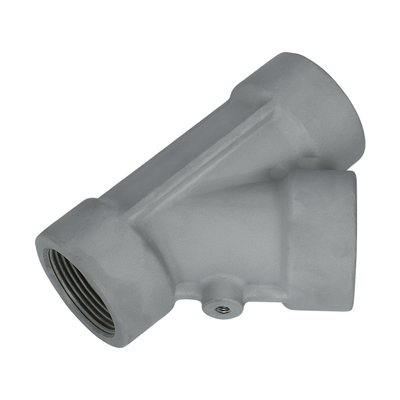

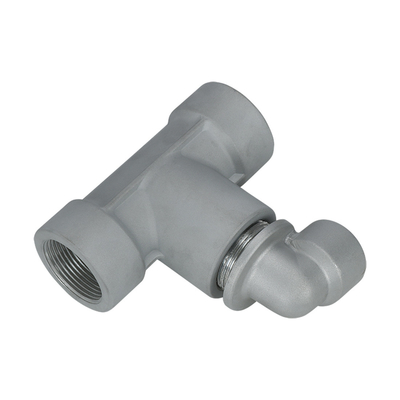

Explosion Seal Bushings for isolating seal between pipes and explosion-proof enclosures AG
Copper free aluminum, plastic-sprayed surface.
Widely used for isolating seal between pipes and explosion-proof enclosures.
Five types available .
Degree of protection: IP66-IP67.
Marking ATEX
Ⅱ 2 G Ex db ⅡC Gb/Ⅱ 2 G Ex eb ⅡC Gb
Ⅱ 2 D Ex tb ⅢC Db IP66
Marking IECEx
Ex db ⅡC Gb/Ex eb ⅡC Gb
Ex tb ⅢC Db IP66
Marking UL1203: Class I, Division 1, Groups A, B, C, D
Class I, Division 2, Groups A, B, C, D
Class II, Division 1, Groups E, F, G
Class II, Division 2, Groups F, G
Class III
Standard: EN 60079-0,EN 60079-7,EN 60079-31 IEC 60079-0,IEC 60079-7,IEC 60079-31
Ambient Temperature: -60℃ ~ +75℃
Structure Type: Z.H.P
Connection Thread:
1. Metric thread is standard type. NPT or other threads are optional, and please specify when ordering.
2. The standard thread pitch of metric thread is 1.5mm.
Other pitches can be customized, and please specify when ordering.
3. No filler for standard design, please specify when ordering
| Internal thread "H” | Dimension(mm) | Cable outer diameter(mm) | |
| Metric | NPT | A*B | |
| M20*1.5 | ½ | 100*62 | 8~10 |
| M25*1.5 | ¾ | 108*69 | 10~14 |
| M32*1.5 | 1 | 118*78 | 12~17 |
| M40*1.5 | 1 1/4 | 129*90 | 15~23 |
| M50*1.5 | 1 1/2 | 140*97 | 17~26 |
| M63*1.5 | 2 | 159*110 | 25~35 |
| M75*1.5 | 2 1/2 | 190*135 | 30~50 |
| M90*1.5 | 3 | 210*147 | 38~57 |
| M100*1.5 | 3 1/2 | 230*167 | 40~70 |
| M115*1.5 | 4 | 240*183 | 48~80 |
| Internal thread "H” | Dimension(mm) | Cable outer diameter(mm) | |
| Metric | NPT | A*B | |
| M20*1.5 | ½ | 83*61 | 8~10 |
| M25*1.5 | ¾ | 94*72 | 10~14 |
| M32*1.5 | 1 | 109*86 | 12~17 |
| M40*1.5 | 1 1/4 | 129*102 | 15~23 |
| Internal thread "H” | Dimension(mm) | Cable outer diameter(mm) | |
| Metric | NPT | A*B | |
| M20*1.5 | ½ | 94*107 | 8~10 |
| M25*1.5 | ¾ | 108*112 | 10~14 |
| M32*1.5 | 1 | 118*118 | 12~17 |
| M40*1.5 | 1 1/4 | 129*129 | 15~23 |
| M50*1.5 | 1 1/2 | 140*142 | 17~26 |
| M63*1.5 | 2 | 159*155 | 25~35 |
| M75*1.5 | 2 1/2 | 190*185 | 30~50 |
| M90*1.5 | 3 | 210*202 | 38~57 |
| M100*1.5 | 3 1/2 | 230*215 | 40~70 |
| M115*1.5 | 4 | 240*242 | 48~80 |
| Internal thread "H” | Dimension(mm) | Cable outer diameter(mm) | |
| Metric | NPT | A*B | |
| M20*1.5 | ½ | 83*61 | 8~10 |
| M25*1.5 | ¾ | 94*72 | 10~14 |
| M32*1.5 | 1 | 109*86 | 12~17 |
| M40*1.5 | 1 1/4 | 129*102 | 15~23 |
| Internal thread "H” | Dimension(mm) | Cable outer diameter(mm) | |
| Metric | NPT | A*B | |
| M40*1.5 | 1 1/4 | 129*129 | 15~23 |
| M50*1.5 | 1 1/2 | 140*136 | 17~26 |
| M63*1.5 | 2 | 159*155 | 25~35 |
| M75*1.5 | 2 1/2 | 190*169 | 30~50 |
| M90*1.5 | 3 | 210*203 | 38~57 |
| M100*1.5 | 3 1/2 | 230*229 | 40~70 |
| M115*1.5 | 4 | 240*242 | 48~80 |
Q1. How do you ship the goods and how long does it take to arrive?
A: Ship by DHL, UPS, FedEx or TNT. It takes 3-5 days to arrive. Airline and sea shipping also optional.
Q2. Can I have a sample order for led light?
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
