Product Details:
|
| Material: | Copper-free Aluminum | Ip Rating: | 20 |
|---|---|---|---|
| Working Temperature(℃): | -20-40 | Input Voltage(v): | AC100-240V |
| Color Temperature(cct): | 3000k-6500k | Working Lifetime(hour): | 50000,100000 |
| Highlight: | 240V Remote Area Lighting System,100V Remote Area Lighting System,6500k remote area lighting |
||
Remote Area Lighting System MV01
ATEX Marking:II 1G Ex ia IIC T4 Ga
IECEx Marking: Ex ia IIC T4 Ga
UL913 Marking (North American):
Class I, Division 1, Groups A, B, C and D, T4
Ex ia IIC T4 Ga
Class I, Zone 0, AEx ia IIC T4 Ga
Housing:IP20
Lamp head and power box: IP65
Good visibility is the precondition for works of any kind to go smoothly, especially in hazardous locations. MV01 Remote Area Light illuminates work sites, ensuring impeccable visibility and safety for workers. The 125° beam angle along with the lumens ranges from 500 to 1600, MV01 is the first choice for dim working sites or night work. With UL Class 1 Division 1 certification, MV01 is applicable for the safe operation in various inflammable and explosive locations. This portable light can be carried into confined spaces due to its lightweight and compact design. The lamp mast is retractable; it can be extended to 35 inches at most. And with a 360° rotation head, it is easy to adjust to a desirable illumination angle. Power shortage is not an issue for MV01, given that it can work continuously for up to 10 hours on a single charge according to the battery test. MV01 has dual light modes (High/Low) and is equipped with a visible low battery warning indicator. From freezing cold (-4°F/- ) to intense heat (104°F/ ), nothing stops the 20℃ 40℃ MV01 from performing its duty.
Three pre-set lighting output levels.
High efficiency: up to 1,600 lumens.
Up to 10 hours of running time.
Low battery level warning with indicator flashing.
Deployable mast with 360° rotation.
Multiple deployment positions.
Working temperature: -4°F ~ 104°F(-20 ~ 40 ℃ ℃).
Beam angle: 125°.
NiMH rechargeable battery.
Body: Polycarbonate(PC)
Head: Aluminum alloy
Lens: Polycarbonate(PC)
High Visibility Yellow
Run Time(High): 5 hours
Run Time(Low): 10 hours

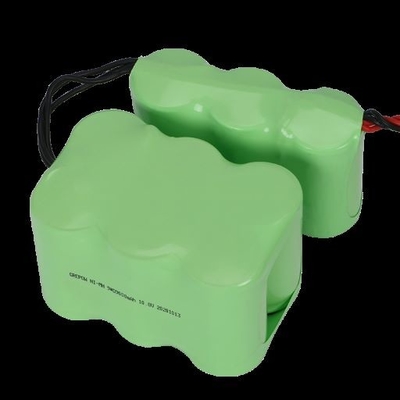

Battery Type: Ni-MH
Battery Capacity: 10.8V, 9Ah
Battery Lifespan: 500 cycles
Wattage: 5W-19.5W

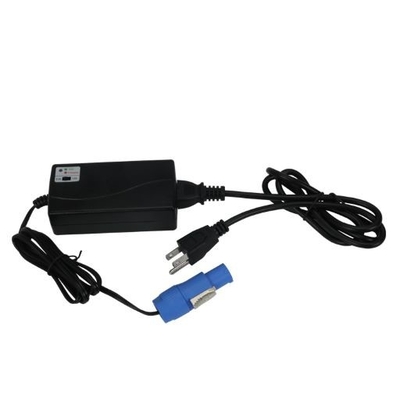

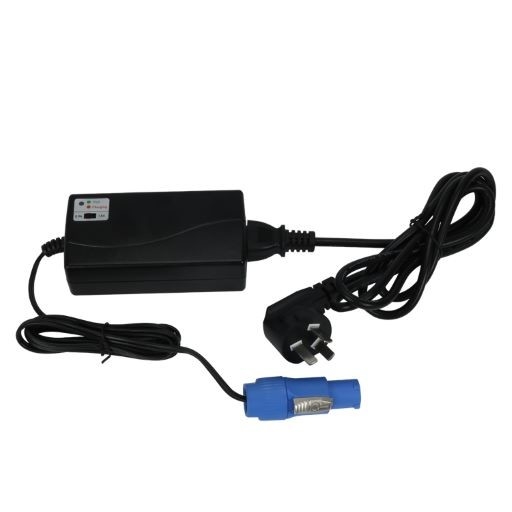

Charge Time: 7 hours (1.8A); 14 hours (0.9A)
Charge Voltage: DC10.8V-14.4V
Low Battery Warning (30 mins left): The indicator will flash 30 times continuously every 10 minutes
(2Hz) Voltage: 10.8V (Battery), AC100-240V (Charger)
| Model | Lumens(Strong Light) | Lumens(Work Light) | Lamp Head | Beam Angle | CCT | Ingress Protection | Model |
| EX-MV01 | 1600Im | ≥500Im | 1 | 125° | 3000k-6500k | IP20 | High/Low/Flashing |
| Model | Dimension(LxW) | Deployable Height 1 | Deployable Height 2 | Carton Size(LxWxH) | N.W(kg) |
| EX-MV01 | 14.0*8.1inch | Min 22.3inch/566mm | Min 25.0inch/635mm | 22.4*13.8*14.4inch | 7 |
| 355*206mm | Max 31.5inch/800mm | Max 35.8inch/909mm | 569*351*366mm |
Q1. What about the lead time?
A: 3-5 days for Sample preparing ,8-10 working days for mass production.
Q2. Do you have any MOQ limit for led light order?
A: Low MOQ, 1pc for sample checking is available.
