Product Details:
|
| Material: | Copper-free Aluminum | Item Type: | Explosion- Proof Lights |
|---|---|---|---|
| Color Temperature(cct): | Pure White, Cool White ,warm White | Ip Rating: | 66 |
| Input Voltage(v): | AC100-277V/DC12-48V | Warranty: | 5 Years |
| High Light: | IP66 fire exit emergency lighting,48V fire exit emergency lighting,Explosion Proof fire exit led light |
||

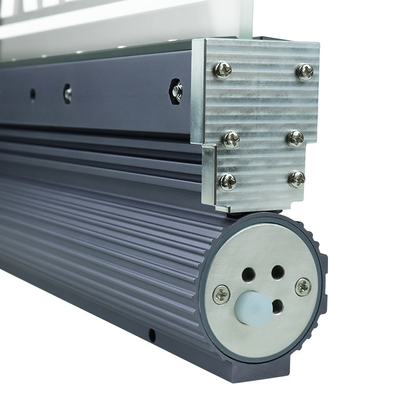

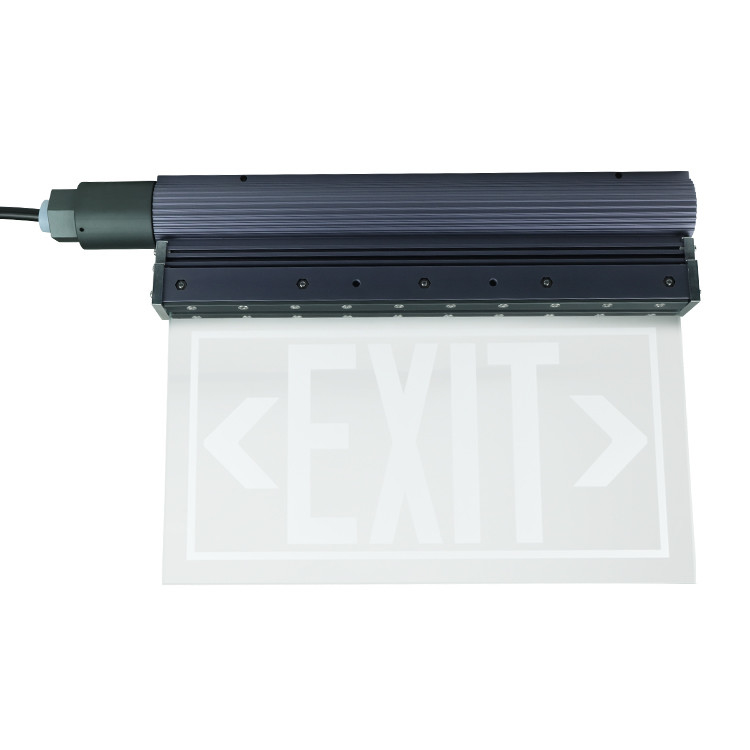

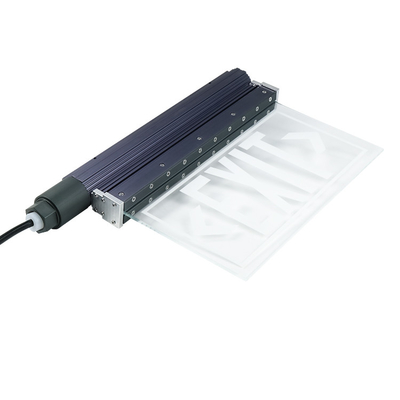

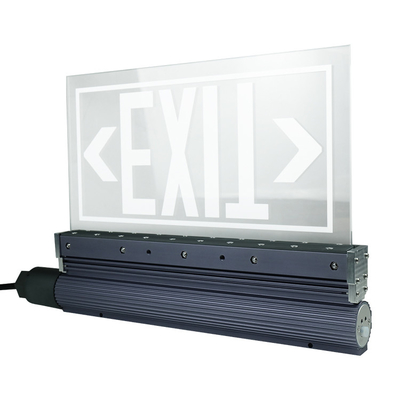

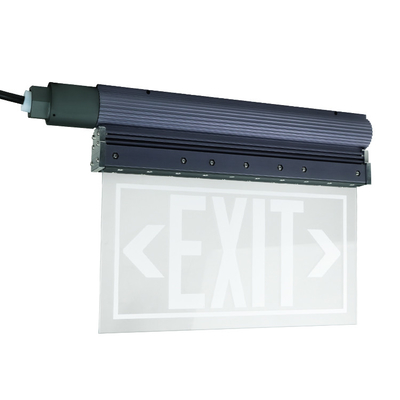

Exit Light Fire Safety Exit Plate Lamp Emergency Light V SERIES
Marking ATEX
Il2 G Ex ib IIC T6 Gb
Il2 D Ex tb IIIC T80°C Db IP66
Marking IECEx
Ex ib IIC T6 Gb
Ex tb IIIC T80°C Db IP66
Marking Marine
UL 924
Marking UL844 (North American)
Class I, Division 2, Groups A, B, C, D
Class II, Division 1, Groups E, F, G
Class II, Division 2, Groups F, G
Class III
Ambient Temperature:
-4°F to 140°F(-20℃ to 60℃)
IP66
Housing: Aluminum
EXIT sign: Tempered glass
Hardware: Stainless steel
Mounting Sling: Stainless steel
Lightweight and compact structure.
Integrated junction box for driver with emergency backup.
Ingress protection rating IP66.
Low energy consumption (1W/2W/3W) 5 6
3-hour emergency operation
Stainless-steel exposed fasteners with high corrosion resistance.
High vibration and impact resistance.
Alternate exit legend and languages available.
5-year warranty.
Long lifespan up to 50,000 hours.
Working temperature ranges from -4°F(-20℃) to 140°F(60℃).
| Model | Wattage | Operating Voltage | CCT | Emergency Time |
| EX-1W VYZDA | 1W | AC100-277V/DC12-48V 50/60Hz | 2200k-7000k | 3 Hours |
| EX-2W VYZDA | 2W | |||
| EX-3W VYZDA | 3W |
| Model | Quantity/Carton | Packing Size(mm) | Net Weight(kg) | Gross Weight(kg) |
| V series | 2 PCS | 470*470*260 | 3.3 | 7 |
Q1. Can I have a sample order for led light?
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
Q3. Do you have any MOQ limit for led light order?
A: Low MOQ, 1pc for sample checking is available
