Product Details:
|
| Material: | Copper-free Aluminum | Power: | 10,20,30,40,50 |
|---|---|---|---|
| Ip Rating: | 66 | Input Voltage(v): | AC100-277V/DC12-48V AC200-480V |
| Cri (ra>): | 70 | Lamp Luminous Efficiency(lm/w): | 140 |
| High Light: | class 1 division 1 led lighting 2200K ATEX,ATEX class 1 division 1 led lighting 2200K,2200K ATEX class 1 division 1 led lighting |
||

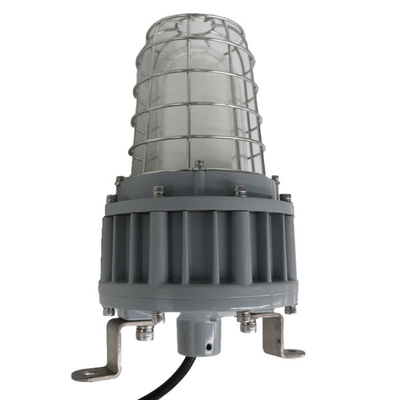

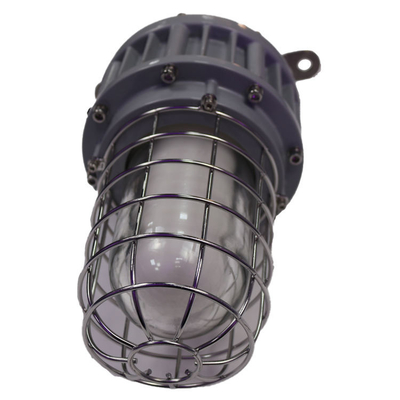

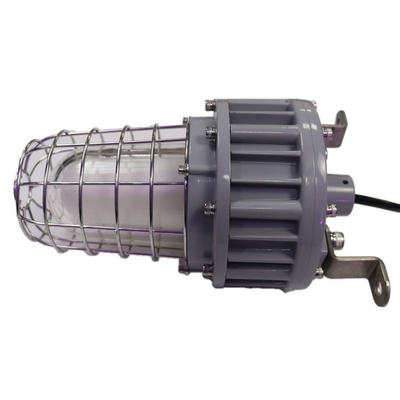

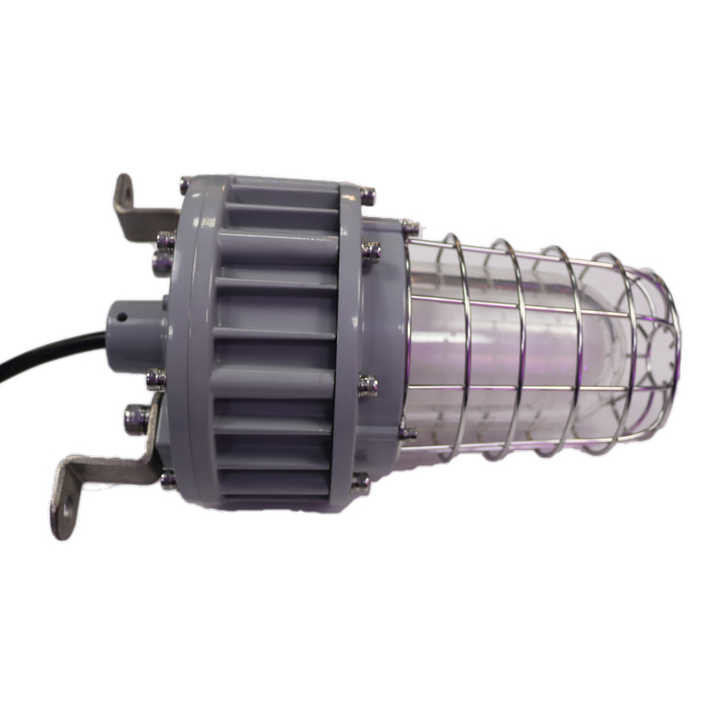

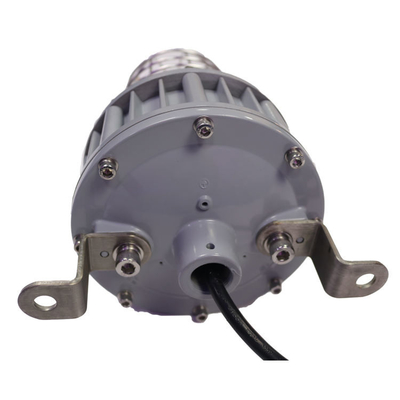

class 1 division 1 led explosion proof light 10~50W ATEX Certified LED Explosion Proof High Bay Fixtures-G SERIES
Marking UL844 (North American)
Class I, Division 1, Groups C, D
Class I, Division 2, Groups A, B, C, D
Class II, Division 1, Groups E, F, G
Class II, Division 2, Groups F, G
Class III
Marine Marking
UL1598, UL1598A
ABS
Other Rating
IP 66
IK 10
Housing:Copper free aluminum
Diffuser:Tempered glass
Bolts:Stainless steel
Mounting:Bracket :Stainless steel
10kV surge protection.
Up to ten years limited warranty option.
Low temperature applications to -40°C (-40°F) and high temperature up to 65°C (149°F).
Various installation ways for different applications.
Emergency battery backup is optional.
Customized motion sensor is optional.
Advanced smart system: WIFI & BLUE-TOOTH (optional).
Adopt glass lens or glass with polycarbonate lens to make wider beam angle.
! WARNING Risk of fire, electric shock or personal injury. Please turn off power before installation!
READ INSTRUCTIONS CAREFULLY BEFORE INSTALLING. KEEP THIS INSTRUCTIONS FOR FUTURE REFERENCE.
THIS PRODUCT MUST BE INSTALLED IN ACCORDANCE WITH THE APPLICABLE INSTALLATION CODE BY QUALIFIED ELECTRICIAN WHO IS FAMILIAR WITH THE CONSTRUCTION AND OPERATION OF THE PRODUCT AND THE HAZARDOUS INVOLVED.
Fixtures must be wired in accordance with the National electrical code and all applicable local codes. Proper grounding is required for safety.
Risk of fire or electric shock. Exit light installation requires knowledge of luminaires and electrical systems. DO NOT open the enclosure when energized. DO NOT try to install if not qualified. Please contact a professional electrician.
Risk of fire or electric shock. Suitable for wet locations. Make sure the power is o ffprior to installation.
Risk of fire or electric shock. Suitable for non-insulated surface and frame. DO NOT cover fixture with insulation liner or similar material.
DO NOT install in unstable, loose or breakable surfaces.
DO NOT let objects impact or exert force on the surface of the fixture.
| Model | Wattage | Operating Voltage | Lumens(Im) | Efficacy(Im/W) | CRI | CCT | Emergency Time(Optional) |
| EX-10W GYZDA | 10W | AC100-277(by driver)or DC12-48V | 1400 | 140 | >70 | 2200K-7000K | 3 hours |
| EX-20W GYZDA | 20W | 2800 | |||||
| EX-30W GYZDA | 30W | 4200 | |||||
| EX-40W GYZDA | 40W | 5600 | |||||
| EX-50W GYZDA | 50W | 700 |
| Model | Quantity/Ctn | Length(cm) | Width(cm) | Height(cm) | Net(KG) | Gross(KG) |
| G | 1 | 38 | 26.5 | 25.5 | 4.65 | 5.4 |
| G(+25° pole stanchion) | 1 | 51 | 56 | 26 | 6.5 | 8 |
Q1. Do you have any MOQ limit for led light order?
A: Low MOQ, 1pc for sample checking is available.
Q2. How do you ship the goods and how long does it take to arrive?
A: Ship by DHL, UPS, FedEx or TNT. It takes 3-5 days to arrive. Airline and sea shipping also optional.
